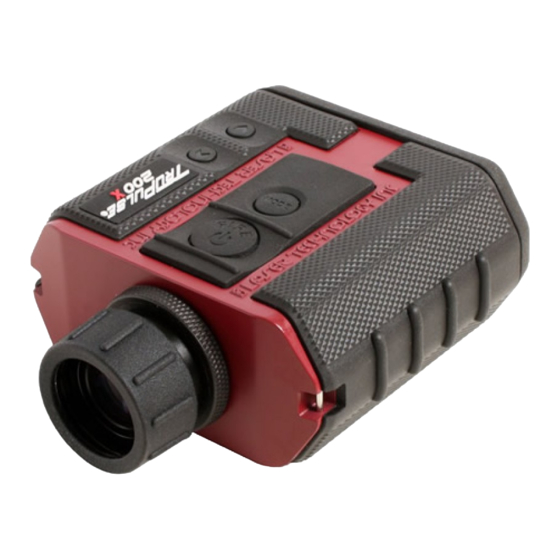

TruPulse
200X
Quick Reference
Field Guide
LTI Part #0144893

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TruPulse 200X and is the answer not in the manual?

Questions and answers

Related Manuals for Laser Technology TruPulse 200X

Summary of Contents for Laser Technology TruPulse 200X

  • Page 1 ® TruPulse 200X Quick Reference Field Guide LTI Part #0144893...
  • Page 2 ® LTI Technical Support: TruPulse 200X Toll Free: 1.877.696.2584 Mode Button Forward Button Phone: 1.303.649.1000 Email: support@lasertech.com Back Button Web: www.lasertech.com LTI Hours of Operation: Fire Button Monday through Friday 8:00 am to 5:00 pm (MST) (Excluding Holidays) LTI Corporate Headquarters: ®...
  • Page 3 Closest Inclination ® TruPulse 200X Display Indicators: Farthest Gate Continuous Slope Distance Filter Horizontal Feet Distance Inches Vertical Distance Meters Missing Line Centimeters Upper and Lower Height Yards Main Display Laser Status Percent Cross hair / Aiming Point Degrees Battery Life...
  • Page 4 Measured by TruPulse: ® TruPulse 200X Values & Key Code: Calculated by TruPulse: 1-Shot Distance: 2-Shot Missing Line: = Horizontal Distance = Slope Distance = Vertical Distance = Height = Inclination = Missing Line 2-Shot Height: 3-Shot Height: = Fire Button = Mode Button = Forward Button = Back Button...
  • Page 5 Change Display Brightness Level: [1] Press until . [2] Press until desired brightness level . [3] Press to accept the brightness level. Change Units of Measurements: [1] Press until [2] Press to scroll through unit options [3] Press to accept the units of measurement Helpful Tip: The default units of measurements are meters, centimeters and degrees.

  • Page 6: Filter Mode

    Filter Mode: [1] Press until . [2] Press to choose . [3] Press to accept selection. Continuous Mode: [1] Press until . [2] Press to choose [3] Press to accept selection. Helpful Tip: When Filter mode is ON, make sure you have the foliage filter attached to the receive lens and that you are shooting to a reflective target.

  • Page 7: Helpful Tips

    Targeting Mode: [1] Press until . [2] Press to choose mode: Standard ; Farthest ; Closest [3] Press to accept selection. Helpful Tips: [1] Targeting mode is not accessible when filter mode is on. [2] Filter symbol , continuous mode symbol and any other mode symbol will show on right side of the main display when activated.

  • Page 8: Gate Function

    Gate Function: In this mode, the TruPulse 200X will only acquire targets beyond the selected gate value. [1] Press until . [2] Press to choose on or off . [3] With Gate ON, press to change the value. [4] Press and release...
  • Page 9 ® Turn On or Off Bluetooth [1] Press until . [2] Press to choose Bluetooth on or EnC . [3] Press to accept selection. Helpful Tips: [1] Each time the TP200X is powered ON, it will retain the same settings that were last set/used.

  • Page 10: Measure Distance

    Measure Distance: In HD Mode, it will automatically measure SD and INC, then calculate VD and HD. The values will output via serial and/or Bluetooth. Measurements are from the center of laser to target. [1] Press until is displayed. [2] Aim at target where you have a clear line of sight then long press [3] Press to scroll through SD...
  • Page 11 Measure Height in 3 Shots: This routine is ideal for flat, vertical objects that do not lean. To shoot through brush, use the Filter Mode, foliage filter and a reflector. [1] Press until is displayed. [2] Aim anywhere you have a clear line of sight and long press Aim to the bottom and long press...
  • Page 12 Measure Height in 2 shots: The 2-shot HT works well on leaning objects but requires a clear line of sight for both shots. [1] Press until displayed. [2] Aim at the top of the target and long press . Note the value. [3] Aim to the bottom of the target and long press .
  • Page 13 Measure 2-D Missing Line: Position yourself where shot 1 and 2 are made looking in the same direction with a clear line of site to both targets. The exception is the VD solution, which will always be accurate no matter which direction shot 1 and 2 are taken.
  • Page 14 www.lasertech.com...
