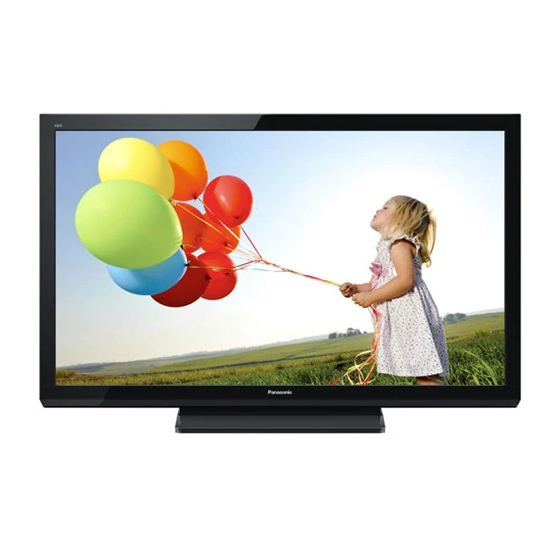

Panasonic TH-P50X50D Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Plasma TV
  5. Viera TH-P50X50D
  6. Service manual

Panasonic TH-P50X50D Service Manual

Hide thumbs Also See for TH-P50X50D:
Table of Contents

Advertisement

Quick Links

TH-P50X50D
Model No.
TH-P50X50G
TH-P50X50K
TH-P50X50M
TH-P50X50P
TH-P50X50S
TH-P50X50V
TH-P50X50Z
GPF15D-A Chassis
© Panasonic Corporation 2012.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.PAVCTH1203008CE
Plasma Television

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TH-P50X50D

Summary of Contents for Panasonic TH-P50X50D

  • Page 1 ORDER NO.PAVCTH1203008CE Plasma Television TH-P50X50D Model No. TH-P50X50G TH-P50X50K TH-P50X50M TH-P50X50P TH-P50X50S TH-P50X50V TH-P50X50Z GPF15D-A Chassis © Panasonic Corporation 2012. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE 1 Safety Precautions -----------------------------------------------3 1.1. General Guidelines ----------------------------------------3 1.2. Touch-Current Check--------------------------------------3 2 Warning --------------------------------------------------------------4 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices ----------4 2.2. About lead free solder (PbF) ----------------------------5 3 Service Navigation------------------------------------------------6 3.1.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials. 2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units.

  • Page 4: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 5: About Lead Free Solder (Pbf)

    2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 6: Service Navigation

    3 Service Navigation 3.1. PCB Layout Board Name Function Power Supply, Sustain Drive Non serviceable. PSS-Board should be exchanged for service. Main AV input, processing Remote receiver, Power LED, C.A.T.S sensor Data Driver (Lower Right) Data Driver (Lower Left) Scan Drive...

  • Page 7: Applicable Signals

    3.2. Applicable signals COMPONENT (Y, P ) (from AV2 terminal), HDMI Signal name COMPONENT HDMI 525 (480) / 60i 525 (480) / 60p 625 (576) / 50i 625 (576) / 50p 750 (720) / 60p 750 (720) / 50p 1,125 (1,080) / 60i 1,125 (1,080) / 50i 1,125 (1,080) / 60p 1,125 (1,080) / 50p...

  • Page 8: Specifications

    4 Specifications Power Consumption (Z) Power rating AC 220-240 V, 50 / 60 Hz 1.4 A Normal (Home) mode 122 W Standby condition 0.4 W Power Source (Except Z) AC 220 - 240 V, 50 / 60 Hz (Except P) AC 110 - 240 V, 50 / 60 Hz (P) Power Consumption (Except Z) Power Rating...
  • Page 9 HDMI 1 / 2 input TYPE A Connectors • This TV supports "HDAVI control 5" function. HIGH-DENSITY D-SUB 15PIN 0.7 V [p-p] (75 Ω) R,G, B: HD, VD: TTL Level 2.0 - 5.0 V [p-p] (high impedance) • Applicable input signals: VGA, SVGA, WVGA, XGA SXGA, WXGA ..

  • Page 10: Technical Descriptions

    5 Technical Descriptions 5.1. Panel-Type setting Panel-Type setting is required after exchange the A-board. A-board for spare parts is common use for different inch size in same series. Go into Service Mode and confirm/select Panel-Type in OPTION to correct inch size. 6 Service Mode 6.1.

  • Page 11: Contents Of Adjustment Mode

    6.1.4. Contents of adjustment mode • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. Main item Sub item Sample Data Remark ADJUST...

  • Page 12: Option - Mirror

    6.2. Option - Mirror Picture can be reversed left and right or up and down. 00 : Default (Normal picture is displayed) 01 : Picture is reversed left and right. 02 : Picture is reversed up and down. Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in A-board.

  • Page 13: Drv Check - Usb Hdd Check

    6.4. DRV Check - USB HDD Check 1. Select [DRV Check - USBHDD Check] in Service Mode. 2. Press [OK] button on the remote control for more than 3 seconds. 6.5. Hotel mode Item Function 1. Purpose Hotel Mode Select hotel mode On/Off Restrict a function for hotels.

  • Page 14: Data Copy By Sd Card

    6.6. Data Copy by SD Card 6.6.1. Purpose (a) Board replacement (Copy the data when exchanging A-board): When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board. (b) Hotel (Copy the data when installing a number of units in hotel or any facility): When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other TVs.
  • Page 15 6.6.3. Data copy from TV set to SD Card 1. Turn on the TV set. 2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2770 (b) For Hotel : 4850 Data will be copied from TV set to SD card.
  • Page 16 6.6.4. Data copy from SD Card to TV set 1. Turn on the TV set. 2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2771 (b) For Hotel : 4851 Data will be copied from SD card to TV set.

  • Page 17: Troubleshooting Guide

    7 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 7.1. Check of the IIC bus lines 7.1.1. How to access 7.1.1.1. Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

  • Page 18: Power Led Blinking Timing Chart

    7.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit. Blinking Times Contents Check point...

  • Page 19: No Power

    7.3. No Power First check point There are following 3 states of No Power indication by power LED. 1. No lit 2. Green is lit then turns red blinking a few seconds later. (See Power LED Blinking timing chart) 3. Only red is lit.

  • Page 20: No Picture

    7.4. No Picture...

  • Page 21: Local Screen Failure

    7.5. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1...

  • Page 22: Disassembly And Assembly Instructions

    8 Disassembly and Assembly Instructions 8.1. Disassembly Flow Chart for the Unit This is a disassembly chart. When assembling, perform this chart conversely.

  • Page 23: Disassembly Procedure For The Unit

    8.2. Disassembly Procedure for the Unit 8.2.1. Remove the Pedestal stand 8.2.4. Remove the Key button 1. Remove the Plasma panel section from the servicing 1. Remove the screws (×2 stand and lay on a flat surface such as a table (covered 2.

  • Page 24: Remove The Speakers

    8.2.6. Remove the A-Board 8.2.8. Remove the SN-Board 1. Unlock the cable clampers and the tapes to free the 1. Remove the flexible cables (SN21, SN22, SN23, SN24, cables. SN25, AN26, SN27 and SN28) connected to the SN- 2. Disconnect the connectors (A1 and A12). Board.
  • Page 25 8.2.10. Remove the M8 nut metals 3. Remove the Cabinet assy from the Plasma panel section. 1. Remove the screw (×1 each) and remove the M8 nut metals. 8.2.13. Remove the Contact metal bottom 1. Remove the screws (×8 ) and remove the Contact metal bottom.

  • Page 26: Replace The Plasma Panel

    8.2.16. Replace the Plasma panel Caution: Place the Plasma panel on a flat surface of a table (covered by a soft cloth) and a cushion. A new Plasma panel itself without Contact metals is fragile. To avoid the damage to new Plasma panel, carry a new Plasma panel taking hold of the Contact metal bottom.

  • Page 27: Measurements And Adjustments

    9 Measurements and Adjustments 9.1. Adjustment 9.1.1. Vsus selection Caution: When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH. Procedure 1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed. 2.

  • Page 28: White Balance Adjustment

    9.1.2. White balance adjustment Name of measuring instrument Remarks Color analyzer (Minolta CS-2000 or equivalent) Procedure Remarks 1. Enter the Service mode. 2. Receive the Analog-RF (except for no signal) or set CVBS/YUV/HDMI (no signal is available). 3. Select [WB-ADJ] by using [1] and [2] key in the remote controller. 4.

  • Page 29: Block Diagram

    10 Block Diagram 10.1. Main Block Diagram MAIN AV INPUT,PROCESSING HDMI1-2 (HDMI2) TMDS DATA ETHERNET DATA HDMI I/F LAN CON I/F ETHERPHY ETHERNET USB I/F IFD_OUT TUNER I/F SIF_OUT TUNER SIF I/F PEAKS-sLD2 SD CARD DATA SD CARD I/F SD CARD V/YPbPr/RGB/YC YPbPr/RGB/YC AV IN...

  • Page 30: Block (1/4) Diagram

    10.2. Block (1/4) Diagram JK8600 SD CARD D3201 SPEAKER_L SPEAKER_R DIGITAL JK8602 JK8601 JK4700 JK4701 AUDIO TU4801 ETHERNET ANT IN HDMI1 HDMI2 MAIN AV INPUT,PROCESSING TUNER SD3.3V IC8601 DMD_ ETHERPHY IIC0 IC4900 X8600 AUDIO AMP Q4514 25MHz SOUND15V SUB5V SUB3.3V ASIC_SD3.3V X8300 24.576MHz...

  • Page 31: Block (2/4) Diagram

    10.3. Block (2/4) Diagram MAIN AV INPUT,PROCESSING IC9300 PD5L VIDEO DATA PLASMA AI VIDEO DATA LVDS DATA H/V Sync Control VIDEO DATA Sub Filed Processor VIDEO DATA IC9803 P+1.2V DCDC15V P+1.2V IIC0 DATA DRIVER CONTROL +1.2V 1.2V P+3.3V P+3.3V DCDCEN D_UHZ SOS_DCC SUB3.3V...

  • Page 32: Block (3/4) Diagram

    10.4. Block (3/4) Diagram PSS POWER SUPPLY,SUSTAIN DRIVE Vsus Vsus COLD COLD FREQUENCY RANGE (110Khz) FREQUENCY RANGE SUSOUT (120Khz) AC CORD F201 PLASMA B+(390V) PANEL EMI FILTER Vsus SUSTAIN CONTROL DC/DC SS-BLOCK P+5V HB LLC PANEL 15Vc SUSTAIN ELECTRODE STB5V OCP/OVP UVP/OVP FPC PROTECTOR...

  • Page 33: Block (4/4) Diagram

    10.5. Block (4/4) Diagram SCAN DRIVE Reference Voltage Vsus Lo : 189V TPVSUS IC16784,85 Vsus Hi : 194V Reference Voltage Vsus Vad = 205 PC16897 IPD CIRCUIT TPVAD T16471 IC16600 D16618 VAD GEN. IC16603 SHUNT REG CERS BUFFER NCPH Q16601 IC16501 Q16401 BUFFER...

  • Page 35: Wiring Connection Diagram

    11 Wiring Connection Diagram 11.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 11.2. Wiring (1)

  • Page 36: Wiring (2)

    11.3. Wiring (2) 11.4. Wiring (3)
  • Page 37 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Schematic Diagram Note...
  • Page 38 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Replacement Parts List Note...
  • Page 39 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (1/16)
  • Page 40 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (2/16)
  • Page 41 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (3/16)
  • Page 42 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (4/16)
  • Page 43 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (5/16)
  • Page 44 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (6/16)
  • Page 45 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (7/16)
  • Page 46 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (8/16) and K-Board S-10...
  • Page 47 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (9/16) S-11...
  • Page 48 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (10/16) S-12...
  • Page 49 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (11/16) S-13...
  • Page 50 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (12/16) S-14...
  • Page 51 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (13/16) S-15...
  • Page 52 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (14/16) S-16...
  • Page 53 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (15/16) S-17...
  • Page 54 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (16/16) S-18...
  • Page 55 Model No. : TH-P50X50D/G/K/M/P/S/V/Z C1-Board S-19...
  • Page 56 Model No. : TH-P50X50D/G/K/M/P/S/V/Z C2-Board S-20...
  • Page 57 Model No. : TH-P50X50D/G/K/M/P/S/V/Z SN-Board (1/4) S-21...
  • Page 58 Model No. : TH-P50X50D/G/K/M/P/S/V/Z SN-Board (2/4) S-22...
  • Page 59 Model No. : TH-P50X50D/G/K/M/P/S/V/Z SN-Board (3/4) S-23...
  • Page 60 Model No. : TH-P50X50D/G/K/M/P/S/V/Z SN-Board (4/4) S-24...
  • Page 61 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (Foil Side) S-25...
  • Page 62 Model No. : TH-P50X50D/G/K/M/P/S/V/Z A-Board (Component Side) S-26...
  • Page 63 Model No. : TH-P50X50D/G/K/M/P/S/V/Z K-Board S-27...
  • Page 64 Model No. : TH-P50X50D/G/K/M/P/S/V/Z C1-Board S-28...
  • Page 65 Model No. : TH-P50X50D/G/K/M/P/S/V/Z C2-Board S-29...
  • Page 66 Model No. : TH-P50X50D/G/K/M/P/S/V/Z SN-Board S-30...
  • Page 67 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks TZTNP01PKUD A-PRINT COMPLETE 1 (D) (RTL)PAVCTH TZTNP01PQUG A-PRINT COMPLETE 1 (G) (RTL)PAVCTH A-PRINT COMPLETE 1 (K) (RTL)PAVCTH TZTNP01PQUK TZTNP01PKUM A-PRINT COMPLETE 1 (M) (RTL)PAVCTH...
  • Page 68 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C3086 F1J1C106A224 C 10UF, 16V 1 PAVCTH C3108 F1G1E333A059 C 0.033UF, 25V 1 PAVCTH C3109 F1G1E333A059 C 0.033UF, 25V 1 PAVCTH C3110 F1J1C106A224 C 10UF, 16V...
  • Page 69 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C4970 F1J1C106A224 C 10UF, 16V 1 PAVCTH C4971 F1J1C106A224 C 10UF, 16V 1 PAVCTH C4972 F2H1A101A040 C 100UF, 10V C4973 F2H1A101A040 C 100UF, 10V...
  • Page 70 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8115 F1J0G2260001 C 22 UF 4 V C8116 F1J0G2260001 C 22 UF 4 V C8118 ECJ1VB1E104K C 0.1 UF, 25V C8200 F1G1C104A077 C 0.1UF 16V...
  • Page 71 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8737 F1G1C104A077 C 0.1UF 16V C8738 F1G1H222A830 C 2200PF, 50V 1 PAVCTH C8739 F1G1E1030005 C 0.01UF 25V C8757 F1J1A106A087 C 10UF, 10V C8758 F1J1A106A087...
  • Page 72 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C14906 F1H1C105A145 C 1 uF 16 V C14908 F1H1C105A145 C 1 uF 16 V C14912 F1H1C105A145 C 1 uF 16 V C14925 F1L2E104A028 C 0.10UF, 250V...
  • Page 73 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C16668 F1H1H821A831 C 820 PF, 50V C16685 F1H1H104A913 C 0.1UF, K , 50V C16723 F1K1E475A134 C 4.7UF 25V C16724 F1K1E475A134 C 4.7UF 25V C16725 F1K1E475A134 C 4.7UF 25V...
  • Page 74 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks CN0100 K1KA14A00248 14P CONNECTOR D2005 EZJZ0V120JA VARISTOR D2820 B3AGB0000065 D3021 DZ2J140M0L ZENER DIODE D3022 DZ2J140M0L ZENER DIODE D3023 DZ2J140M0L ZENER DIODE D3024 DZ2J140M0L ZENER DIODE...
  • Page 75 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D16711 B0ECHR000004 DIODE D16712 B0ECHR000004 DIODE D16713 B0ECHS000002 DIODE D16714 B0ECHS000002 DIODE D16720 B0ECHR000004 DIODE D16722 B0ECKP000055 DIODE D16723 B0ECKP000055 DIODE D16725 B0ECKP000055 DIODE...
  • Page 76 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks IC14953 AN16630A-VT 1 PAVCTH IC14954 AN16630A-VT 1 PAVCTH IC14961 C0JBAU000088 IC14962 C0JBAB000996 IC16501 C0ZBZ0001936 1 PAVCTH IC16502 C0ZBZ0001936 1 PAVCTH IC16521 C0ZBZ0001936 1 PAVCTH...
  • Page 77 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks L8609 J0JYC0000464 FILTER 1 PAVCTH L8704 G1C2R2ZA0311 INDUCTION COIL 1 PAVCTH L8705 G1C4R7ZA0311 INDUCTION COIL 1 PAVCTH L8706 J0JGC0000063 FILTER 1 PAVCTH L9008 G1C2R2ZA0311...
  • Page 78 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks Q16762 B1HFPFA00002 TRANSISTOR Q16815 B1ABCE000015 TRANSISTOR Q16817 DSC2001Q0L TRANSISTOR Q16820 B1CFGF000019 1 PAVCTH Q16891 B1ADCE000027 TRANSISTOR R061 D0GAR00J0005 M 0 OHM, 1/16W 1 (D) (K) (M) (P)
  • Page 79 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R2816 D0GA152JA023 M 1.5KOHM, J,1/16W 1 on K-Board R2817 D0GA223JA023 M 22K OHM J 1/16W R2818 D0GA473JA023 M 47KOHM, J,1/16W R2819 D0GA332JA023 M 3.3KOHM, J,1/16W...
  • Page 80 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R4722 D0GA103JA023 M10KOHM, J.1/16 W R4723 D1HY4734A012 NETWORK RESISTER 1 PAVCTH R4724 D0GA102JA023 M1KOHM, J.1/16 W R4748 D0GA680JA023 M 68 OHM, J,1/16W R4749 D0GA680JA023...
  • Page 81 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8100 D1BB2001A197 M 2 KOHM,F.1/10 W 1 PAVCTH R8101 D1BB1301A195 M 1.3KOHM,J.1/10W 1 PAVCTH R8102 D1BB2001A197 M 2 KOHM,F.1/10 W 1 PAVCTH R8103 D1BB1961A087 M 1.96 KOHM,F.1/10 W...
  • Page 82 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8699 D0GA101JA023 M 100 OHM, J,1/16W R8701 D1HYR004A024 NETWORK RESISTER 1 (D) (G) (K) (M) (P) (S) (V) PAVCTH R8741 D0GA390JA023 M 39 OHM, J,1/16W...
  • Page 83 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R14901 D0GD220JA052 M 22 OHM,J,1/8W R14911 D0GB103JA065 M 10K OHM J 1/10W R14944 D0GD100JA052 M 10 OHM,J,1/8W R14949 D0GD203JA052 M 20KOHM,J,1/8W R14950 D0GB103JA065 M 10K OHM J 1/10W...
  • Page 84 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16616 D1BB3921A073 M3.92KOHM, 1/10W 1 PAVCTH R16618 D0GB100JA065 M 10 OHM J 1/10W R16619 D0GF150JA047 M 15 OHM,J, 1/3W R16621 D0GD561JA052 M 560 OHM,J,1/8W...
  • Page 85 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16921 D1BB4991A073 M 4.99 KOHM,F.1/10W 1 PAVCTH R16922 D1BB2152A073 M 21.5 KOHM,F.1/10 W 1 PAVCTH R16937 D0GB184JA065 M 180KOHM J 1/10W R16939 D0GB472JA065 M 4.7KOHM, J,1/10W R16940 D0GB472JA065 M 4.7KOHM, J,1/10W...
  • Page 86 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks RM2810 B3RBB0000018 REMOTE SENSOR K1KY04C00001 4P CONNECTOR 1 PAVCTH SN20 K1MY30BA0345 30P CONNECTOR SN21 K1MY96BA0342 96P CONNECTOR SN22 K1MY96BA0342 96P CONNECTOR SN23 K1MY96BA0342 96P CONNECTOR...
  • Page 87 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Exploded View 1 S-51...
  • Page 88 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Exploded View 2 S-52...
  • Page 89 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Accessories S-53...
  • Page 90 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Packing S-54...
  • Page 91 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks J0KG00000011 FERRITE CORE 1 (Z) J0KG00000146 FERRITE CORE PACK FOR LAN CABLE 1 (Z) K2CK3YY00065 AC_CORD 1 (Z) PAVCTH K2CN3YY00016 AC_CORD 1 (G) (V) PAVCTH...
  • Page 92 Model No. : TH-P50X50D/G/K/M/P/S/V/Z Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks TQB4TC0226 INSTRUCTION BOOK(ENGLISH) 1 (G) (S) (V) PAVCTH TQB4TC0227 INSTRUCTION BOOK(S-CHINESE) 1 (S) PAVCTH TQB4TC0228 INSTRUCTION BOOK(INDONESIA) 1 (G) PAVCTH TQB4TC0229 INSTRUCTION BOOK(ENGLISH) 1 (D) (K) (M) (P) PAVCTH...
