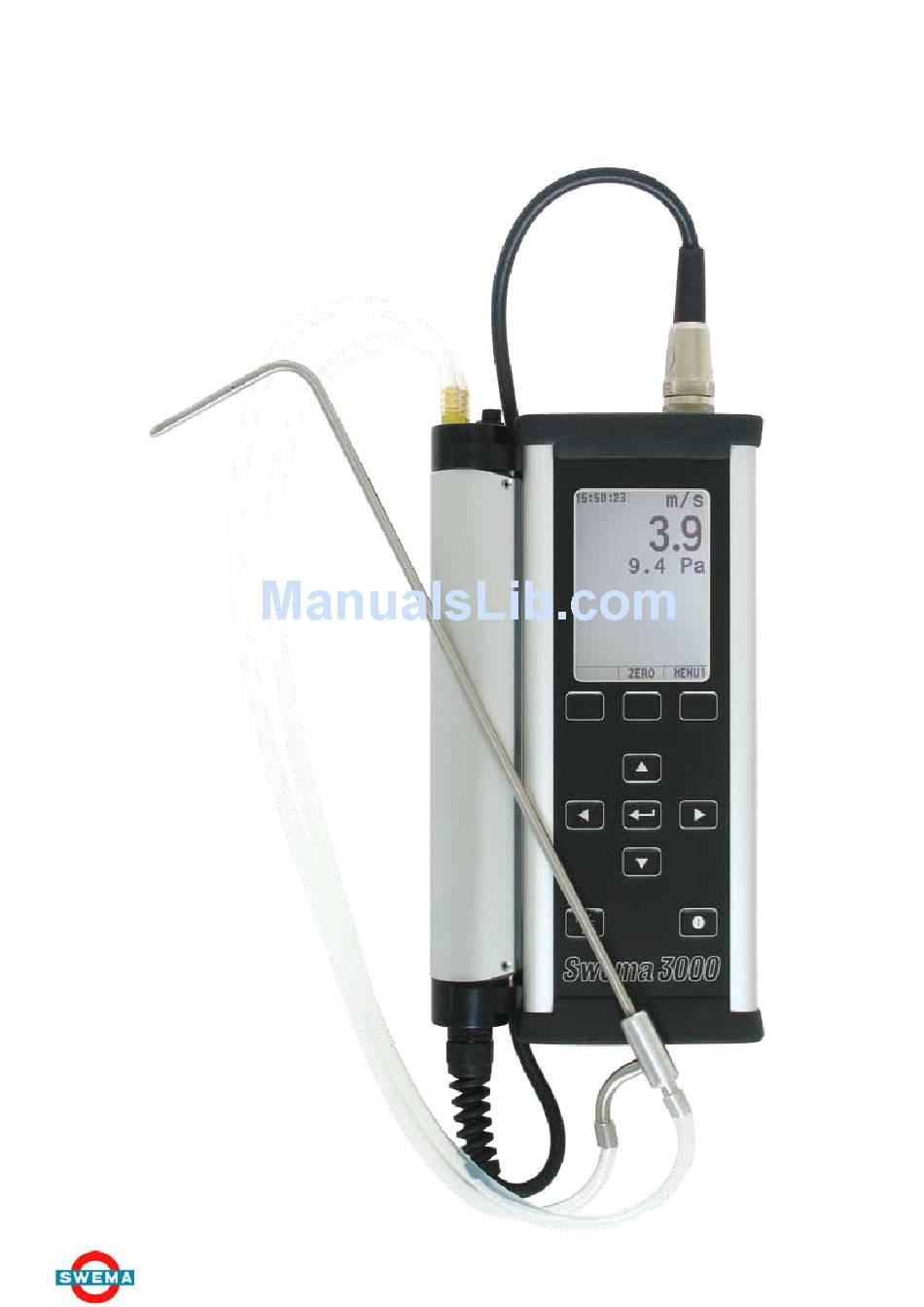

- Page 1 Manual for Swema 3000 Version 1151 5.21 Swema AB Pepparvägen 27 SE-123 56 FARSTA Tel: +46 8 94 00 90 Fax: +46 8 93 44 93 swema@swema.se www.swema.com...
-
Page 2: Table Of Contents
How to put on/off holders for the probes Starting PC programs The different probes for Swema 3000 The different modes used in Swema 3000 Measuring with APF (Average Point air Flow) Recomended measuring points for circular and rectangular ducts Measuring with DPF (Differential Pressure air Flow) -
Page 3: Connectors And Buttons
Battery hatch 2 x AA Batteries SWA 31 Display Menu-keys Arrow Keys Enter Key Display light On / Off Swema AB Pepparvägen 27 SE-123 56 FARSTA Tel: +46 8 94 00 90 Fax: +46 8 93 44 93 swema@swema.se www.swema.com... -
Page 4: How To Put On/Off Holders For The Probes
Remove the rubber strip by just pull it out. When you have removed the strip put in the appropriate holders and slide them to the wanted positions. Now you can attach the probe. (Picture shows SWA 10 with holder) Swema AB Pepparvägen 27 SE-123 56 FARSTA... -
Page 5: Starting
EXT / INT button. In addition Swema 3000 will calculate and help you work correctly when using any of the modes included in the Swema 3000. By pressing Enter the measurement mode will start. -
Page 6: Pc Programs
RS232-cable for Com-port. (Part.no. 759.030) The PC-program SwemaMultipoint (Part.no. 763.710) The Swema Multipoint can be used to log data of the two variables showed on the LCD of the Swema 3000. Swema MultiPoint can monitor and log up to 8 Swema 3000 and present it in a live graph. -
Page 7: The Different Probes For Swema 3000
Auto Zero ON with SWA 10 or Swema 3000md SWA 10 and Swema 3000md has an inbuilt zero valve. Auto Zero is set to ON by default. By the built in valve the zero pressure point is automatically checked every time you take a measurement by pressing ”ENTER”. - Page 8 Possible measuring modes: AP, AS and LOG. Radio/BlueTooth modem for balancing of ventilation SwemaTwin transfers measured values on the reference valve from one Swema 3000 to another through radio/BlueTooth modem or 40 meter cable. The flow relation between them is displayed, which makes adjustment according to the proportional method an easy task for just one person.
-
Page 9: The Different Modes Used In Swema 3000
Insert k- factor, and the Swema 3000 calculates the air flow according to the formula: q = k sqrt(∆P). The specific k-factor is supplied by the manufacturer of (exhaust and supply) ventilation valves. -
Page 10: Measuring With Apf (Average Point Air Flow)
Measuring with APF (Average Point air Flow) Possible probes are: SWA 31, SWA 31E or SWA 07 or SWA 10 with pito static pipe or Swema 3000md. Use the APF mode for measuring the flow in ducts. Swema 3000 calculates the flow in l/s or m /h by multiplying the air velocity with the duct area. -
Page 11: Recomended Measuring Points For Circular And Rectangular Ducts
= 0,92 (SWA 31), 0,89 (Pito Static Pipe) 160 < D ≤ 400 mm → k = 0,96 (SWA31), 0,95 (Pito Static Pipe) 400 < D ≤ 1250 mm → k = 0,98 Swema AB Pepparvägen 27 SE-123 56 FARSTA Tel: +46 8 94 00 90 Fax: +46 8 93 44 93 swema@swema.se... - Page 12 The instrument also give a short signal and dis- plays the memory place for a few seconds. See Note Book. Please Note! If Swema 3000 with an inbuilt barometer and thermoelement is used. The displayed Avg, Max and Min va- lues are then calculated by the barometric pressure and tem- perature value at the different measuring points.
-
Page 13: Measuring With Dpf (Differential Pressure Air Flow)
Measuring with DPF (Differential Pressure air Flow) Possible probes with DPF are: SWA 07 or SWA 10 and Swema 3000md. See Differential pressure in the section The different probes for Swema 3000. The flow in the measurement of pressure drop across valves is directly obtained in l/s or m q = k sqrt (∆P) - Page 14 Use the calculation for k: k= 50/10 → 5,0 So the k factor in this case was 5,0. Set this in Swema 3000 to obtain the flow in l/s, m3/h or CFM. If the diagram does not extend to 100 Pa, select for...
-
Page 15: Measuring With Af (Average Flow)
(time constant + selected mea- suring time). Connect the flow capture hood and press ON. After a few seconds Swema 3000 is in measuring position. Choose mode by pressing the MENU1-KEY and move the marker to ”Mode” with the up/down arrow key. Press ENTER or SET and choose mode with the up/down arrow key. -
Page 16: Measuring With Bp (Back Pressure)
This can be corrected by using the Back Pressure mode. By measuring two times with SwemaFlow 125, with and without an extra throttle ring. Swema 3000 calculates the flow that reflects the true flow, with no capture interference. In the same way as AF mode the BP mode makes an average measure- ment over time. - Page 17 The display will also show point 1 & 2. Max is without the ring and Min is with the ring. Then you can choose if you want to clear or save your measurement. Swema AB Pepparvägen 27 SE-123 56 FARSTA ...
-
Page 18: Measuring With Ap (Average Point)
Confirm your choice with ENTER or EXIT. values and number of measurements. For Relative humidity Set the parameters and press EXIT to start probes Swema 3000 displays the dew point and mixing ratio measuring. (g water / kg dry air) When all values are collected you can choose if you want to clear or save your measurement. -
Page 19: Measuring With As (Auto Sampling)
Sampling Rate is the time Swema 3000 uses to sample measured values, make an avarage and display the value. Swema 3000 uses a floating mean value, i.e. for example if a ”Sampling rate” of 30s is used, Swema 3000 sample a value 2 times/second during 30 seconds (60 values) and shows an avarage value of them. -
Page 20: Measuring With Asf (Auto Sampling Flow)
Measuring with ASF (Auto Sampling Flow) Possible probes with ASF are: SWA 31 or SWA 31E. Same as AS, but the Swema 3000 calculates the flow in l/s or /h. In ASF mode the area is not reduced by a k -factor. - Page 21 Start and stop measuring with the ENTER-button. Swema 3000 will collect values and calculate the average air flow and temperature. It will also calculate standard deviation, num- ber of measuring points and maximum and minimum air flow. When all values are collected you can choose if you want to clear or save your measurement.
-
Page 22: Measuring With Co (Comfort)
When all parameters are set press the EXIT-button to get back to measuring mode. Start the draught measurement with the ENTER-button. Swe- ma 3000 will take measurments during the selected measuring time and will automatically save to the first free memory place The measurment is automatically saved in in the note book. -
Page 23: Measuring With Log (Logging)
Time constant, update of the displayed value (for more infor- mation see Time Constant under Technical Data). Interval is the time between when Swema 3000 saves a va- lue, the value saved is the one shown on the display. Atmospheric pressure see Menu1... -
Page 24: Measuring With Logp (Logging Protocols)
When all parameters are set press the EXIT-button to get back to measuring mode. Start and stop the log with the ENTER-button. Swema 3000 open a new ”File” and log series and save them to the first free memory place in the log book in the new ”File”. The instrument also give a short signal and display the memory place for a few seconds. -
Page 25: Note Book, Log Book And File
To transfer a note or log file to a PC just press Print. A long press on print will transfer the complete log book or note book. For software’s see SwemaTerminal and Swema Multipoint. Erase with the ERASE-button. If you erase in ”Note Book” you can choose to either erase the Note or the whole File, in ”Log... -
Page 26: Leakage Tester For Building
Out” Menu1. Pressure Step Set the ”Forward K-factor” (-->) and Here you set the step size of Pa as you wish Swema 3000md ”Reverse K-factor” (<--) according to the will change when measuring. If 10 Pa is set, the desired pres- marking on your orifice plate. -
Page 27: Swema Ab Pepparvägen
Use the UP/DOWN buttons to measure manually. Press ENTER button to start an automatic measurement and as a first step measure the over/under pressure. Swema AB Pepparvägen 27 SE-123 56 FARSTA Tel: +46 8 94 00 90 Fax: +46 8 93 44 93 swema@swema.se... - Page 28 Press the ENTER button and Swema 3000md will regulate it selves and save the measured values at the different pres- sures going down or up to 0 Pa. The pressure steps Swema Saved measuring protocol of a leakage 3000md do on the way to 0 Pa, is set in Menu1 under ”Pres- test on a room or building.
-
Page 29: Leakage Tester For Duct
To control the leakage tester automatically a Swema 3000md and a SWA 10 or SWA 07 are needed. The built in differential pressure sensor in Swema 3000md is used to measure the over / under pressure in the duct, connect the pressure hose on positive pressure connector (marked with +). - Page 30 Before you start measuring both differential pressure probes must be zeroed. Press INT. to access the built-in pressure probe in Swema 3000md, press ”ZERO” . Press on EXT. to go back to the externally connected pressure probe and zero it.
-
Page 31: Control Unit For Leakage Tester
Press this button to stop the auto and manuell control and put the control unit in standby. Automatic control Press this button for autmatic control by Swema 3000md. Manual control Press this button if you wish to control the leakage tester manually with the potentiometer. -
Page 32: Measuring With Swematwin - Balancing Of Ventilation
RS232 contact on the Swema 3000. Connect one modem each to the Swema 3000 and turn the radio modems on by pressing the TWO buttons marked with a red square on the modem. The batteries for the modems will also power the Swema 3000. - Page 33 ”----” where the Reference measurement should have been displayed. If so please check: 1. Make sure that all modems are turned on and that they are charged. 2. Make sure that the cables are connected to Swema 3000:s RS232 contact and that the anten- nas are attached to modems.
-
Page 34: Menu 1
Highlight the parameter you want to change and press Enter or SET. Temperature is used when Swema 3000 does calculations for air velocity and air flow. Swema 3000d / md has an extra temperature thermocouple input. Swema 3000 is without this connector. - Page 35 2400, 4800, 9600, 19200 or 57600 Normally 4800 for SwemaTwin, 9600 for PC-transfer (RS232 cable). Add Flow ON or OFF If set to ON. Swema 3000 will add the flow from each measurement in one file and present a total flow. Protocol SHORT or LONG Here you specify if you want a long or short protocol (note) at PC-printout.
- Page 36 English, German, Swedish, Finnish, French, Danish, Norwegian, Dutch or Polish. Change with the up/down arrow keys. Set the language you wuold like to use. Swema AB Pepparvägen 27 SE-123 56 FARSTA Tel: +46 8 94 00 90 Fax: +46 8 93 44 93 swema@swema.se...
-
Page 37: Swematerminal 2
2. First you need to establish contact with the Swema 3000 by pressing ”Search” in swemaTerminal 2, Swema 3000 will then appear in the box below. Click on the ”Open” button to the right of the ”Search” button and a text of ”Device is ready” will show the Swema 3000 is now connected to SwemaTerminal 2. -
Page 38: Time Constant
Saving in APF and DPF mode If Swema 3000 with an inbuilt barometer and thermoelement is used (Swema 3000d and Swema 3000md), the displayed Avg, Max and Min values are then calculated by the barometric pressure and temperature value at the different measuring points. -
Page 39: Technical Data
The uncertainty of measurement for each probe is stated below as the uncertainty for the probe to- gether with a calibrated Swema 3000. The uncertainty is stated with coverage probability of 95%. Included in the uncertainty for each probe is the uncertainty for Swema 3000, interchangeablity, calibration, temperature dependence, hysteresis and repeatability. -
Page 40: Se-123 56 Farsta
-20...+80°C Accuracy (°C): ±0,3°C at 20°C ±1,0°C at -20...+80°C Probe Calibration: Recommended every 12 months. Pressure probe Swema 3000md Swema3000mdH+ SWA 10 SWA 07 Pressure range -300... 1500 Pa ± 10 000 Pa -300... 1500 Pa ± 7 000 Pa Accuracy ±0,3% read value,... - Page 41 Indication when battery has to be recharged. When the battery is nearly empty the battery symbol on the Swema 3000 blinks. When the bat- tery is completely empty the Swema 3000 turns itself off. (When the Swema 3000 battery is nearly empty the battery symbol is continously lit.
- Page 42 A full charged battery last a normal working day. At high Air flow it may last a shorter time. When the battery is nearly empty the battery symbol on the Swema 3000 blinks and the red diod on SwemaFlow 65 is shut off. When the battery is completely empty the Swema 3000 turns itself off.
