Summary of Contents for Iwata eclipse G6
- Page 1 IWATA G6 MANUAL & PARTS GUIDE...
- Page 2 The interchangeable siphon-feed bottle makes color changes quick and easy. The side-mounted paint feed allows the bottle to rotate for spraying horizontal, vertical or even underneath surfaces. Designed for use with the Iwata Studio Series Power Jet, Power Jet Lite or Power Jet Pro compressors, this low-air- consumption airbrush provides high atomization while minimizing overspray.

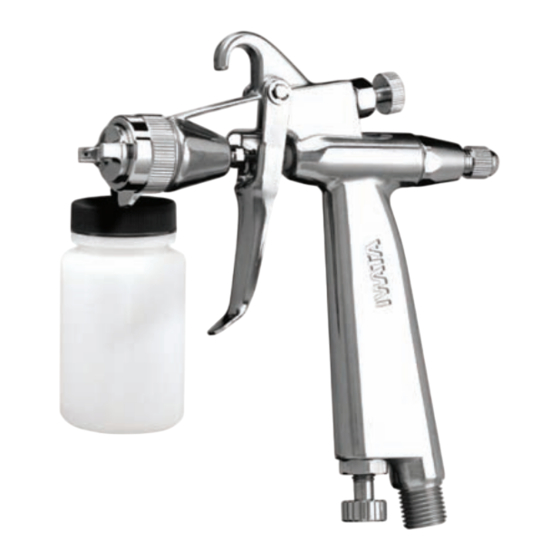

- Page 3 Series brush has established a new benchmark for excellence in an all-purpose airbrush. A unique “Pistol Grip” airbrush, the Eclipse G6 airbrush looks like a miniature spray gun, but sprays and performs like a large airbrush with its 0.6-mm stainless-steel nozzle.
- Page 4 Fan Air Control Airbrush-Style Nozzle and Needle Fluid Adjustment Control 3 oz. Side-Feed Jar Spray-Gun Trigger Design Air Inlet Regulator...
- Page 5 GETTING STARTED G6 Pre-Check the Airbrush Settings Assembly 1. Close the pattern adjustment knob (#15) fully by gently twisting 1. Screw the airhose firmly onto the air source outlet. it clockwise until it stops. It doesn’t need to be tight. NOTE: In many cases the air source is a compressor.
- Page 6 Background Spraying Before Each Session 1. Position the airbrush further from the surface – 4-6 inches or Spray water, or appropriate solvent, through the airbrush to ensure 10-16 cm is common. the airbrush is in proper working order. 2. Pull the trigger back a lot to release a large amount of paint. After Each Session Control spray width by adjusting the distance between the Or any time the airbrush becomes clogged:...
- Page 7 ECLIPSE G6 DESCRIPTION OF FEATURES Pattern Adjustment Set (#15) Fluid Adjustment Knob (#20) This adjustment creates a circular- or oval-shaped spray pattern. The fluid adjustment knob limits how much fluid will be sprayed When the valve is fully closed, twisted fully clockwise, the spray when the trigger is pulled all the way back.
- Page 8 GENERAL OPERATION G6 Pattern Adjustment Set Air Cap # 1 Fluid Adjustment Knob # 20 Trigger #9 Air Adjustment Set #21...
- Page 9 I W A T A E C L I P S E G 6 S E R I E S A I R B R U S H E S • M A S T E R P A R T S L I S T...
- Page 10 Code # Part Name Code # Part Name 1624 1 Airhose Adapter 1600 1 Air Cap 0.6 mm (1/4”-1/8”) Air Cap Packing 1600 2 1480 3 3 oz. Fluid Bottle 1600 3 Air Cap Cover Ring 1210 1 4 oz. Fluid Bottle 1600 4 Fluid Nozzle 0.6 mm...
- Page 11 GENERAL OPERATION G6 Pattern Adjustment Set Air Cap # 1 Fluid Adjustment Knob # 20 Trigger #9 Air Adjustment Set #21...
- Page 12 W W W . I W A T A - M E D E A . C O M • • Iwata-Medea, Inc. P.O. Box 14397 Portland, Oregon 97293 • • tel: 503-253-7308 fax: 503-253-0721 info@medea-artool.com...
