Summary of Contents for Aruba 7030
- Page 1 Aruba 7030 Mobility Controller...
- Page 2 Legal Notice The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate other vendors’ VPN client devices constitutes complete acceptance of liability by that individual or corporation for this action and indemnifies, in full, Aruba Networks, Inc.
-
Page 3: Table Of Contents
Contents Preface......................3 Guide Overview .....................3 Related Documentation ..................3 Contacting Support ....................3 Chapter 1 7030 Mobility Controller ................5 Package Checklist ....................5 7030 Components ....................6 Dual-Media Ports ....................7 10/100/1000Base-T (RJ-45) Ports............7 1000Base-X (SFP) Ports ................8 Dual-Media Port LEDs ................8 Power, Status, and Peered LEDs..............9 LCD Panel .....................10... - Page 4 EU Regulatory Conformance..............24 Japan ......................25 Europe ....................25 South Korea....................25 Taiwan (BSMI)..................25 Battery Statements ..................25 Proper Disposal of Aruba Equipment ..............26 Waste of Electrical and Electronic Equipment ..........26 European Union RoHS ..................26 China RoHS....................26 Aruba 7030 Mobility Controller | Installation Guide...
-
Page 5: Preface
Preface This document describes the hardware features of the Aruba 7030 Controller. It provides a detailed overview of the physical and performance characteristics of each controller model and explains how to install the controller and its accessories. Guide Overview Chapter 1, “7030 Mobility Controller” on page 5 provides a detailed hardware overview of the 7030 ... - Page 6 EMEA emea_support@arubanetworks.com WSIRT Email wsirt@arubanetworks.com Please email details of any security problem found in an Aruba product. | Preface Aruba 7030 Mobility Controller | Installation Guide...
-
Page 7: 7030 Mobility Controller

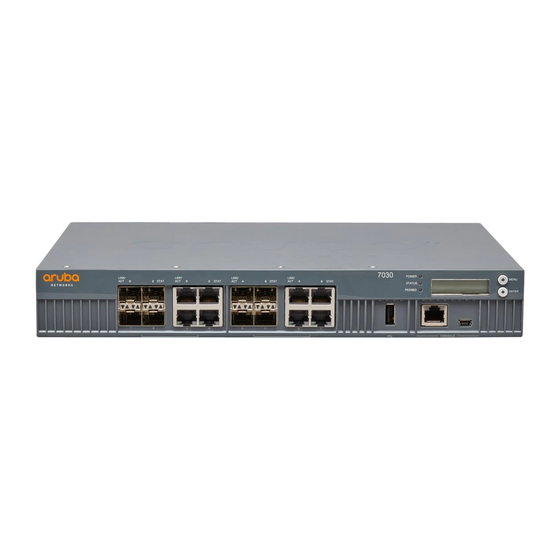

The Aruba 7030 Controller is a wireless LAN controller that connects, controls, and intelligently integrates wireless Access Points (APs) and Air Monitors (AMs) into a wired LAN system. The 7030 series includes the following two models, and they do not differ physically or functionally from each other: 7030-US: For the United States of America ... -
Page 8: 7030 Components
Item Quantity Aruba Document Pointer (Printed) Optional accessories are available for use with the Aruba 7030 controllerand are sold separately. Contact your Aruba sales representative for details and assistance. 7030 Components This section introduces the component and its location in the Aruba 7030 controller. -
Page 9: Dual-Media Ports
Grounding point Dual-Media Ports The 7030 is equipped with 8 dual-media ports (ports 0 through 7). These ports can utilize either the 1000Base-X or 10/100/1000Base-T connections provided. However, the 1000Base-X fiber connection has priority over the 10/100/1000Base-T copper connection. If a link is detected on the 1000Base-X interface, the 10/100/1000Base-T connection will be disabled. -
Page 10: 1000Base-X (Sfp) Ports
1000Base-X (SFP) Ports The 7030 is equipped with eight 1000Base-X dual media ports for fiber connectivity only and are intended for use with Aruba SFPs (mini-GBICs). Aruba tests and supports Aruba optics within their controller systems. Third party optics are not tested or supported;... -
Page 11: Power, Status, And Peered Leds
Power, Status, and Peered LEDs The front panel also includes power, status, and peered LEDs that provide basic monitoring of the overall status of the Aruba 7030 controller. See Figure 4 on page Table 6 Power, Status, and Peered LEDs... -
Page 12: Lcd Panel
Exits Maintenance menu. Disabling the LCD Screen By default, the LCD screen is enabled. However, if the 7030 controller is deployed in a location without physical security, the LCD screen can be disabled through the CLI. When disabled, pushing one of the navigation buttons will only illuminate the LCD screen and display the slot, role, device name, and any alarms. -
Page 13: Usb Interface
Mini USB connection takes precedence over the RJ-45 Console connection. Mini USB Driver To use the Mini USB console port, you must install the Aruba Mini USB driver on the computer that will manage your controller. To download the driver, perform the following steps: 1. -
Page 14: Serial Console Port Adapter
DB-9 Ground Power Supply The Aruba 7030 controller is equipped with an integrated AC power supply of 80W. Grounding Point To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, the controller must be adequately grounded before power is connected. Connect a grounding cable to earth ground and then attach it to the chassis grounding point using two screws. -
Page 15: Kensington Lock
Aruba tests and supports Aruba approved optics within their controller devices. Non-approved third party optics are not tested or supported; therefore, Aruba does not guarantee proper functionality of non-approved third party optics when used in an Aruba system. For a complete list of Aruba approved optics, contact your Aruba sales representative. - Page 16 This page is intentionally left blank. | 7030 Mobility Controller Aruba 7030 Mobility Controller | Installation Guide...
-
Page 17: Installation
This chapter describes how to install an Aruba 7030 controller using the many mounting options available. The 7030 controller ships with an accessory kit that includes the equipment needed to install the controller in standard, 19-inch telco rack or on a wall. -
Page 18: Selecting A Location
Limited electromagnetic interference For best operation, keep the 7030 controller and all cords and cables at least 0.7 meters (2 feet) from fluorescent lighting fixtures, and 2 meters (6 feet) from photocopiers, radio transmitters, electric generators, and other sources of strong electromagnetic interference. -
Page 19: Installation Steps
Installation Steps To install a 7030 controller into a two-post 19-inch Telco rack: 1. Place the mounting bracket over the mounting holes on the controller (see Figure 2. Secure the bracket to the controller using the eight screws for the mount bracket (four per bracket) and a suitable screwdriver. -
Page 20: Required Tools And Equipment
Ensure that the Ethernet ports are facing down when installing the 7030 controller on a wall. 1. Fasten the mounting brackets over the mounting holes on the sides of the 7030 controller using the eight screws for mounting bracket (four per bracket) and a suitable screwdriver (see Figure 10). -
Page 21: Connecting And Disconnecting The Ac Power Cord
Connecting and Disconnecting the AC Power Cord Once you have installed the 7030 controller, you are ready to power On the device. The 7030 controller is not equipped with an On/Off switch. The device will power On when the AC power cord is connected to the AC inlet and an AC power outlet. -
Page 22: Installing An Sfp
Disconnecting the AC Power Cord To disconnect the AC power cord from the 7030 controller: 1. Lift the power cord retaining clip off the AC power cord. 2. Pull the AC power cord from the power supply module. 3. The 7030 controller is now turned Off. - Page 23 S T A T L IN K / A C T S T A T L IN K / A C T S T A T O L E C O N S Aruba 7030 Mobility Controller | Installation Guide Installation |...
- Page 24 This page is intentionally left blank. | Installation Aruba 7030 Mobility Controller | Installation Guide...
-
Page 25: Specifications, Safety, And Compliance
Regulatory Model Name The regulatory model name for the 7030 is ARCN7030. The Aruba controllers must be installed by a professional installer. The professional installer is responsible for ensuring that grounding is available and it meets applicable local and national electrical codes. -
Page 26: Electromagnetic Interference
This product is CE marked according to the provisions of the EMC Directive (2004/108/EC) - CE. Aruba hereby declares that 7030 controller device models are in compliance with the essential requirements and other relevant provisions of Directive (2004/108/EC). CE The Declaration of Conformity made under Directive 1999/5/EC is available for viewing on www.arubanetworks.com... -
Page 27: Japan
See www.dtsc.ca.gov/hazardouswaste/perchlorate for more information. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Aruba 7030 Mobility Controller | Installation Guide Specifications, Safety, and Compliance |... -
Page 28: Proper Disposal Of Aruba Equipment
Proper Disposal of Aruba Equipment Waste of Electrical and Electronic Equipment Aruba products at end of life are subject to separate collection and treatment in the EU Member States, Norway, and Switzerland and therefore are marked with the symbol shown at the left (crossed-out wheelie bin). The treatment applied at end of life of these...
