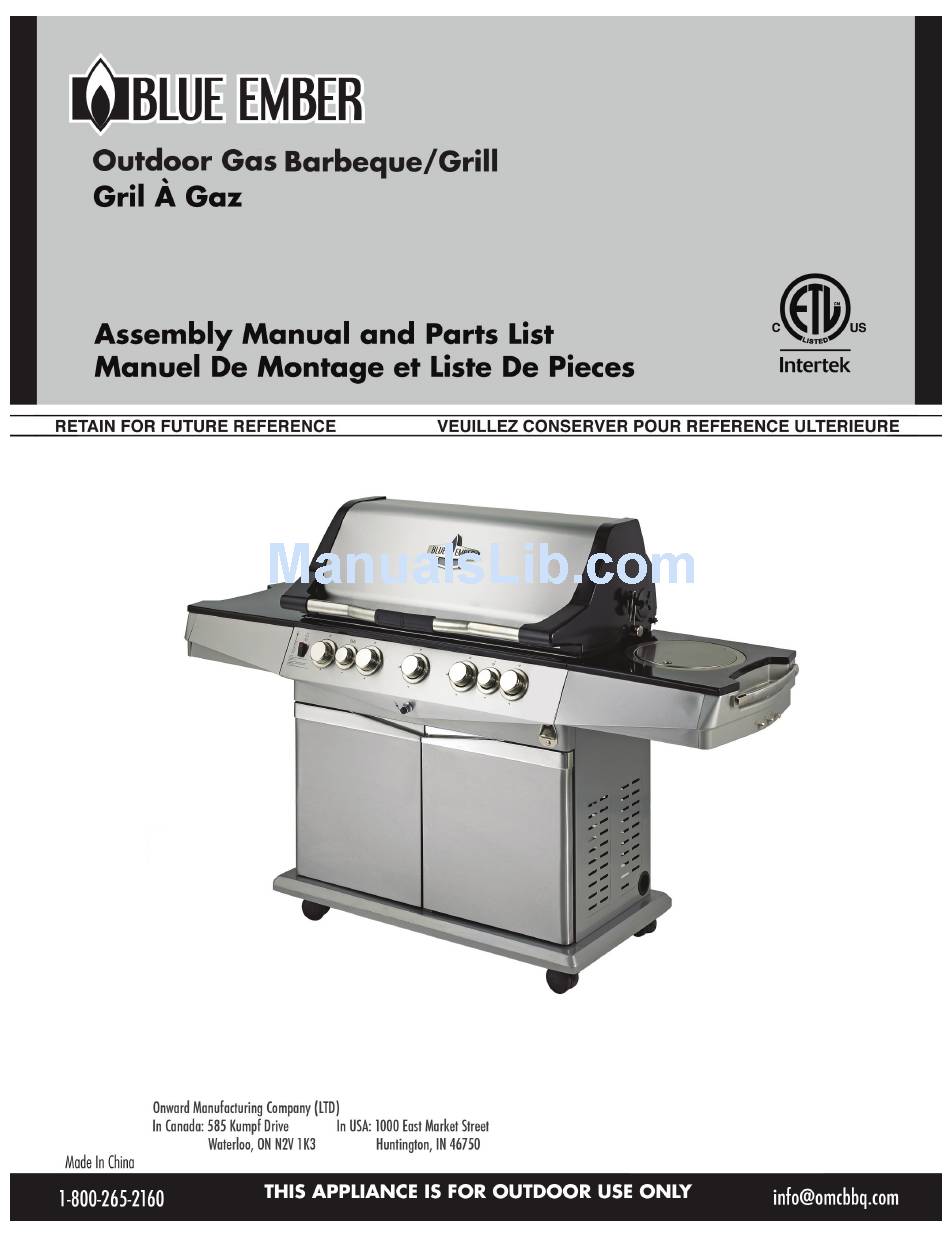

- Page 1 BE65078-584 BE65078-587 CA-011011 SP1787-37 REV A...
- Page 3 (4 PCS) (1 PCS) SP900-22 Tools Required For Assembly / Outils Requis ( Not Included / Non Inclus )
- Page 10 1.04 1.09 1.02 1.01 1.07 6.03 1.09 1.08 6.02 1.05 1.03 1.06 2.11 6.04 6.06 6.05 2.05 2.08 2.03 7.09 2.07 2.04 2.06 2.29 7.11 2.28 2.27 7.03 7.07 7.12 7.10 2.10 2.08 7.08 7.05 2.30 7.01 2.33 7.06 2.24 2.02 7.04 2.33...
- Page 11 5.09 5.11 5.10 5.12 5.14 4.03 5.13 4.08 5.16 5.01 4.02 5.17 4.01 4.04 4.06 5.15 4.07 5.17 6.08 3.32 4.05 5.02 6.08 3.16 5.08 3.30 3.28 5.06 3.31 5.04 3.29 5.05 3.09 3.15 3.22 5.03 3.22 5.07 3.08 3.29 3.10 3.24 3.11...
- Page 12 PART ITEM ARTICLE DESCRIPTION DESCRIPTION COVER ASSY COUVERCLE DU GRIL 1.01 SP47-1 BE650 COVER ASSY COUVERCLE DU GRIL POUR BE500 1.02 SP695-9 650 COVER PANEL PANNEAU DE CONTROLE 1.03 SP701-9 650 COVER LINER REVETEMENT DE COUVERTURE 1.04 SP103-33 COVER CAST END CAP L.H. CAPUCHON COTE GAUCHE 1.05 SP79-19...
- Page 13 PART ITEM ARTICLE DESCRIPTION DESCRIPTION 3.05 10892-23 CASTOR ROULETTE 3.06 SP348-6 MAGNET BRACKET SUPPORT - AIMANT 3.07 SP209-3 STORAGE WIRE FIL DE STOCKAGE 3.08 SP691-9 CART BACK PANEL PANNEAU ARRIERE 3.09 SP241-6 ROTIS STORAGE BRACKET SUPPORT-STOCKAGE DE ROTISSERIE 3.10 SP17-38 OUTLET RECEPTICAL SORTIE RECEPTICAL 3.11...
- Page 14 PART ITEM ARTICLE DESCRIPTION DESCRIPTION 5.17 SP64-21 "#8-32X5/16"" RD HD SCREW BLACK ZINC" "VIS NOIR ZINC #8-32X5/16"" RD" 6.01 COMPONENT COMPOSANT 6.02 SP163-3 WARMING RACK GRIL DE RECHAUD 6.03 SP164A-3 CAST IRON COOKING GRID GRILLE 6.04 SP7-1 SMOKE COVER COUVERCLE DU SMOKER 6.05 SP5-2 SMOKE BASE...
