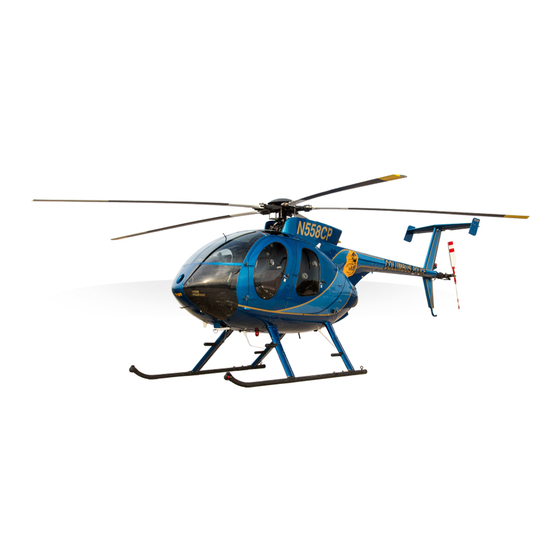

Page 1 MD530FModel ® R O T O R C R A F T F L I G H T M A N U A L REGISTRATION NO: SERIAL NO: −i...
Page 2 MV MD530F ROTORCRAFT FLIGHT MANUAL Welcome to the MV MD530F Helicopter. We have strived to make this one the best simulation that we can. We worked hard, studied hard and talked to pilots from around the world. If you should require or need support, please contact mailto:roadburner440@milviz.com?subject=Support forums with your proof of purchase and your requested username.
Page 3 MV MD530F ROTORCRAFT FLIGHT MANUAL different. If it's the only one... Please, go and buy more ! Once you have selected the MD530F, you will be presented with the actual ACM of the aircraft. Before it runs, it will probably ask you to accept running this program. Please click RUN! See pic here:...
Page 4 MV MD530F ROTORCRAFT FLIGHT MANUAL After you've chosen run, you will then be presented with the ACM: You may pick and choose the items you wish to display on the model, pick the avionics you wish to have and, pick the state of the aircraft.
Page 5 MV MD530F ROTORCRAFT FLIGHT MANUAL There is also a controls menu selection that you may click. This allows you to use what is called FORCE TRIM. Though this doesn't actually exist in the MD530, there is a similar system that does essentially the same thing. It looks like this: Once you've done all of these, please press SAVE SETUP.
Page 6 MV MD530F ROTORCRAFT FLIGHT MANUAL 7)As the engine spools up, the pilot rotates the twist grip to maintain between 760-820C TOT (the temp will drop if you don't maintain it with the twist grip because more cooling air is coming into the engine) Engine starts that are allowed to go below 760C are bad for the engine (due to a shift in the flame pattern) and the manual says to abort the start if the temps don't go above 760C.
Page 7 MV MD530F ROTORCRAFT FLIGHT MANUAL Engine limits, Fuel systems and Flight Control systems: Engine torque limits: Maximum takeoff (5 minute): 59.6 psi torque. Maximum continuous: 48.9 psi torque Transient torque limits: None. Turbine outlet temperature limits: Maximum takeoff (5 minute): 768°C Maximum continuous: 694°C Maximum for starting (lightoff): 150°C Transient limits:...
Page 8 MV MD530F ROTORCRAFT FLIGHT MANUAL 104 - 106% for 15 seconds Power Turbine (N2) speed limits: Normal Power On operation: 103% to 104% N2. Transient overspeed limit (15 seconds maximum): 113% at idle power varying linearly to 108% at 64.5 psi torque. Avoid steady state operations between 75% and 88%.
Page 9: Table Of Contents
MV MD530F ROTORCRAFT FLIGHT MANUAL TABLE OF CONTENTS PARAGRAPH PAGE F−i Title Page ..............SECTION I −...
Page 10 MV MD530F ROTORCRAFT FLIGHT MANUAL n 250−C20 2−10 ....... .
Page 11 MV MD530F ROTORCRAFT FLIGHT MANUAL PARAGRAPH PAGE 2−10. Electrical System Limitations ......... . 2−11 2−11.
Page 12 MV MD530F ROTORCRAFT FLIGHT MANUAL 3−28 3−16. Emergency Egress ........... . . 3−17.
Page 13 MV MD530F ROTORCRAFT FLIGHT MANUAL PARAGRAPH PAGE 4−9. 4−22 Practice Autorotation ..........4−10.
Page 14 MV MD530F ROTORCRAFT FLIGHT MANUAL 6−12 Weight and Balance Determination − Passenger Configuration ... . 6−4. 6−5. 6−14 Longitudinal Loading of Cargo ......... 6−6.
Page 15 MV MD530F ROTORCRAFT FLIGHT MANUAL PARAGRAPH PAGE 7−4. 7−3 Ground Handling Wheels ..........7−5.
Page 16 MV MD530F ROTORCRAFT FLIGHT MANUAL 9−8. 9−21 Operating Instructions: Engine Air Inlet Deflector ..... . . 9−9. 9−23 Operating Instructions: Emergency Floats ....... 9−10.
Page 17 MV MD530F ROTORCRAFT FLIGHT MANUAL PARAGRAPH PAGE 9−13. Operating Instructions: Search Light ........9−45 9−14.
Page 18 E C T I O N ENERAL TABLE OF CONTENTS PARAGRAPH PAGE 1−1. 1−1 Introduction ............1−2.
Page 19 1−17 Table 1−2. Linear Measure − In/Cm Inches−to−Centimeters ....Table 1−3. Linear Measure − Ft/M Feet−to−Meters ......1−18 Table 1−4.
Page 20: Introduction
MV MD530F ROTORCRAFT FLIGHT MANUAL SECTION I GENERAL 1−1. INTRODUCTION The Pilot’s Flight Manual has been prepared with one very fundamental goal in mind; that is, to provide the pilot with all information necessary to accom- plish the intended mission with the maximum amount of efficiency and safety. NOTE : Unless otherwise stated, information presented in this manual pertains to both Model 369HE or 369HS helicopters equipped with the Allison 250−C18 or...
Page 21: Multi Purpose Utility Operations
MV MD530F ROTORCRAFT FLIGHT MANUAL 1−4. MULTI PURPOSE UTILITY OPERATIONS The installation and use of certain optional equipment is approved by the FAA and requires supplemental flight data when limitations, performance or proce- dures are affected. Refer to Section IX for Optional Equipment. MDHI optional equipment items and STC items which are FAA approved for the 369HE/HS may be installed and used.
Page 22: Organization
MV MD530F ROTORCRAFT FLIGHT MANUAL 1−6. ORGANIZATION FRONT MATTER: Contains: Log of Revisions by Date, Table of Contents, Summary of Revi- sions, and the List of Effective Pages. By referring to the Log of Revisions By Date, the pilot may review a chro- nological listing of changes to the Flight Manual.
Page 23 MV MD530F ROTORCRAFT FLIGHT MANUAL − WEIGHT AND BALANCE DATA SECTION VI Provides aircraft weight and balance operational data in chart and table form and provides examples that allow the pilot to accurately determine the aircraft’s gross weight, and whether the load is within longitudinal and lat- eral center of gravity limits.
Page 24: Method Of Presentation
MV MD530F ROTORCRAFT FLIGHT MANUAL 1−7. METHOD OF PRESENTATION General information in the various sections is provided in narrative form. Oth- er information is given in step−by−step procedures, graphs, charts, or tabular form. The information in the step−by−step procedure is presented in the imperative mode;...
Page 25: Abbreviations
MV MD530F ROTORCRAFT FLIGHT MANUAL 1−9. ABBREVIATIONS SIGNS Communication Counter Clockwise Clockwise Alphanumeric Above Ground Level Direct Current Alternate; Altitude Direction; Directional Auxiliary Power Unit Attitude Engine AUTO Automatic Extend; External Auxiliary Fahrenheit BATT Battery Federal Aviation Bleed Administration Butt Line Federal Aviation Regulation Fuselage Station...
Page 26 MV MD530F ROTORCRAFT FLIGHT MANUAL Kilogram Density Altitude KCAS Knots Calibrated Airspeed Mercury Kilogram(s) Pressure Altitude KIAS Knots Indicated Airspeed Horizontal Situation Kilometer Indicator Kilometers per Hour Hover KTAS Knots True Airspeed Indicated Airspeed Left; Liters Intercommunication LAT. Lateral System Lb(s) Pound(s) Instrument Flight Rules...
Page 27 MV MD530F ROTORCRAFT FLIGHT MANUAL Seconds Gas Producer Speed Shaft Horsepower Power Turbine Speed Sea Level Navigation STBY Standby Power Turbine Speed Station Rotor Speed Supplemental Type Certificate System Outside Air Temperature Out of Ground Effect Takeoff Power Panel U.S. United States POSN Position...
Page 28: Technical Publications
MV MD530F ROTORCRAFT FLIGHT MANUAL 1−10. TECHNICAL PUBLICATIONS A file of technical publications is available to aid in obtaining maximum utili- zation of your helicopter. Revisions and new issue publications are provided to continually update and expand existing data. MDHI Publications Revisions and Reissues Changes in limitations, procedures, performance, optional equipment, etc., require flight manual revisions and change or replace flight manual content as appropriate.
Page 29: Design And Construction
MV MD530F ROTORCRAFT FLIGHT MANUAL New and revised publications are available through MDHI Subscription Ser- vice. Further information may be obtained by contacting: MD Helicopters, Inc. M615−G048 4555 E McDowell Rd Mesa, AZ 85215−9734 or your local Service Center, Distributor, or Sales Company.
Page 30 MV MD530F ROTORCRAFT FLIGHT MANUAL belts are provided for all positions. In the military version, the center seat is eliminated. An instrument panel is located forward of the seat at the aircraft centerline. The panel incorporates standard flight and engine instruments in addition to warning and caution lights.
Page 31 MV MD530F ROTORCRAFT FLIGHT MANUAL The main rotor transmission is mounted on the basic airframe structure above the passenger/cargo compartment. The transmission is lubricated by its own internal lubrication system. The main rotor static mast is non−rotating and is rigidly mounted to the mast support structure.
Page 32: General Dimensional Data
MV MD530F ROTORCRAFT FLIGHT MANUAL 1−12. GENERAL DIMENSIONAL DATA DIMENSIONAL CONVERSION ENGLISH METRIC (FEET) (METERS) 0.79 0.24 4.25 1.295 4.57 1.393 26.33 ft 5.06 1.542 (8.02 m) 6.30 1.92 6.80 2.07 5.06 ft 7.00 2.13 (1.54 m) 7.20 2.20 8.20 2.50 4.57 ft 8.50...
Page 33: Capacities − Fuel System
MV MD530F ROTORCRAFT FLIGHT MANUAL 1−13. CAPACITIES − FUEL SYSTEM JET A: Standard non self−sealing tanks: Capacity is 64.0 U.S. gallons (242 liters), 435.0 pounds. Usable fuel is 63.4 U.S. gallons (240 liters), 431.1 pounds. Optional self−sealing tanks: Capacity is 62.0 US gallons (234 liters), 421.6 pounds. Usable fuel is 59.9 U.S.
Page 34: Conversion Charts/Tables
MV MD530F ROTORCRAFT FLIGHT MANUAL 1−14. CONVERSION CHARTS/TABLES EXAMPLE: CONVERT 100 KNOTS TO MPH AND TO KM/HR: ENTER CHART AT 100 KNOTS AND FOLLOW ARROW TO SLOPING LINE. TO FIND MPH, MOVE LEFT AND READ 115 MPH. TO FIND KM/HR, MOVE RIGHT FROM THE SLOPING LINE AND READ 185 KM/HR KNOTS F05−002 Figure 1−2.
Page 35 MV MD530F ROTORCRAFT FLIGHT MANUAL FAHRENHEIT/CELCIUS CONVERSIONS TEMPERATURE ° ° EXAMPLE CONVERT °F TO °C KNOWN: TEMPERATURE = 50° F METHOD: ENTER AT 50° F READ 10° C ACROSS ON °C SCALE METHOD MAY BE REVERSED TO FIND ° F WHEN ° C IS KNOWN ALTERNATE METHOD: °...
Page 36 MV MD530F ROTORCRAFT FLIGHT MANUAL Table 1−1. Liquid Measure − U.S. Gal/L U.S. Gallons−to−Liters U.S. Liters Liters Liters Liters Liters Liters Liters Liters Liters Liters Gallons − 3.785 7.571 11.356 15.142 18.927 22.713 26.498 30.283 34.069 37.854 41.640 45.425 49.211 52.996 56.781 60.567...
Page 37 MV MD530F ROTORCRAFT FLIGHT MANUAL Table 1−3. Linear Measure − Ft/M Feet−to−Meters Feet Meters Meters Meters Meters Meters Meters Meters Meters Meters Meters − 0.305 0.610 0.914 1.219 1.524 1.829 2.134 2.438 2.743 3.048 3.353 3.658 3.962 4.267 4.572 4.877 5.182 5.466 5.791...
Page 38 MV MD530F ROTORCRAFT FLIGHT MANUAL KNOTS METERS/SEC EXAMPLE CONVERT KNOTS TO METERS/SEC KNOWN: WIND SPEED = 25 KT METHOD: ENTER CHART AT 25 KT READ APPROXIMATELY 13 METERS/SEC ACROSS ON METERS/SEC SCALE METHOD MAY BE REVERSED TO FIND KNOTS WHEN METERS/SEC ARE KNOWN F90−003 Figure 1−4.
Page 39 MV MD530F ROTORCRAFT FLIGHT MANUAL Table 1−5. Standard Atmosphere Table Standard Sea Level Conditions: Temperature: 59°F (15°C) Pressure: 29.921 in. Hg (1013.25 mbar) Density: 0.0023769 slugs/ft (1.225 kg/m TEMPERATURE ALTITUDE DENSITY PRESSURE PRESSURE PRESSURE RATIO σ σ (feet) (mbar) (in. Hg) RATIO (°C) (°F)
Page 40 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Limitations (Models 369HE/HS/HM) E C T I O N IMITATIONS TABLE OF CONTENTS 2−1. 2−1 Flight Restrictions ........... . . 2−2.
Page 41 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Limitations (Models 369HE/HS/HM) 7. Instrument Markings − Allison 250−C20 Engine 2−15 ....2−16 ....2−14.
Page 43 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL (Models 369HE/HS/HM) SECTION II LIMITATIONS NOTE : Unless otherwise stated, information presented in this section pertains to both Model 369HE and 369HS helicopters equipped with the Allison 250−C18 or 250−C20 engines. When any limitation or restriction is affected by serial number, model, or engine configuration, that information will be noted.
Page 44 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) Model 369HE For helicopters with serial numbers 0215E and prior that have been mo- dified by the installation of 369A2405−29 and −30 stiffener on the 369A2405 overhead canopy panels or serial numbers 0216E and subse- quent, flight limitations are unchanged.
Page 45: Environmental Operating Conditions
MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL (Models 369HE/HS/HM) 2−2. ENVIRONMENTAL OPERATING CONDITIONS Kinds of operations: This rotorcraft is certified in the normal helicopter category for day and night VFR operation when the appropriate instruments and equipment re- quired by the airworthiness and/or operating rules are approved, installed and are in operable condition.
Page 46 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) 20,000 18,000 16,000 GROSS WEIGHT = 2000 LB OR LESS 14,000 12,000 10,000 8,000 GROSS WEIGHT = MORE THAN 2000 LB 6,000 4,000 2,000 INDICATED AIRSPEED − KNOTS F01−008 With Altitude − 250−C18 Figure 2−1.
Page 47 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) 20,000 18,000 16,000 14,000 GROSS WEIGHT = 2000 LB OR LESS 12,000 10,000 GROSS WEIGHT = MORE THAN 2200 LB 8,000 6,000 4,000 2,000 AIRSPEED − KIAS F01−010 with Altitude − 250−C20 Figure 2−2.
Page 48: Weight Limitations
MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) 2−4. WEIGHT LIMITATIONS Maximum gross weight: 369HE/HS, S/N 0001 thru 0100: Maximum gross weight is 2400 pounds. 369HE/HS, S/N 0101 and subs Maximum gross weight is 2550 pounds. NOTE : See Figure 2−3 for takeoff and landing weight limitations for helicopters not equipped with aluminum tail rotors.
Page 49 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) 20,000 6,000 18,000 5,000 16,000 14,000 4,000 12,000 10,000 3,000 8,000 2,000 6,000 4,000 1,000 2,000 *WEIGHT GREATER THAN 2,550 LB MUST BE JETTISONABLE −40 −30 −20 −10 AMBIENT TEMPERATURE − DEGREES C −40 −30 −20 −10 AMBIENT TEMPERATURE −...
Page 50: Rotor Brake Limitations (If Installed)
MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) 2−5. ROTOR BRAKE LIMITATIONS (IF INSTALLED) The rotor brake is to be applied only while the helicopter is on the ground dur- ing normal engine shutdown with N at or below 235 RPM. Do not apply collective to assist in slowing rotor.
Page 51: Power Plant Limits − Allison 250−C18
MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL (Models 369HE/HS/HM) 2−8. POWER PLANT LIMITS − ALLISON 250−C18 Engine torque limits: Maximum takeoff (5 minute): 80.3 psi torque. Maximum continuous: 70 psi torque. Transient torque limits: 80.4 to 90.0 psi torque for 10 seconds at 104 percent N 90.1 to 100.0 psi torque for 3 seconds at 104 percent N Turbine outlet temperature limits: Maximum takeoff (5 minute): 749°C...
Page 52 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) 2−9. POWERPLANT LIMITATIONS ALLISON 250−C20 Engine torque limits: Maximum takeoff power (5 minute): 64.5 psi torque Maximum continuous: 56.0 psi torque Transient torque limits: 72.0 psi torque for 10 seconds at 104 percent N 80.0 psi torque for 3 seconds at 104 percent N Turbine Outlet Temperature limits: Maximum takeoff (5 minute): 793°C...
Page 53 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL (Models 369HE/HS/HM) 2−10. ELECTRICAL SYSTEM LIMITATIONS Generator limits: Maximum continuous: 66 amps 66 to 150 amps: 10 minutes >150 amps: 2 minute limit prior to takeoff during battery recharging cycle only. Battery limits: Flight following a battery overtemperature of 160°F (71°C) or above is pro- hibited until the battery has been inspected.
Page 54 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) Emergency Aviation Gasoline MIL−G−5572E. MIL−G−5572 aviation gasolines containing Tri−Cresyl−Phosphate CAUTION (TCP) additives shall not be used. Use of MIL−G−5572E gasolines is limited to a maximum of 6 hours of operation per engine overhaul period and operation within safe conditions.
Page 55 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) 22,000 20,000 6000 18,000 FLIGHT 5000 16,000 14,000 4000 12,000 10,000 3000 8,000 2000 START 6,000 FUEL PUMP 4,000 1000 2,000 FUEL TEMPERATURE, DEGREES F FUEL TEMPERATURE, DEGREES C NOTES: (1) USE OF MIL−G−5572E FUEL IS LIMITED TO A MAXIMUM OF 6 HOURS OF OPERATION PER ENGINE OVERHAUL PERIOD.
Page 56 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) 2−13. INSTRUMENT MARKINGS YELLOW GREEN RED INDICATES MAXIMUM AND YELLOW INDICATES GREEN INDICATES MINIMUM OPERATING LIMITS; CAUTIONARY OPERATING NORMAL OPERATING THE EDGE OF A RED LINE IS THE RANGE. RANGE LIMITING VALUE; THE POINTER SHOULD NOT ENTER THE RED DURING NORMAL OPERATIONS.
Page 57 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) F01−002A Figure 2−5. Instrument Markings FAA Approved Revision 5 2−15...
Page 58 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) DUAL TACHOMETER (BOTH FACES SHOWN FOR CLARITY) N 2 ROTOR ROTOR RPM 103 AND 104% 400 AND 514 RPM 400 TO 514 RPM 103 TO 104% 110% 90 100 TORQUE C X 100 0 40 30 80.3 PSI 749°...
Page 59 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) Figure 2−6. Instrument Markings Allison − 250−C18 Engine FAA Approved Revision 5 2−17...
Page 60 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) DUAL TACHOMETER (BOTH FACES SHOWN FOR CLARITY) N 2 ROTOR ROTOR RPM 103AND 104% 400 AND 523 RPM 400 TO 523 RPM 103 TO 104% 113% 90 100 TORQUE C X 100 0 40 30 793°...
Page 61 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) Figure 2−7. Instrument Markings − Allison 250−C20 Engine FAA Approved Revision 5 2−17...
Page 62 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL (Models 369HE/HS/HM) 2−14. PLACARDS AND DECALS , KNOTS, IAS GROSS WEIGHT = 2000 LBS OR LESS PRESSURE ALTITUDE x 1000 °C −30 −15 − − 126 102 − − − − − − 127 103 −...
Page 63 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) , KNOTS, IAS GROSS WEIGHT = 2200 LBS OR LESS PRESSURE ALTITUDE x 1000 ° C −30 −15 − − − − − − − − − − − − − − −...
Page 64 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL (Models 369HE/HS/HM) Starting Recommendations −32 TO −18 −18 TO 7 OAT, °C 7 AND ABOVE THIS HELICOPTER MUST BE OPERATED IN COMPLIANCE WITH THE OPERATING LIMITATIONS SPECIFIED IN THE APPROVED ROTORCRAFT FLIGHT MANUAL. CAUTION CYCLIC FORCES TO BE TRIMMED TO NEUTRAL DURING STARTUP AND SHUTDOWN...
Page 66 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) Emergency and Malfunction Procedures I I I E C T I O N MERGENCY AND ALFUNCTION ROCEDURES TABLE OF CONTENTS PARAGRAPH PAGE 3−1. 3−1 General ............. . . 3−2.
Page 67 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) 3−16 Other Engine Caution Indications ........3−9.
Page 68 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) PARAGRAPH PAGE 3−11. Flight Control Malfunctions ..........3−19 Anti−Torque Failure .
Page 69 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures SECTION III EMERGENCY AND MALFUNCTION PROCEDURES NOTE : Unless otherwise stated, information presented in this section pertains to both Model 369HE and 369HS helicopters equipped with the Allison 250−C18 or 250−C20 engines.
Page 70 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Emergency and (Models 369HE/HS/HM) Malfunction Procedures 3−2. WARNING AND CAUTION INDICATORS Warning and caution indicators are located at the top of the instrument panel. A red warning or yellow caution indicator will illuminate indicating a failure or malfunction, and in the event of an engine failure, the engine out audible horn will also sound.
Page 71 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures F01−012 Figure 3−1. Warning and Caution Indicators FAA Approved Revision 6 3−3...
Page 72 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures 3−3. ENGINE FAILURE COMPLETE POWER LOSS ENGINE Indications: Flashing red warning indicator ON with engine out audible warning tone in headset. Left yaw (due to a reduction in torque) Drop in engine speed.
Page 73 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Emergency and (Models 369HE/HS/HM) Malfunction Procedures Select landing area and maneuver as required. If operating at reduced rotor RPM to extend glide or reduce rate of de- scent, restore rotor RPM by lowering collective prior to flare out. Flare as required for the terrain to reduce forward speed and rate of de- scent.
Page 74 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures Conditions: Engine Failure − Hovering Flight Below 8 Feet AGL Procedures: Do not reduce collective pitch. Apply right pedal to prevent yawing. Increase collective pitch as necessary to cushion landing. PARTIAL POWER LOSS Indications: Under partial power conditions, the engine may operate smoothly with reduced power or it may operate erratically with intermittent surges of...
Page 75 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Emergency and (Models 369HE/HS/HM) Malfunction Procedures 3−4. AIR RESTART − ENGINE Because the exact cause of engine failure cannot be determined in flight, the decision to attempt a restart will depend on aircraft altitude, time available, rate of descent, and potential landing areas.
Page 76 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures 3−5. LOW ROTOR SPEED NOTE : Early versions of the engine power out warning unit do not sense rotor rpm and do not activate the audible and visual warning indicators. ENGINE Indications: Red warning indicator ON and audible warning in headset.
Page 77 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Emergency and (Models 369HE/HS/HM) Malfunction Procedures Level aircraft and apply full collective pitch as contact is made with the water. When aircraft begins to roll, lower collective to full down to minimize blades skipping off the water. Release safety harness and clear the aircraft as soon as the rotor blades have stopped turning Do not inflate personal flotation gear before exiting aircraft.
Page 78 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures 3−7. FIRE The safety of the helicopter occupants is the primary consideration when a fire occurs. Therefore, if airborne, it is imperative that the pilot maintain control of the aircraft and land immediately.
Page 79 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures Procedures: Aircraft Evacuation A thorough preflight passenger briefing is essential for a quick and safe evacuation of passengers and crew when fire is involved. How to release seat belts, the opening of doors, the proper exiting of the helicopter keeping head and hands low to avoid the main rotor, are all critical to insure the safety of passengers and crew.
Page 80 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures Procedures: CUTOFF Twistgrip Starter MOTOR UNTIL TOT IS BELOW 150°C Fuel shut−off valve PULL TO CLOSE Conditions: Engine compartment fire Procedures: CUTOFF Twistgrip PULL TO CLOSE Fuel shutoff valve BATTERY/EXT PWR switch EVACUATE Passengers/crew...
Page 81 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures Conditions: At high altitude (AGL) Procedures: Prevailing circumstances such as altitude (AGL), available landing areas, and confirmation of engine fire must be considered in order to determine whether to execute a power−on approach, as described for low altitude (AGL) fires, or a power off autorotational descent to the ground.
Page 82 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures Conditions: In flight Procedures: POWER ON APPROACH AND LANDING Land immediately WITHOUT DELAY VENTILATE CABIN AS NECESSARY Air vents Twistgrip CUTOFF−AS SOON AS HELICOPTER IS ON GROUND BATTERY/EXT PWR switch Passengers/crew EVACUATE If unable to land immediately and fire source can be identified:...
Page 83 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Emergency and (Models 369HE/HS/HM) Malfunction Procedures 3−8. ENGINE FUEL CONTROL SYSTEM MALFUNCTIONS FUEL CONTROL OR POWER TURBINE GOVERNOR FAILURE Indications: Failure is indicated by an instrument needle fluctuation. A rise or drop of: Torque Conditions: Failure Producing an Overspeed.
Page 84 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures Conditions: Failure Producing an Underspeed: Indications: decaying. Possible left yaw. Possible low rotor warning indication. Procedures: Lower collective to maintain rotor RPM in the green (400−514) and at- tempt level flight at 60 knots IAS.
Page 85 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Emergency and (Models 369HE/HS/HM) Malfunction Procedures 3−9. OTHER ENGINE CAUTION INDICATIONS ENGINE/OIL CHIP DETECTOR ENGINE Indications: Yellow indicator ON. CHIPS Conditions: Metal contamination of engine oil. Procedures: Land as soon as possible. Indications: Yellow indicator ON (early configuration).
Page 86 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures Conditions: In flight. FAA Approved Revision 6 3−18...
Page 87 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures Procedures: Land as soon as possible. Shut engine down. Conditions: On ground. Shut engine down. 3−10. MAIN ROTOR AND TAIL ROTOR TRANSMISSION MALFUNCTIONS M/R TRANSMISSION OIL PRESSURE XMSN Indications: Red indicator ON (late configuration).
Page 88 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures TAIL ROTOR TRANSMISSION CHIP DETECTOR Indications: Yellow indicator ON (late configuration). XMSN CHIPS Conditions: Metal contamination of oil. Procedures: Land as soon as possible. OIL CHIPS Indications: Yellow indicator ON (early configuration).
Page 89 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures 3−11. FLIGHT CONTROL MALFUNCTIONS ANTI−TORQUE FAILURE Different types of failure may require slightly different techniques for optimum success in recovery. Therefore, it is not possible to provide a standardized solu- tion for an anti−torque emergency.
Page 90 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures Conditions: Anti−torque failure, fixed tail rotor pitch setting. Procedures: Adjust power to maintain 50 − 60 knots airspeed. Perform a shallow approach and running landing to a suitable area, touching down into wind at a speed between effective translational lift and 30 knots.
Page 91 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures CYCLIC TRIM FAILURE Indications: Inability to reduce cyclic forces with the cyclic trim switch. The failure will be one of the following types. Control of the helicopter is the primary consideration of a pilot WARNING confronted with any type of trim motor or switch malfunction.
Page 92 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures Conditions: Runaway trim Indications: An uncommanded longitudinal or lateral cyclic trim actuation. The cyclic may move to a full travel position or some intermediate position resulting in cyclic forces up to the maximum. Uncommanded movement can occur after cyclic trim switch actuation or as a result of an electrical short.
Page 93 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures 3−12. ABNORMAL VIBRATIONS Indications: Sudden, unusual or excessive vibrations occurring during flight. Conditions: The onset of unusual or excessive vibrations in the helicopter may be an indication of problems in the rotor or drive train systems. Procedures: LAND AS SOON AS POSSIBLE.
Page 94 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures FUEL LOW FUEL Indications: Yellow indicator ON when approximately 35 pounds of fuel remains in fuel tank. Procedures: Avoid large steady side slip angles and uncoordinated maneuvers. Never use the FUEL LOW light as a working indication of fuel CAUTION quantity.
Page 95 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures 3−14. ELECTRICAL SYSTEM MALFUNCTIONS BATTERY OVERTEMPERATURE BATTERY Indications: Red battery 160°F warning indicator ON. 140F 160F Conditions: Battery overtemperature at 160°F (71°C) or above. Procedures: Battery switch: OFF Land as soon as possible NOTE : No further flights are authorized until battery is inspected and cause of overtemp...
Page 96 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures GENERATOR MALFUNCTION Indications: Yellow indicator ON and ammeter indicating zero. Conditions: Generator is not powering electrical bus. Procedures: Check generator (GEN) circuit breaker IN Turn the generator (GEN) switch, OFF then ON to reset. If GEN OUT indicator remains ON or comes back ON, pull generator cir- cuit breaker OUT and insure generator switch is in the ON position for the remainder of the flight.
Page 97 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures 3−15. OTHER MALFUNCTIONS ENGINE AIR PARTICLE SEPARATOR (IF INSTALLED) FILTER Indications: Yellow indicator ON. CLOGGED Conditions: A predetermined pressure differential has been reached across the engine air inlet. Procedures: FILTER BYPASS control handle: pull OPEN SCAV AIR: OFF...
Page 98 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Emergency and (Models 369HE/HS/HM) Malfunction Procedures 3−16. EMERGENCY EGRESS Pilot compartment doors: Pilot doors function as primary and emergency exits. Cabin doors: Passenger doors function as primary and emergency exits. EXIT OPEN LOCK CAUTION SAFELOCK INNER HANDLE PILOT COMPARTMENT DOOR LH (TYPICAL)
Page 99 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Emergency and (Models 369HE/HS/HM) Malfunction Procedures 3−17. EMERGENCY EQUIPMENT First Aid Kit: The first aid kit is located on the right side forward edge of the pilot’s seat structure. The kit is a commercial type containing the items necessary to render lim- ited emergency first aid.
Page 101 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) E C T I O N ORMAL ROCEDURES TABLE OF CONTENTS PARAGRAPH PAGE 4−1. 4−1 Preflight Requirements ..........Figure 4−1.
Page 102 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) 4−17. Normal Engine Restart ..........4−28 4−18.
Page 104 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) SECTION IV NORMAL PROCEDURES 4−1. PREFLIGHT REQUIREMENTS NOTE : Unless otherwise stated, information presented in this section pertains to both Model 369HE and 369HS helicopters equipped with the Allison 250−C18 or 250−C20 engines.
Page 105 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) ::II ::II F01-014 Figure 4-1.Pilot's Preflight Guide FAA Approved Revision 5 4−2...
Page 106 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) DAILY PREFLIGHT CHECKS PRELIMINARY CHECKS Fuel cell drain valve − take sample (Start Pump OFF) CHECK FOR CONTAMINANTS FUSELAGE − FORWARD END REMOVED Aircraft tiedowns and covers Aircraft attitude for weak or damaged dampers CHECK Canopy: CHECK...
Page 107 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Normal Procedures (Models 369HE/HS/HM) FUSELAGE − RIGHT SIDE Landing gear: CHECK Skid tube Abrasion strips CHECK CHECK Strut fairings and cuffs Position light − skid or step CHECK Fuselage skin CHECK Right side static port NO OBSTRUCTIONS CHECK Passenger steps for condition and security...
Page 108 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) Rotor system: CHECK Main rotor hub, pitch control rods, blade dampers for correct phasing, swashplate and mast CHECK Main rotor strap pack Blade and damper attach pins CHECK Main rotor blade root fittings and lead−lag link CHECK assemblies for cracks.
Page 109 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) movement. CHECK FAA Approved Revision 5 4−6...
Page 110 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) CHECK Chip detector and wiring. Control push−pull rod and bellcrank. CHECK Tail rotor transmission oil level. CHECK CHECK Output shaft dust cover, retainer nut, tang washer and rubber bumper. Check for torque stripe paint across retainer nut, tang washer, and CAUTION fork assembly.
Page 111 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) NOTE : If tail rotor blade tip moves in excess of 3/4 inch (1.9 cm) without coincidental movement of the main rotor blades, inspect tail rotor drive shaft couplings in accordance with the Handbook of Maintenance Instructions.
Page 112 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) CHECK Main rotor blades for condition and abrasion strip for condition and bonding (do not handle trim tabs) CHECK Overrunning clutch (turn main rotor blade forward then aft) CHECK All inspection panels ENGINE COMPARTMENT Engine mounts, mounting pads, and firewalls CHECK...
Page 113 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) Anti−collision light CHECK FAA Approved Revision 5 4−9...
Page 114 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Normal Procedures (Models 369HE/HS/HM) AFT COMPARTMENT CHECK Oil cooler blower belt Fuel cell access panels SECURED SECURED Controls access panel : Refer to Paragraph ‘‘DOORS OFF FLIGHT’’ if planning flight with doors NOTE removed. SECURED Loose equipment or cargo CHECK...
Page 115 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) BATTERY TEMPERATURE SENSING CAUTION BATTERY MAGNETIC COMPASS AND WARNING LIGHTS 140F 160F ENGINE OUT AUDIBLE WARNING HORN CAUTION AND WARNING LIGHTS CHIPS AIRSPEED INDICATOR SCAVENGE AIR (IF INSTALLED) ALTIMETER AND N (ROTOR) TACHOMETER INDICATOR BLANK PLATES...
Page 116 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) BATTERY TEMPERATURE SENSING CAUTION CLOCK BATTERY AND WARNING LIGHTS ENGINE OUT AUDIBLE 140F 160F WARNING HORN CAUTION AND WARNING LIGHTS ALTIMETER AIRSPEED INDICATOR SCAVENGE AIR (IF INSTALLED) AND NR (ROTOR) TACHOME- TER INDICATOR TORQUE GAGE...
Page 117 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) Figure 4−2. Instrument Panel (Sheet 2 of 2) FAA Approved Revision 5 4−1...
Page 118 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) SWITCH HOUSING SWITCH HOUSING LANDING LIGHT SWITCH IDLE RING PILOT’S THROTTLE TWISTGRIP COPILOT’S TWISTGRIP THROTTLE TWIST- GOVERNOR INCREASE/DE- GRIP FRICTION CREASE SWITCH COLLECTIVE STICK FRIC- TION NUT COPILOT’S COLLECTIVE STICK (OPTIONAL) PILOT’S COLLECTIVE STICK CARGO HOOK RE-...
Page 119 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Normal Procedures (Models 369HE/HS/HM) 4−2. ENGINE PRE−START COCKPIT CHECK ELECTRICAL POWER − OFF CHECK All cabin doors CLOSED AND SAFELOCKED Tail rotor pedals ADJUST NOTE : Adjust pedal position to insure that the pedals can be moved throughout the entire range of travel.
Page 120 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) Static position of all instruments CHECK FAA Approved Revision 5 4−1...
Page 121 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) Altimeter All electrical switches Radio switches Circuit breakers AS REQUIRED OPEN (IN) Fuel shutoff valve ELECTRICAL POWER − ON Electrical power: Battery or external power start: BATTERY/EXT PWR switch − set to BATTERY for AS REQUIRED battery start;...
Page 122 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) NOTE : Caution lights will return to bright when all power is removed (BATTERY and GEN OFF) and restored, or by pulling and resetting the PNL LT circuit breaker. CHECK Caution light dimming (lights on some later models may be dimmed by pressing the legend face of the indicator.
Page 123 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) 4−3. ENGINE START Cyclic stick trimmed to neutral; friction − ON RECHECK Do not attempt engine start with cyclic stick in positions other than CAUTION neutral. Damage to rotor head and controls will result. Collective stick −...
Page 124 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) During starts, overtemperatures between 793°C (C20) or 749°C CAUTION (C18) and 927°C are permitted for up 10 seconds with a momentary peak at 927°C for not more than 1 second. Consult Allison Engine Operation and Maintenance Manual if these limits are exceeded.
Page 125 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) If rotor and engine rpm indicator needles are not superimposed, CAUTION shut down engine. : ‘‘Superimposed’’ means within 1/2 needle width. The relative positions of the NOTE superimposed needles should remain constant during powered flight. Start pump AS REQUIRED 4−4.
Page 126 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) * Engine controls: 250−C18: high beep range − 104 percent or more (105 CHECK percent maximum) low beep range − 100 percent or less CHECK 250−C20: high beep range − 104 percent or more (105 CHECK percent maximum) low beep range −...
Page 127 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) RECHECK If dual controls are installed, repeat procedure using copilot’s twistgrip. FULL OPEN Twistgrip − 103 percent RECHECK Engine oil pressure − above 90 pounds RECHECK CHECK READING Ammeter NOTE : Ammeter reading will fluctuate slightly when anti−collision lights are on.
Page 128 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) Reduction Procedures’’. Determine that hover area and takeoff path are clear. FAA Approved Revision 5 4−20...
Page 129 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) Follow normal helicopter takeoff procedures with engine speed at 103 to 104 percent N rpm should increase 1 to 2 percent (C18); 1−1/2 to 2 percent Governed N (C20) on takeoff − adjust as necessary to maintain N at 104 percent.
Page 130 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) 4−7. CRUISE Scav Air switch (part of the optional engine air particle separator kit) may be turned OFF. NOTE : Decision to use the particle separator scavenge air should be based on atmospheric conditions and height above terrain where operations are to be conducted.
Page 131 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Normal Procedures (Models 369HE/HS/HM) 4−9. PRACTICE AUTOROTATION Perform throttle rigging check prior to attempting practice WARNING autorotations. (See Engine Run−up). Misrigging of the throttle control may result in inadvertent flameout during rapid closing of the twistgrip to the ground idle position.
Page 132 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) NOTE : Normal rotor rpm (collective fully down) is 485 ±5 rpm at 2200 pounds gross weight at sea level, 60 knots. Rotor speed will decrease approximately 12 rpm for each 100 pounds reduction in gross weight and increase 7 rpm for each 1000 foot increase in density altitude.
Page 133 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Normal Procedures (Models 369HE/HS/HM) 4−11. COLD WEATHER OPERATION If operations are to be conducted at ambient temperatures below 10°F, it is rec- ommended that the 369H90127 Winterization Kit be installed. Helicopters 0333S and 0216E and subs have the kit installed as standard equipment. 4−12.
Page 134 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) 4−14. ENGINE/AIRCRAFT SHUTDOWN Care should be taken when rotating the twistgrip to the ground CAUTION idle position and from ground idle to the cut off position if the helicopter is parked on a icy or slippery surface (helicopter may spin in direction of main rotor blade rotation).
Page 135 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) NOTE : If thumping or a rapping sound is heard from the drive train during the final revolution of the main rotor, inspect the tail rotor drive shaft couplings in accordance with the HMI.
Page 136 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Normal Procedures (Models 369HE/HS/HM) 4−15. POST FLIGHT Aircraft−investigate any suspected damage CHECK Fuel and oil leaks CHECK Logbook entries COMPLETE Flight manual and equipment STOWED Aircraft tiedowns, covers SECURED NOTE : Oil level should be checked within 15 minutes after shutdown. REPLENISH IF LOW Engine oil tank for correct oil level 4−16.
Page 137 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Normal Procedures (Models 369HE/HS/HM) 4−17. NORMAL ENGINE RESTART Do not exceed 150°C residual TOT when ignition is attempted. Reduce TOT by motoring engine with starter. Speeds in excess of 15 percent may be experienced. 4−18.
Page 138 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL (Models 369HE/HS/HM) Performance Data E C T I O N ERFORMANCE TABLE OF CONTENTS PARAGRAPH PAGE 5−1. 5−1 General ............. . . 5−2.
Page 139 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL (Models 369HE/HS/HM) Performance Data ure 5−9. Hover Ceiling vs Temperature, IGE, 3−Foot Skid 5−15 Clearance, Extended Landing Gear, Aluminum Tail Rotor, Takeoff Power <<<< Allison 250−C18 >>>> ....... . . 5−16 *Figure 5−10.
Page 140 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL (Models 369HE/HS/HM) Performance Data PARAGRAPH PAGE *Figure 5−12. Hover Ceiling vs Temperature, IGE, 2−Foot Skid Clearance, Extended Landing Gear, Utility Floats Installed, Takeoff Power <<<< Allison 250−C18 >>>> ....... . . 5−20 *Figure 5−13.
Page 141 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL (Models 369HE/HS/HM) Performance Data 5−34 <<<< Allison 250−C20 >>>> ....... . . FAA Approved Revision 5 5−i...
Page 142 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL (Models 369HE/HS/HM) Performance Data SECTION V PERFORMANCE DATA 5−1. GENERAL Be sure to include a review of the appropriate flight manual CAUTION supplemental data for any optional equipment installed (including STC items) as a regular part of preflight planning (Section IX). NOTE : Unless otherwise stated, information presented in this section pertains to both Model 369HE and 369HS helicopters equipped with the Allison 250−C18 or...
Page 143 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) Performance Data Engine Critical Altitude: Above the ‘‘Engine Critical Altitude’’ line on hover performance charts, pow- er is limited by: Helicopters equipped with 250−C18 engines; Maximum TOT (749°C). Be- low that line, power is limited by maximum engine torque pressure (80.3 psi).
Page 144 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Performance Data (Models 369HE/HS/HM) PITOT SYSTEM 369H4226 STATIC SYSTEM 369H6610−501 INDICATED AIRSPEED (KTS) F01−057 <<<< Allison 250−C18 >>>> Figure 5−1. Airspeed Calibration Curve FAA Approved Revision 5 5−3...
Page 145 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Performance Data (Models 369HE/HS/HM) 5−3. DENSITY ALTITUDE CHART Description: This chart allows a quick estimation of the density altitude when pressure altitude and OAT are known. This chart should be used for determining density altitude for use with gross weight limits for the HV Diagram and speed for Best Rate of Climb Chart.
Page 146 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) 20000 1.36 1.34 18000 1.32 1.30 16000 1.28 1.26 14000 1.24 1.22 12000 1.20 1.18 10000 1.16 1.14 8000 1.12 1.10 6000 1.08 4000 1.06 1.04 2000 1.02 1.00 0.98 −2000 −30 −20...
Page 147 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) EMPERATURE − °F F01−055 Figure 5−2. Density Altitude Chart <<<< Allison 250−C18 >>>> FAA Approved Revision 5 5−6...
Page 148 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Performance Data (Models 369HE/HS/HM) 5−4. SPEED FOR BEST RATE OF CLIMB Description: This chart shows the indicated airspeed to use for the best rate of climb at any given density altitude. Use of Chart: Use the chart as illustrated by the example below.
Page 149 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) 20,000 2000 lb 18,000 2200 lb 16,000 14,000 2550 lb 12,000 10,000 8,000 6,000 4,000 2,000 INDICATED AIRSPEED − KNOTS F01−015 <<<< Allison 250−C18 >>>> Figure 5−3. Speed for Best Rate of Climb FAA Approved Revision 5 5−8...
Page 150 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Performance Data (Models 369HE/HS/HM) 5−5. HEIGHT VELOCITY DIAGRAM − GROSS WEIGHT LIMITS FOR HEIGHT VELOCITY DIAGRAM Description: Airspeed/altitude combinations to be avoided in the event of an engine fail- ure during takeoff are shown in the height−velocity diagram. Conditions: The height velocity diagram is based on sea level, standard day conditions, over a smooth hard surface at 2550 pounds gross weight.
Page 151 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) SMOOTH, HARD SURFACE − WIND CALM AVOID OPERATION IN CROSSHATCHED AREAS RECOMMENDED TAKEOFF PROFILE INDICATED AIRSPEED − KNOTS F01−018 <<<< Allison 250−C18 >>>> Figure 5−4. Height Velocity Diagram FAA Approved Revision 5 5−10...
Page 152 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) 7000 2000 6000 5000 1500 4000 1000 3000 2000 1000 2000 2100 2200 2300 2400 2500 2600 GROSS WEIGHT − LB F01−023 <<<< Allison 250−C18 >>>> Figure 5−5. Gross Weight Limits for Height Velocity Diagram FAA Approved Revision 5 5−11...
Page 153 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Performance Data (Models 369HE/HS/HM) 5−6. HOVER CEILING VS TEMPERATURE − IGE Ensure that the appropriate hover ceiling chart for type of engine WARNING and optional equipment installed is selected prior to determining IGE hover performance. NOTE : The hover performance charts are grouped according to the engine type installed: 250−C18 then 250−C20.
Page 154 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) Use of Chart: The following example explains the correct use of the chart as in Figure 5−6. To determine the maximum hover ceiling at 3.0 ft. skid height, the pilot must know the gross weight and the outside air temperature. Example: Helicopter configuration: Short landing gear...
Page 155 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) THIS CHART BASED ON CABIN HEAT, ENGINE ANTI− REDUCE WEIGHT CAPABILITIES LBS AS FOLLOWS ICE OFF, ELECTRIC LOAD 30 AMPERE, APPLICABLE PRESSURE CABIN ANTI− BOTH ALT, FT HEAT TO 369H8094 ENGINE AIR INLET SCREEN, 250−C18 REDUCE HOVER WEIGHT CAPABILITY SEAL LEVEL TO 1 E .
Page 156 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) F01−024 Figure 5−6. Hover Ceiling vs Temperature, IGE, 3−Foot Skid Clearance, Short Landing Gear, Takeoff Power <<<< Allison 250−C18 >>>> FAA Approved Revision 5 5−14...
Page 157 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) NOTE: APPLICABLE TO MODELS 369H, HM, HS: S/N; REDUCE WEIGHT CAPABILITIES LBS AS FOLLOWS 369H − ALL, 0001M − 0100M, 0001S − 0100S THIS CHART BASED ON CABIN HEAT, ENGINE ANTI−ICE ANTI−...
Page 158 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) *Figure 5−7. Hover Ceiling vs Temperature, IGE, 3−Foot Skid Clearance, Short Landing Gear, Aluminum Tail Rotor, Takeoff Power, (Sheet 1 of 2) <<<< Allison 250−C18 >>>> FAA Approved Revision 5 5−16...
Page 159 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) NOTE: APPLICABLE TO MODELS 369HE, HM, HS: S/N; 0101E REDUCE WEIGHT CAPABILITIES LBS AS FOLLOWS AND SUBS, 0101M AND SUBS, 0101S AND SUBS THIS CHART BASED ON CABIN HEAT, ENGINE ANTI−ICE OFF, PRESSURE CABIN ANTI−...
Page 160 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Performance Data (Models 369HE/HS/HM) −40 −30 −20 −10 AMBIENT TEMPERATURE − DEGREES F01−026 *Figure 5−7. Hover Ceiling vs Temperature, IGE, 3−Foot Skid Clearance, Short Landing Gear, Aluminum Tail Rotor, Takeoff Power (Sheet 2 of 2) <<<<...
Page 161 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) THIS CHART BASED ON CABIN HEAT, ENGINE ANTI− REDUCE WEIGHT CAPABILITY LBS AS FOL- ICE OFF, ELECTRICAL LOAD 30 AMPERES, 250−C18 ANTI− BOTH ENGINE ALTITUDE HEAT FEET REDUCE HOVER WEIGHT CAPABILITY 1.
Page 162 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) F01−031A *Figure 5−8. Hover Ceiling vs Temperature, IGE, 3−Foot Skid Clearance, Extended Landing Gear, Takeoff Power <<<< Allison 250−C18 >>>> FAA Approved Revision 5 5−20...
Page 163 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) THIS CHART BASED ON CABIN HEAT, ENGINE ANTI− REDUCE WEIGHT CAPABILITIES LBS AS FOLLOWS ICE OFF, ELECTRICAL LOAD 15 AMPERE, APPLICABLE PRESSURE CABIN ANTI− BOTH TO 369H8094 ENGINE AIR INLET SCREEN, 250−C18 ALT, FT HEAT ENGINE REDUCE HOVER WEIGHT CAPABILITY...
Page 164 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) *Figure 5−9. Hover Ceiling vs Temperature, IGE, 3−Foot Skid Clearance, Extended Landing Gear, Aluminum Tail Rotor, Takeoff Power <<<< Allison 250−C18 >>>> FAA Approved Revision 5 5−22...
Page 165 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) THIS CHART BASED ON CABIN HEAT, ENGINE ANTI−ICE OFF, REDUCE WEIGHT CAPABILITIES LBS AS FOLLOWS ELECTRICAL LOAD 15 AMPERES, APPLICABLE TO 369H8094 ENGINE AIR INLET SCREEN, 250−C18 ENGINE PRESSURE CABIN ANTI−...
Page 166 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) 5−FOOT SKID CLEARANCE WITH EXTENDED LANDING GEAR INSTALLED NOTE: F01−028 *Figure 5−10. Hover Ceiling vs Temperature, IGE, 6−Foot Skid Clearance, Short Landing Gear, Aluminum Tail Rotor,Takeoff Power <<<< Allison 250−C18 >>>> FAA Approved Revision 5 5−24...
Page 167 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) THIS CHART BASED ON CABIN HEAT, ENGINE ANTI−ICE REDUCE WEIGHT CAPABILITY LBS AS FOLLOWS OFF, ELECTRICAL LOAD 30 AMPERE, 250−C18 ENGINE ANTI− ALTITUDE CABIN BOTH HEAT REDUCE HOVER WEIGHT CAPABILITY SEA LEVEL 1.
Page 168 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) Figure 5−11. Hover Ceiling vs Temperature, IGE, 6−Foot Skid Clearance, Short Landing Gear, Takeoff Power <<<< Allison 250−C18 >>>> FAA Approved Revision 5 5−26...
Page 169 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) THIS CHART BASED ON CCABIN HEAT, ENGINE REDUCE WEIGHT CAPABILITY LBS AS FOLLOWS ANTI−ICE OFF, ELECTRICAL LOAD 30 AM- PRESSURE CABIN ANTI− BOTH PERES, 250C18 ENGINE ALT. FT. HEAT REDUCE HOVER WEIGHT CAPABILITY SEA LEVEL 1.
Page 170 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) *Figure 5−12. Hover Ceiling vs Temperature, IGE, 2−Foot Skid Clearance, Extended Landing Gear, Utility Floats Installed, Takeoff Power <<<< Allison 250−C18 >>>> FAA Approved Revision 5 5−28...
Page 171 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) THIS CHART BASED ON CABIN HEAT, ENGINE ANTI−ICE REDUCE WEIGHT CAPABILITY LBS AS FOLLOWS OFF, ELECTRICAL LOAD 15 AMPERE, APPLICABLE TO CABIN ANTI− BOTH PRESSURE 369H8094 ENGINE AIR INLET SCREEN, 250−C18 ENGINE HEAT ALT.
Page 172 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) *Figure 5−13. Hover Ceiling vs Temperature, IGE, 2−Foot Skid Clearance, Extended Landing Gear, Aluminum Tail Rotor and Utility Floats, Takeoff Power <<<< Allison 250−C18 >>>> FAA Approved Revision 5 5−30...
Page 173 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) THIS CHART BASED ON CABIN HEAT, ENGINE REDUCE WEIGHT CAPABILITY LBS AS FOLLOWS ANTI−ICE OFF, ELECTRIC LOAD 30 AMPERE. ALTITUDE CABIN ANTI− 250−C20 ENGINE FEET HEAT BOTH REDUCE HOVER WEIGHT CAPABILITY SEA LEVEL 1.
Page 174 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) F01−035A Figure 5−14. Hover Ceiling vs Temperature, IGE, 3−Foot Skid Clearance, Short Landing Gear, Takeoff Power <<<< Allison 250−C20 >>>> FAA Approved Revision 5 5−23...
Page 175 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) THIS CHART BASED ON CABIN HEAT, ENGINE ANTI−ICE REDUCE WEIGHT CAPABILITY LBS AS FOL- OFF, ELECTRICAL LOAD 30 AMPERES, 250−C20 ENGINE ITUDE CABIN BOTH ANTI− REDUCE HOVER WEIGHT CAPABILITY FEET HEAT 1.
Page 176 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) *Figure 5−15. Hover Ceiling vs Temperature, IGE, 3−Foot Skid Clearance, Short Landing Gear, Tail Rotor Blade Abrasion Strips Installed, Takeoff Power <<<< Allison 250−C20 >>>> FAA Approved Revision 5 5−25...
Page 177 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) THIS CHART BASED ON CABIN HEAT, ENGINE ANTI− REDUCE WEIGHT CAPABILITY LBS AS FOLLOWS ICE OFF, ELECTRICAL LOAD 30 AMPERES, 250−C20 ALTITUDE CABIN ANTI− BOTH ENGINE REDUCE HOVER WEIGHT CAPABILITY FEET HEAT 1.
Page 178 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) *Figure 5−16. Hover Ceiling vs Temperature, IGE, 3−Foot Skid Clearance, Extended Landing Gear, Take−off Power <<<< Allison 250−C20 >>>> FAA Approved Revision 5 5−27...
Page 179 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) THIS CHART BASED ON CABIN HEAT, ENGINE ANTI−ICE REDUCE WEIGHT CAPABILITY LBS AS FOLLOWS OFF, ELECTRICAL LOAD 30 AMPERE. 250−C20 ENGINE ANTI− PRESSURE CABIN BOTH REDUCE HOVER WEIGHT CAPABILITY ALT. FT HEAT SEA LEVEL 1.
Page 180 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) AMBIENT TEMPERATURE − DEGREES C F01−038 *Figure 5−17. Hover Ceiling vs Temperature, IGE, 3−Foot Skid Clearance, Extended Landing Gear, Tail Rotor Blade Abrasion Strips Installed, Takeoff Power <<<< Allison 250−C20 >>>> FAA Approved Revision 5 5−26...
Page 181 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) THIS CHART BASED ON CABIN HEAT, ENGINE ANTI− REDUCE WEIGHT CAPABILITY LBS AS FOLLOWS ICE OFF, ELECTRICAL LOAD 30 AMPERE. 250−C20 BOTH PRESSURE CABIN ANTI− ENGINE REDUCE HOVER WEIGHT CAPABILITY ALT.
Page 182 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) 5−FOOT SKID CLEARANCE WITH EXTENDED LANDING GEAR INSTALLED F01−039 NOTE: Figure 5−18. Hover Ceiling vs Temperature, IGE, 6−Foot Skid Clearance, Short Landing Gear, Takeoff Power Landing Gear, Tail Rotor Blade Abrasion Strips Installed, Takeoff Power <<<<...
Page 183 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) THIS CHART BASED ON CABIN HEAT, ENGINE ANTI− REDUCE WEIGHT CAPABILITY LBS AS FOLLOWS ICE OFF, ELECTRICAL LOAD 30 AMPERE, 250−C29 CABIN ANTI− PRESSURE BOTH ENGIN R E EDUCE HOVER WEIGHT CAPABILITY HEAT ALT.
Page 184 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) AMBIENT TEMPERATURE − DEGREES 5−FOOT SKID CLEARANCE WITH EXTENDED LANDING GEAR INSTALLED F01−040A NOTE: *Figure 5−19. Hover Ceiling vs Temperature, IGE, 6−Foot Skid Clearance, Short Landing Gear, Tail Rotor Blade Abrasion Strips Installed, Takeoff Power <<<<...
Page 185 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) THIS CHART BASED ON CABIN HEAT, ENGINE ANTI−ICE OFF, REDUCE WEIGHT CAPABILITY LBS AS FOLLOWS ELECTRICAL LOAD 30 AMPERE. 250−C20 ENGINE PRESSURE CABIN ANTI− BOTH REDUCE HOVER WEIGHT CAPABILITY HEAT ALT.
Page 186 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Performance Data (Models 369HE/HS/HM) −30 −20 −10 −40 AMBIENT TEMPERATURE − DEGREES C F01−041 *Figure 5−20. Hover Ceiling vs Temperature, IGE, 2−Foot Skid Clearance, Extended Landing Gear, Utility Floats Installed, Takeoff Power Landing Gear, Tail Rotor Blade Abrasion Strips Installed, Takeoff Power <<<<...
Page 187 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Performance Data (Models 369HE/HS/HM) 5−7. POWER CHECK CHART − ALLISON 250−C18 ENGINE Description The Power Check Chart shows the relationship of engine torque, turbine outlet temperature, and horsepower at various conditions of pressure altitude and OAT for an Allison 250−C18 engine producing specification power as installed in the Model 500 helicopter.
Page 188 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) Use Of Chart: The primary use of the chart is illustrated by the example below and by the sample arrows shown on the chart. To determine power check values, it is nec- essary to read and record engine TORQUE PRESSURE, TURBINE OUTLET TEMPERATURE, PRESSURE ALTITUDE, and OAT while the helicopter is flown in level flight at 103 percent N...
Page 189 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Performance Data (Models 369HE/HS/HM) TURBINE OUTLET TEMPERATURE DEGREES C TOT LIMIT TORQUE − PSI = 103%, CABIN HEAT, ANTI−ICE OFF, 30 AMPERES ELECTRICAL LOAD TORQUE LIMIT SHAFT HORSEPOWER F01−049 Figure 5−21. Power Check Chart FAA Approved Revision 5 5−31...
Page 190 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) <<<< Allison 250−C18 >>>> FAA Approved Revision 5 5−32...
Page 191 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Performance Data (Models 369HE/HS/HM) 5−8. POWER CHECK CHART − ALLISON 250−C20 ENGINE Description The Power Check Chart shows the relationship of engine torque, turbine outlet temperature, and horsepower at various conditions of pressure altitude and OAT for an Allison 250−C20 engine producing specification power as installed in the Model 500 helicopter.
Page 192 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Performance Data (Models 369HE/HS/HM) Example: Wanted: Check engine performance Data obtained during flight: Torque = 56.0 psig = 4000 feet = 20°C = 710°C Method: Enter the chart at 56.0 psig torque. Move left along the 56.0 psig torque line to the 4000 foot pressure altitude curve, move down to the 20°C OAT curve;...
Page 193 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Performance Data (Models 369HE/HS/HM) SHAFT HORSEPOWER = 103%, CABIN HEAT, ANTI−ICE OFF 30 AMPERES ELECTRICAL LOAD TORQUE LIMIT TORQUE − PSI TOT LIMIT TURBINE OUTLET TEMPERATURE DEGREES C F01−056 Figure 5−22. Power Check Chart <<<<...
Page 194 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL (Models 369HE/HS/HM) Weight and Balance Data E C T I O N EIGHT AND ALANCE TABLE OF CONTENTS PARAGRAPH PAGE 6−1. 6−1 Weight and Balance Characteristics ........Table 6−1.
Page 195 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL 6−20 Internal Loading of Cargo ..........6−8.
Page 197 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Weight and Balance Data (Models 369HE/HS/HM) SECTION VI WEIGHT AND BALANCE DATA 6−1. WEIGHT AND BALANCE CHARACTERISTICS The weight and balance characteristics of the McDonnell Douglas 500 helicop- ter are as follows (Ref. Table 6−1 and Figure 6−1). Maximum Certified Gross Weight Refer to Section II.
Page 198 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Weight and Balance Data (Models 369HE/HS/HM) FORWARD GROSS WEIGHTS AIRCRAFT 2401 TO 2550 LB (1089 TO 1157 KG) 2201 TO 2400 LB (998 TO 1089 KG 2001 TO 2200 LB (907 TO 998 KG) 2000LB OR LESS (907 KG OR LESS) −3...
Page 199 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Weight and Balance Data (Models 369HE/HS/HM) STA. STA. 78.5 124.0 ROTOR C STA L . CG OF RIGHT SIDE 100.0 FORWARD PASSENGER CARGO COMPARTMENT STA. 28.0 STA. 174.0 +18.1 +12.1 +2.6 −12.1 −13.0 CG OF AFT PASSENGERS CG OF FWD PASSENGER THREE−PLACE COCKPIT (STANDARD CG OF PILOT...
Page 200 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Weight and Balance Data (Models 369HE/HS/HM) STA. 97.0 STA. 104.0 PERMISSIBLE CG RANGE (369HS (S/N 0001 THRU 0100) ONLY) STA. 28.0 OIL TANK − RH SIDE SLING POINT LEVELING PLUMB STA. 92.6 FIREWALL JIG POINT 3°...
Page 201 MD500 ROTORCRAFT FLIGHT MANUAL CSP-HE/HS-1 (Models 369HE/HS/HM) Weight and Balance Data CANT STA 146. 62 164.87 185.89 CANT 78.50 CANT STA 124.00 137.50 155. 75 174. 00 197. 78 28.00 49.37- 44.65 56.85 84.79 96.42 108.04 119. 67 137.50 0. 00 CANT STA 50.50 64.37...
Page 202 MD500 ROTORCRAFT FLIGHT MANUAL CSP-HE/HS-1 (Models 369HE/HS/HM) Weight and Balance Data WEIGHT AND BALANCE REPORT MDHC MODEL ------------------------- WEIGHED BY------------------- CONFIGURATION -------- MODEL--------- SERIAL NO. REGISTRATION NO.------ DATE----- LONG I· TARE OR LONGI· SCALE LATERAL LATERAL CALIBRATION TUDINAL TUOINAL WEIGHING POINTS WEIGHT READING MOMENT...
Page 203 MD500 ROTORCRAFT FLIGHT MANUAL CSP-HE/HS-1 (Models 369HE/HS/HM) Weight and Balance Data MODEL----- SERIAL N. REGISTRATIDN NO. ------ DATE------- EXAMPLES OF FORWARD, AFT AND LAT-ERAL LOADING LONG LONG WEIGHT MOMENT EXAMPLE 1. FORWARD (lBS) iiN) liN LB) BASIC WEIGHT PILOT 73.5 CRITICAL FUEL QUANTITY GROSS WEIGHT (CRITICAL FUEL) -FWD C.G.
Page 204 MD500 ROTORCRAFT FLIGHT MANUAL CSP-HE/HS-1 (Models 369HE/HS/HM) Weight and Balance Data TABLE 1 SURPLUS AND MISSING EQUIPMENT MODEL -------SERIAL NO.------- REGISTRATION NO. DATE WEIGHT ARM -INCHES MOMENT- INILBS LONG LATR LONG LATR EQUIPMENT- ITEM 96.9) SURPLUS EllUIPMENT TOTAL: JACK PADS 96.9 (IO) ((_ )
Page 205 MD500 ROTORCRAFT FLIGHT MANUAL CSP-HE/HS-1 (Models 369HE/HS/HM) Weight and Balance Data Figure 6-5. Sample Surplus and Missing Items Revision 6...
Page 206 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Weight and Balance Data (Models 369HE/HS/HM) F01−065 Figure 6−6. Sample Basic Weight and Balance Record Revision 6 6−9...
Page 207 EXAMPLE: Find fuel moment for 340 lb fuel: 1. Enter chart at 340 lb on fuel weight scale. From that point, move to right along the 340 lb line until reaching the fuel weight CG curve. Now move down to the longitudinal CG scale to find the fuel station (CG) of approximately 96.80 −...
Page 208 EXAMPLE: Find fuel moment for 340 lb fuel: 1. Enter chart at 340 lb on fuel weight scale. From that point, move to right along the 340 lb line until reaching the fuel weight CG curve. Now move down to the longitudinal CG scale to find the fuel station (CG) of approximately 97.10 −...
Page 209 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Weight and Balance Data (Models 369HE/HS/HM) 6−2. WEIGHT AND BALANCE CRITERIA Use the delivered weight as recorded in the Weight and Balance Record in- serted in this section to perform all weight and balance computations. Deliv- ered weight includes oil and unusable fuel.
Page 210 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Weight and Balance Data (Models 369HE/HS/HM) Example I :Longitudinal CG Calculation − Passenger 369HE 369HS Items Weight (lb) Moment (in.−lb) Weight (lb) Moment (in.−lb) Basic Weight 1,138 125,965 1,280 138,905 Pilot 12,500 12,500 Passenger − Fwd Outboard 12,500 12,500 Passenger −...
Page 211 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Weight and Balance Data (Models 369HE/HS/HM) 6−5. LONGITUDINAL LOADING OF CARGO The large aft compartment of the Model 369HE/HS provides great flexibility in the variety of cargo loads it can accommodate. In general, the placement of cargo CG within 4 inches of the center of the compartment will ensure that the helicopter will be within the approved CG limits.
Page 212 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Weight and Balance Data (Models 369HE/HS/HM) Example II :Longitudinal CG Calculation − Passenger and Cargo 369HE 369HS Items Weight (lb) Moment (in.−lb) Weight (lb) Moment (in.−lb) Basic Weight 1,138 125,965 1,280 138,905 Pilot 12,500 12,500 Passenger −...
Page 213 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Weight and Balance Data (Models 369HE/HS/HM) 6−6. PERMISSIBLE LATERAL LOADINGS Safe operation of this helicopter requires that it be flown within established lateral as well as longitudinal center of gravity limits. It is therefore imperative that lateral center of gravity control be exercised. All combinations of internal and external loadings are permissible if gross weight, longitudinal, and lateral center of gravity considerations permit.
Page 214 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Weight and Balance Data (Models 369HE/HS/HM) Example III :Lateral CG Calculation − Passenger and Cargo 369HE 369HS Lateral Lateral Lateral Lateral Weight Moment Weight Moment Items (lb) (in.) (in.−lb) (lb) (in.) (in.−lb) −0.5 −569 −0.5 −569 Basic Weight...
Page 215 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Weight and Balance Data (Models 369HE/HS/HM) Table 6−2. Weights and Longitudinal Moments − Pilot, Passenger, Baggage Moment (in.−lb) Pilot or Fwd Center Fwd Aft Passenger R/H Passenger Passenger R/H and L/H Passenger Station 73.5 Station 71.5 Station 105.0 Weight (lb)
Page 216 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Weight and Balance Data (Models 369HE/HS/HM) Table 6−3. Weights and Lateral Moments − Pilot, Passenger, Baggage Pilot and Passenger Weight and Lateral Moments Moment (in.−lb) Pilot Passenger Passenger Aft Passenger Passenger L/H Station R/H Fwd Center Fwd R/H and L/H Weight (lb)
Page 217 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Weight and Balance Data (Models 369HE/HS/HM) 6−8. INTERNAL LOADING OF CARGO The following instructions should be followed when carrying internal cargo. Rope, cable, or equivalent must have a minimum loop strength of 1,800 pounds. Restrain the cargo from shifting by using the correct number of restraining loops in accordance with Table 6−4.
Page 218 MD500 ROTORCRAFT FLIGHT MANUAL CSP-HE/HS-1 (Models 369HE/HS/HM) Weight and Balance Data VIEW I VIEW SHOWING LOCATION OF CARGO Tl EDOWN POlNTS AND LOOPS- MINIMUM LOOP STRENGTH • 1800 LB VIEW II VIEW SHOWING 500 LB CARGO RESTRAINED F01-066 Figure 6-8. Cargo Restraint Revision 6 6-21/(6-22 blank)
Page 220 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Handling Servicing (Models 369HE/HS/HM) and Maintenance E C T I O N ANDLING, ERVICING AINTENANCE TABLE OF CONTENTS PARAGRAPH PAGE 7−1. 7−1 Helicopter Components ..........7−2.
Page 221 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL 7−16. Fluid Leak Analysis ........... 7−15 7−17.
Page 223 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Handling, Servicing, (Models 369HE/HS/HM) and Maintenance SECTION VII HANDLING, SERVICING AND MAINTENANCE 7−1. HELICOPTER COMPONENTS The major components of the helicopter are shown in Figure 7−1. 7−2. USE OF EXTERNAL POWER An external receptacle is located at the right side of the pilot’s compartment seat structure.
Page 224 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Handling, Servicing, (Models 369HE/HS/HM) and Maintenance UPPER VERTICAL STABILIZER MAIN ROTOR HORIZONTAL STABILIZER LOWER VERTICAL STABILIZER TAIL ROTOR TRANSMISSION TAIL BOOM AFT SECTION FLIGHT CONTROLS TAIL ROTOR FORWARD SECTION MAIN TRANSMISSION & POWER TRAIN ENGINE ENGINE ACCESS DOOR...
Page 225 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Handling, Servicing, (Models 369HE/HS/HM) and Maintenance 7−4. GROUND HANDLING WHEELS Standard ground handling wheels are used for moving the helicopter by hand and for towing. The wheels are manually lowered with a detachable jack han- dle and are held in the down position (helicopter raised on wheels) by a me- chanical lock.
Page 226 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Handling, Servicing, (Models 369HE/HS/HM) and Maintenance 7−5. MOVING AND TOWING HELICOPTER Manually move helicopter on ground handling wheels by balancing at tailboom and pushing on rear fuselage portion of airframe. Except under extreme emergency conditions, do not tow helicopter CAUTION at speeds over 5 mph.
Page 227 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Handling, Servicing, (Models 369HE/HS/HM) and Maintenance Mooring (Ref. Figure 7−3): Whenever severe storm conditions or wind velocities higher than 40 knots are forecast, helicopter should be hangared or evacuated to safer area. If these precautions are not possible, moor helicopter as follows. Park helicopter and remove main rotor blades and install air inlet fair- ing and engine exhaust covers.
Page 228 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Handling, Servicing, (Models 369HE/HS/HM) and Maintenance OIL COOLER BLOWER/TRANSMISSION COOLING AIR INLET PLUGS (2 PLACES) BLADE SOCK 369D26661 (4 PLACES) TIEDOWN TETHER MOORING ANCHOR (4 PLACES) PITOT TUBE COVER 369H4009 CABLE OR MANILA ROPE ZIPPER AIR INLET FAIRING COVER 369H9803...
Page 229 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Handling, Servicing, (Models 369HE/HS/HM) and Maintenance 7−7. SERVICING − GENERAL Servicing helicopter includes replenishment of fuel, changing or replenishment of oil and other such maintenance functions. Fuels, oils, other servicing materials and capacities are listed in Table 7−1. Locations of servicing points are shown in Figure 7−4.
Page 230 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Handling, Servicing, (Models 369HE/HS/HM) and Maintenance Specification Material Manufacturer Turbonycoil NYCO S.A. 66, Champs−Elysees−51 600) Rue De Ponthieu F−75008 Paris, France Aeroshell/Royco Turbine Royal Lubricants Company, Oil 500 Inc. River Road, P.O. Box 518 East Hanover, NJ 07936 Hatcol 3211 Hatco Corporation...
Page 231 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Handling, Servicing, (Models 369HE/HS/HM) and Maintenance Specification Material Manufacturer 4. Fuel Cells − Standard Nonself−sealing, Capacity: 64.0 US Gal (242 liters), 416 pounds Optional Self−sealing, Capacity: 62.0 US Gal (234 liters), 402 pounds. Refer to Rolls−Royce 250 Series Operations Manual for complete fuel specifications.
Page 232 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Handling, Servicing, (Models 369HE/HS/HM) and Maintenance Specification Material Manufacturer One−Way Lock Continued Specification Material Manufacturer MIL−PRF−6083 Brayco Micronic 783 Castrol Industrial North Amer- ica Inc. Royco 783 Royal Lubricants Company, Inc. Hydraunycoil FH−6 NYCO, S.A. 7.
Page 233 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Handling, Servicing, (Models 369HE/HS/HM) and Maintenance MAIN TRANSMISSION FILLER MAIN TRANSMISSION MAIN TRANSMISSION DRAIN SIGHT GAUGE ENGINE OIL SIGHT GAUGE BATTERY OVERBOARD OIL DRAIN LINE ONE−WAY LOCK RESERVOIR ENGINE ACCESSORY GEARBOX DRAIN BREATHER FILLER ENGINE OIL TANK FILLER FUEL SUPPLY...
Page 234 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Handling, Servicing, (Models 369HE/HS/HM) and Maintenance 7−8. FUEL SYSTEM − SERVICING Refueling vehicle should be parked a minimum of 20 feet from helicopter dur- ing fueling operation. Before starting fueling operation, always ground fueling nozzle or fuel truck to GROUND HERE receptacle or to another bare metal location.
Page 235 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Handling, Servicing, (Models 369HE/HS/HM) and Maintenance Fuel draining: Fuel draining should be accomplished with helicopter as level as possible. Fuel system may be defueled in two ways: One is to defuel through filler port, using a pump. The other method is to open the drain valve on fuse- lage underside.
Page 236 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Handling, Servicing, (Models 369HE/HS/HM) and Maintenance 7−11. TAIL ROTOR TRANSMISSION − SERVICING Transmission oil should be replaced with new oil whenever it is drained. A liquid level sight gauge for checking oil level is located on the transmission housing.
Page 237 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Handling, Servicing, (Models 369HE/HS/HM) and Maintenance 7−14. CLEANING AIRCRAFT EXTERIOR AND ROTOR BLADES Use care to prevent scratching of aluminium skin when cleaning CAUTION main rotor blades. Never use volatile solvents or abrasive materials. Never apply bending loads to blades or blade tabs during cleaning.
Page 238 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Handling, Servicing, (Models 369HE/HS/HM) and Maintenance NOTE : On transmission input gear oil seals with less that 2 hours of operation, some seepage or wetting of adjacent surfaces is normal until seal is wetted and worn−in (seated).
Page 239 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Handling, Servicing, (Models 369HE/HS/HM) and Maintenance 7−19. FLYABLE STORAGE − NO TIME LIMIT Inspection before storage: Perform Daily Inspection. Ensure that fuel cells are full (topped off), and that oil in engine oil tank and main and aft transmissions is at FULL level.
Page 240 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Handling, Servicing, (Models 369HE/HS/HM) and Maintenance 7−20. ENGINE COMPRESSOR WASH Water wash provisions are incorporated in current configuration helicopters (Ref. Figure 7−4). Engine compressor cleaning should be performed by qualified personnel in ac- cordance with the HMI and the Engine Operation and Maintenance Manual. The following information is provided for pilots assisting qualified personnel in the cleaning process.
Page 241 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Handling, Servicing, (Models 369HE/HS/HM) and Maintenance Procedures: Ensure engine anti−ice, cabin heat, and scav air (if installed) are off prior to engine wash or rinse. Water injection will be started three seconds prior to starter engagement. Motor the engine with the twistgrip in CUTOFF.
Page 243 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Additional Operations (Models 369HE/HS/HM) and Performance Data VIII E C T I O N DDITIONAL PERATIONS ERFORMANCE TABLE OF CONTENTS PARAGRAPH PAGE 8−1. 8−1 General ............. . . *Figure 8−1.
Page 245 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Additional Operations (Models 369HE/HS/HM) and Performance Data SECTION VIII ADDITIONAL OPERATIONS AND PERFORMANCE DATA 8−1. GENERAL OGE hover performance charts: OGE hover performance charts (Ref. Figure 8−1 thru Figure 8−5) are pro- vided for the standard Model HE/HS as well as those equipped with option- al equipment.
Page 246 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Additional Operations (Models 369HE/HS/HM) and Performance Data THIS CHART BASED ON CABIN HEAT, ENGINE ANTI−ICE OFF, REDUCE WEIGHT CAPABILITY LBS AS FOLLOWS ELECTRICAL LOAD 30 AMPERE. 250−C20 ENGINE CABIN PRESSURE ANTI− BOTH REDUCE HOVER WEIGHT CAPABILITY HEAT ALT.
Page 247 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Additional Operations (Models 369HE/HS/HM) and Performance Data MBIENT TEMPERATURE − DEGREES C F01−076 *Figure 8−1. Hover Ceiling Vs Temperature, OGE, Tail Rotor Abrasion Strips Installed, Takeoff Power <<<< Allison 250−C20 >>>> Revision 6 8−3...
Page 248 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Additional Operations (Models 369HE/HS/HM) and Performance Data THIS CHART BASED ON CABIN HEAT, ENGINE ANTI−ICE OFF, REDUCE WEIGHT CAPABILITY LBS AS FOLLOWS ELECTRICAL LOAD 30 AMPERE. 250−C20 ENGINE CABIN PRESSURE ANTI− BOTH REDUCE HOVER WEIGHT CAPABILITY HEAT ALT.
Page 249 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Additional Operations (Models 369HE/HS/HM) and Performance Data < Allison 250−C20 >>>> F01−077 Revision 6 8−5...
Page 250 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Additional Operations (Models 369HE/HS/HM) and Performance Data THIS CHART BASED ON CABIN HEAT, ENGINE ANTI−ICE OFF, ELEC- REDUCE WEIGHT CAPABILITY LBS AS FOLLOWS TRICAL LOAD 30 AMPERE. 250−C20 ENGINE CABIN PRESSURE ANTI− BOTH REDUCE HOVER WEIGHT CAPABILITY HEAT ALT.
Page 251 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Additional Operations (Models 369HE/HS/HM) and Performance Data *Figure 8−3. Hover Ceiling Vs Temperature, OGE, Utility Floats, Takeoff Power <<<< Allison 250−C20>>>> Revision 6 8−7...
Page 252 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Additional Operations (Models 369HE/HS/HM) and Performance Data REDUCE WEIGHT CAPABILITY LBS AS FOL- LOWS THIS CHART BASED ON CABIN HEAT, ENGINE ANTI−ICE OFF, CABIN ANTI− BOTH ALTITUDE ELECTRICAL LOAD 30 AMPERES, 250−C18 ENGINE HEAT FEET SEA LEVEL REDUCE HOVER WEIGHT CAPABILITY...
Page 253 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Additional Operations (Models 369HE/HS/HM) and Performance Data F01−067 igure 8−4. Hover Ceiling Vs Temperature, OGE, Takeoff Power <<<< Allison 250−C18 >>>> Revision 6 8−9...
Page 254 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Additional Operations (Models 369HE/HS/HM) and Performance Data REDUCE WEIGHT CAPABILITY LBS AS FOL- LOWS THIS CHART BASED ON CABIN HEAT, ENGINE ANTI−ICE OFF, CABIN ANTI− BOTH ALTITUDE ELECTRICAL LOAD 30 AMPERES, 250−C18 ENGINE FEET HEAT SEA LEVEL REDUCE HOVER WEIGHT CAPABILITY...
Page 255 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Additional Operations (Models 369HE/HS/HM) and Performance Data *Figure 8−5. Hover Ceiling Vs Temperature, OGE, Utility Floats, Takeoff Power <<<< Allison 250−C18 >>>> Revision 6 8−1...
Page 256 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Additional Operations (Models 369HE/HS/HM) and Performance Data Table 9−1. Maximum Hover Weight, OGE <<< Allison 250−C20 >>> TEMPERATURE − °C −40 −30 −20 −10 °F −40 −22 −4 − FEET − METERS 2920 2900 2860 2815 2780...
Page 258 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) E C T I O N PTIONAL QUIPMENT TABLE OF CONTENTS PARAGRAPH PAGE 9−1. 9−1 General Information ........... 9−2.
Page 259 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) 9−34 Table 9−6. Loading Examples ......... . . 9−11.
Page 260 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL (Models 369HE/HS/HM) Optional Equipment PARAGRAPH PAGE 9−14. Operating Instructions: Utility Floats ........9−47 Figure 9−10.
Page 261 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL (Models 369HE/HS/HM) Optional Equipment FAA Approved 9−ii Revision 6...
Page 262 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) Optional Equipment SECTION IX OPTIONAL EQUIPMENT 9−1. GENERAL INFORMATION This section provides general supplemental information on optional equipment for the MD 500 Model 369HE/HS helicopters. The information includes a list- ing of usable optional equipment and compatibility of combined equipment on the helicopter.
Page 263 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL (Models 369HE/HS/HM) Optional Equipment Table 9−1. Optional Equipment Equipment Part No. Publication No. CSP−HE/HS−1 *Extended Landing Gear 369H90006 CSP−HE/HS−1 *Rotor Brake 369H90123 CSP−HE/HS−1 *Aluminum Tail Rotor Kit 369A9005 CSP−HE/HS−1 *Engine Air Particle Separator Filter 369H90148 CSP−HE/HS−1 *Heated Pitot Tube...
Page 264 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 (Models 369HE/HS/HM) Optional Equipment 9−3. KIT COMPATIBILITY − COMBINED OPTIONAL EQUIPMENT Table 9−2. Optional Equipment Kit Compatibility Compatibility: Blank = Yes; X = No; = Installable/Not Usable Optional Part Equipment Number 90121 90011 90007 90148 90070 90072...
Page 266 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Optional Equipment (Models 369HE/HS/HM) Cargo Hook Kit 9−5. OPERATING INSTRUCTIONS: ROTORCRAFT CARGO HOOK KIT PART I GENERAL The MDHI Cargo Hook Kit consists of a cargo hook which attaches to the fuse- lage keel beam, electrical connections to provide the pilot with cargo release or jettison capability using a switch on the cyclic stick, and a manual backup re- lease mechanism.
Page 267 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Cargo Hook Kit PART II LIMITATIONS Weight Limitations: Maximum weight allowed on the landing gear is 2550 pounds. CAUTION Weight in excess of 2550 pounds must be external and jettisonable. Maximum Rotorcraft −...
Page 268 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Cargo Hook Kit PART III EMERGENCY AND MALFUNCTION PROCEDURES ENGINE FAILURE: The presence of an external load may further complicate a failed engine condition. Release of loads attached through the cargo hook should be ac- complished as soon as practical;...
Page 269 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Cargo Hook Kit PART IV NORMAL PROCEDURES Normal Operation: Preflight Place battery switch in BATTERY position and check that HOOK circuit breaker is in. Push cargo load ring (D−ring or suitable substitute) into hook throat. Cargo hook keeper should permit easy entrance into throat.
Page 270 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Cargo Hook Kit EXTERNAL RELEASE (TURN CLOCKWISE) ELECTRICAL WIRE HARNESS KEEPER MANUAL RELEASE CABLE HOOK (LOAD BEAM) F01−071 Figure 9−2. Cargo Hook PART V PERFORMANCE DATA Refer to Section V for IGE Hover Ceiling vs. Temperature and Section VIII for OGE Hover Ceiling vs.
Page 271 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Cargo Hook Kit PART VI WEIGHT AND BALANCE DATA The following table of Cargo Hook Loading Data should be used by the opera- tor to assist in evaluating the helicopter center of gravity for various hook load weights.
Page 272 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Optional Equipment (Models 369HE/HS/HM) Anti−Ice Airframe Fuel Filter 9−6. OPERATING INSTRUCTIONS: ANTI−ICE FUEL FILTER LIST OF MODELS AFFECTED 369HS Helicopter Serial No. 0101S and Subs 369HE Helicopter Serial No. 0101E and Subs NOTE: This Kit is approved for installation in helicopters equipped with Allison 250−C20 engine only.
Page 273 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Anti−Ice Airframe Fuel Filter PART II LIMITATIONS Altitude limitations: If ground temperature prior to flight is 5°C or less, flight operations are limited to 12,000 feet pressure altitude maximum. If ground temperature prior to flight is above 5°C, flight operations are lim- ited to 14,000 feet pressure altitude maximum, but not to exceed limitations of Basic RFM Section II.
Page 274 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Anti−Ice Airframe Fuel Filter PART IV NORMAL PROCEDURES Preflight Checks: BATTERY/EXT PWR switch AS REQUIRED Start pump Do not open drain valve unless start pump is ON. An unexpected WARNING flameout or power loss may occur if air is allowed to enter the fuel system.
Page 275 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Anti−Ice Airframe Fuel Filter Ground check of system operation: With electrical power on, verify that FUEL ANTI−ICE circuit breaker for caution system is in the ‘‘in’’ position and the dimming switch is in the BRT position.
Page 276 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Anti−Ice Airframe Fuel Filter Inflight Operation: Check that FUEL ANTI−ICE caution system circuit breaker is in the ‘‘in’’ position and the dimming switch is in the BRT position. A fuel icing condition will be indicated by illumination of the FUEL FIL- TER caution light.
Page 278 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Optional Equipment (Models 369HE/HS/HM) Cargo Swing 9−7. OPERATING INSTRUCTIONS: CARGO SWING PART I GENERAL The MDHI Cargo Swing Kit consist of a curved tube that fits underneath the helicopter and attaches to the jacking fittings near the sill of the cargo door, cables that suspend the cargo hook from the tube, electrical connections to pro- vide the pilot with cargo release or jettison capability using a switch on the cy- clic stick, and manual backup release mechanism.
Page 279 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Cargo Swing PART II LIMITATIONS Weight Limitations: Gross weight not to exceed the maximum certificated for the basic helicop- ter. Center of Gravity Limitations: Center of gravity not to exceed the limits certificated for the basic heli- copter.
Page 280 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Cargo Swing PART III EMERGENCY AND MALFUNCTION PROCEDURES Engine Failure: The presence of an external load may further complicate a failed engine condition. Release of loads attached through the cargo swing should be ac- complished as soon as practicable;...
Page 281 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Cargo Swing Static Electricity Discharge: Instruct ground crew to ensure that the helicopter has been electrically grounded prior to attaching cargo to drain charges of static electricity that may build up in flight. PART V PERFORMANCE DATA Refer to Section V for IGE Hover Ceiling vs.
Page 282 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Optional Equipment (Models 369HE/HS/HM) Engine Air Inlet Deflector 9−8. OPERATING INSTRUCTIONS: ENGINE AIR INLET DEFLECTOR PART I GENERAL The MDHI Engine Air Inlet Deflector Kit inhibits the ingestion into the engine air inlet of foreign objects which are of sufficient mass to puncture the inlet screen/particle separator and damage the engine.
Page 284 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Optional Equipment (Models 369HE/HS/HM) Emergency Floats 9−9. OPERATING INSTRUCTIONS: EMERGENCY FLOATS PART I INTRODUCTION The MDHI Emergency Float Kit consists of inflatable−bag type floats intended for use in emergency landings only, during over−water operation. The floats are normally carried in the stowed configuration mounted as a compact package on top of each skid.
Page 285: Operating Limitations
CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Emergency Floats PART II OPERATING LIMITATIONS Tail low landings on hard surfaces should be avoided, as stress CAUTION damage to the float extensions may occur. Airspeed Limitations: Flight with floats inflated, or at time of inflation, is limited to 80 knots IAS, or basic helicopter V , whichever is less.
Page 286 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Emergency Floats Operational Temperature: The minimum float operational temperature for over−water flight is a func- tion of initial minimum charge pressure as shown in Figure 9−5. Operational Float Inflation Altitude Required Temperature Time For Deployment...
Page 287 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Emergency Floats PART III EMERGENCY AND MALFUNCTION PROCEDURES Emergency Float Operation: If emergency occurs at airspeeds greater than maximum permissible float inflation speed, i.e., 80 knots IAS, reduce speed to 80 knots or less prior to float inflation.
Page 288 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Emergency Floats PART IV NORMAL PROCEDURES Checks Prior to Flight: Check condition and security of stowed float package. : Emergency floats with squib−actuated valve are identified by the word ‘‘SQUIB” NOTE clearly visible on float cover.
Page 289 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Emergency Floats PART VI WEIGHT AND BALANCE DATA Center of Gravity Limitations: Emergency floats (369H290121−Basic) on standard landing gear, no change. Emergency floats (369H90121−509) on extended landing gear as follows: Longitudinal C.G.
Page 290 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Optional Equipment (Models 369HE/HS/HM) Rotorcraft Hoist 9−10. OPERATING INSTRUCTIONS: ROTORCRAFT HOIST PART I INTRODUCTION The MDHI Hoist Kit is a fixed position, electrically operated unit. The hoist assembly is designed for rapid installation and removal to facilitate maximum utility of the helicopter.
Page 291 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Rotorcraft Hoist PART II LIMITATIONS Minimum Flight Crew: For hoist operation, minimum flight crew is two, consisting of a pilot and hoist operator. Weight Limitations: Gross weight not to exceed the maximum certificated gross weight for the basic helicopter.
Page 292 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Rotorcraft Hoist The Hoist may not be operated when the 369H30086 Utility Float kit is installed. The Hoist Kit may not be operated when the 389H90011 Litter kit is installed. When litters are removed and the 369H90085 (flat glass) doors are installed, hoist operation is permitted.
Page 293 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Rotorcraft Hoist PART IV NORMAL PROCEDURES Normal Operation: Check hoist circuit breaker IN. Check cable cut circuit breaker IN. Hoist operator must wear an approved safety harness (provided with hoist) during all hoisting operations.
Page 294 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Rotorcraft Hoist PART VI WEIGHT AND BALANCE DATA Weight and Loading: The following table should be used by the operator to assist in evaluating the helicopter center of gravity for various hoist load weights. The maxi- mum hoist load of 300 pounds and the maximum helicopter gross weight of 2550 pounds must not be exceeded.
Page 295 MD 500 CSP−HE/HS−1 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Rotorcraft Hoist Table 9−6. Loading Examples NUMBER 1: Pilot = 175 Pounds Attendant Weight = 175 Pounds Forward Passenger Weight = 0 Pounds Find: Permissible Hoist Load = ??? Consult Table I, Part B for the given weights. The maximum allowable hoist load is 300 pounds.
Page 296 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Optional Equipment (Models 369HE/HS/HM) Rotorcraft Litter 9−11. OPERATING INSTRUCTIONS: ROTORCRAFT LITTER PART I GENERAL The MDHI Litter Kit has been designed to facilitate rapid conversion of the helicopter to an air ambulance configuration. The Litter Kit provides for trans- porting one or two litter patients as well as one or two attendants in the cargo compartment of the helicopter.
Page 297 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Rotorcraft Litter PART II LIMITATIONS Litters Installed Configuration: With litters installed, operations must be conducted with the 369H92733 bubble glass window panels in the 369H90085 door installation, and limita- tions stated in these operating instructions apply. Litters Removed Configuration: If the litters are removed and the the basic shape door glass panels are installed the basic flight manual limitations apply.
Page 298 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Rotorcraft Litter 14,000 12,000 10,000 8,000 6,000 4,000 2,000 INDICATED AIRSPEED − KNOTS F01−052 Figure 9−6. Variation of V With Altitude WITH BUBBLE DOORS 369H90085 PRESS ALT KNOTS, IAS X 1000 G.W.
Page 299 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Rotorcraft Litter PART IV NORMAL PROCEDURES Before Takeoff: Restraining belts for litter occupants should be secure prior to flight. Belts are to be installed with the fixed length, 369H6511−11; −13 (with buckle) attached to the outboard fitting, on each side of helicopter.
Page 300 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Rotorcraft Litter 18000 16000 2000 LB OR LESS 14000 12000 MORE THAN 2000 LB 10000 8000 6000 4000 2000 INDICATED AIRSPEED (CORRECTED FOR INSTRUMENT ERROR) F01−051 FAA Approved Revision 6 9−39...
Page 301 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Rotorcraft Litter Figure 9−8. Best Rate of Climb Speed FAA Approved Revision 6 9−40...
Page 302 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Rotorcraft Litter 100 110 120 INDICATED AIRSPEED − KNOTS F01−050 Figure 9−9. Indicated Airspeed Vs Calibrated Airspeed FAA Approved Revision 6 9−41...
Page 303 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Rotorcraft Litter PART VI WEIGHT AND BALANCE DATA Weight and Loading: ITEM WEIGHT (Lbs.) STATION (In.) Litter Kit − without bubble doors 49.9 93.3 Special doors with bubble windows 37.4 98.5 Special doors with standard windows 26.2...
Page 305 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Optional Equipment (Models 369HE/HS/HM) Luggage Pod 9−12. OPERATING INSTRUCTIONS: LUGGAGE POD PART I GENERAL The Luggage Pod Kit is designed to increase the cargo carrying capability of the helicopter. The kit consists of one or two externally mounted luggage pods and attaching hardware.
Page 306 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Luggage Pod PART IV NORMAL PROCEDURES Prior to Takeoff: When two pods are installed, load pods as symmetrically as possible to minimize effect on lateral center of gravity. When one pod is installed, it is recommended that it be installed on the side opposite the pilot.
Page 307 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Optional Equipment (Models 369HE/HS/HM) Searchlight 9−13. OPERATING INSTRUCTIONS: SEARCH LIGHT PART I GENERAL The MDHI Searchlight Kit is designed to provide illumination for night search operations by law enforcement agencies or any other purpose which requires ground illumination.
Page 308 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Searchlight PART IV NORMAL PROCEDURES Operating Procedures: The searchlight may be extended at any time following takeoff and transi- tion into forward flight, or in hover with sufficient ground clearance. The warning light will illuminate any time the searchlight is out of the stowed (retracted and locked) position.
Page 309 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Optional Equipment (Models 369HE/HS/HM) Utiltiy Floats 9−14. OPERATING INSTRUCTIONS: UTILITY FLOATS PART I GENERAL The MDHI Utility Float Kit is designed to facilitate operation of the helicopter from both land and water. The kit consists of multicell bag−type floats, two aft skid tube extensions, and assorted attaching hardware and is mounted on extended landing gear.
Page 310 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Utiltiy Floats 22,000 20,000 18,000 16,000 14,000 12,000 10,000 8,000 6,000 4,000 2,000 −50 −40 −30 −20 −10 TEMPERATURE − DEGREES C −40 −20 TEMPERATURE − DEGREES F F01−054 FAA Approved Revision 6 9−48...
Page 311 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Utiltiy Floats Figure 9−10. Takeoff and Landing Limitations − 250−C18 Engine FAA Approved Revision 6 9−49...
Page 312 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Utiltiy Floats Changes of altitude are limited is accordance with the following: If The Base The Allowable The Allowable Altitude Float Altitude Altitude Pressure Is: Increase Is: Decrease Is: (psig) (feet) (feet) 1.5 (minimum)
Page 313 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Utiltiy Floats PART III EMERGENCY AND MALFUNCTION PROCEDURES Engine Failure: Perform engine failure procedures as stated in Section III of the flight manual. If engine failure occurs at night, do not illuminate the night landing lights above 1000 AGL.
Page 314 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Optional Equipment (Models 369HE/HS/HM) Automatic Engine Reignition 9−15. OPERATING INSTRUCTIONS: AUTOMATIC REIGNITION PART I GENERAL The Automatic Engine Reignition Kit provides automatic reignition of the en- gine in the event that power is lost as a result of engine flameout. There are three versions of this kit: an early system (250−C18 only), a later unmodified system (250−C18 or 250−C20 engine) and a later modified system (250−C18 or 250−C20 engine).
Page 315 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Automatic Engine Reignition PART II LIMITATIONS Flight into falling or blowing snow is only permitted with the automatic reigni- tion system armed and operable. Flight into falling or blowing snow is only permitted with the center front seat occupied following completion of HN−160.
Page 316 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Optional Equipment (Models 369HE/HS/HM) Automatic Engine Reignition EARLY INSTRUMENT PANEL WITH EARLY AUTO−REIGN PRESS TO RESET UNMODIFIED AUTO REIGNITION SYSTEM RE−IGN SWITCH AND INDICATOR PANEL ARMED NOTE: SHOWN WITH SWITCH GUARD REMOVED PRESS TO EARLY INSTRUMENT PANEL WITH LATER RESET RE−IGN...
Page 317 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Automatic Engine Reignition Figure 9−11. Auto Reignition Switch Panel Locations FAA Approved Revision 6 9−55...
Page 318 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Automatic Engine Reignition PART IV NORMAL PROCEDURES NOTE : Operational checks following completion of TB369H−004 are found on page 9−57. Early system (250−C18 only): Before engine start: Electrical power and key switch on. Lift switch guard and arm the system.
Page 319 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Automatic Engine Reignition Yawing of the helicopter may or may not follow an engine flameout and reignition sequence. The magnitude of the yaw will depend on forward speed and power being used. Reignition has been satisfactorily demon- strated at idle power, in autorotation, and takeoff power in a climb.
Page 320 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Automatic Engine Reignition Pulling out the ENG OUT circuit breaker will disarm the Auto CAUTION Reignition system. Following any activation of reignition system caused by flameout from snow, ice or water ingestion, inspect engine in accordance with the appropriate Alli- son 250 Series Operation and Maintenance Manual.
Page 321 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) Automatic Engine Reignition NOTE : RE−IGN indicator light will stay on until manually reset. The reignition system will continue to function normally whether reset or not. If the N or N tach generator fails, the RE−IGN indicator will light and the igniter will be energized until the engine is shut down or the reignition system is disarmed (circuit breaker pulled).
Page 323 MD 500 ROTORCRAFT FLIGHT MANUAL CSP−HE/HS−1 Optional Equipment (Models 369HE/HS/HM) 369HM Configuration 9−16. 369HM CONFIGURATION 369HM Serial Number Effectivity NOTE : This option configuration applies to the following 369HM serial numbers only. Helicopter Serial No. 0101M thru 0214M, 0220M thru 0231M, 0233M thru 0238M, 0244M and subsequent.
Page 324 CSP−HE/HS−1 MD 500 ROTORCRAFT FLIGHT MANUAL Optional Equipment (Models 369HE/HS/HM) 369HM Configuration PART III EMERGENCY AND MALFUNCTION PROCEDURES Warning and Caution indicators: The caution and warning indicators consisting of thirteen indicator lights and a PRESS−TO−TEST switch. The PRESS−TO−TEST non−lighted switch is electrically connected to the caution and warning indicators for testing indicator lights.
Page 325 MD500 ROTORCRAFT FLIGHT MANUAL CSP-HE/HS-1 (Models 369HE/HS/HM) Optional Equipment 369HM Configuration PART IV NORMAL PROCEDURES F01-078 Figure 9-13. Type "T" Instrument Panel - Layout Typical FAA Approved 9-61 Revision 6...
Page 326 MD500 ROTORCRAFT FLIGHT MANUAL CSP-HE/HS-1 (Models 369HE/HS/HM) Optional Equipment 369HM Configuration PILOT’S COLLECTIVE CIRCUIT BREAKER PANEL ASH TRAY AND LIGHTER SWITCH CONTROL PANEL LIGHTS CONTROL PANEL F01−079 Figure 9−14. Electrical Controls Console − Layout Typical CYCLIC TRIM CARGO HOOK RELEASE HOIST GUILLOTINE FLOATS...
