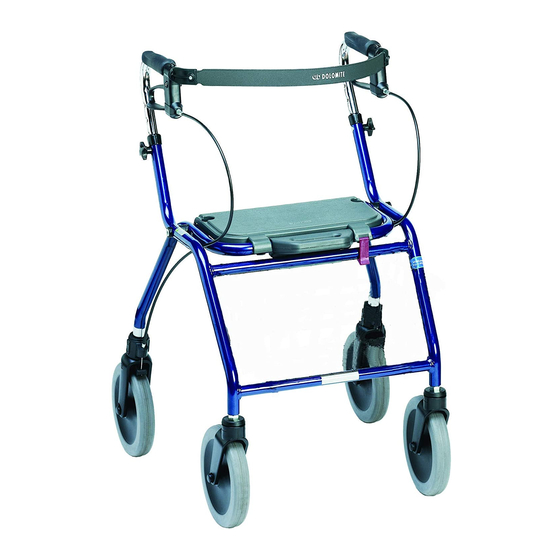

- Page 1 DOLOMITE®Legacy™ en Rollator User Manual This manual MUST be given to the user of the product. BEFORE using this product, read this manual and save for future reference.
- Page 2 ©2015 Invacare®Corporation All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
-
Page 3: Table Of Contents
5 After Use ........17 Contents 5.1 Disposal . -
Page 4: General
DOLOMITE®Legacy™ 1 General Tips and Recommendations Gives useful tips, recommendations and information for efficient, trouble-free use. 1.1 About this manual This product complies with Directive 93/42/EEC This User Manual contains important information about your concerning medical devices. The launch date of this product. -
Page 5: Service Life
General Contraindications Accessories assembled to your walking aid, are depending on the configuration and might differ per region. The walking aid is not intended for use by persons with severe equilibrium disorders or functional perceptual disorders. 1.5 Warranty Permissible operating conditions and locations We supply a two year warranty from the date of delivery. -
Page 6: Safety
DOLOMITE®Legacy™ 2.2 Labels and symbols on the product 2 Safety 2.1 General Warnings WARNING! Risk of falling – Exercise caution when walking on sloping / slippery ground and on uneven surfaces. – Do not use the rollator as a wheelchair. - Page 7 Safety Refer to the user manual. This product complies with Directive 93/42/EEC concerning medical devices. The launch date of this product is stated in the CE declaration of conformity. 1583083-A...
-
Page 8: Usage
DOLOMITE®Legacy™ 3 Usage 3.1 Before use We do not recommend that the product is issued to anyone without first carrying out a full assessment of their specific needs. It is important that the user is given the necessary support by the product as prescribed by a qualified professional. -
Page 9: Adjusting The Handle Height
Usage 3.3 Adjusting the handle height Folding Adjust one side at a time. Turn the finger knob anti-clockwise and remove it. Remove the screw. Hold one push handle, and, with the other hand; pull the folding Stand behind the walking aid with flat shoulders. handle A up. -
Page 10: Using The Brakes
DOLOMITE®Legacy™ Using the parking brake IMPORTANT! – Make sure to engage both brakes when using the parking brakes. Insert the screw and mount the finger knob. Turn the finger knob clockwise to tighten. WARNING! Lock the brakes (parking position): Risk of falling –... -
Page 11: Flip Up Seat Plate
Usage 3.6 Flip up seat plate Flip up the seat plate • The wire can be adjusted in two places - above under the brake handle A or below above the brake clamp B. • The brake handle must be in neutral position, when adjusting. -
Page 12: Sitting Down On A Chair
DOLOMITE®Legacy™ 3.9 Rising to a standing position WARNING! Risk of tipping – Never use the walking aid to pull yourself up from a sitting position. – The parking brakes must be in braked position when the walking aid is used as a support when sitting down or getting up, from a chair for example. -
Page 13: Sitting On The Walking Aid
Usage 3.10 Sitting on the walking aid Loosen the backrest strap B from the attachment C on one side. WARNING! Risk of falling Use the walking aid for stationary seating only. Both brakes must be in parking position when the walking aid is used as a seat. -
Page 14: Basket
DOLOMITE®Legacy™ Fold up the seat plate A. Secure the padded seat with the attachment strap C. Mount the padded seat B on the seat plate A. Fold down the seat. 3.11.3 Basket IMPORTANT! Do not exceed the maximum allowed load that can be transported in the basket. -
Page 15: Tray
Usage Mounting basket Fit the plugs on the downside of the tray into the holes on the seat. Press down the tray. Hook the basket onto the frame. Fold it down and make sure it is properly attached. 3.11.4 Tray Mounting tray 1583083-A... -
Page 16: Maintenance And Care
DOLOMITE®Legacy™ • Clean the backrest, seat and basket with mild detergent. 4 Maintenance and care Disinfection 4.1 Maintenance Disinfect the product by wiping down all generally accessible surfaces with disinfectant. Maintenance should be done at least once a year. To ensure good performance and safety you should regularly check that the following is carried out: •... -
Page 17: After Use
After Use 5 After Use 5.1 Disposal When the product can no longer be used, it and its accessories as well as the packaging material should be sorted in the correct way. The individual parts can be separated and handled according to their material. -
Page 18: Technical Data
DOLOMITE®Legacy™ 6 Technical data 6.1 Dimensions and weight Legacy 600 Total width A 600 mm Total height B 835–920 mm Seat width C 420 mm Seat height D 620 mm Total length E 720 mm Distance between rear wheels F... -
Page 19: Material
Technical data Weights Legacy 600 Total weight 7,6 kg Max. user weight 150 kg (330 lbs, 23 stones) Max load in basket 9 kg (20 lbs) Max load on tray 5 kg (11 lbs) Total weight excluding equipment. This weight limitation includes the weight of the user whether standing or sitting. - Page 20 Clarke Health Care Products 7830 Steubenville Pike Oakdale, PA 15071, USA Toll Free: (888) 347-4537 Phone: (724) 695-2122 email: info@clarkehealthcare.com www.clarkehealthcare.com Manufacturer: Invacare Dolomite AB c/o Invacare Rea AB Växjövägen 303 SE-343 71 DIÖ www.dolomite.biz 1583083-A 2015-05-01 Making Life’s Experiences Possible™...
Need help?
Do you have a question about the LEGACY and is the answer not in the manual?
Questions and answers

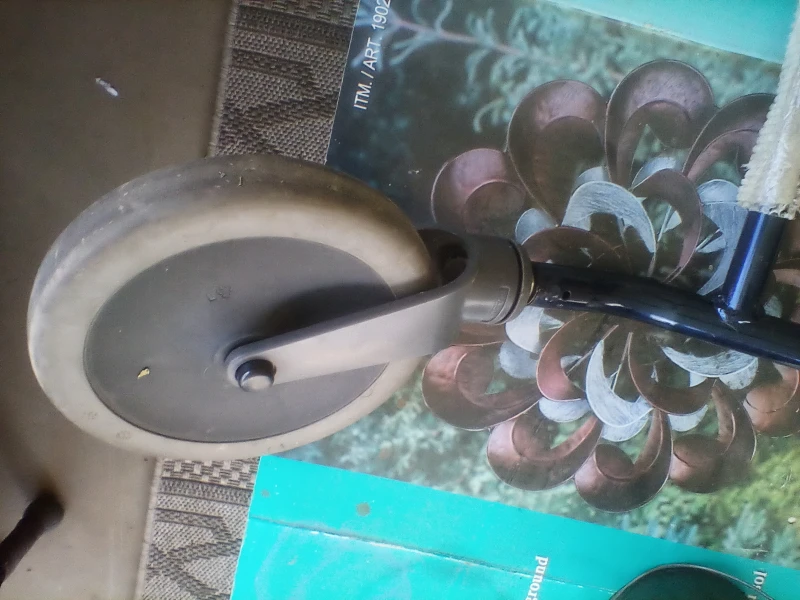

I need to replace the front wheel fork on my mothers Dolomite Legacy 600 rollator, serial number 7331492558131
To replace the front wheel fork on a Dolomite Legacy 600 rollator:
1. Obtain the correct replacement part: the Grey and Black Front Fork with Swivel (sold as a single unit without a wheel).
2. Remove the existing fork by detaching it from the rollator frame. This may involve unscrewing bolts or release mechanisms.
3. Attach the new fork to the frame, ensuring it is securely fastened.
4. If the wheel is not included, transfer the wheel from the old fork or install a new one separately.
5. Check that the fork swivels properly and that all connections are tight before use.
This answer is automatically generated
@Mr. Anderson Where can I purchase the part? I'm having problems locating the part.
