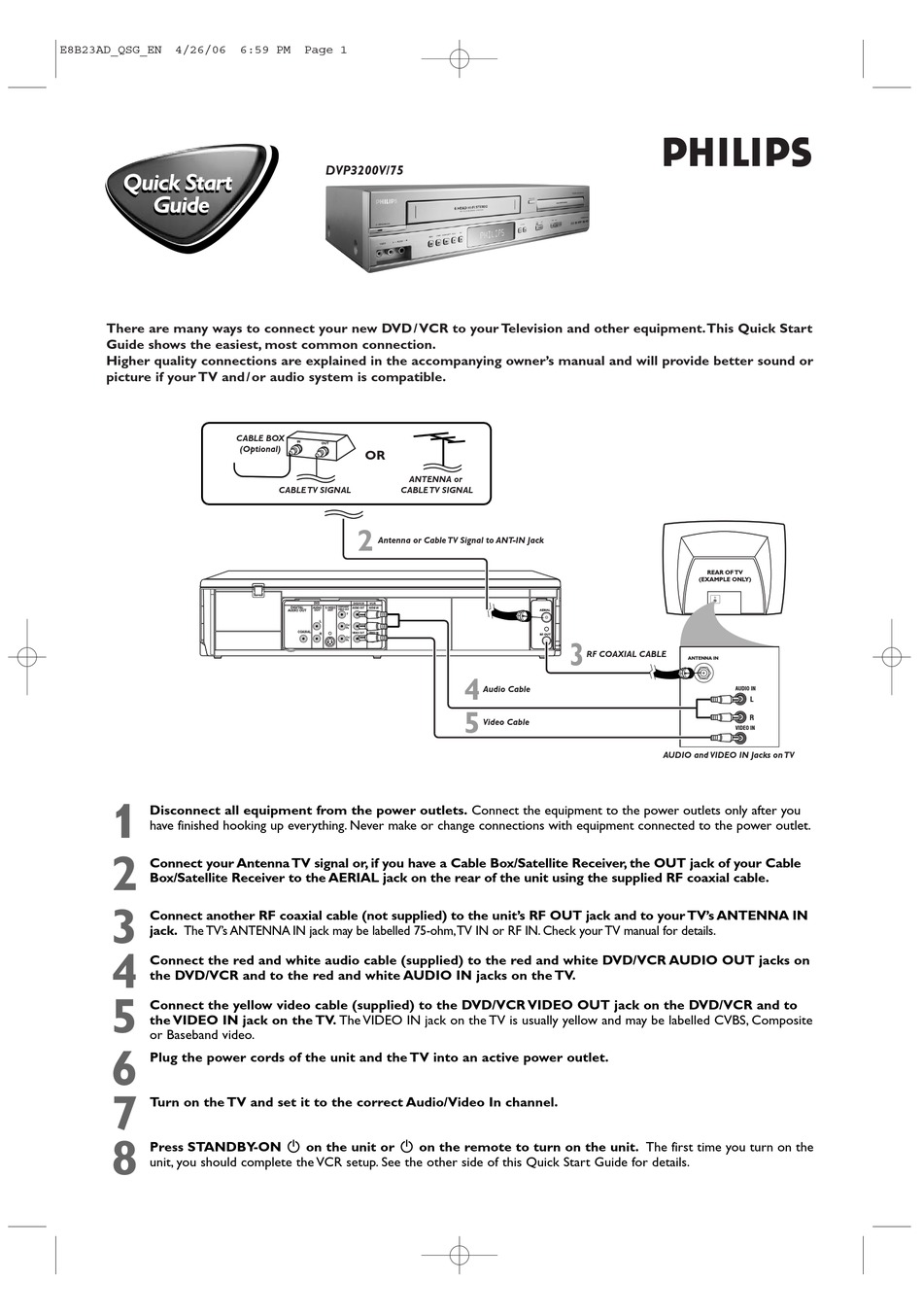

E8B23AD_QSG_EN
4/26/06
There are many ways to connect your new DVD / VCR to your Television and other equipment.This Quick Start
Guide shows the easiest, most common connection.
Higher quality connections are explained in the accompanying owner's manual and will provide better sound or
picture if your TV and / or audio system is compatible.
1
Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only after you
have finished hooking up everything. Never make or change connections with equipment connected to the power outlet.
2
Connect your Antenna TV signal or, if you have a Cable Box/Satellite Receiver, the OUT jack of your Cable
Box/Satellite Receiver to the AERIAL jack on the rear of the unit using the supplied RF coaxial cable.
3
Connect another RF coaxial cable (not supplied) to the unit's RF OUT jack and to your TV's ANTENNA IN
jack. The TV's ANTENNA IN jack may be labelled 75-ohm,TV IN or RF IN. Check your TV manual for details.
4
Connect the red and white audio cable (supplied) to the red and white DVD/VCR AUDIO OUT jacks on
the DVD/VCR and to the red and white AUDIO IN jacks on the TV.
5
Connect the yellow video cable (supplied) to the DVD/VCR VIDEO OUT jack on the DVD/VCR and to
the VIDEO IN jack on the TV. The VIDEO IN jack on the TV is usually yellow and may be labelled CVBS, Composite
or Baseband video.
6
Plug the power cords of the unit and the TV into an active power outlet.
7
Turn on the TV and set it to the correct Audio/Video In channel.
8
Press STANDBY-ON 2 on the unit or 2 on the remote to turn on the unit. The first time you turn on the
unit, you should complete the VCR setup. See the other side of this Quick Start Guide for details.
6:59 PM
Page 1
DVP3200V/75
CABLE BOX
IN
OUT
(Optional)
OR
ANTENNA or
CABLE TV SIGNAL
CABLE TV SIGNAL
2
Antenna or Cable TV Signal to ANT-IN Jack
AERIAL
RF OUT
3
RF COAXIAL CABLE
4
Audio Cable
5
Video Cable
REAR OF TV
(EXAMPLE ONLY)
ANTENNA IN
AUDIO IN
L
R
VIDEO IN
AUDIO and VIDEO IN Jacks on TV
