  • Page 1 Vantage Plus Instructions Next...

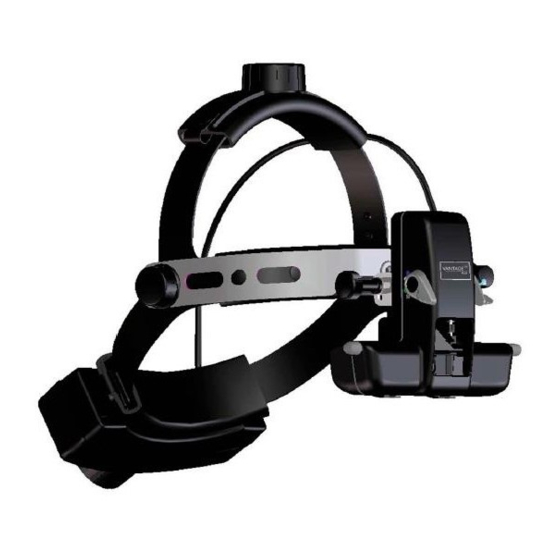

  • Page 2 Introduction Thank you for purchasing the Keeler Vantage Plus Indirect Ophthalmoscope. We have taken the greatest care in the design, development and manufacture of this product to ensure that you get many years of trouble free service. However, it is important that you read the descriptions, installation and operating instructions carefully prior to installing or using your new indirect ophthalmoscope.

  • Page 3: Table Of Contents

    Contents 1. Symbols 2. Warnings and Cautions 3. Setting up and Using the Vantage Plus 4. Accessories 5. Bulb Replacement 6. Power Supplies a. Wireless b. SmartPack and WallPack 7. Warranty and Service 8. Cleaning Instructions 9. Technical Information 10. Contact Information Please click on the contents to go straight to your chosen section or navigate by using the 'Next' and 'Back' buttons to the right.

  • Page 4: Symbols

    Symbols Read user instructions for warnings, cautions and additional information. The CE mark on this product indicates it has been tested to and conforms with the provisions noted within the 93/42/EEC Medical Device Directive. Double insulated. Type B protections against shock. Back Next Home...

  • Page 5: Warnings And Cautions

    +10ºC and 35ºC. • Route power cord safely to eliminate risk of tripping or • Use only Keeler power supply. damage to user. • Dispose of battery in line with local regulations on recycling • There are no user-serviceable parts inside the device. Contact batteries.

  • Page 6: Setting Up And Using The Vantage Plus

    Setting up and using the Vantage Plus Description of the Product A Headband Size Adjustment Knob B Headband Height Adjustment Knob C Metal Outer Brow Band D Brow Band Tension Knob E Ophthalmoscope Angle Knob F Lithium Battery G Hinge System...
  • Page 7 Using the Vantage Plus Headband Adjustment Comfortable Fit Adjust the size (A) fig.1 and the height (B) fig.2, so that the instrument is supported comfortably around and on top of the head. Ophthalmoscope Angle Alignment fig.1 fig.2 For vertical alignment of the eyepieces and...
  • Page 8 Using the Vantage Plus Interpupillary Distance Setting Control (S) Obtaining a Fused Image Because the eyes are dissociated, particular care must Ensure that a singular, fused image is obtained as follows: be taken to ensure the optics (eyepieces) are set properly in front of each eye.
  • Page 9 Using the Vantage Plus Large Setting the Aperture The large, round, homogeneous patch is suitable for routine examinations through fully dilated pupils. In this position the mirror remains in the forward position and the optics are diverged. Intermediate Aperture Lever...
  • Page 10 Using the Vantage Plus Blue Circle Filter Lever Selection (I) Cobalt blue filter for fluorescein angioscopy. By rotating the lever (I), different filters may White Circle be selected. Clear light – Select the clear with no filter when inspecting a specific pathology and a brighter, whiter light is desired.

  • Page 11: Accessories

    To fit the HiMag™ lens simply push it onto the front of the over the eyecaps. window as shown in the diagram. To remove simply reverse. Plano Lenses The Keeler Vantage Plus supplies as standard +2 dioptre lenses. Plano lenses, if preferred are available and can be fitted as shown in fig.5.

  • Page 12: Bulb Replacement

    Bulb Replacement Caution: The bulb may get very hot after prolonged use. Allow bulb to cool and disconnect the instrument from the electricity supply. Remove the bulb from the back of the instrument and insert the new bulb, ensuring the bulb’s key is aligned with the aperture and securely pushed in.

  • Page 13: Power Supplies

    Wireless Power Supplies Inserting/replacing the Battery Pack 1. Release battery by pressing release switch as shown and lift battery pack from cradle. 2. To insert new battery pack, place in cradle until fully engaged. Press release switch Back Next Home...
  • Page 14 Wireless Power Supplies Charging Remove the blanking plate 1. Replace the blanking plate with the appropriate mains plug adapter, and connect plug on cable to power input Connect to charging/docking socket on charger. station Switch on your Lithium Charger by plugging it into a mains outlet.
  • Page 15 Wireless Power Supplies Headband Battery Holder Flashing LED – Battery requires charging. Charging spare battery only Charging Station Charging battery on headband No LED – Battery is fully charged. Flashing LED – Top up Charge. Solid LED – Rapid Charge. The battery pack can be used at any time during the charging cycle and will automatically resume charging when battery...
  • Page 16 Wireless Power Supplies Charging Cycle The battery attached to the indirect will take approximately 2 hours to fully charge. The battery will last approximately 2 hours on full power. The spare battery will take 4 hours to charge. Back Next Home...
  • Page 17 Wireless Power Supplies Wall Mounting Caution Back Next Home...

  • Page 18: Smartpack And Wallpack

    SmartPack and WallPack Parts List A Hex Key B Screws C Screws D Wall Plugs E Base Cap F Wall Mount G Adhesive Pads H Rechargeable battery Part No. EP39 22079 I Body J Power Supply K Australian Plug L UK Plug M Euro Plug N USA Plug Back Next...
  • Page 19 SmartPack and WallPack Set Plug Power Conversion Replace the blanking plate with the appropriate mains plug Convert to either WallPack or SmartPack by following the adapter if required, or use IEC 60320 TYPE 7 connector illustration below. (not supplied). IEC 60320 TYPE 7 connector Back Next Home...
  • Page 20 SmartPack and WallPack 30 mm Fixing the Wall Mount Use the wall plugs and screws to mount the wall pack unit, attach the adhesive pads to the side of the case. Ø 6 x 50 mm Connection Insert the connectors into the sockets Charge Time as shown.
  • Page 21 SmartPack and WallPack LED Displays Power Supply Battery Insert or remove the indirect plug or switch the indirect off/on. Slow Pulse Power Supply Mains Fast Pulse • Switch the indirect ON/OFF LED On • Insert or remove the mains plug •...

  • Page 22: Warranty And Service

    Always disconnect power supply from source before cleaning. Your Keeler product is guaranteed for 3 years and will be replaced or repaired free of charge subject to the following:- Wipe external surface with a clean absorbent, non shedding •...

  • Page 23: Technical Information

    900 1000 1100 levels be set to the minimum level necessary to perform the Wavelength / nm diagnostic function. Young children and persons with diseased Spectral irradiance of Vantage Plus indirect ophthalmoscope at user plane. Back Next Home...
  • Page 24 Technical Information Photochemical source 1mm aperture Operating temperature: +10ºC to +35 ºC radiance (mW cm Transportation temperature: - 40ºC to +70ºC.10% to 95% RH Input mains data: 100-240V – 50/60Hz Aphakic, L (305-700nm) 1.32 Power supply rating: 12V : 2.5amps Phakic, L (380-700nm) 1.16...

  • Page 25: Contact Information

    Contact Information Manufactured in the UK by: Distributed by: Keeler Limited Keeler Instruments Inc. Clewer Hill Road 456 Parkway Windsor Broomall Berkshire SL4 4AA PA 19008, England Freephone: 0800 521 251 Toll Free: 1 800 523 5620 Tel: +44 (0)1753 857177...
