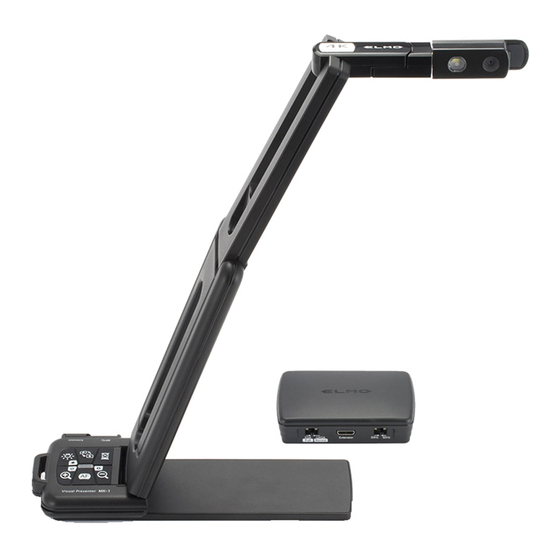

- Page 1 INSTRUCTION MANUAL Image Mate 4（MX-1） Please read this instruction manual carefully before using this product.
-
Page 2: Table Of Contents
SYSTEM REQUIREMENTS ..................... 4 INSTALLING / UNINSTALLING ..................5 IMAGE MATE 4 ........................6 STARTING IMAGE MATE 4 ..................... 6 SCREEN AND ICONS ...................... 7 REMOTE CONTROL WINDOW ..................9 CAPTURING A STILL IMAGE / VIEWING A STILL IMAGE ........... 10 RECORDING VIDEO / VIEWING VIDEO .............. -
Page 3: Introduction
• For the latest instruction manual, installation manual and firmware information, go to the ELMO web site. • When using Image Mate 4, be sure to refer to the instruction manual supplied with the Document Camera (MX-1). • Depending on the OS, Image Mate 4 may not display the correct fonts. -
Page 4: Before Use
BEFORE USE SYSTEM REQUIREMENTS Your computer must meet the following requirements to use Image Mate 4. Windows 10 64bit Core i7(3840x2160@30fps) Core i5 or higher (1920x1080@60fps) 16GB(3840x2160@30fps) 4GB recommended(1920x1080@60fps) Display 3840x2160(3840x2160@30fps) 1920x1080 pixels or more(1920x1080@60fps) Graphic board Possible to output at 3840x2160 GeForce GTX750 or higher USB3.0... -
Page 5: Installing / Uninstalling
] will be created on the desktop after the installation is completed. ●UNINSTALLING To remove Image Mate 4 from your computer, go to “Start menu” and go to “Settings” “System” “Apps & features”, and uninstall Image Mate 4. -
Page 6: Image Mate 4
USB cable (bus power). CAUTION Image Mate 4 may not start if the USB cable is connected before starting Image Mate 4. Start Image Mate 4 before connecting the MX-1 via the supplied USB cable. ●HOW TO SELECT THE CAMERA ・The live image of the camera appears after Image Mate 4 is started when the Document... -
Page 7: Screen And Icons
SCREEN AND ICONS The live image of the camera is displayed when Image Mate 4 is started. Control icons Icon Name Function To display the remote control window. Zoom in Brightness (darken） Brightness Remote control （brighten） Auto Focus Zoom out Reset Brightness To save the currently displayed image as a still image. - Page 8 Show version The software license agreement will be displayed. Carefully read it before using Image Mate 4. To close Image Mate 4. Exit A confirmation message will be displayed when this icon is clicked. Click “OK” to close Image Mate 4.
-
Page 9: Remote Control Window
REMOTE CONTROL WINDOW You can control the Document Camera (MX-1) from the remote control window. ●Each function can be operated by pressing respective buttons. ●The remote control window can be moved by dragging. Button Name Function Auto Focus To focus automatically. Zoom in To enlarge the image. -
Page 10: Capturing A Still Image / Viewing A Still Image
] is pressed. The captured still image will be saved in a folder. ●VIEWING A STILL IMAGE The destination folder of captured still images is [Pictures/ELMO Interactive Toolbox/rec]. The destination folder can be opened from [ ] in the control menu. - Page 11 ・Depending on the performance of your computer or type of the file, you may not be able to view the captured still image or recorded video correctly. ・Depending on the playback environment, some video files recorded by Image Mate 4 may not be played back.
-
Page 12: Live Settings
LIVE SETTINGS Resolution Settings, Camera Mode settings and Camera Settings can be configured. ※The image shows the initial settings. （USB3.0） ●Resolution Settings Setting Frame rate Item Description value USB3.0 USB2.0 Resolution/ 30fps 30fps Frame rate 30fps 30fps The image quality increases in the 720p 60fps order as indicated by the arrow, while... - Page 13 Scene mode Normal To clearly display photos or documents with color. Document To clearly display text documents. Priority mode Binned The speed takes precedence over image quality. Resized The image quality takes precedence over speed. ●Camera Settings Item Setting range Description To adjust the brightness.
-
Page 14: Trouble Shooting
The USB cable is disconnected. Remove the USB cable and connect again. If the problem still persists, Remedy restart Image Mate 4. Symptom There is a delay or decrease in the frame rate. Close all other applications on your computer. - Page 15 Remedy Memory：16GB Graphic board：GeForce GTX750 or higher Symptom Image Mate 4 does not start. Image Mate 4 may not start if the USB cable is connected before starting Remedy a computer. Start Image Mate 4 before connecting the USB cable.
-
Page 16: Updating Image Mate4
UPDATING IMAGE MATE4 If your computer is connected to the Internet, you can update Image Mate 4 to the latest version. Update your Image Mate 4 according to the following procedure: ① If there is any update to a new available version, the following update notification message is displayed when [ ] in the menu is pressed. -
Page 17: Reference
REFERENCE DISCLAIMER The contents of this manual and Image Mate 4 are subject to change without prior notice. Our software may not function as intended due to compatibility issues with the peripheral devices and existing software installed in your computer. - Page 18 ELMO CO., LTD. 6-14, Meizen-cho, Mizuho-ku Nagoya, 467-8567, Japan" OVERSEAS SUBSIDIARY COMPANIES ELMO USA CORP. ELMO Europe SAS "Headquarters "Headquarters 1478 Old Country Road 12 place de la Défense Plainview, NY 11803, U.S.A. Maison de la Défense Tel. (516) 501-1400 Fax.(516) 501-0429 92974 Paris la Défense Cedex FRANCE...
