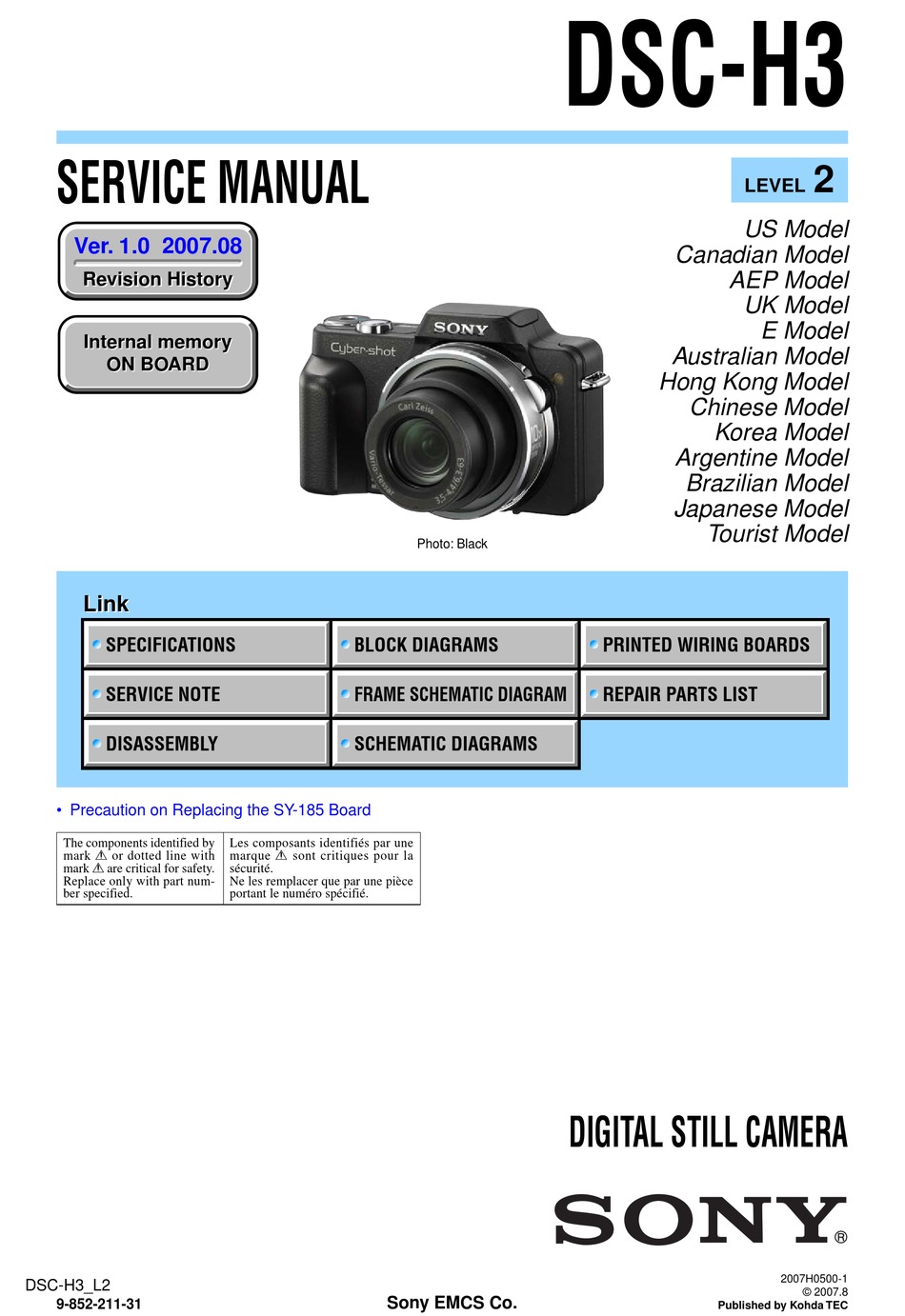

SERVICE MANUAL
Ver. 1.0 2007.08
Revision History
Revision History
Internal memory
Internal memory
ON BOARD
ON BOARD
Link
Link
SPECIFICATIONS
SERVICE NOTE
DISASSEMBLY
• Precaution on Replacing the SY-185 Board
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
DSC-H3_L2
9-852-211-31
BLOCK DIAGRAMS
FRAME SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAMS
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Sony EMCS Co.
DSC-H3
Photo: Black
DIGITAL STILL CAMERA
LEVEL
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Hong Kong Model
Chinese Model
Korea Model
Argentine Model
Brazilian Model
Japanese Model
Tourist Model
PRINTED WIRING BOARDS
REPAIR PARTS LIST
Published by Kohda TEC
2
2007H0500-1
© 2007.8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSC-H3 and is the answer not in the manual?

Questions and answers

Related Manuals for Sony DSC-H3

Summary of Contents for Sony DSC-H3

  • Page 1 0 are critical for safety. sécurité. Replace only with part num- Ne les remplacer que par une pièce ber specified. portant le numéro spécifié. DIGITAL STILL CAMERA 2007H0500-1 DSC-H3_L2 © 2007.8 Sony EMCS Co. 9-852-211-31 Published by Kohda TEC...

  • Page 2: Specifications

    SPECIFICATIONS Camera BC-CSG/BC-CSGB/BC-CSGC [Input and Output connectors] battery charger Multi connector: Video output [System] Audio output (Monaural) Power requirements: AC 100 V to 240 V, 50/ Image device: 7.18 mm (1/2.5 type) color CCD, USB communication 60 Hz, 2 W (BC-CSG/BC-CSGC)/ Primary color filter USB communication: Hi-Speed USB (USB 2.0 2.6 W (BC-CSGB)

  • Page 3: Safety Check-Out

    CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU PUBLISHED BY SONY.

  • Page 4: Self-Diagnosis Function

    ENGLISH JAPANESE ENGLISH JAPANESE 1. SERVICE NOTE 1-1. PRECAUTION ON REPLACING THE SY-185 BOARD DESTINATION DATA When you replace to the repairing board, the written destination data of repairing board also might be changed to original setting. Refer to Service Manual ADJ, and perform “DESTINATION DATA WRITE”. USB SERIAL No.

  • Page 5: Self-Diagnosis Code Table

    ENGLISH JAPANESE ENGLISH JAPANESE 1-2-3. Self-diagnosis Code Table Self-diagnosis Code Block Detailed Symptom/State Correction Function Code The internal memory has experienced a Format the internal memory. format error. “Memory Stick Duo” is unformatted. Format the “Memory Stick Duo”. “Memory Stick Duo” is broken. Insert a new “Memory Stick Duo”.

  • Page 6: Method For Copying Or Erasing The Data In Internal Memory

    ENGLISH JAPANESE ENGLISH JAPANESE 1-4. METHOD FOR COPYING OR ERASING THE DATA IN INTERNAL MEMORY The data can be copied/erased by the operations on the HOME screen. (When erasing the data, execute formatting the internal memory.) Note 1: When replacing the SY-185 board, erase the data in internal memory of the board before replacement. Note 2: When replacing the SY-185 board, execute formatting and initialize the internal memory after replacement.

  • Page 7: How To Write Data To Internal Memory

    To change the setting, use the write enable tool “WriteEnableTool.exe”. Data writing method Connect the PC to the camera (USB mode: Mass Storage), and switch the driver to the “Sony Seus USB Driver”. Start the Write Enable Tool and the SeusEX.

  • Page 8: Service Note

    ENGLISH JAPANESE ENGLISH JAPANESE 1. SERVICE NOTE 1-1. SY-185基板交換時の注意 仕向けデータ 補修用基板と交換する時，補修用基板に書かれている仕向けデータは元の設定と違っている場合があります。 ADJ編を参照して，「DESTINATION DATA WRITE」を行ってください。 USBシリアルNo. セットは，1台毎に異なる固有のID（USB Serial No.）を書き込んだ後，出荷されています。 新品の補修用基板には，このIDが書き込まれていないので，基板交換後にIDを入力する必要があります。 ADJ編を参照して，「USB SERIAL No. INPUT」を行ってください。 1-2. 自己診断機能 1-2-2. 自己診断表示 1-2-1. 自己診断機能について 本機の動作に不具合が生じたとき，LCD画面にアルファベッ 本機の動作に不具合が生じたとき，自己診断機能が働き， トと4桁の数字が表示され，3.2Hzで点滅します。この5文字 L C D 画面に，どう処置したらよいか判断できる表示を行い の表示によって対応者分類および不具合の生じたブロックの ます。自己診断機能については取扱説明書にも掲載されて 分類，不具合の詳細コードを示します。 います。 LCD画面...
  • Page 9 ENGLISH JAPANESE ENGLISH JAPANESE 1-2-3. 自己診断コード表 自己診断コード ブロック 詳細 症状／状態 対応／方法 機能 コード 内蔵メモリにフォーマットエラーが 内蔵メモリをフォーマットする。 あった。 “メモリースティック デュオ”をフォーマットする。 フォーマットしていない“メモリー スティック デュオ”を入れた。 “メモリースティック デュオ”が 新しい“メモリースティック デュオ”に交換する。 壊れている。 “メモリースティック デュオ”の 規格内の“メモリースティック デュオ”を挿入する。 タイプエラーを検出した。 電源の入れ直し，または“メモリースティック デュオ” “メモリースティック デュオ”が 読み／書きできない。 の挿し／外しを数回試す。 ハードウェアトラブルを検出した。 電源を入れ直す。 フォーカスが合いにくい。 操作スイッチの電源を入れ直す。...
  • Page 10 ENGLISH JAPANESE ENGLISH JAPANESE 1-3. フラッシュエラー発生時の対処法 本機はフラッシュエラー（自己診断コードE：91：01）が発生した場合，高電圧による異常を防止するために自動的にフラッシュ 充電および発光禁止の設定になります。 フラッシュエラー発生後はエラーの解除を行う必要があります。エラーの解除はホーム画面から初期化操作を実行することによ り行います。 設定リセット お買い上げ時の設定に戻します。 ［設定リセット］ を実行しても、 内蔵メモリーに記録されている画像は削除されません。 / / / コントロールボタンの で ［設定リセット］ を選び、 中央の を押す。 「全ての設定内容をリセットします」 というメッセージが表示される。 で ［実行］ を選び、 中央の を押す。 設定リセットが実行される。 設定リセットを中止するには 手順 で、 ［キャンセル］ を選び、 中央の を押す。 設定リセット中は電源が切れないようにご注意ください。 1-4.
  • Page 11 ENGLISH JAPANESE ENGLISH JAPANESE 1-5. 内蔵メモリへデータを書き戻す方法 通常は，PCからカメラの内蔵メモリへデータを書き込むことはできない設定になっています。 基板交換後などに，内蔵メモリへデータを書き戻す場合には，この設定を一時的に変更する必要があります。 設定の変更には，書き込み許可ツール（WriteEnableTool.exe）を使用します。 書き戻し方法 カメラとPCをマスストレージ接続し，ドライバを“Sony Seus USB Driver”に切り替える。 書き込み許可ツールとSeusEXを起動する。 書き込み許可ツールの[Activate Write Enable Mode]ボタンをクリックする。 設定の変更が終了すると，次のメッセージが表示されます。 ドライバを元に戻して、カメラとPCをマスストレージ接続する。 PCに読み出しておいたデータをカメラの内蔵メモリに書き込む。 カメラとPCの接続を解除し，カメラの電源をOFFにする。 注意： カメラの電源をOFFにすることにより，書き込み許可の設定が解除されます。 DSC-H3_L2 1-8E...

  • Page 12: Note For Repair

    2. DISASSEMBLY NOTE FOR REPAIR • Make sure that the flat cable and flexible board are not cracked of bent at the terminal. Cut and remove the part of gilt Do not insert the cable insufficiently nor crookedly. which comes off at the point. (Be careful or some •...

  • Page 13: Identifying Parts

    2-1. IDENTIFYING PARTS Cabinet (Upper) ⋅ ST-176 Flexible Board ⋅ FL-179 Flexible Board ⋅ PL-048 Flexible Board Cabinet (Rear) SW-509 Board BT Holder Section ⋅ MS-376 Board ⋅ JK-348 Flexible Board SY-185 Board Cabinet (Front) LCD Module Lens Block ⋅ CCD Block (CD-708 Flexible Board) - DISASSEMBLY FLOW - 2-2-1.
  • Page 14 HELP HELP 2-2. DISASSEMBLY EXPLODED VIEW HARDWARE LIST 2-2-1. CABINET (FRONT) SECTION Follow the disassembly in the numerical order given. 1 Side Cover (Lower) (1-1 to 1-3) 2 Cabinet (Front) (2-1 to 2-9) Note: High-voltage cautions Discharging the Capacitor Short-circuit between the two points with the short jig about 10 seconds.

  • Page 15: Cabinet (Upper)

    2-2-2. CABINET (REAR) SECTION EXPLODED VIEW HARDWARE LIST Follow the disassembly in the numerical order given. 1 Cabinet (Rear) (1-1 to 1-4) 2 Cabinet (Upper) (2-1 to 2-10) 1 Cabinet (Rear) 2 Cabinet (Upper) 1-4 (MC Connector) (Claw) 1-2 (#23) 2-10 1-3 (Claw) HELP...
  • Page 16 2-2-3. MAIN BOARD SECTION EXPLODED VIEW HARDWARE LIST Follow the disassembly in the numerical order given. 1 Lens Block (1-1 to 1-4) 2 SY-185 Board (2-1 to 2-5) 3 LCD Module (3-1 to 3-7) (#23) HELP BT Holder Section (Solder) (See Page 2-6) 3 LCD Module - 5 0...

  • Page 17: Exploded View

    2-2-4. BT HOLDER SECTION EXPLODED VIEW HARDWARE LIST Follow the disassembly in the numerical order given. 1 MS-376 Board (1-1 to 1-4) 2 JK-348 Flexible Board (2-1 to 2-5) 3 BT Holder (3-1 to 3-3) 3 BT Holder HELP (Claw) 2 JK-348 Flexible Board (Claw) (Claw)
  • Page 18 HELP Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown. ST Protection Sheet CN001 Hook Hook Speaker Harness Mic Harness LCD Flexible Cable BT Holder LCD Flexible Spacer DSC-H3_L2 HELP...
  • Page 19 INSTALLATION METHOD OF BATTERY TERMINAL BOARD 1 Insert the battery terminal board into a slit in the BT holder to install. * The battery terminal board is attached with the notch for installation. BT holder Notch Battery terminal Battery terminal board board 2 Fold the notch 3 or 4 times repeatedly to break.

  • Page 20: Overall Block Diagram

    3. BLOCK DIAGRAMS Link Link OVERALL BLOCK DIAGRAM (1/2) POWER BLOCK DIAGRAM (1/2) OVERALL BLOCK DIAGRAM (2/2) POWER BLOCK DIAGRAM (2/2) DSC-H3_L2...
  • Page 21 3. BLOCK DIAGRAMS 3-1. OVERALL BLOCK DIAGRAM (1/2) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. LENS BLOCK CD-708 FLEXIBLE BOARD SY-185 BOARD (1/2) LCD901 (1/2) LCD MODULE LENS IRIS (METER)
  • Page 22 3-2. OVERALL BLOCK DIAGRAM (2/2) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. SY-185 BOARD (2/2) UNREG ST_UNREG CAM_13V CAM_-7.5V M_5.0V JK-348 FLEXIBLE CAM_3.5V CN702 BOARD (2/2) USB_3.1V (2/2) D_3.0V UNREG...
  • Page 23 3-3. POWER BLOCK DIAGRAM (1/2) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. JK-348 FLEXIBLE SY-185 BOARD (1/2) MS-376 BOARD F001 CN102 BOARD CN101 CN703 CN702 MS_VCC MEMORY STICK F002 ACV_UNREG...
  • Page 24 3-4. POWER BLOCK DIAGRAM (2/2) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. LCD901 LCD MODULE SY-185 BOARD (2/2) CN704 L702 M_5.0V VDD2IN VDD1A L701 D_3.0V VDD1D 2.5INCH COLOR XDD_SYS_RST XRST...
  • Page 25 4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 4-1. FRAME SCHEMATIC DIAGRAM FLASH UNIT PL-048 FLEXIBLE BOARD CN001 MS-376 BOARD FL-179 FLEXIBLE CN102 MEMORY STICK BOARD CONNECTOR BT001 LITHIUM BATTERY BT901 BATTERY TERMINAL CN201 MULTI CONNECTOR CN001 CN101 ST-176 FLEXIBLE C006 JK-348 BOARD CHARGING CAPACITOR...

  • Page 26: Schematic Diagrams

    4-2. SCHEMATIC DIAGRAMS Link Link ST-176 FLEXIBLE BOARD (1/2) JK-348 FLEXIBLE BOARD (FLASH DRIVE) (BATTERY IN) MS-376 BOARD ST-176 FLEXIBLE BOARD (2/2) (CONTROL SWITCH) (MEMORY STICK CONNECTOR) PL-048 FLEXIBLE BOARD SW-509 BOARD (CONTROL SWITCH) (AF LED, STROBE PLUNGER) FL-179 FLEXIBLE BOARD (FLASH UNIT) COMMON NOTE FOR SCHEMATIC DIAGRAMS DSC-H3_L2...

  • Page 27: This Note Is Common For Schematic Diagrams

    4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS (In addition to this, the necessary note is printed in each block) (For schematic diagrams) 1. Connection • All capacitors are in µF unless otherwise noted. pF : µ Pattern box µF.
  • Page 28 Schematic diagrams of the CD-708 flexible board and SY-185 board are not shown. Pages from 4-3 to 4-13 are not shown. DSC-H3_L2...
  • Page 29 • Refer to page 4-2 for mark 0. LND253 MINUS BT901 LND254 BATTERY SIGNAL TERMINAL BATT_UNREG LND201 LND255 PLUS BATT_UNREG LND202 BATT_UNREG LND203 Note: CN201 (multi connector) is not Note: BT901 is not included in the supplied, but this is included in the BATT_UNREG LND204 JK-348 flexible complete board.
  • Page 30 (ACCESS) D101 CN101 CL-271HR-C-TS XACCESS_LED R110 D_3.0V REG_GND MS_BS REG_GND MS_D1 CN102 REG_GND R102 MS_D0 MS_BS FB103 R103 REG_GND DATA1 FB104 R104 MS_D2 SDIO/DATA0 FB105 R105 REG_GND DATA2 MEMORY R106 1k STICK XMS_IN FB107 R107 REG_GND DATA3 R108 MS_D3 SCLK REG_GND C101 C102...
  • Page 31 • Refer to page 4-2 for mark 0. REG_GND LND101 REG_GND LND146 P L - 0 4 8 REG_GND LND102 REG_GND LND145 F L E X I B L E STRB_PLUNGER LND103 STRB_PLUNGER LND144 C N 0 0 1 STRB_PLUNGER LND104 STRB_PLUNGER LND143...
  • Page 32 • Refer to page 4-2 for mark 0. LND001 VL_3V CN001 LND002 VL_3.0V LND003 REG_GND REG_GND REG_GND LND004 REG_GND REG_GND LND005 REG_GND STRB_PLUNGER T001 L001 LND006 REG_GND STRB_PLUNGER 4.7uH LND007 XDIRECT_PB XAF_LED D002 LND008 XSTRB_POPUP AF_5V R002 FT02P80TP 4700 LND009 XAF_LED C001 C003...
  • Page 33 • Refer to page 4-2 for mark 0. D101 SML-412MWT86 CN001 (POWER) KEY_AD1 R001 XPWR_LED REG_GND_B BL_H D_3.0V BL_L S002 BT001 S001 (ZOOM) REG_GND_A VL_3.0V KEY_AD2 (LITHIUM BATTERY) ST-176 REG_GND FLEXIBLE(2/2) S103 POWER LND101-LND106 Page 4-18 of Level 2 XPWR_ON S102 (SHUTTER) MENU...

  • Page 34: Printed Wiring Boards

    4-3. PRINTED WIRING BOARDS Link Link JK-348 FLEXIBLE BOARD FL-179 FLEXIBLE BOARD MS-376 BOARD ST-176 FLEXIBLE BOARD SW-509 BOARD PL-048 FLEXIBLE BOARD COMMON NOTE FOR PRINTED WIRING BOARDS DSC-H3_L2...

  • Page 35: This Note Is Common For Printed Wiring Boards

    4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS • : Uses unleaded solder. • Chip parts. • : Circuit board Transistor Diode : Flexible board Pattern from the side which enables seeing. : pattern of the rear side (The other layers’...
  • Page 36 Printed wiring boards of the CD-708 flexible board and SY-185 board are not shown. Pages from 4-20 to 4-21 are not shown. DSC-H3_L2...
  • Page 37 JK-348 (2 layers), MS-376 (2 layers), PL-048 (1 layer), FL-179 (2 layers) : Uses unleaded solder. PL-048 FLEXIBLE BOARD JK-348 FLEXIBLE BOARD CN001 REG_GND D003 SELF-TIMER/ C001 AF ILLUMINATOR D001 J201 RY001 DC IN (STROBE OPEN) D002 PL-048 D003 7 7 7 - 8 - STRB_PLUNGER 1-874-293...
  • Page 38 ST-176 (2 layers), SW-509 (2 layers) : Uses unleaded solder. BT001 SW-509 BOARD BATTERY, LITHIUM SECONDARY CL001 ST-176 FLEXIBLE BOARD S002 S001 (ZOOM) LCD901 (2/2) BT001 CN001 BACKLIGHT BL_H LND002 BL_L CN001 LND001 RB001 – RB002 POWER MENU Q001 1 873 376 1-873-376 1 873 376 (DISP)

  • Page 39: Repair Parts List

    NOTE NOTE 5. REPAIR PARTS LIST NOTE: Characters A to Z of the electrical parts list indicate location of exploded views in which the desired part is shown. EXPLODED VIEWS EXPLODED VIEWS Link Link CABINET (FRONT) SECTION CABINET (REAR) SECTION CABINET (UPPER) SECTION MAIN BOARD SECTION LENS SECTION...
  • Page 40 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST NOTE: • -XX, -X mean standardized parts, so they may have some differences from When indicating parts by reference number, the original one. please include the board name. •...

  • Page 41: Cabinet (Front) Section

    5. REPAIR PARTS LIST 5. REPAIR PARTS LIST DISASSEMBLY HARDWARE LIST 5-1. EXPLODED VIEWS 5-1-1. CABINET (FRONT) SECTION Cabinet (Rear) Section (See page 5-3) #25 (BLACK) #69 (SILVER) #25 (BLACK) #69 (SILVER) #25 (BLACK) #69 (SILVER) #25 (BLACK) #69 (SILVER) Ref.

  • Page 42: Cabinet (Rear) Section

    5. REPAIR PARTS LIST 5. REPAIR PARTS LIST DISASSEMBLY HARDWARE LIST 5-1-2. CABINET (REAR) SECTION ns: not supplied Cabinet (Upper) Section (See page 5-4) MIC901 #25 (BLACK) #69 (SILVER) SP901 Main Board Section (See page 5-5) Ref. No. Part No. Description Ref.

  • Page 43: Cabinet (Upper) Section

    5. REPAIR PARTS LIST 5. REPAIR PARTS LIST HARDWARE LIST 5-1-3. CABINET (UPPER) SECTION ns: not supplied BT001 : BT001 (LITHIUM RECHARGEABLE BATTERY) Board on the mount position. (See page 4-23) CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
  • Page 44 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST DISASSEMBLY HARDWARE LIST 5-1-4. MAIN BOARD SECTION BT Holder Section (See Page 5-7) - 5 0 LCD901 - 1 8 Lens Section (See Page 5-6) Ref. No. Part No. Description Ref. No. Part No.

  • Page 45: Lens Section

    5. REPAIR PARTS LIST 5. REPAIR PARTS LIST HARDWARE LIST 5-1-5. LENS SECTION (including IC001 (CCD imager) and CD-708 flexible complete board) (Note) Note: Be sure to read “Precuations for Replacement of Imager” on page 4-2. Ref. No. Part No. Description Ref.

  • Page 46: Bt Holder Section

    5. REPAIR PARTS LIST 5. REPAIR PARTS LIST DISASSEMBLY HARDWARE LIST 5-1-6. BT HOLDER SECTION ns: not supplied BT901 (Note) - 3 7 Note: Refer to HELP “Installation method of battery terminal board” when changing the battery terminal board. Ref. No. Part No.
  • Page 47 Electrical parts list of the CD-708 flexible board is not shown. Page 5-8 is not shown. DSC-H3_L2...
  • Page 48 FL-179 JK-348 MS-376 PL-048 ST-176 5-2. ELECTRICAL PARTS LIST Ref. No. Part No. Description Ref. No. Part No. Description A-1334-620-A FL-179 FLEXIBLE BOARD, COMPLETE < RESISTOR > ****************************** 1-480-062-11 FLASH UNIT R102 1-218-938-11 RES-CHIP 1/16W R103 1-218-940-11 RES-CHIP 1/16W < CAPACITOR > R104 1-218-940-11 RES-CHIP 1/16W...
  • Page 49 ST-176 SW-509 Ref. No. Part No. Description Ref. No. Part No. Description < IC > IC001 6-707-555-01 IC TPS65552RGTR < COIL > L001 1-456-995-22 INDUCTOR 4.7uH < TRANSISTOR > 0* Q001 6-551-686-01 TRANSISTOR TIG030TS-S-TL-E < RESISTOR > R002 1-216-829-11 METAL CHIP 4.7K 1/10W R003...

  • Page 50: Checking Supplied Accessories

    Checking supplied accessories. Note: This item is supplied with the unit as an accessory, but is not prepared as a service part. Lens Hood Adaptor Ring Battery Charger Battery Charger BC-CSGB/CSGC BC-CSGB/CSGC 3-271-150-01 3-271-149-01 0 1-480-175-11 (J) 0 1-480-175-31 0 1-480-175-21 (US, CND) (EXCEPT US, CND, BR, J) USB, A/V Cable for Power Cord...
  • Page 51 Instruction Manual 3-268-884-01 (JAPANESE) (J) 3-268-884-11 (ENGLISH) (CND, AEP, UK, E, HK, AUS, JE) 3-268-884-21 (FRENCH, ITALIAN) (US, CND, AEP) 3-268-884-31 (SPANISH, PORTUGUESE) (AEP, E, AR, JE) 3-268-884-41 (GERMAN, DUTCH) (AEP) 3-268-884-51 (TRADITIONAL CHINESE, SIMPLIFIED CHINESE) (E, HK, JE) 3-268-884-61 (RUSSIAN, UKRAINIAN) (AEP) 3-268-884-71 (ARABIC, PERSIAN) (E) 3-268-884-81 (KOREAN) (KR, JE) 3-268-884-91 (POLISH, CZECH) (AEP)
  • Page 52 HARDWARE LIST (1/5) #1: M1.7 X 2.5 #2: M1.7 X 4.0 #3: M1.7 X 2.5 #4: M1.4 X 2.5 (Tapping) (Black) (Black) (Red) (Dark Silver) 2-635-562-11 2-635-562-31 2-660-401-01 3-348-998-81 #5: M1.7 X 3.5 (Tapping) #6: M1.4 X 1.7 #7: M1.7 X 1.6 #8: M1.7 X 3.5 (Tapping) (Black) (Silver)
  • Page 53 HARDWARE LIST (2/5) #21: M1.4 X 3.0 #22: M1.7 X 5.0 (Tapping) #23: M1.7 X 4.0 (Tapping) #24: B1.7 X 5.5 (Tapping) (Black) (Silver) (Black) (Black) 2-662-396-21 3-083-261-01 3-080-204-11 4-679-805-11 #25: M1.7 X 3.0 #26: M1.4 X 2.0 #27: M1.4 X 2.0 #28: M1.4 X 4.0 (Tapping) (Black) (Silver)
  • Page 54 HARDWARE LIST (3/5) #41: M3.0 X 8.0 (Tapping) #42: M2.0 X 4.0 (Tapping) #43: M1.7 X 4.0 #44: M1.7 X 3.0 (Tapping) (Silver) (Silver) (Red) (Silver) 3-065-748-01 7-628-253-00 2-660-401-31 3-078-890-61 #45: M1.4 X 2.5 #46: M1.7 X 3.0 #47: M1.4 X 3.0 (Tapping) #48: M1.7 X 2.5 (Silver) (Red)
  • Page 55 HARDWARE LIST (4/5) #64: M1.7 X 5.0 (Tapping) #61: M3.0 X 10.0 #62: M2.0 X 3.0 #63: M5.0 X 12.5 (Silver) (Black) (Silver) (Black) 2-666-551-21 7-682-549-09 3-080-202-21 3-060-811-21 12.5 10.0 #65: M1.4 X 3.5 #66: M1.4 X 1.4 #67: M1.4 X 2.0 #68: M1.7 X 4.0 (Silver) (Silver)
  • Page 56 HARDWARE LIST (5/5) #81: M1.7 X 2.5 (Silver) 2-515-756-01...

  • Page 57: Revision History

    Reverse 985221131.pdf Revision History S.M. Rev. Ver. Date History Contents issued 2007.08 Official Release — — DSC-H3_L2...
