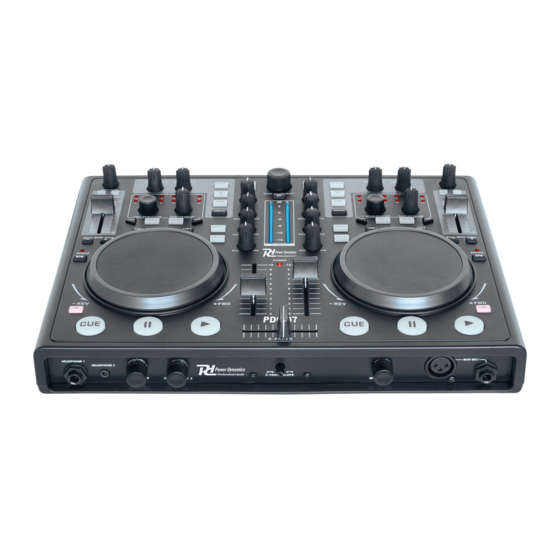

USB MIDI Controller with Sound Card
Ref. nr.:172.820
INSTRUCTION MANUAL
GEBRUIKSAANWIJZING
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
INSTRUKCJA OBSŁUGI
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDC-07 and is the answer not in the manual?

Questions and answers

Related Manuals for Power Dynamics PDC-07

Summary of Contents for Power Dynamics PDC-07

  • Page 1 USB MIDI Controller with Sound Card Ref. nr.:172.820 INSTRUCTION MANUAL GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI V1.0...
  • Page 2 ENGLISH Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features. Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock.

  • Page 3: Control Panel

    CONTROLPANEL The functions of the control elements described below apply when using the PDC-07 with the supplied DJ software Virtual DJ LE which is designed to integrate seamlessly with the controller. 1. Button effect selector 8. Control again For selecting an effect.
  • Page 4 15. Loop shift button (lengthen) Double the loop length-the maximum length of a loop is 32 CBG. 16. Pitch button The pitch button allows you to change the adjustable pitch range from +-6% to +-100% 17. Button master tempo For constant pitch when the speed has been changed with the pitch slide control 18.

  • Page 5: Front Panel

    FRONTPANEL 39. Headphones inputs 6.3mm and 3.5 mm jacks headphone 1 and 2 for connecting stereo headphones (impedance >8Ω). 40. Control cue level Level control for headphones connected to the jacks headphone 1 and 2. 41. Control CUE For selecting and crossfading the monitoring signal for the headphones depending on the cue mode selector switch: Mode cue: The pre-fader level of Deck A and Deck B is monitored.

  • Page 6: Rear Panel

    REARPANEL 45. Grounding screw If you intend to use a turntable, you will need to ground the RCA cable(s) by screwing in the grounding fork(s) to the grounding screw located on the rear panel of the mixer. 46. Convertible line/phone RCA input The unit has a convertible line/phone RCA input that accepts a standard dual L&R RCA connection.
  • Page 7 VIRTUAL DJ LE 1. Browser section Lists all compatible drives and folders of the computer in a tree structure. 2. Search field For searching titles in the data base of the computer. Several criteria can be selected. 3. Control panel Deck A 4.
  • Page 8 INSTALLING THE SOFTWARE VIRTUAL DJ (LE) AND SEVERAL VERSIONS Windows: 2. Welcome screen…Next. 1. Allow the installation to run. 3. Accept User License Agreement. 4. Choose setup type (typical). 5. Ready to install….Install. 6. Copying files… 7. Finish Installation…Finish. 8. Installation complete, icon on desktop.
  • Page 9 Mac: 1. Click continue to begin install. 2. Click continue if agree with License 4. Select installation drive…Continue 3. Click agree to accept License Agreement 5. Ready to install…Install. 6. Enter password for installing applications. 7. Validating package.. 8. Configuring...

  • Page 10: Activating The Software

    9. Once ready click close to finish 10. Installation complete, icon on desktop ACTIVATING THE SOFTWARE 1. After opening the following screen will appaer, just login or create account.: 2. When you don’t have an account see steps below:...

  • Page 11: Using The Controller With Other Applications

    USING THE CONTROLLER WITH OTHER APPLICATIONS Each rotary control, button, wheel or fader of the PDC-07 is assigned with its own unique MIDI note (Note no.) or Continuous Controller (CC) number (cc no.) and MIDI channel. Each time you turn a control, push a button, turn a wheel or move a fader, the PDC-07 send out MIDI data that is received and interpreted by your music software.
  • Page 12 USING THE CONTROLLER WITH OTHER APPLICATIONS 1. Set up the controller on a plane, flat surface 2. You can connect a DJ microphone (balanced or unbalanced optionally via an XLR plug or a 6.3 mm plug to the respective microphone input MIDI MIC on the front panel. Balanced cables provide +6 dB more output and guarantee a better protection against interference in case of long cable runs.

  • Page 13: Connecting A Computer

    - If a monitoring system is available, connect the amplifier of the monitoring system to the RCA output BOOTH. 5. For analogue sound recordings, connect a recording unit to the output REC. The recording level is independent of the position of the outputs controls MASTER CONTROL, MASTER LEVEL and BOOTH VOLUME.

  • Page 14: Loading Titles From The Computer's Database

    1. Call the software configuration menu with the button CONFIG and configure the program for operation with the PDC-07 in the tab Sound Setup. 2. In control panel Sound card, select the settings HEADPHONES. The two output channels master and headphones will be available for the connector.

  • Page 15: Playing A Title

    PLAYING A TITLE Virtual DJ PDC-07 1. Press the button PLAY (>) to start playback from starting point of the title (time index 00:00) or click the right mouse button over the button PAUSE (||) to start the titlefrom the first detected bass beat.

  • Page 16: Crossfading Between The Decks

    4. Adjust the desired sound with the tone controls of the channel. By adjusting the three tone controls, the high frequencies (control HIGH), the midrange frequencies (control MID), and the low frequencies (control LOW) can be boosted or substantially attenuated. With the controls in mid-position, the frequency response is not affected.

  • Page 17: Pitch Adjustment

    you can return to the beginning of the title or a cue point defined before, and momentarily play the title. Button CUE 1. To jump to the starting point of a title, press the button CUE in pause or play mode. Now the unit is in pause mode at the starting point of the title (LED of the button CUE lights up red).

  • Page 18: Effect Functions

    1. In play mode, shortly actuate the button LOOP IN when the desired starting point of the loop is reached. 2. Shortly actuate the button LOOP OUT when the desired end point of the loop is reached. The section between the starting point and the end point of the loop is continuously repeated. 3.
  • Page 19 Shortly press one of the buttons to create a stutter effect. ESPAÑOL Felicitaciones a la compra de este producto Power Dynamics. Por favor lea atentamente este manual antes de usar el aparato para disfrutar al completo de sus prestaciones.
  • Page 20 Esta garantía no es aplicable en caso de accidente o daños ocasionados por uso indebido del aparato o mal uso del mismo. Power Dynamics no se hace responsable de daños personales causados por el no seguimiento de las normas e instrucciones de este manual.
  • Page 21 La garantie deviendrait également caduque en cas d’accidents ou dommages causes par une utilisation inappropriée de l’appareil ou un non respect des consignes présentes dans cette notice. Power Dynamics ne pourrait être tenu responsable en cas de dommages matériels ou corporels causés par un...

  • Page 23: Declaration Of Conformity

    +31(0)546589299 +31(0)546589298 The Netherlands …………………… Product number: ……………………. Product Description: Trade Name: POWER DYNAMICS EN ……………………………. Regulatory Requirement: The product meets the requirements stated in Directives 2014/35/EU and 2014/30/EU and conforms to the above mentioned Declarations. Almelo, 16-06-2015 Name : B. Kosters...
  • Page 24 Specifications and design are subject to change without prior notice.. www.tronios.com Copyright © 2016 by TRONIOS the Netherlands...
