Page 1 USER GUIDE INTEGRATION TOOLS Galileo ® Keep these important operating instructions. Check www.meyersound.com for updates.
Page 2 The contents of this manual are furnished for informational purposes only, are subject to change without notice, and should not be construed as a commitment by Meyer Sound Laboratories Inc. Meyer Sound assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. Except as permitted by...
Page 3 Manufacturer’s 2832 San Pablo Avenue Address: Berkeley, CA 94702-2204, USA Declares that the product: Product Names: Galileo 408 : Loudspeaker Management Product Options: All Conforms to the following Product Specifications: Safety: EN 60065:2002 EMC: EN55103-1: 1997 emission EN55103-2: 1997 immunity This device also complies with EN 55103-1 &...
Page 4 Proper cables and connectors are available from Meyer Sound authorized dealers. Meyer Sound is not responsible for any radio or television interference caused by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the user's authority to oper- ate this equipment.
Page 5 SYMBOLS USED Dangerous voltages: Important operating Frame or chassis Protective earth ground risk of electric shock instructions Pour indiquer les ris- Pour indequer impor- Masse, châssis Terre de protection ques tant résultant de tensions instructions dangereuses Warnung vor gefährli- Wichtige Betriebsan- Rahmen oder Gehäuse Masse Schutzleiter cher...
Page 6 AC mains plug or appliance coupler shall 15. If the apparatus is used in a manner not remain readily accessible for operation. specified by the Meyer Sound, the pro- tection provided by the apparatus may be 11. Only use attachments/accessories speci- impaired.
Page 7 Do not install the apparatus in wet or humid pourrait entraîner un risque d’électrocution et locations without using weather protection peut constituer une infraction à la réglementa- equipment from Meyer Sound. tion locale concernant les installations élec- Do not allow water or any foreign object to get triques.
Page 8 Deutsch Español Um die Gefahr eines elektrischen Schlages auf Para reducir el riesgo de descarga eléctrica, ein Minimum zu reduzieren, das Gerät vom desconecte de la red de voltaje el aparato Stromnetz trennen bevor ein Audio Schnittstel- antes de instalar el cable de señal de audio. lensignalkabel angeschlossen wird.
Page 9: Table Of Contents
CONTENTS Chapter 1: Introduction How to Use This Manual Galileo Loudspeaker Management System Chapter 2: Galileo 408 Features and Functions Galileo Projects Galileo 408 Front Panel Galileo 408 Rear Panel Chapter 3: Connecting the Galileo 408 Power Connector Remote Computer Connection...
Page 10 CONTENTS...
Page 11: Chapter 1: Introduction
Information and specifications are subject to change. Updates and supplementary information are available at www.meyersound.com. Meyer Sound Technical Support is available at: ■ Tel: +1 510 486.1166 ■...
Page 12: Galileo Loudspeaker Management System
The system consists of: ■ Galileo 408: A fully digital matrix processor with four inputs and eight outputs. Designed as the perfect complement to Meyer Sound’s self-powered loudspeakers, Galileo includes array correction for M Series™ array products, presets for Meyer Sound systems of various sizes and types, and digital implementations of technologies used in Meyer Sound’s groundbreaking analog processors and line drivers.
Page 13 ® ■ Compass control software: Provides comprehensive control of the Galileo 408 through a graphical user interface running on a remote computer. The software enables easy access to all Galileo features and even provides control of mul- tiple units. Compass includes a context-sensitive help system, full copy and paste of all settings and groups of settings, and multiple levels of undo.
Page 14 CHAPTER 1: INTRODUCTION...
Page 15: Chapter 2: Galileo 408 Features And Functions
Galileo 408. When a Galileo 408 is connected to the host computer, the Compass con- trol software reads and displays the configuration currently residing in the Galileo 408.
Page 16: Galileo 408 Front Panel

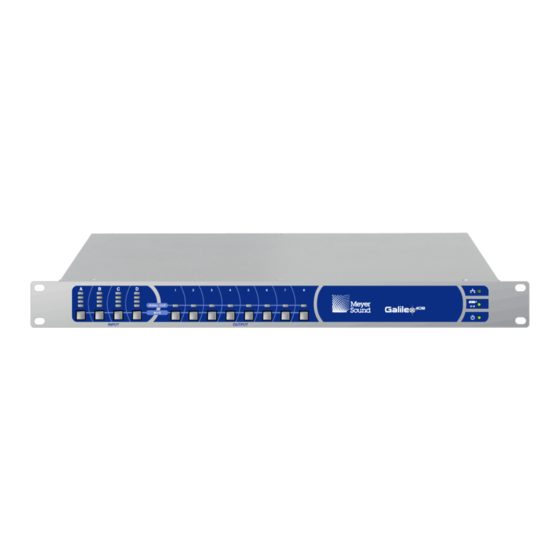

CHAPTER 2: GALILEO 408 FEATURES AND FUNCTIONS GALILEO 408 FRONT PANEL The Galileo 408 front panel includes mute buttons for inputs and outputs, input level indica- tors, and output LEDs. Input Level Output Signal / SIM 3 Ethernet Indicators Clip LEDs...
Page 17: Galileo 408 Rear Panel
AC Power LED: Indicates when the Galileo 408 is receiving AC power. GALILEO 408 REAR PANEL The Galileo 408 rear panel includes four audio inputs and eight outputs, a SIM 3 bus connec- tor, and an Ethernet connector for communicating with a computer running the Compass con- trol software.
Page 18 Output Connectors (1–8): Eight XLR-3M connectors for connecting to Meyer Sound self- powered loudspeakers, or to power amplifier channels driving passive loudspeaker sys- tems. Any signal routing and processing stored in the Galileo 408’s project file is applied to these outputs.
Page 19: Chapter 3: Connecting The Galileo 408
Pay close attention to these important electrical and safety issues: ■ Make sure the AC power cable has the appropriate power plug (on the other end) for the area in which you will operate the Galileo 408. Always use a grounded outlet and plug. ■...
Page 20: Remote Computer Connection
CHAPTER 3: CONNECTING THE GALILEO 408 REMOTE COMPUTER CONNECTION The Galileo 408’s RJ-45 port connects to a standard Ethernet port with a shielded Cat-5e cable. The Ethernet connection allows the unit to be controlled remotely from a Mac or Windows computer running the Compass control software.
Page 21: Input Connectors (From Console)
Input Voltage Range can be set to either +26 dBu (the default) or +20 dBu. In addi- tion, inputs A and C can be configured as Analog or AES. The Galileo 408’s input meters on the front panel indicate levels for both analog and digital signals.
Page 22 AES/EBU digital signals are connected to the XLR-3F input connectors labeled A and C on the Galileo 408 rear panel. Standard stereo AES/EBU digital audio signals at sample rates up to 96 kHz are supported. The Galileo 408’s input meters on the front panel indicate levels for both analog and digital signals.
Page 23: Output Connectors (To Loudspeakers/Arrays)
24-bit D/A converters. These outputs have the same line-driving capabilities found on Meyer Sound’s analog line drivers, delivering signal levels up to +26 dBu. The Galileo 408 can easily drive Meyer Sound self-powered loudspeakers to full output at all frequencies, even over lengthy cable runs.
Page 24 The Galileo 408 rear panel includes a bus for direct connection to the SIM 3 audio analyzer. Once connected, the Galileo 408 can act as a line switcher for the analyzer and be used to measure across any selection of inputs and outputs.
Page 25 GALILEO 408 USER GUIDE Combination 1 ■ Console = Galileo Output Post Matrix (ex. Ad 10, Ch 1 Sw 10, Cons 1). This uses the out- put of the Galileo Summing Matrix as the signal that feeds the Console bus.
Page 26 CHAPTER 3: CONNECTING THE GALILEO 408...
Page 27: Appendix A: Specifications
Monolithic, 1 GHz vector DSP CONTROL Network Ethernet port for network connection and control from a Windows or Mac computer Control Full bidirectional communication with Meyer Sound's Compass control soft- ware within a client-server architecture AC POWER Connector PowerCon Operating Voltage Range 90–250 V AC, 50/60 Hz...
Page 28 4600 m (15,000 ft) Non operating Altitude to 95% at 35° C Shock 30 g 11 msec half-sine on each of 6 sides Vibration 10 Hz – 55 Hz (0.010 m peak-to-peak excursion) GALILEO 408 COMPLIANCE Meyer Sound Galileo 408...
Page 29 GALILEO 408 USER GUIDE GALILEO 408 SPECIFICATIONS 19.00 [483 mm] 15.62 [397 mm] 1.73 [44 mm] 16.90 [429 mm] 15.23 [387 mm] Galileo 408 Dimensions...
Page 30 APPENDIX A: SPECIFICATIONS...
Page 32 The contents of this manual are furnished for informational purposes only, are subject to change without notice, and should not be construed as a commitment by Meyer Sound Laboratories Inc. Meyer Sound assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual.
