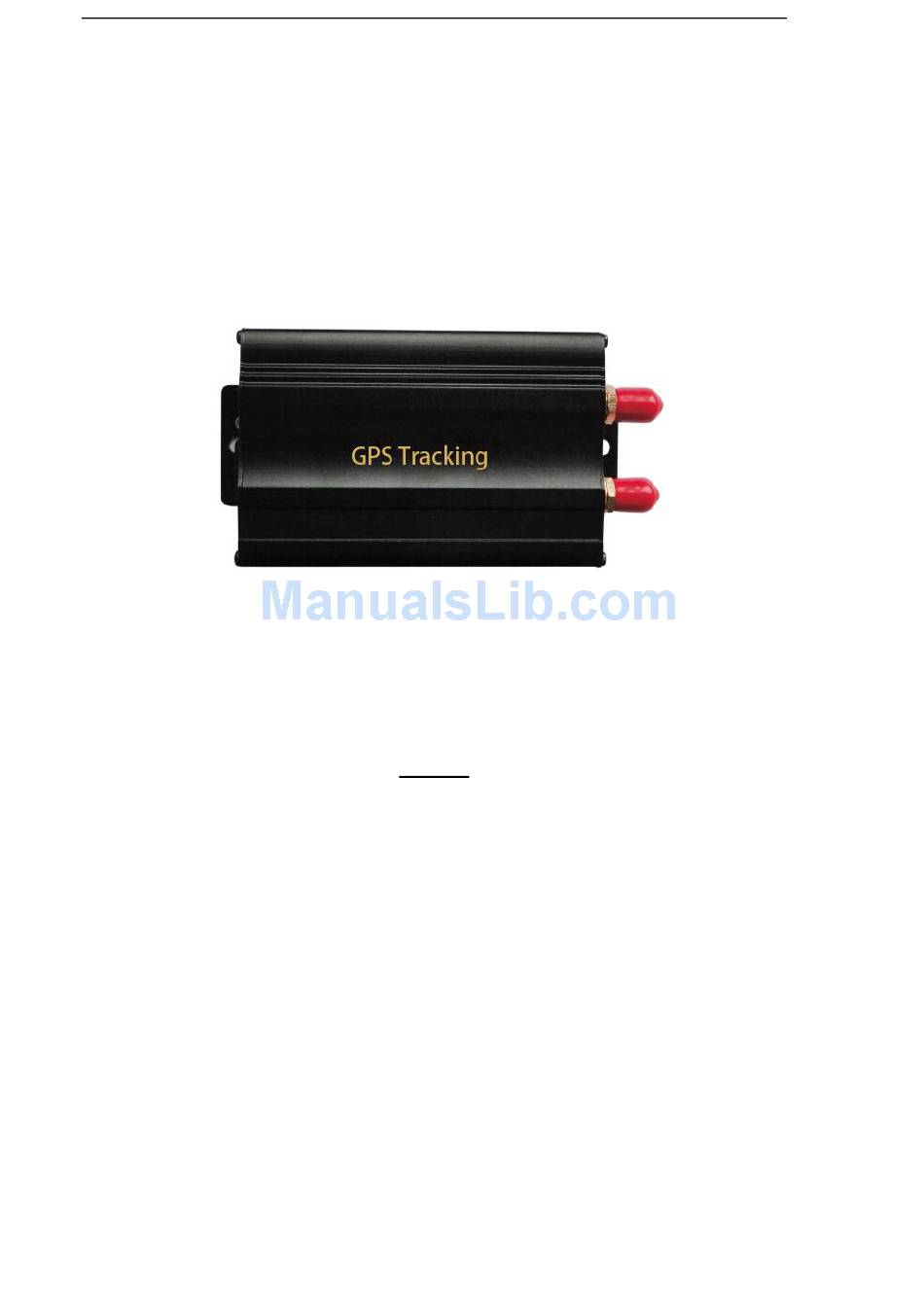

GSM/GPRS/GPS Vehicle Tracker
TK103A/TK103B User Manual
Preface
Thank you for purchasing the tracker. This manual shows how to operate the
device smoothly and correctly. Make sure to read this manual carefully before
using this product. Please note that specification and information are subject to
changes without prior notice in this manual.
Any change will be integrated in the latest release. The manufacturer assumes
no responsibility for any errors or omissions in this document.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TK103A and is the answer not in the manual?

Questions and answers

Related Manuals for COBAN GROUP TK103A

Summary of Contents for COBAN GROUP TK103A

  • Page 1 GSM/GPRS/GPS Vehicle Tracker TK103A/TK103B User Manual Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.

  • Page 2: Table Of Contents

    Contents 1. Introduction ..................... 3 2. Hardware Description ..................3 3. Accessories Name ................... 4 4. Specifications ....................4 5. Operating Instructions ..................5 6. Function setting ....................7 6.1 Initialization ....................8 6.2 Change Password ..................8 6.3 Authorization ....................8 6.4 Set up central number...................

  • Page 3: Introduction

    1. Introduction The tracker working based on the GSM/GPRS/LBS/AGPS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet. 2.

  • Page 4: Accessories Name

    3. Accessories Name NAME PHOTOES NOTE GPS Antenna 2.5 meters GSM Antenna 1.5 meters Microphone 1.5 meters Power wire 10PIN Relay 12V/40A Remote control TK103B Optional 4. Specifications Content specifications DIM. 81.8mm x 35.7mm x 60.3mm Weight Network GSM/GPRS Band 850/900/1800/1900Mhz GSM/GPRS Module MT6260A...

  • Page 5: Operating Instructions

    Cold status 45s-90s GPS Start time Warm status 35s Hot status 1s Voltage of car power 12 V-24V system Backup battery Chargeable changeable 3.7V 500mAh Li-ion battery Storage Temp. -40° C to +85° C Operation Temp. -20° C to +65° C Humidity 5%--95% non-condensing 5.
  • Page 6 Wiring diagram 5.1.5 Note: The blue wire can be connected to the original car alarm horn; 5.1.6 Know about the type of the door trigger is positive or negative trigger. Please connect the orange wire to the door control circuit if it is positive, and connect purple wire if it is negative.

  • Page 7: Function Setting

    5.2 SIM CARD Installations 5.2.1 Use a tweezers or a sharp thing to touch the SIM CARD popup switch, the SIM CARD slot will pop up, take out the SIM card slot and put SIM card in it. And then put the SIM card slot back to its original position after confirm the SIM card in the right place.

  • Page 8: Initialization

    6.1 Initialization Send SMS “begin+password” to the unit, it will reply “BEGIN,CONFIG OK ” and initialize all the settings to default factory settings.（default password: 123456） For example: send SMS “begin123456”, it will reply “BEGIN,CONFIG OK ”. The “+” in the command, please don’t type “+”, space means press the space keyboard on your cell phone.

  • Page 9: Set Up Central Number

    reply” ADMIN,CONFIG OK” by SMS. 6.3.2 Delete authorization: Send SMS“noadmin+password+space+authorized number” to delete the authorized number. 6.4 Set up central number Only 1 number can be set as central number. 6.4.1 Setup: send command “centernum+password+space+number” to tracker, it will reply “centernum ok”. After setup monitor center number, the messages of auto track by SMS will be set to this center number, if all alarms need to be sent to this number too, then this center number must be setup as authorized number.

  • Page 10: Cell Id Tracking

    interval+space+static time interval” to the tracker device. 6.6.2 For example: send SMS “ITV123456 10 500” it will report data to server at 10s time interval when vehicle is moving; 500s time interval when vehicle is static. 6.7 Cell ID Tracking 6.7.1 You must set up the APN of your local GSM network for the SIM card in tracker first before using this function, if there is user name and password for GPRS login, Please refer to following to configure the APN, user name and...

  • Page 11: Data Logging(Optional)

    6.8.3 Send SMS command "tracker+password" to tracker device of vehicle terminal, It will return "TRACKER,CONFIG OK" and restore to “track” mode. 6.9 Data logging(Optional) 6.9.1 Auto logging：When the tracker device lost GSM signals or fall offline from GPRS, tracker will log the tracking position and alerts automatically in the SD card on the basis of the pre-set condition, when GSM signals get back, all the event alerts will be auto-sent to the authorized numbers or monitoring platform (server), but the logged tracking data should be loaded to the...

  • Page 12: Sos Alarm

    off. 6.10.2.2 This function disactivates as default. Cancel: Send SMS “extpower+ password+space+0” to deactivate it. 6.10.3 SOS alarm Long Press the SOS button for 3 seconds, （ Or press button on remote for 3 seconds）, the tracker device will send SMS “help controller me!+lat./long.”...

  • Page 13: Overspeed Alarm

    6.10.5 Overspeed alarm 6.10.5.1 Set up: Send SMS “speed+password+space+80” to the unit(suppose the speed is 80km/h),and it will reply “speed OK!”. When the target moves exceeding 80km/h.the unit will send SMS “speed+Geo-info” to the central number. 6.10.5.2 Cancel: Send SMS “speed+password+space+0” to deactivate the overspeed alarm.

  • Page 14: Set All Alarm Mode

    6.10.8 Set all alarm mode Send SMS"KC +password+space+0" to tracker to close the function. Send SMS"KC +password+space+1" to tracker to choose alarm by SMS. Send SMS"KC +password+space+2" to tracker to choose alarm by calling. 6.11 Cut Oil and Power System 6.11.1 cut off the oil and power systerm Send SMS command “DY+password+space+1”...

  • Page 15: Arm

    6.13 6.13.1 Set up arm by SMS 6.13.1.1 Send SMS command “DOOR+password+space+1” to the tracker device in the vehicle. It will reply “DOOR,CONFIG OK” in both armed and disarmed state, and the SMS command will make the tracker device enter into armed state if the unit currently disarmed.

  • Page 16: Disarm

    Press for 1 time, tracker will send SOS alert to central phone numbers. Deterrence/car Press for 1 when it is in arm state, siren will beep search 10 seconds, press disarm button to quit. Remote set arm and disarm, the horn will ring; when the door was opened illegally, horn ringing until the door was closed or disarm 6.15 Disarm...

  • Page 17: Switch Between Gprs And Sms Mode

    6.16 Switch between GPRS and SMS Mode Send SMS “GPRS+password+space+1” to tracker device to switch to GPRS mode; Send SMS “GPRS+password+space+0” to tracker device disable GPRS mode. Both will reply “GPRS,CONFIG OK”. 6.17 Check the Vehicle State Send SMS command “check+password” to the tracker device in the vehicle, it will reply following SMS: imei: unique IMEI number for register intracking platform.

  • Page 18: Timezone Setting

    6.18.2 Send SMS command "setimei+password+space+15 digits IMEI number" to the unit. E.g. Send SMS command "setimei123456 123456789012345" to the tracker device, it will reply SMS “SETIMEI,CONFIG OK”. 6.19 Timezone Setting 6.19.1 Send SMS command “timezone123456+space+(timezone*60)” to the tracker unit, If succeed, It will reply “time OK” 6.19.2 For example: Send SMS “timezone123456 330”, +5.5 is India time zone, so it is 5.5*60=330;...

  • Page 19: Set Ip And Port

    3) E.g. Send SMS command “APN123456 CMNET”. If succeeded, it will reply SMS “APN OK” Notes: CMNET is the APN of one of china GPRS Network Operator (China mobile), it has no APN name and Password. 6.20.2 Set IP and Port “adminip+password+space+IP Address+space+port Send SMS: number”, If...

  • Page 20: Faults & The Solutions

    something more about the voltage range. Otherwise, it won’t work properly or destroy the product. 8． Faults & the Solutions Faults Solution Startup Fail Please check out the power wiring in correct place. Call Fail Check the GSM antenna connected. Check whether the SIM card in place.
