Element 75 Manual
19) PIPE ADAPTOR KIT RD2311

FITTING INSTRUCTIONS

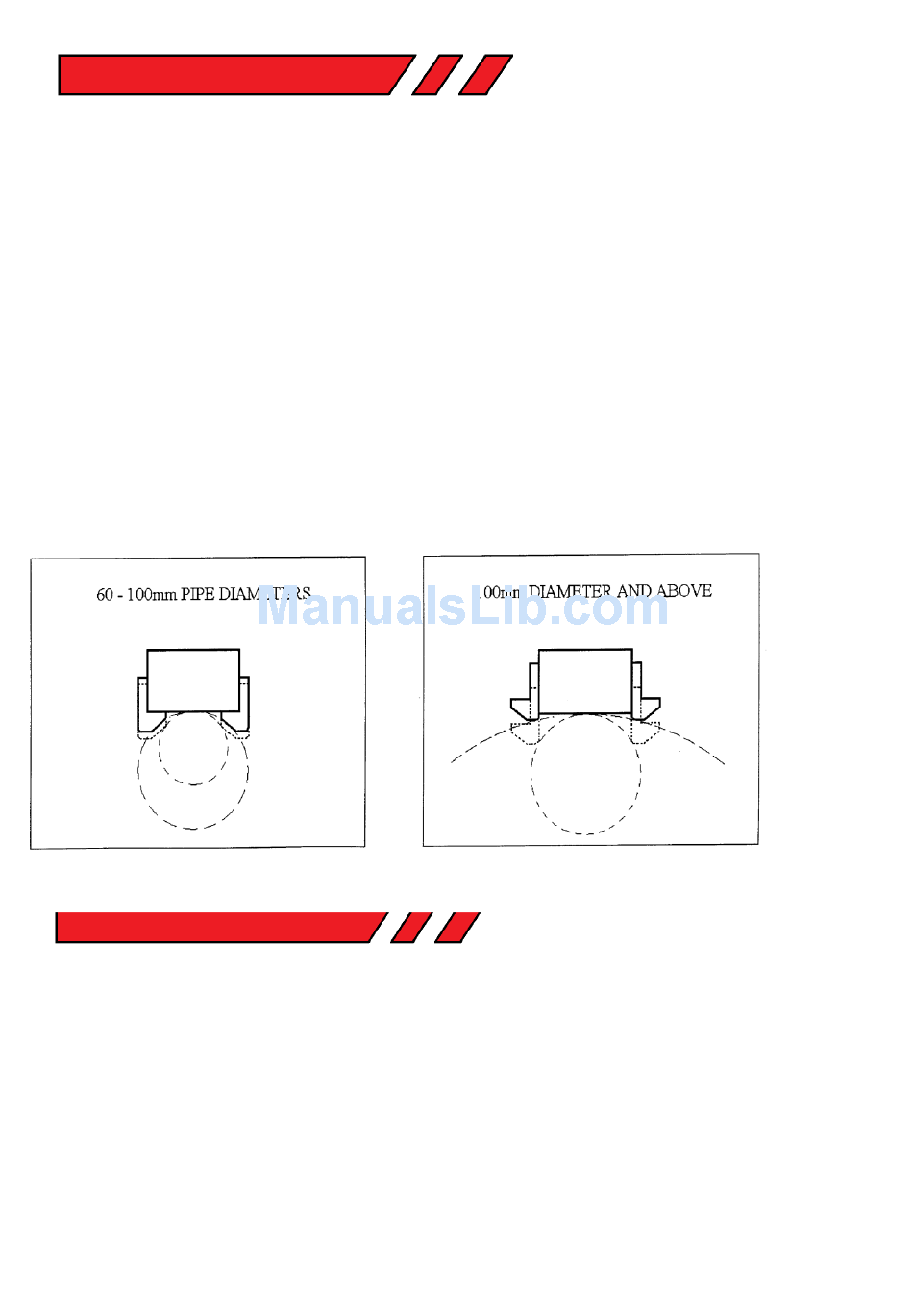

 Dependent upon the size of the pipe to be cut (see illustrations) attach adjustable angle plates
RD3328 with cap screws RD4325 and washers RD4205 (4 off each) to the magnet sides. Do not
tighten.
 Locate the machine on the centreline of the pipe taking care that the magnet is in line with the
longitudinal axis of the pipe.
 Switch on the magnet and move the sliding plates down to the outside diameter of the pipe.
Tighten the screws on both sides by hand then check once again that the full length of the
moving plates is touching the pipe at the front and back, fasten the plate securely. Feed the
safety strap through the lugs at the front of the housing, around the pipe and pull tight.
 When cutting the hole DO NOT use excessive pressure but rather let the cutter ease into the
cutting surface.

20) FITTING THE CHUCK

 The machine comes supplied with an RDD4128 (Arbor Shank) & RDD4126 (16mm Chuck).
 Insert RDD4128 into RDD4022 (Arbor Spindle), ensure a good and tight fit is achieved.
 Insert RDD4126 into RDD4128, ensure a good and tight fit is achieved.
 Replacing the chuck is the reverse sequence, by utilising RDD4129 (Drift).
Original Instructions
22
Aug 2016
