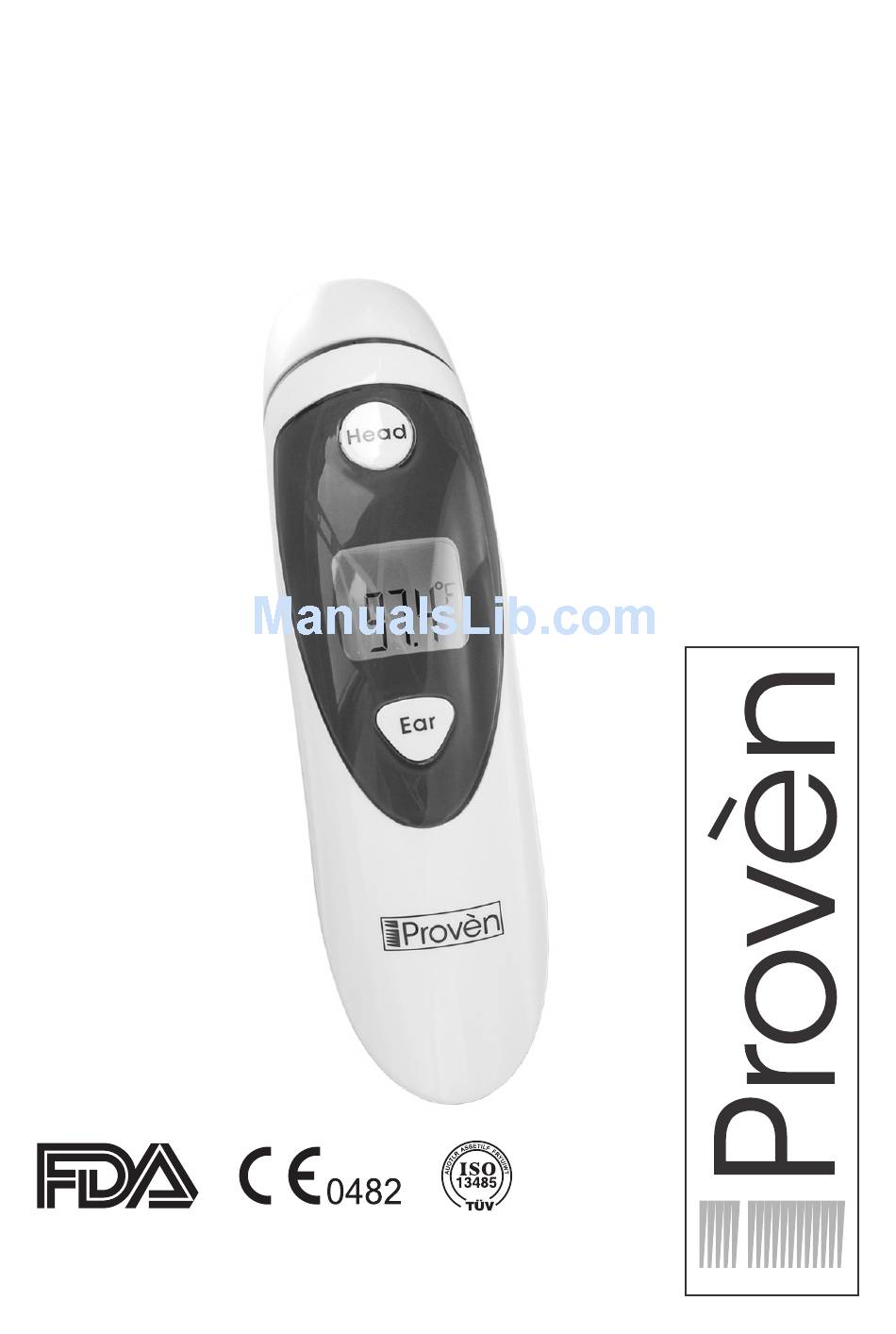

- Page 1 Dual Mode DMT-489 Infrared Thermometer Instruction manual Manual Ver.: 1.0 Issuing Date: 2016/08/16...
- Page 2 Thank you for choosing the iProvèn Dual Mode Digital Infrared Thermometer. With its unique technology, the Dual Mode Infrared Thermometer DMT-489 can be used for measuring the body temperature in two different ways. You can either measure the body temperature from the forehead by using the Head-mode or from the eardrum by using the Ear-mode.
-
Page 3: Table Of Contents
Contents 1. Safety instructions and precautions ..........4 2. Purpose ......................4 2.1 Description .....................5 3. Setup instructions .................6 3.1 First use ....................6 3.2 Replacing Batteries ................6 4. Operating instructions ................6 4.1 How to get accurate measurements ..........6 4.2 How to use the Head-mode ............7 4.3 How to use the Ear-mode..............7 4.4 Memory retrieval .................8 4.5 ˚C / ˚F switch ..................8... -
Page 4: Safety Instructions And Precautions
1. Safety instructions and precautions • The ear measuring function is not suitable for children under 6 months. In this case we recommend using the Forehead-mode or a rectal digital thermometer with a flexible tip such as the iProven DTK-117A. •... -
Page 5: Description
2.1 Description Infrared sensor: (Take off the cover before detecting the eardrum temperature.) Head-button: starts measurement of forehead temperature. Ear-button: starts measurement of eardrum temperature. LCD display Battery cover Ambient temperature Ready for measurement ˚C / ˚F Memory Head-function Ear-function Battery Digits - 5 -... -
Page 6: Setup Instructions
3. Setup instructions 3.1 First use When using this product for the first time, the battery protection tab must be removed. Remove this plastic tab by gently pulling it out of the battery compartment. 3.2 Replacing Batteries To replace the batteries, follow these instructions: Release the battery cover by gently sliding it down. -
Page 7: How To Use The Head-Mode
4.2 How to use the Head-mode To measure the body temperature from the forehead, follow these instructions: Point the thermometer sensor toward the temple. Keep some space between the sensor and the skin (approx. 1/4 inch, 0,5 cm). First measure your temple, then the spot between your eyebrows and then the other temple while holding the head button. -
Page 8: How To Use The Ear-Mode
4.3 How to use the Ear-mode To measure the body temperature from the eardrum, follow these instructions: Take off the sensor cover to expose the sensor probe. Pull the ear backward and upward. Gently insert the sensor into the ear canal. Make sure the sensor points in the direction of the eardrum itself. -
Page 9: C / ˚F Switch
Press the Ear-button once more to get to data set 2. The data consists of the measured temperature and the saved type of measurement as shown by the accompanying symbols. To shut down the thermometer press the Head-button once. 4.5 ˚C / ˚F switch To switch between Celsius and Fahrenheit follow these instructions: Make sure the thermometer is off. -
Page 10: Head-Mode
5.2 Head-mode In head-mode the temperature measurement range is 0.0˚C - 100.0˚C or 32˚F - 212˚F. After any measurement between 32˚C and < 37.6˚C or 89.6˚F and < 99.7˚F one beep will sound and the display will light green. When the measurement is between 37.6˚C and <... -
Page 11: Technical Information
212˚F in Ear-mode / Ambient temperature mode. Please make sure you are following the instructions on how to get accurate measurements. 9. Technical Information Model: Dual Mode Infrared Thermometer DMT-489 Applicable regulations and laws: ASTM 1965/EN12470-5/GB/T 19146-2010 Temperature units: ˚C/˚F, adjustable Measurement range Forehead-mode: 0.0˚C-100.0˚C / 32.0˚F-212.0˚F... -
Page 12: Warranty
The information HEADQUARTERS in this document is subject to change without Ebweg 12D notice. iProvèn reserves the right of final inter- 2991 LT Barendrecht pretation of this document. The Netherlands Version: DMT-489 20160816 Phone: +31(0)84-8838876 - 12 -...
