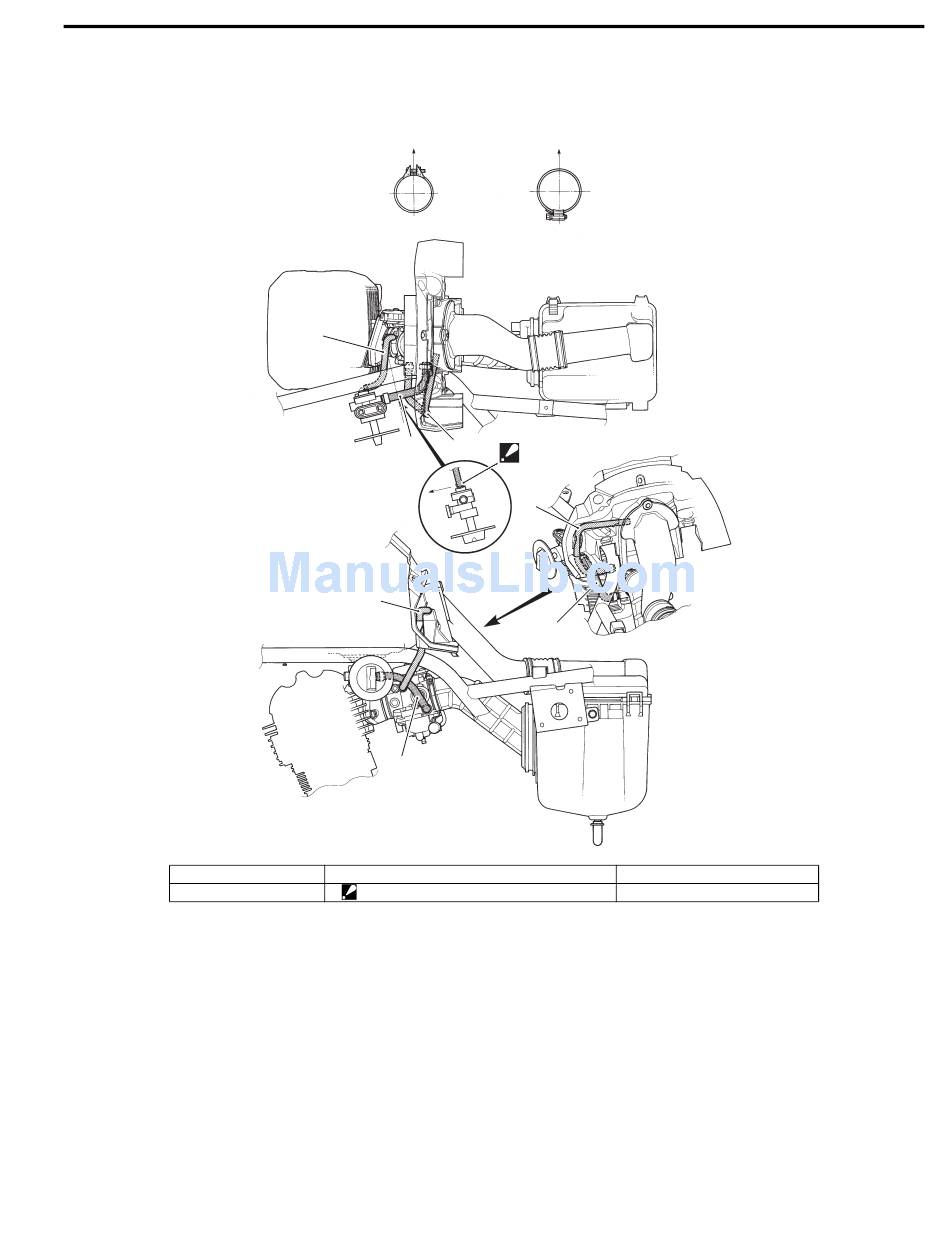

Carburetor Hose Routing Diagram

1. Vacuum hose
2. Fuel hose

Schematic and Routing Diagram

LH
RH
[A]
1
2
3
UP
3
2
3. Air vent hose
"A" Clamp end should face downward.
LH
RH
[B]
"A"
3
2
[A]: Intake pipe side
[B]: Air cleaner side
Fuel System:
1G-10
B827H11702001
