[2] DISASSEMBLY/ASSEMBLY
[2]-2. Gear Assembly, DC Motor (cont.)
ASSEMBLING

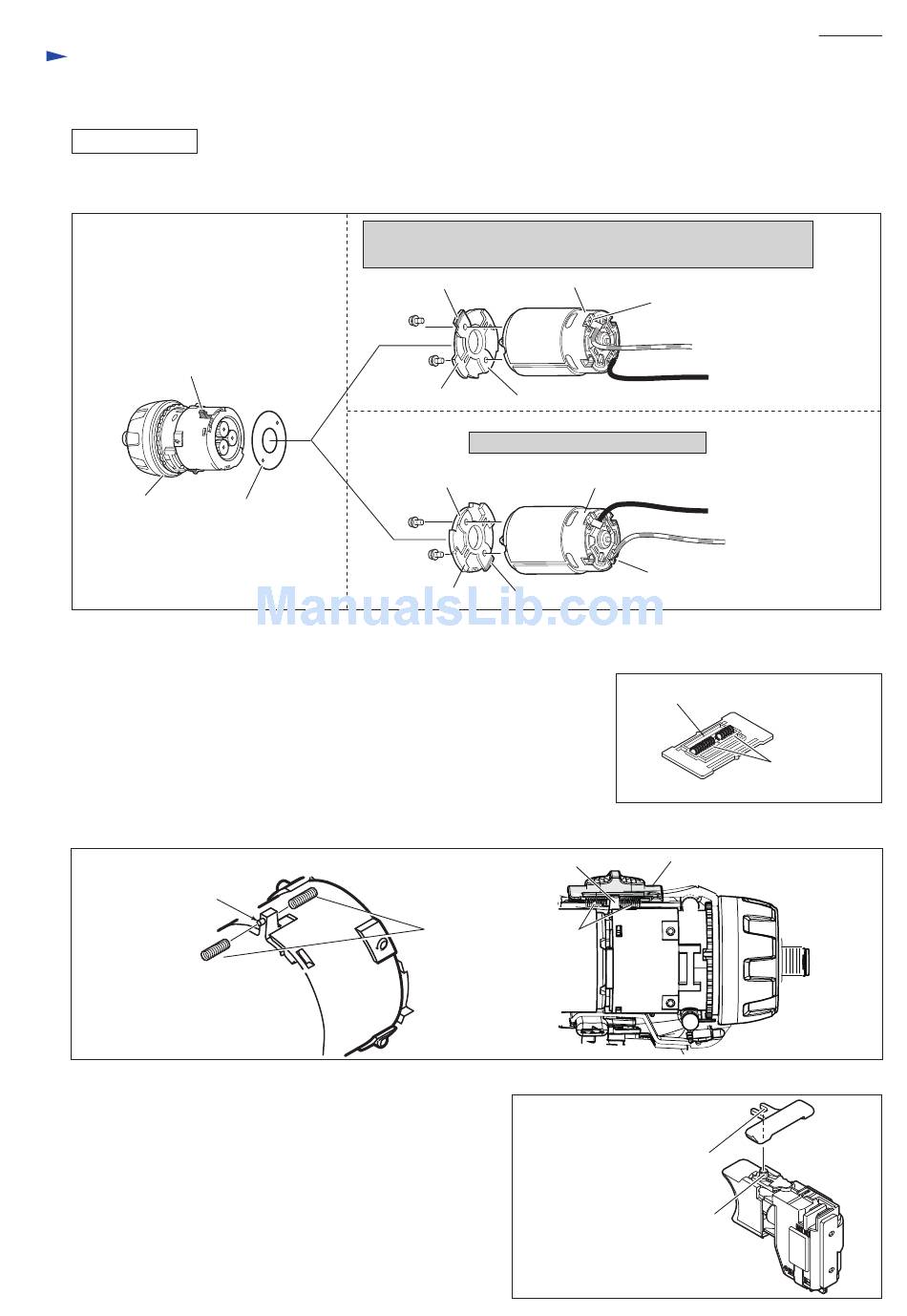

Note: Do not take the wrong assembling illustrated in Fig. 10.
Fig. 10
Lever of Gear assembly
Gear Assembly Flat washer 11

[2]-3. Assembling Speed Change Lever Assembly

1) Check that two pieces of Compression spring 4 are set exactly in the grooves
of Speed change lever assembly. (Fig. 11)
2) Fix Speed change lever assembly to Lever of Gear assembly. (Fig. 12)
Note: Put Lever of Gear assembly between two Compression springs 4,
And insert the emboss of the lever of Gear assembly into one of
Compression spring 4.
(3) Shift Speed change lever assembly to either low speed position or high speed
position.
Fig. 12
Emboss on Lever
of Gear assembly

[2]-4. Assembling F/R Change Lever

Link the notch of F/R change lever and the protrusion of Switch,
then install them in Housing L. (Fig. 13)
The protrusion of Motor bracket prevents Lever of Gear assembly
from setting in high speed mode..
Protrusion side
DC motor
Motor bracket Non protrusion side
DC Motor can not be set in place.
Non protrusion side
Motor bracket Protrusion side
Lever of Gear assembly
Compression spring 4
Fig. 13
notch of F/R change lever
Red marking
for Plus terminal
DC motor
Red marking
for Plus terminal
Fig. 11
Speed change lever assembly
Speed change lever assembly
protrusion of Switch
P 4/ 6
