3.
SYSTEM INSTALLATION
ST300-S/SM, VTR/DDR CONTROLLER
a. Plug one end of a 9-conductor, RS422 serial cable into the VTR 1 (2, 3 or 4) connector on the
rear of the ST300. Plug the other end of the cable into the REMOTE connector on the Video
Server.
b. Connect the supplied POWER SUPPLY, APX#4108, into the POWER connector on the rear
of the ST300. Plug the Power Supply into an outlet, 90 VAC – 240 VAC.
c. Check SETUP MENU prior to using the ST300 to confirm proper Record mode and other
User settable modes.
Installation is complete.
5
4000CL-O, 400 Clip Fast Access System, Odetics Protocol

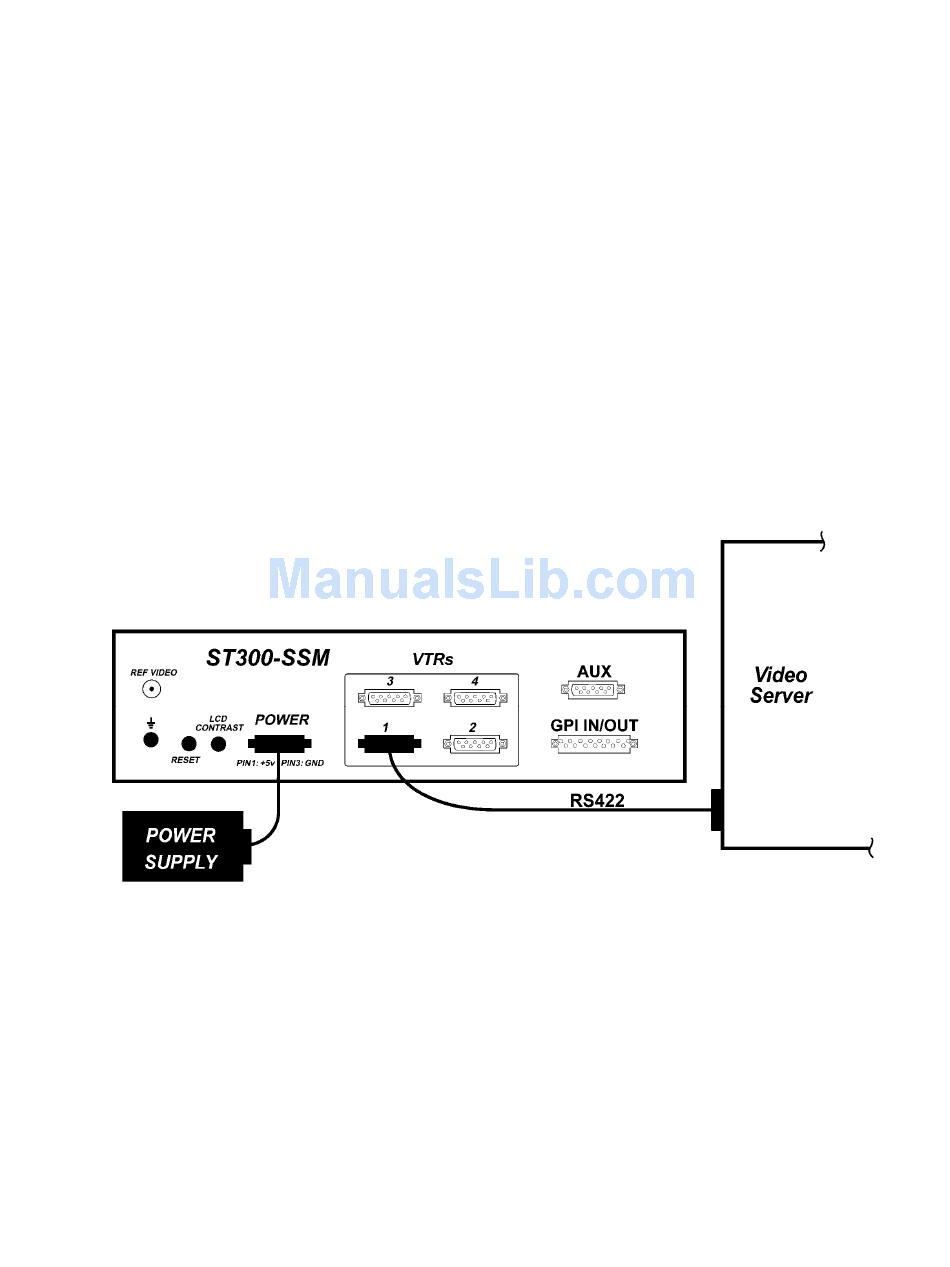

CONNECTION DIAGRAM
