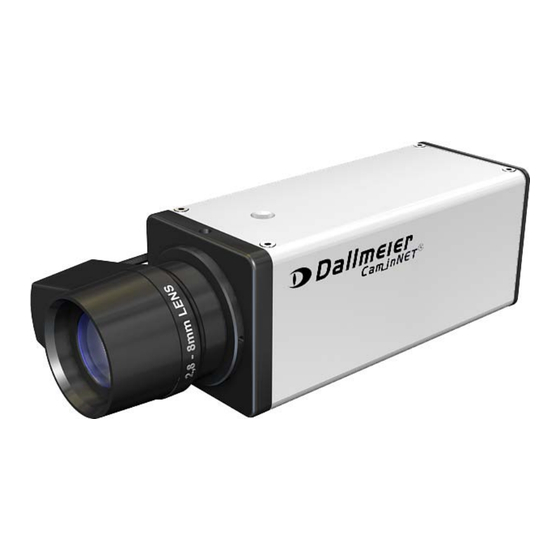

dallmeier DF3000IP Installation And Configuration Manual

Day/night color ip camera
Hide thumbs Also See for DF3000IP:
Table of Contents

Advertisement

Quick Links

Installation and Configuration
Day/Night Color IP Camera
DF3000IP(-DN)
DF3000IP(-DN) CasinoCam
Rev. 5.1.0 / 070807

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF3000IP and is the answer not in the manual?

Questions and answers

Related Manuals for dallmeier DF3000IP

Summary of Contents for dallmeier DF3000IP

  • Page 1 Installation and Configuration Day/Night Color IP Camera DF3000IP(-DN) DF3000IP(-DN) CasinoCam Rev. 5.1.0 / 070807...
  • Page 2 DF3000IP(-DN) / DF3000IP(-DN) CasinoCam Copyright © Dallmeier electronic GmbH & Co.KG All rights reserved. This document may not be copied, photocopied, reproduced, translated, transferred to an electronic medium or converted to a machine-readable form either whole or in part without first receiving written permission from Dallmeier electronic GmbH &...

  • Page 3: Table Of Contents

    Table of contents About this document ................5 Validity ....................5 Documentation on the DF3000IP(-DN) ..........5 Convention .................... 5 For your safety ..................7 General instructions ................. 11 Scope of supply ................... 11 Transportation and packaging .............. 11 Appropriate use ................... 11 Performance Features .................
  • Page 4 DF3000IP(-DN) / DF3000IP(-DN) CasinoCam 9.1.8 Extensions ..................34 9.1.9 Password .................... 35 Network settings .................. 35 9.2.1 Common settings ................35 9.2.2 Alarm hosts ..................36 9.2.2.1 Setting up an alarm host ..............37 9.2.2.1.1 Settings ....................37 9.2.2.1.2 Messages ................... 38 9.2.2.1.3 Scheduler ....................

  • Page 5: About This Document

    About this document Validity This document applies to the Day/Night color IP camera DF3000IP (-DN) and DF3000IP(-DN) CasinoCam. It has been produced on the basis of Version 2.1.0.23 (software). The descriptions in this document apply to both cameras. Distinctions are only made if necessary. For simplification reasons, the term „DF3000IP(-DN)“...
  • Page 6 DF3000IP(-DN) / DF3000IP(-DN) CasinoCam DANGER The warning word DANGER denotes an immedi- ate danger that may cause death or serious injury if it is not averted. WARNING The warning word WARNING denotes a possible danger that may cause death or serious injury if it is not averted.

  • Page 7: For Your Safety

    Do not make modifications Do not make any modifications to the unit (neither to the software nor the hardware) without consulting Dallmeier electronic. Improper modifications can cause malfunctions or damages. Dallmeier electronic accepts no liability for damages resulting from unauthorized or improper modifications to the unit.
  • Page 8 Furthermore, the use of peripheral devices that are not tested and approved by Dallmeier electronic results in loss of warranty. In case of doubt, contact the sales partner responsible for your area.
  • Page 9 Disposal Disconnect the unit from the power supply. Remove all connected units and system components. Return the unit to your respective sales partner. Dallmeier electronic GmbH & Co.KG...
  • Page 10 DF3000IP(-DN) / DF3000IP(-DN) CasinoCam Dallmeier electronic GmbH & Co.KG...

  • Page 11: General Instructions

    Appropriate use The DF3000IP(-DN) is a high-resolution color IP camera for color or b/w imaging. It is designed for indoor use. Performance Features...

  • Page 12: Certificates

    DF3000IP(-DN) / DF3000IP(-DN) CasinoCam NOTE For detailed information, please refer to the Technical Data sheet in the appendix. Certificates The following certifications were in effect for the DF3000IP(-DN) at the time this document was produced: C-Tick Warranty The warranty period is 36 months.

  • Page 13: Notes On Operating The Camera

    The quality of the video picture depends on the lighting and the monitor used to display the video picture. Automatic white balance depends on the lighting used and can cause color distortions in artificial light. Poor lighting can lead to faulty white balance. Dallmeier electronic GmbH & Co.KG...
  • Page 14 DF3000IP(-DN) / DF3000IP(-DN) CasinoCam Dallmeier electronic GmbH & Co.KG...

  • Page 15: Views And Connection Assignment

    1 Power supply 12V DC / 24V AC (integrated inverse polarity protection) 2 Power LED 3 Analogue Video Preview output Fig. 5-2 (2.5 mm 2–conductor phone jack) 1 – Video signal; 2 – not used; 3 – Video Ground Dallmeier electronic GmbH & Co.KG...
  • Page 16 DF3000IP(-DN) / DF3000IP(-DN) CasinoCam 4 Audio IN (3,5 mm jack) 1 – Video signal; 2 – not used; 3 – Video Ground 5 LAN port (RJ45) 6 COM interface (RS485) 2 - RS485_B / TR- 1 - RS485_A / TR+...

  • Page 17: Installation And Commissioning

    Installation and Commissioning Requirements at the installation site The DF3000IP(-DN) is designed for indoor use. Unfavorable local conditions may shorten the life of the product or lead to malfunctions. Do not install/operate the camera in places: with large scale dust and dirt with steam or oil vapors (e.g.

  • Page 18: Commissioning

    DF3000IP(-DN) / DF3000IP(-DN) CasinoCam CAUTION Danger of injury from the camera falling down. Before initial startup, make sure that the camera is securely mounted. Commissioning WARNING Danger of death from lightening strike! Do not connect the power supply cable during a thunderstorm.

  • Page 19: Establishing A Connection

    Graphics card VGA compatible min. 64 MB DirectX-capable Monitor Resolution min. 1024 x 768 colors min. 16 Bit Ethernet 100 MBit/s Browser Microsoft Internet Explorer Mozilla Firefox Miscellaneous Macromedia Flash Player 6 (Windows) or 7 (Linux) Dallmeier electronic GmbH & Co.KG...

  • Page 20: Establishing A Connection

    Enter the IP address of the camera in the browser’s address line. Fig. 7-1 NOTE If the DF3000IP(-DN) has not yet been configured, use the default address set at the factory (10.2.6.98). Confirm the address using the Enter key on your keyboard.
  • Page 21 Depending on whether ActiveX has been installed, the main screen will be displayed with or without the live video. Fig. 7-3: Main page with live video Fig. 7-4: Main page without live video Dallmeier electronic GmbH & Co.KG...
  • Page 22 DF3000IP(-DN) / DF3000IP(-DN) CasinoCam Dallmeier electronic GmbH & Co.KG...

  • Page 23: Displaying The Live Video / Live Image

    Displaying the live video / live image The DF3000IP(-DN) allows the live video as well as the current live image to be displayed in a web browser. Displaying the live video NOTE The display of the live video requires Microsoft’s Internet Explorer to be used and ActiveX to be installed (see section 7).

  • Page 24: Displaying The Live Image

    DF3000IP(-DN) / DF3000IP(-DN) CasinoCam Displaying the live image NOTE In oder to display the current live image in a browser, the encoder mode must be set to MJPEG in the Encoder settings dialog. Start the web browser. Enter the IP address of the camera in the browser’s address line.
  • Page 25 NOTE The display of the live image can be password protected (see chapter 9.1.7.1 ). Dallmeier electronic GmbH & Co.KG...
  • Page 26 DF3000IP(-DN) / DF3000IP(-DN) CasinoCam Dallmeier electronic GmbH & Co.KG...

  • Page 27: Configuration

    Configuration The DF3000IP(-DN) is configured via a PC using a web browser. A condition for this is that the camera and the PC are in the same network or that the camera is connected directly to the PC via a cross cable.
  • Page 28 DF3000IP(-DN) / DF3000IP(-DN) CasinoCam Click on the CONFIG button. Fig. 9-3 The login dialog will be displayed. Enter the password (default password = 3). Fig. 9-4 Confirm with OK. NOTE To protect the camera from unauthorized access, you must change the default password after the first login (chapter 9.1.9).

  • Page 29: Common Settings

    After you have logged in successfully, the configuration menu and the reduced live video will be displayed. Fig. 9-5 Common settings The menu item Common settings provides you with some basic configuration possibilities. Fig. 9-6 Dallmeier electronic GmbH & Co.KG...

  • Page 30: Language

    DF3000IP(-DN) / DF3000IP(-DN) CasinoCam 9.1.1 Language Open the User interface dialog via Common settings > User interface. Select the desired language. Click OK to apply your settings. Fig. 9-7 9.1.2 Changing the camera name Open the Camera name dialog via Common settings > Camera name.

  • Page 31: Relays

    Relays NOTE This function can be used with a RS485 contact interface only. The DF3000IP(-DN) allows the Contact OUT relays to be configured via the user interface. Open the Relay X dialog via Common settings > Relays > Relays X.

  • Page 32: System Time

    DF3000IP(-DN) / DF3000IP(-DN) CasinoCam Holding time Set the Timer to On to activate the holding time. In the Time (sec.) field, enter the time in seconds for which the relay is to be switched. Type The Type field allows you to decide whether the relay should act as an opener (break contact) or a closer (make contact).

  • Page 33: Timezone

    Open the Video standard dialog via Common settings > Video standard. Select PAL or NTSC. Click OK to apply your settings. Fig. 9-14 9.1.7 Camera access Open the Camera access dialog via Common settings > Camera access. Dallmeier electronic GmbH & Co.KG...

  • Page 34: Video

    9.1.7.2 Camera protocol The vendor (manufacturer) and type of the camera protocol have to be entered in the Camera protocol tab. Dallmeier and DF3000IP- DN are set by default. If necessary, the manufacturer and type can be entered manually. Fig. 9-16 9.1.8...

  • Page 35: Password

    In particular, the allocation of an IP address that has already been used may result in malfunctions. 9.2.1 Common settings Open the Network settings dialog via Common settings > Network. Dallmeier electronic GmbH & Co.KG...

  • Page 36: Alarm Hosts

    Gateway for the camera. Click OK to apply your settings. NOTE After changing the network settings, the connection to the DF3000IP(-DN) will be broken. You have to log in again. 9.2.2 Alarm hosts If you configure an alarm host, the camera can send alarm messages via the LAN.

  • Page 37: Setting Up An Alarm Host

    In the IP address box enter the IP address of the computer Fig. 9-22 which is to receive the alarm message from your DF3000IP- (DN). Check the active checkbox. Go to the Messages tab or click OK to apply your settings.

  • Page 38: 9.2.2.1.2 Messages

    DF3000IP(-DN) / DF3000IP(-DN) CasinoCam 9.2.2.1.2 Messages The following two messages can be transmitted to the alarm host: Motion detection Message in case of motion detection Sedor status Messages from an external SEDOR device Select the desired message(s) by checking the corresponding checkbox.
  • Page 39 The smallest time unit you can set is 15 minutes. In the example shown here the time from 02:00 to 07:15 has been marked as not active. Within this time period no messages will be sent to the alarm host. Dallmeier electronic GmbH & Co.KG...
  • Page 40 DF3000IP(-DN) / DF3000IP(-DN) CasinoCam Undoing the selection To undo the marking, click on the active button and trace a rectangle over the inactive area. You also can remark certain sections within the inactive area as active by tracing the particular section.
  • Page 41 The new date now appears in the list with the setting of the previous date. Deleting exceptions Mark the respective date in the list. Click on Delete. Click on OK to apply these exceptions to the week timer. Fig. 9-34 Dallmeier electronic GmbH & Co.KG...

  • Page 42: 9.2.2.1.4 Copying Settings To Other Alarm Hosts

    DF3000IP(-DN) / DF3000IP(-DN) CasinoCam 9.2.2.1.4 Copying settings to other alarm hosts The Copy function allows you to make a copy of all settings for another alarm host. To copy the settings of an alarm host, click on the relevant alarm host in the selection list.

  • Page 43: Video Streaming

    MPEG 2 program stream standard. RTP/MPV, RTP/MP4V-ES, RTP/MJPEG While recording, the camera sends the recorded video data to the network. In contrast to MPEG, however, the audio data cannot be sent. Dallmeier electronic GmbH & Co.KG...

  • Page 44: Multicast/Unicast

    DF3000IP(-DN) / DF3000IP(-DN) CasinoCam NOTE Even if the camera records the data with sound, the audio signal will not be sent if RPT/MPV is set. The data will be sent using the RTP protocol, which optimizes the synchronization of the data packets at the receiver.

  • Page 45: Range Restriction

    The larger a packet’s size, the more time it can take until the packet is "complete“ and ready for transmission. This can lead to a delay that results in a "jumpy“ video stream. The smaller the data packets are, the greater the network overhead. Dallmeier electronic GmbH & Co.KG...

  • Page 46: Encoder Settings

    DF3000IP(-DN). Meaning of the individual setting options Input Encoder 1 is the default setting for the DF3000IP(-DN). Encoder mode In Encoder mode you can select the standard with which the audio and video data are to be compressed.
  • Page 47 The higher the audio bit rate, the better the audio quality. A higher bit rate, however, requires more hard disk space than a lower bit rate. Dallmeier electronic GmbH & Co.KG...
  • Page 48 DF3000IP(-DN) / DF3000IP(-DN) CasinoCam GOP-size GOP (Group Of Pictures) is a variable for specifying how images are used to generate the MPEG-2 data flow. A GOP value of 6 and 15 enables good image quality with high compression. A GOP value of 1 denotes a low compression factor and should only be used for special applications (e.g.

  • Page 49: Sensor Configuration

    The Global tab allows the following settings to be made: Synchronization Choose between Internal 1, Internal 2, AC-Linelock, Flickerfree Linelock and None for Synchronization. NOTE The Synchronization = AC-Linelock function is not supported by the camera when used with 12V Dallmeier electronic GmbH & Co.KG...
  • Page 50 DF3000IP(-DN) / DF3000IP(-DN) CasinoCam NOTE Flicker Free Linelock is recommended if cameras without Linelock that are operated with a mains frequency of 50 Hz must be enhanced for scenarios with neon tubes. V-Phase After selecting the synchronization you can adjust the V-Phase, if necessary.
  • Page 51 Off setting. NOTE To record camera images with maximum resolution the Dallmeier recorder should be operated in full picture mode and the camera should be set to Progressive Scan = On.

  • Page 52: Image Optimization

    DF3000IP(-DN) / DF3000IP(-DN) CasinoCam 9.4.2 Image Optimization The Image Optimization tab allows the following settings to be made: Fig. 9-42 Presets The following presets are available: Universal Scenes full of contrast with strong backlights. The relevant details are in the highlights. The maximum dynamic scope of the camera is used.
  • Page 53 Low Light Preset for low light scenes with slowly moving objects. NOTE The following 4 presets are only available in the DF3000IP(-DN) CasinoCam. If necessary, please contact the Dallmeier electronic Sales Department to purchase the activation code. Poker table This Preset has been developed to meet the special requirements at the poker table ensuring optimal identification of red and black cards.
  • Page 54 DF3000IP(-DN) / DF3000IP(-DN) CasinoCam White balance The White Balance Mode allows you to influence the white balance of the camera. With ATW (Auto Tracking White Balance) the white balance is continually recalculated. The white balance is readjusted accordingly in different recording conditions.
  • Page 55 Gain Limit allows you to set the max. gain with which the amplitude of the video signal is raised in poor light conditions. Saturation The Saturation field allows you to adjust the image saturation. NOTE The settings are only applied or activated after clicking OK. Dallmeier electronic GmbH & Co.KG...

  • Page 56: Backing Up And Sending The Configuration

    DF3000IP(-DN) / DF3000IP(-DN) CasinoCam Backing up and sending the configuration The configuration of the DF3000IP(-DN) can be exported as a file and thus backed up. In addition to re-establishing the configuration, the configuration can also be transferred to several cameras simultaneously.

  • Page 57: Sending The Configuration File

    Upload. Click on Durchsuchen (Search). Select the relevant configuration file. Fig. 9-44 Confirm with OK. At the end of the transfer the system will display a list of transferred (or skipped) configuration groups. Fig. 9-45 Dallmeier electronic GmbH & Co.KG...

  • Page 58: Several Cameras

    DF3000IP(-DN) / DF3000IP(-DN) CasinoCam 9.5.2.2 Several cameras The prerequisite for this method is that all the relevant cameras are integrated in a LAN (with suitable cabling and a separate IP address for each camera). In addition the password must be identical for all the cameras.

  • Page 59: 10 Info And Log

    10 Info and Log 10.1 Information dialog General information about the camera that is currently connected will be displayed in the DF3000IP-DN dialog. Select About in the selection list. Fig. 10-1 The following will be displayed: Camera type Version number of the camera software...

  • Page 60: Event Log

    DF3000IP(-DN) / DF3000IP(-DN) CasinoCam 10.3 Event log The camera logs IP addresses of units that temporarily blocked certain resources of the camera in a log file. The list of IP addresses is output in the Event log dialog. Open the Event log dialog via Common settings > Event log.

  • Page 61: 11 Breaking The Connection

    The login page will be displayed. Fig. 11-1 Now close your browser. NOTE If the connection is broken by closing the browser without clicking on LOGOUT, you must wait for five minutes before logging on again. Dallmeier electronic GmbH & Co.KG...
  • Page 62 DF3000IP(-DN) / DF3000IP(-DN) CasinoCam Dallmeier electronic GmbH & Co.KG...

  • Page 63: 12 Appendix

    Fluorescent, Low Light, Poker Table (optional), Gambling (optional), Wheel (optional), Slot Machine (optional) B/W and color mode Day/Night funcionality Yes, infrared sensitivity in night mode Configuration Web-Browser IP-Board Dual MIPS risk processor, 64 MB DRAM Dallmeier electronic GmbH & Co.KG...
  • Page 64 DF3000IP(-DN) / DF3000IP(-DN) CasinoCam Web server Languages German, English, French, Spanish, Hungarian Lenses Mount CS mount; C mount with 5mm adapter Lenses Variofocal lens F0.95; 2.8 - 8 mm Options Image & Clip Storage Optional Interfaces API/SDK Application Program Interface...

  • Page 65: Declaration Of Conformity

    Member States relating to Electromagnetic Compatibility (89/336/EEC) and the Council Directive relating to Low Voltage 73/23/EEC and 2006/ 95/EEC. The following company is responsible for this declaration: Dallmeier electronic GmbH & Co.KG Cranachweg 1 D - 93051 Regensburg The measurements were carried out in accredited laboratories.
