Summary of Contents for INVERTO.TV IDLV-5100P

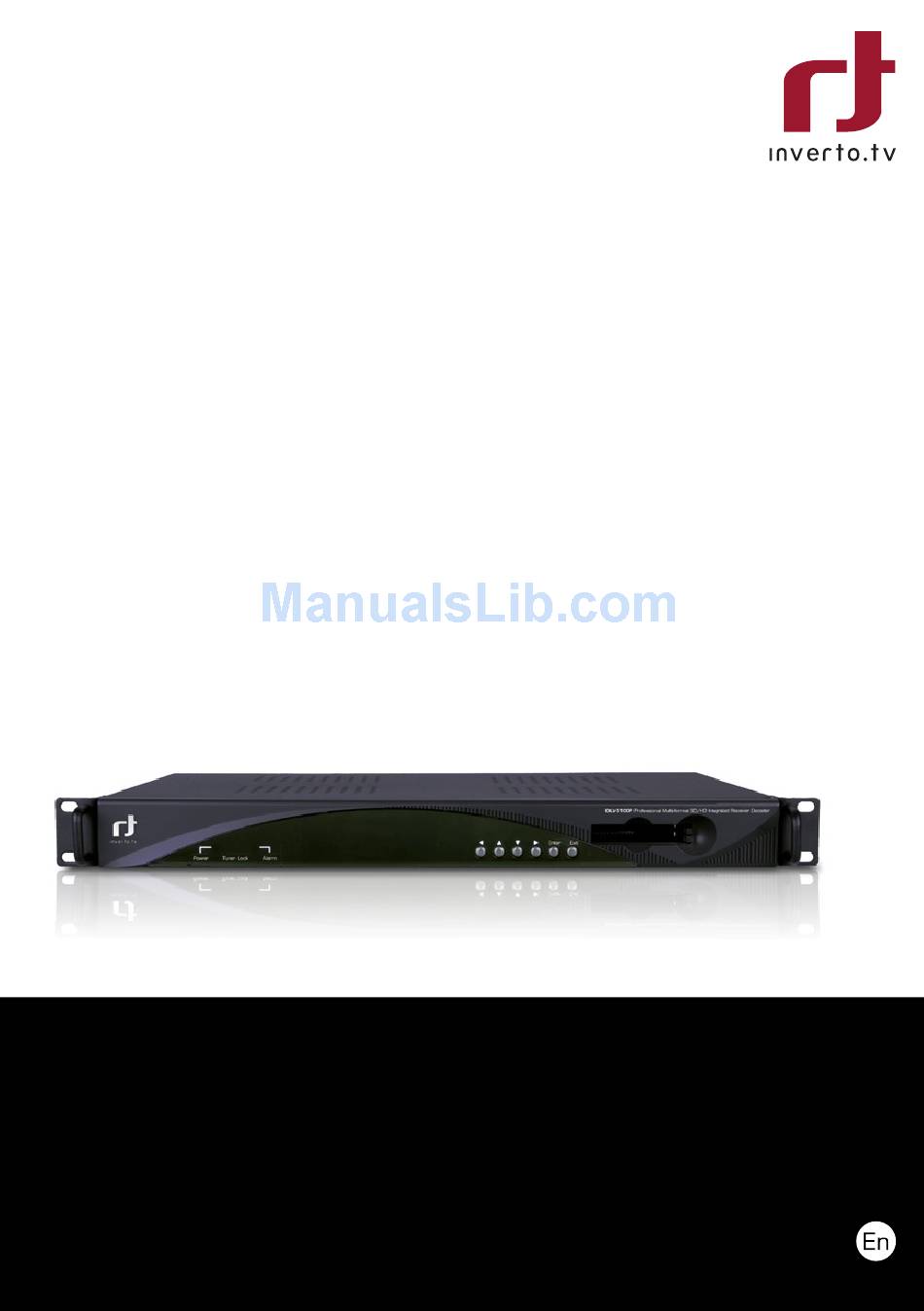

Page 1 IDLV-5100P Professional Multi-format HDTV Integrated Receiver Decoder...
Page 3 IDLV-5100P Professional Multi-format HDTV Integrated Receiver Decoder User Manual...
Page 5: Table Of Contents
Table of Contents Notices Before using the device Overview Control with display and keypad Menu structure and operations Remote management and control over web interface Technical Specifications Default Device Parameters On Delivery Safety Warrenty, service and support...
Page 6: Notices
Notices CoPyRIgHT (Copyright © 2010 Inverto Digital Labs ) Not to be copied, used or translated in part or whole without Inverto prior consent in writing except approval of ownership of copyright and copyright law. WaRRaNTy This warranty does not cover parts which may become defective due to misuse of the information contained in this manual.
Page 7: Before Using The Device
Thank you for purchasing the IDLV-5100P Professional Multi-format HDTV Integrated Receiver Decoder. This User Manual is written for operators/users of the IDLV-5100P to assist in installation and operation. Please read this user manual carefully before installation and use of the devic.
Page 8: Overview
The IDLV-5100P IRD provides operators an ideal solution for receiving, remultiplexing, descrambling and decoding missions. The IDLV-5100P is equipped with a variety of inputs that ensures compatibility with all transmission media. The IDLV-5100P’s remultiplexing capabilities enable creation of new transport streams that are subsets of the original stream.
Page 9: Block Diagram
BLoCK DIagRaM The diagram below shows a top level architecture and functional block diagram of the IDLV-5100P IRD Platform: IDLV-5100P Functional Block Diagram...
Page 10: Control With Display And Keypad
Control with display and keypad IDLV-5100P series can be controlled by the keypad on front panel. fRoNT PaNeL Tuner LoCk OPERATION BUTTONS IDLV-5100P Professional Multi-format SD/HD Integrated Receiver Decoder Enter Exit Power Tuner Lock Alarm COMMON INTERFACE power ALArm POWER...
Page 11: Rear Panel
ReaR PaNeL TS/IP TSoIP interface (not available on IDLV-5100P -10x and -30x models) RS-232 serial port for printing informationB3 ASI OUT2 Group2 ASI output port (one for back-up) ASI OUT1 Group1 ASI output port (one for back-up) ASI1 IN ASI1 input port...
Page 12: Menu Structure And Operations
Menu structure and operations Turn on the device and wait for 8 to 10 seconds. During this period, the device will complete self inspection and configuration. The name of the device will be displayed on the top row of the LCD, and the local IP address will be displayed on the bottom row of the LCD: Digital TV Processor (factory default unit-name) IP: 10.10.70.48...
Page 13 Display the quality of the received DVB-S2 signal. Ethernet This menu is only displayed on IDLV-5100P-20x and -44x models which set TS/ IP streaming board as “100M Single IN” Stream IP Addr: Enter the IP address for streaming IP input of the unit.
Page 14 Mode E Key Enter: Set Biss E, ID number and password are required Program Setup: Press the <ENTER>-key to enter ‘Program Setup’ sub-menu. It shows all programs detected by the IDLV-5100P. If there is no TS input, the front panel will read “0-TS Invalid”.
Page 15 ASI output port on the back panel. Program: Under this sub menu, you will see all program names detected by IDLV-5100P. The programs could be coming from ASI input, Tuner, TS/IP input, the internal CI de-encryption block, BISS De-encryption block or MUX TS. Use the <↑>...
Page 16 5100P, the gateway MAC address should be set to FF:FF:FF: FF:FF:FF. If the unit is IDLV-5100P-43x which is set as “100M Dual Out” in the system menu, two menus will appear and each contains above five setups so you can...
Page 17 ‘Multicast IP’ on the first row, the stream itself is Unicast. The IP address of receiver device (maybe PC with VLC) needed to be set to as the unicast ad- dress on IDLV-5100P, please don’t use DHCP to get a dynamic IP address for receiver device.
Page 18 1. Program List: Press the <ENTER>-key to enter ‘Mux List’ sub-menu. It shows all programs detected by IDLV-5100P. The programs could be come from ASI input, Tuner, TS/IP input or the internal CI de-encryption block. Use the <↑> or <↓>-key to roll up or down between the program names, and use <←>-and <→>-key to switch among input sources, where a number in front of the pro-...
Page 19 IP address of the Monitor Center, which is typically a PC in order to allow the device to send messages to the monitor center. The IDLV-5100P allows you to edit the unit name which is displayed on the front Unit Name panel LCD.
Page 20 This following menu is only available on IDLV-5100P-46x model: IP Out switch: Enable or disable the IP output. IP Out status: Show IP packets per second, UDP packets/s, Column FEC packets/s, Row FEC packets/s Protocol: You can select the transport protocol from UDP and RTP.
Page 21 IP address: Enter the IP address for IP board of the unit. Subnet mask: The network mask for the subnet to which the unit is connected. MAC address: Factory-set MAC addresses are guaranteed to be unique. Therefore you cannot configure the address. Local setting Gateway IP address: The Gateway for the network to which this unit is con- nected.
Page 22: Remote Management And Control Over Web Interface
IDLV-5100P can be controlled by WEB. User can type IP address of IDLV-5100P in browser. It will show login pop-up. The default user name is root and password is 12345. If you forget this username and password, you can use front panel button to change it.
Page 23 TUNeR INPUT parameters for tuner input. Click “Apply” button to submit, or click “Cancel” button to cancel. Set parameters for CI slots. Click “Apply” button to submit, or click “Cancel” button to cancel.
Page 24 DeCoDeR Set parameters for decoder. Click “Apply” button to submit, or click “Cancel” button to cancel.
Page 26 oUTPUT Set parameters for ASI outputs. Click “Apply” button to submit, “Refresh” button to refresh latest status of settings, or click “Cancel” button to cancel. BISS Set parameters for BISS. Click “Apply” button to submit, or click “Cancel” button to cancel.
Page 27 Set parameters for Mux. Click “Apply” button to submit, or click “Cancel” button to cancel...
Page 28 TS oVeR IP Set parameters for IP IN. Click “Apply” button to submit, or click “Cancel” button to cancel (IDLV-5100P-20x and -44xx model only). Set parameters for IP OUT. Click “Apply” button to submit, or click “Cancel” button to cancel (IDLV-5100P-20x...
Page 29 Set parameters for IP OUT. Click “Apply” button to submit, or click “Cancel” button to cancel (IDLV-5100P-43xx model only).
Page 30 When DVB mode is selected the user can setup the Unicast and Multicast parameters. When clicking on the Uni/ Multicast Setup, the following screen will be displayed: When IPTV mode is selected, clicking on the Uni/Multicast Setup button will open the following screen:...
Page 31 Set parameters for IP OUT. Click “Apply” button to submit, or click “Cancel” button to cancel (IDLV-5100P-46xx model only) Set parameters for IP IN. Click “Apply” button to submit, or click “Cancel” button to cancel (IDLV-5100P-46xx model only)
Page 32 Set parameters for Local setting. Click “Apply” button to submit, or click “Cancel” button to cancel (IDLV-5100P- 46xx model only) SySTeM Set parameters for system. Click “Apply” button to submit, or click “Cancel” button to cancel.
Page 34: Technical Specifications
Technical Specifications TUNeR INPUT DVB-S/S2 Tuner Input (ISI Factory Optional) Connector Type 1 x F type female 75Ω for Input, 1 x F type female 75Ω for loop through output Input Frequency Range 950~2150MHz Input Level -25~-65dBm Symbol Rate 2~45MBaud Roll-off Factor DVB-S QPSK: 0.35 DVB-S2 8PSK: 0.35, 0.25, 0.2...
Page 35: Asi Output
Service and PID Management Remux, filtering and remapping PSI/SI PSI/SI table regeneration, NIT and SDT edition, LCN Edition and Re-generation Descrambler DVB Common Scrambling Algorithm (CSA) BISS Mode BISS-1, BISS-E Common Interface Double PCMCIA slots, compatible with major CA CAMs in the market aSI oUTPUT Connector Type...
Page 36: Analog Audio Output
aNaLog aUDIo oUTPUT Connector type 2 x D-sub 9 male, with XLR adaptor cable Output Impedance 600Ω (balanced) Output mode Left, Right, Dual Mono, Stereo Number of Outputs 2 pairs of stereo audio outputs 2 pairs of stereo audio outputs (2 Audio PIDs or 4 channels are decoded) Cross Talk Among Channels >70dB <0.3% @ 400Hz, 1KHz test tone...
Page 37: Default Device Parameters On Delivery
E 3 _ G . 7 0 3 / Input Type: Normal RSSI Displays the quality of the received DVB-S2 signal. This menu only is shown on IDLV-5100P-44x models which set TS/IP streaming board as “100M Single IN” Stream IP Addr: 16.16.16.16 Stream Netmask: 255.255.255.0 Stream Gateway: 1.0.0.0...
Page 38 Stream Mac Address: Factory-set MAC addresses Gateway Mac Address: FF:FF:FF: FF:FF:FF. If the unit is IDLV-5100P-43x which is set as “100M Dual Out” in the system menu, two menus will appear and each contains above five setups so you can set the two IP...
Page 39 Bit Rate: 50000Kbps Output Bit Rate: 0Kbps TS ID: 1. Output Program List: 0-TS invalid This menu only is shown on IDLV-5100P-xxDS3/E3 model E3_G703 E3_G.703 Source: ASI1 Input E3_G.703 Protocol: Framer MSB The contents of DS3 menu are the same as E3_G703 IP Address: 10.10.70.48...
Page 40 **For IDLV-5100P-46x model only: IP Out switch: Enable IP Out status: Show IP packets per second, UDP packets/s, Column FEC packets/s, Row FEC packets/s Protocol: UDP TS pkts per UDP: 7. IP Out Time to Live: 255. Type of Service: Normal TS source: ASI1 Input Uni/Multicast Address: 224.1.1.1...
Page 41: Safety
Safety CAUTION Unauthorized maintenance or the use of non-approved replacements may affect the equipment specification and invalidate any warranties.The device should be kept away from electric, strong magnetic and hot areas (temperature < 40°C; humidity < 85%). Keep away from high electric and magnetic areas ID LV -5100P Professional Multi-format SD/HD Integrated Receiver Decoder Enter...
Page 42: Warrenty, Service And Support
Warranty, service and support This Limited Warranty applies only to the Product sold by Inverto Digital Labs, 18 Duchscherstrooss, L-6868 Wecker, Luxembourg (hereby, the “Company”) the Customer purchase for his own use and not for resale. The term “Product” in this Limited Warranty does not include any software programs, whether pre-loaded with the Product, installed subsequently or otherwise.
Page 43 (viii) Loss of any, or damage to, programs, data, or storage media. The Company may opt to replace the Product submitted for warranty services and, thus, any data stored on the original Product may become permanently inaccessible. This Limited Warranty is voided by removal or alteration of identification labels on the Product or its parts. Any technical or other support provided for a Product under warranty, such as, “How to”...
