For more details, please refer to SIP Proxy Operation Manual.

InterConsole List

The InterConsole is a full-featured DSS (Direct Station Selection) Console
helping operators or receptionists to monitor the system-wide call status for
better handling calls. The InterConsole can monitor up to 1,000 end points and
calls right directly from the panel.
InterConsole is a hardware attendant console. It needs to be attached to the
main IP phone. Currently InterConsole can be used with IP580 or IP590.

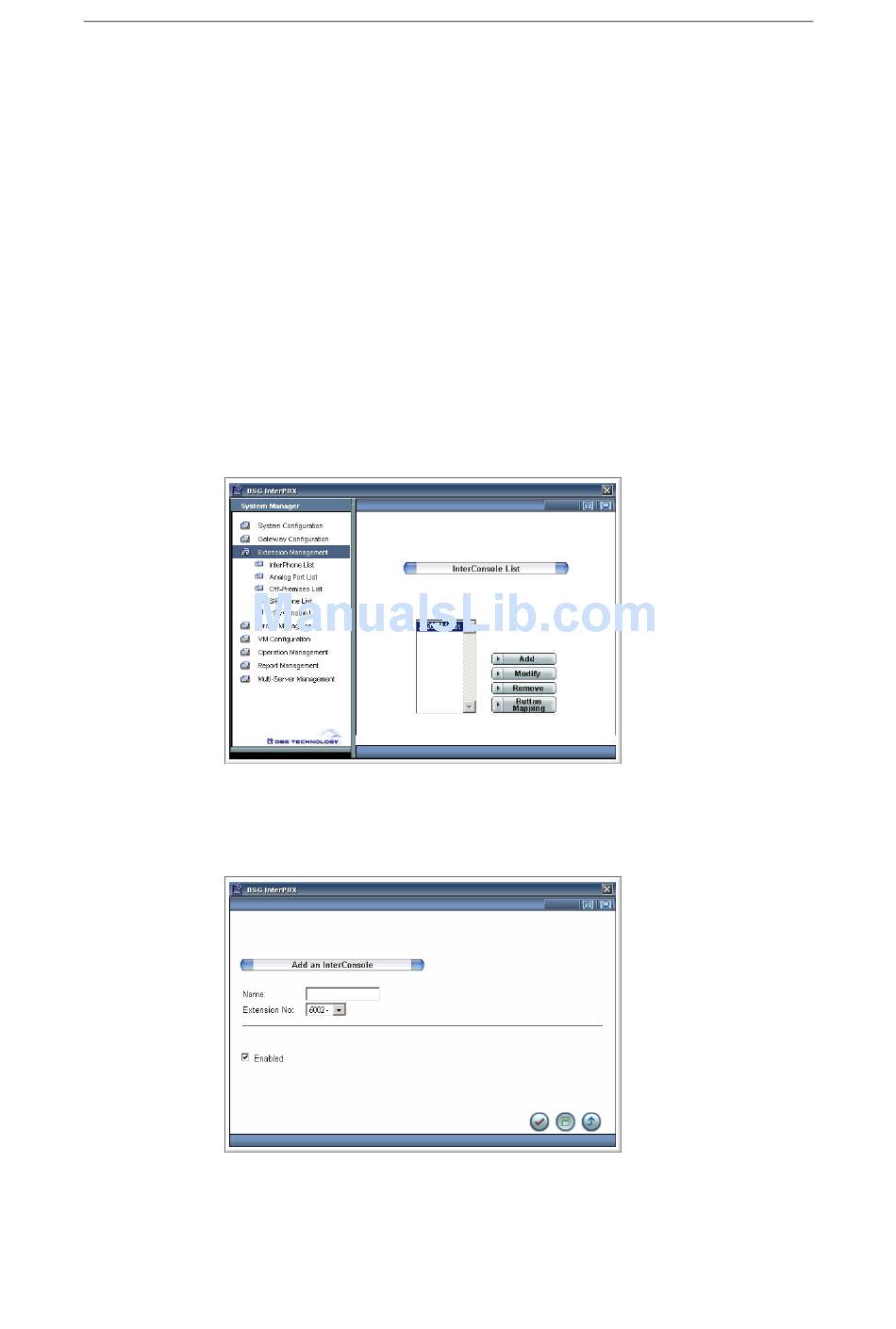

1. Go to Main Menu>Extension Management>InterConsole List.
2. Click Add to increase an attendant console. Assign a name for the
InterConsole and select the associated extension number from the drop
down menu.
3. From the InterConsole list, select one attendant console and click Button
Mapping. Each page supports 100 programmable buttons. You can scroll
pages and buttons to configure up to 1,000 buttons.
Chapter 5 Extension Management
101
