Page 1: Ice Maker

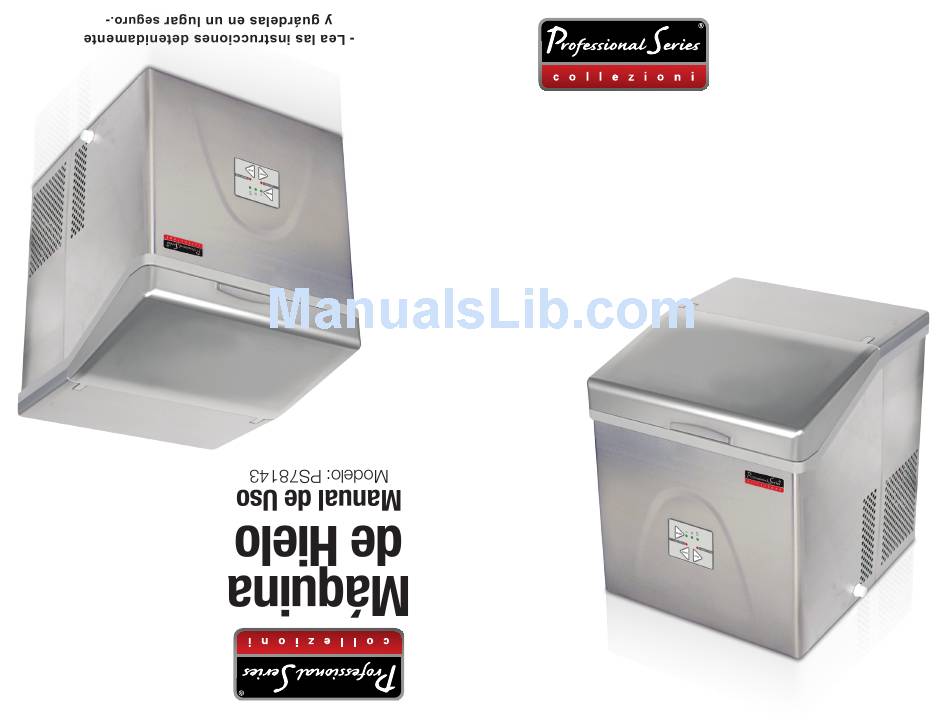

Ice Maker User Manual Model: PS78143 -Please read carefully and keep the instruction well-... -
Page 3: Table Of Contents
CONTENTS PARTS DIAGRAM OPERATING INSTRUCTIONS Pre-Operating Instructions Operating Instructions Control Panel Specifications 4 MAINTENANCE INSTRUCTIONS TROUBLESHOOTING Panel Specifications 4 MAINTENANCE INSTRUCTIONS TROUBLESHOOTING... -
Page 4: Parts Diagram
PARTS DIAGRAM 1 Inner Liner 2 Ice basket 3 Ice shovel 4 Temperature Sensor 5 Control Panel easy to use ,visible functions and 1-touch display setting. A) Select ice cube size B) Start ice making cycle C) Stop ice making cycle 6 Water Drain Cap OPERATING INSTRUCTIONS Pre-Operating Instructions... -
Page 5: Operating Instructions
3. Before using the ice maker for the first time, wait about 12 hours after positioning it in a proper place. 4. Clean the inside of the ice maker thoroughly. Wipe the inner liner, ice collecting board, water box, ice pusher and evaporator rods. Grounding Instructions This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. - Page 6 d) Approximately 30 seconds later, the water box will tilt backward and the ice pusher will push the ice into the ice storage basket. After the water box flips back to its level position, the next ice making cycle will begin. 4.Check the water level during the water filling procedure. If there is no water from the pump, the icemaker will know that there is no water in the water box and it will stop operation.
-
Page 7: Control Panel
Control Panel Specifications Ice Making Capacity: up to 30 lbs/24 hrs Ice Storage Capacity: 2.5 lbs. (1.2 kg) Electric Shock Protection Class: I Rated Power: 160W Rated Current: 2.0A Refrigerant: R134a/65g (2.3 oz) Dimensions (LX D X H) 14.0 X 15.7 X 16.9 (in.) 356 X 398 X 430 (mm) Net Weight: 17.2kg/38lbs MAINTENANCE INSTRUCTIONS 1. To ensure the cleanliness of the ice cubes, the water in the water storage tank must be replaced every 24 hours. -
Page 8: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Solution The power indicator light The Voltage is lower Stop the ice maker. is on. The compressor than required. This unit Make sure the voltage is 100 makes a buzzing noise requires a minimum of and restart. when on.
