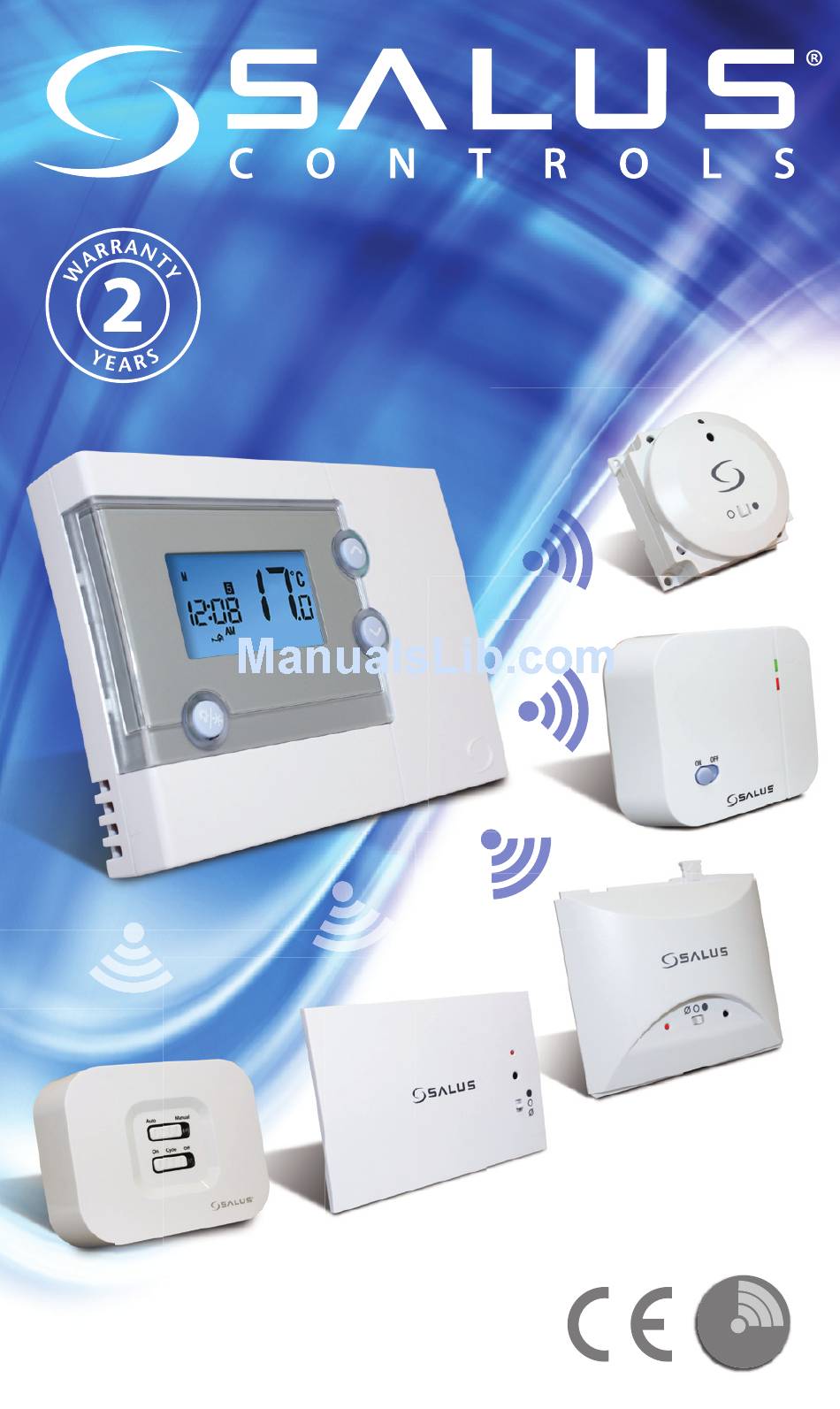

- Page 1 RT505TX Programmable Room Thermostat RXBC605 RXRT505 RXRT505 RXWBC605 RXVBC605 RXST625 The RT505TX can be used with any of these receivers 868MHz...
- Page 2 RT505TX RT505TX RT505TX RT505TX RT505TX RT505TX RT505TX INSTRUCTION MANUAL RT505TX INSTRUCTION MANUAL...
-
Page 3: Product Compliance
• EC Marking directive 93/68/EEC SAFETY INFORMATION These instructions are applicable to the Salus Controls model stated on the front cover of this manual only, and must not be used with any other make or model. These instructions are intended to apply in the United Kingdom only, and should be followed along with any other statutory obligations. -
Page 4: Installation
The RT505TX from Salus Controls is a stylish and accurate 5/2 or 7 day programmable electronic thermostat with a large, easy to read Liquid Crystal Display (LCD). This programmable thermostat can replace most common residential thermostats and is designed to be used with electric, gas or oil heating control systems. -
Page 5: After Installation
The ideal position to locate the RT505TX thermostat is about 1.5m above floor level. It should be mounted in a location where the thermostat is accessible, reasonably lit and free from extremes of temperature and draughts. Do not mount the thermostat on an outside wall, above a radiator or in a location where it may be subjected to direct sunlight. - Page 6 If the Reset Button is pressed, the RT505TX will behave in the same way as described above, except that any previously saved user settings stored in the internal memory will be deleted and overwritten with the default settings, and all programmable thermostat control settings will be returned to default values.
-
Page 7: Setting The Time
Press the SET key to confirm the new time and day settings. This will store the changes and return the RT505TX to Normal mode. The RT505TX thermostat will also return to Normal mode (and save the clock settings) if no keys are pressed for more than 15 seconds. -
Page 8: Programming
Weekdays or Weekends. To review or change a programme, press the SET key when the RT505TX is in Normal mode. This will change the unit status to Programme Setting mode. -
Page 9: Day Mode
7 DAY MODE The RT505TX also offers a 7 day programming mode, which allows you to programme five different sets of time and set point temperatures for each day of the week to give a total of 35 separate programme settings. -
Page 10: Frost Protection
– just repeat the steps shown above, after entering programming mode and selecting the day you want to programme. Regardless of which programming mode the RT505TX is set for (5/2 or 7 day), not pressing any keys for 15 seconds will automatically save any programming changes and exit to Normal mode. -
Page 11: Reviewing Set Point Temperature
• In Normal mode: press and hold either the UP or DOWN key to display the set point temperature. After two seconds, the RT505TX will enter Temporary Override mode and allow increase or decrease of the set point temperature. If the key is released within two seconds then you will only be able to review the set point temperature. - Page 12 Normal mode, or press no keys at all and wait approximately four seconds. Temporary Override mode remains active until the clock or programme settings are adjusted, Frost Protection is activated or the next programme time / temperature set point is reached. RT505TX INSTRUCTION MANUAL...
-
Page 13: Setting Up Rf Communication
(see page 14) wait for the red LED on receiver to change state then press any key to cancel and return to the main screen. RT505TX INSTRUCTION MANUAL... - Page 14 For full instructions on pairing the receiver refer to page 9 of the RXST625 manual. RXVBC605 Sync Button For full instructions on pairing the receiver refer to page 16 of the RXVBC605 manual. RXWBC605 Sync Button For full instructions on pairing the receiver refer to page 23 of the RXWBC605 manual. RT505TX INSTRUCTION MANUAL...
- Page 15 LED should go out. OTHER FUNCTIONS AND CONTROLS Backlight The backlight of the RT505TX is switched on automatically whenever any of the keys are pressed. The backlight will remain illuminated for approximately 5 seconds after the last key press, except if you are changing settings within the Clock, Programme or Temporary Override modes –...
-
Page 16: Maintenance
Sleep Mode By pressing both the UP and DOWN keys together, the RT505TX will enter SLEEP mode. In this mode, all the RT505TX functions will be paused to save battery power, with the exception of the clock which will continue to run in the background. -
Page 17: Product Specification
Measured Air Temperature Range: 5 ºC to 45 ºC (Displayed on LCD) If room temp is higher than 45C,will show HI on the LCD, if less than 5C will show LO on the LCD Thermostat Power Source: 2 x AA alkaline batteries (don’t use rechargeable batteries) RT505TX INSTRUCTION MANUAL... - Page 18 Clock Accuracy: ± 1 minute per month Display: 12 hour Frost Protection Setting: 5 ºC Environment Operating Temperature: 0 ºC to + 40 ºC Storage Temperature: - 20 ºC to + 60 ºC RT505TX INSTRUCTION MANUAL...
- Page 19 RT505TX Warranty Salus Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of two years from the date of purchase. Salus Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product.
- Page 20 Email: sales@salus-tech.com Tel: 01226 323961 Sales Email: tech@salus-tech.com Tel: 01226 323961 Technical SALUS Controls plc, SALUS House, Dodworth Business Park South, Whinby Road, Dodworth, Barnsley S75 3SP...
