Module Programming - Xpresskit DBALL2 Installation Manual

Platform: DBALL2
Firmware: CHRYSLER10

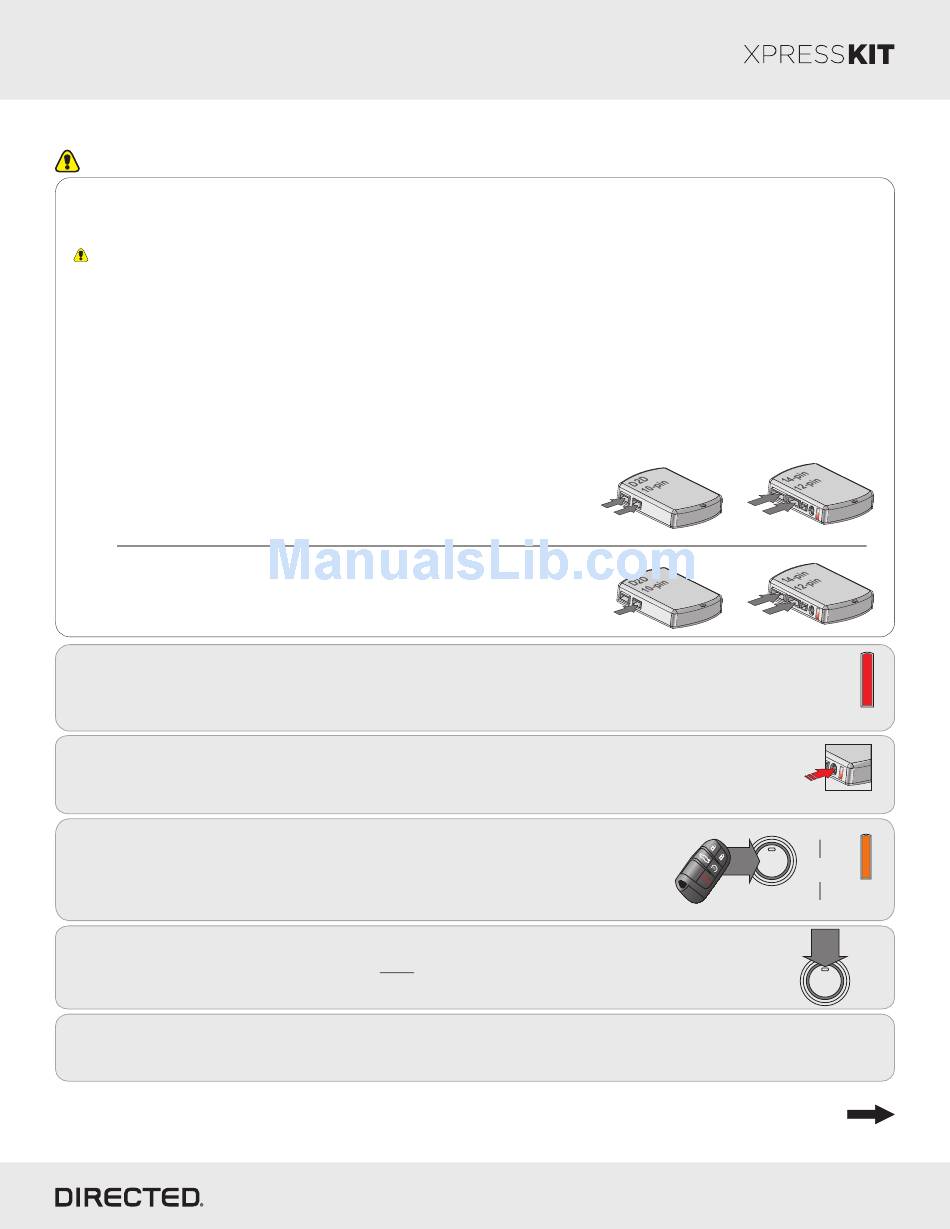

Module Programming

Refer to the LED Diagnostics section for more information and for troubleshooting purposes.
Important
Make all the required connections to the vehicle, as described in the wiring diagram(s) found in this guide, and double check to
ensure everything is correct prior to moving onto the next step.
Warning! To take advantage of advanced features, you must use XpressVIP 4.5 (and higher) or the Directechs Mobile app.
Flashing a module using your computer:
1. Connect the interface module to your computer using the
XKLoader2.
2. Go to www.directechs.com using Internet Explorer, and
select the Flash Module button.
3. Follow the instructions to select your vehicle, installation
type, and configure your options.
4. Once you have configured the firmware options, click on the
FLASH button.
When the flashing operation is successful, you can proceed with the programming instructions below.
D2D Installation
If required for your installation, connect the 10-pin, 12-pin and 14-pin harnesses to
the module, then connect the 4-pin D2D harness.
OR
W2W Installation
If required for your installation, connect the 10-pin and 12-pin harnesses to the
module, then connect the 14-pin harness to the module.
Wait until the LED turns ON solid red.
1
Note: To skip the transponder programming and use convenience features only, press
the programming button 5 times. The LED will turn orange then proceed to step 2.
To use this firmware as convenience only, you can skip the bypass by
2
pressing the programming button 5 times.
Press on the Start/Stop button (PTS) twice to turn the ignition ON ("RUN"
illuminates on Start/Stop switch). The LED will flashes orange slowly.
3
Note: If transponder programming was skipped, the LED turns ON solid orange
for 3 seconds then shuts off once the module is successfully programmed
without bypass. Press the PTS button once to switch the vehicle OFF.
4
Press on the Start/Stop button (PTS) once more to turn the ignition OFF.
5
Disconnect the module and complete the Key2GO programming.
Flashing a module using your smartphone or tablet
1. Connect the interface module to your XKLoader3.
2. Launch the Directechs Mobile app on your smartphone or
tablet.
3. Select FLASH YOUR MODULE and follow the on screen
instructions.
Go to the next page to complete the module programming.
rd
3
th
4
nd
st
1 2
rd
3
nd
st 2
1
ENGINE
START
STOP
PUSH x2
© 2016 Directed. All rights reserved.
Rev.: 20160201
Page 5
Solid
Press x5
&
Flash
slowly
PUSH x1
ENGINE
START
STOP
