Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

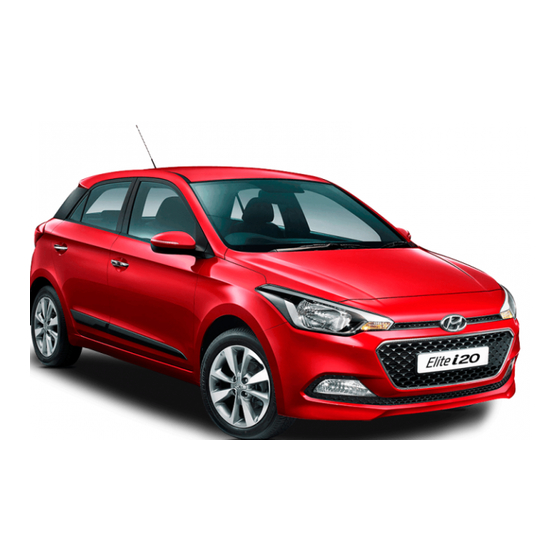

OWNER'S MANUAL
Operation
Maintenance

Specifications

All information in this Owner's Manual is current at the time of publica-
tion. However, HYUNDAI reserves the right to make changes at any
time so that our policy of continual product improvement may be car-
ried out.
This manual applies to all models of this vehicle and includes descrip-
tions and explanations of optional as well as standard equipment.
As a result, you may find material in this manual that does not apply to
your specific vehicle.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elite i20 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai Elite i20

Summary of Contents for Hyundai Elite i20

  • Page 1: Specifications

    Maintenance Specifications All information in this Owner's Manual is current at the time of publica- tion. However, HYUNDAI reserves the right to make changes at any time so that our policy of continual product improvement may be car- ried out.
  • Page 2 CAUTION: MODIFICATIONS TO YOUR HYUNDAI Your HYUNDAI should not be modified in any way. Such modifications may adversely affect the performance, safety or durability of your HYUNDAI and may, in addition, violate condi- tions of the limited warranties covering the vehicle. Certain modifications may also be in vio- lation of regulations established by the Department of Transportation and other government agencies in your country.
  • Page 3 SAFETY AND VEHICLE DAMAGE WARNING This manual includes information titled as DANGER, WARNING, CAUTION and NOTICE. These titles indicate the following: DANGER CAUTION DANGER indicates a hazardous situa- CAUTION indicates a hazardous situa- tion which, if not avoided, will result tion which, if not avoided, could result in death or serious injury.
  • Page 4 Your Owner's Manual will introduce you to the features and operation of your new HYUNDAI. It is suggested that you read it carefully because the information it contains can contribute greatly to the satisfaction you receive from your new car.
  • Page 5 Introduction HOW TO USE THIS MANUAL We want to help you get the greatest Your safety, and the safety of others, Throughout this manual DANGER, possible driving pleasure from your is very important. This Owner's WARNING, CAUTION, NOTICE and vehicle. Your Owner’s Manual can Manual provides you with many safe- the SAFETY ALERT SYMBOL will assist you in many ways.
  • Page 6 When you are going to use leaded CAUTION gasoline, we recommend that you ask an authorized HYUNDAI dealer NEVER USE LEADED FUEL. The whether leaded gasoline in your use of leaded fuel is detrimental vehicle is available or not.
  • Page 7 Introduction Gasoline containing alcohol and Use of MTBE CAUTION methanol HYUNDAI recommends avoiding fuels containing MTBE (Methyl Gasohol, a mixture of gasoline and Never use gasohol which con- Tertiary Butyl Ether) over 15.0% vol. ethanol (also known as grain alco- tains methanol.
  • Page 8 Do not use methanol Fuel Additives Operation in foreign countries Fuels containing methanol (wood HYUNDAI recommends that you use If you are going to drive your vehicle alcohol) should not be used in your good quality gasolines meet Europe in another country, be sure to: vehicle.
  • Page 9 Introduction Biodiesel Diesel engine NOTICE Commercially supplied Diesel blends Diesel fuel Do not let any gasoline or water of no more than 7% biodiesel, com- Diesel engine must be operated only enter the tank. This would make it monly known as "B7 Diesel" may be on commercially available diesel fuel necessary to drain it out and to used in your vehicle if Biodiesel...
  • Page 10 Introduction VEHICLE BREAK-IN PROCESS No special break-in period is need- ed. By following a few simple precau- tions for the first 1,000 km (600 miles) you may add to the perform- ance, economy and life of your vehi- cle: • Do not race the engine. •...

  • Page 11: Table Of Contents

    Your vehicle at a glance Safety system of your vehicle Convenient features of your vehicle Multimedia System TABLE OF CONTENTS Driving your vehicle What to do in an emergency Maintenance Specifications & Consumer information Index...

  • Page 12: Your Vehicle At A Glance

    Your vehicle at a glance Exterior overview (I) ..........1-2 Exterior overview (II) ..........1-3 Interior overview............1-4 Instrument panel overview ........1-5 Engine compartment ..........1-6...
  • Page 13 Your vehicle at a glance EXTERIOR OVERVIEW (I) ■ Front view 1. Hood ..........3-26 2. Headlamp ..........7-77 3. Fog lamp..........7-79 4. Tires and wheels .......7-49 5. Outside rearview mirror .....3-35 6. Front windshield wiper blades ...7-43 7. Windows ..........3-21 The actual shape may differ from the illustration. OIB014001...
  • Page 14 EXTERIOR OVERVIEW (II) ■ Rear view 1. Antenna ..........4-3 2. Doors ..........3-13 3. Fuel filler door........3-28 4. Rear parking assist system*....3-84 5. High mounted stop lamp ....7-81 6. Rearview camera* ......3-83 7. Rear wiper *........7-43 8. Tailgate ..........3-19 * : if equipped The actual shape may differ from the illustration.
  • Page 15 Your vehicle at a glance INTERIOR OVERVIEW 1. Door lock/unlock button ....3-15 2. Outside rearview mirror folding switch* ..........3-37 3. Outside rearview mirror control switch* ..........3-36 4. Power window switches ....3-21 5. Power window lock switch ....3-24 6. Hood release lever ......3-26 7.
  • Page 16 INSTRUMENT PANEL OVERVIEW 1. Light control/Turn signals ....3-73 2. Steering wheel audio controls*....4-4 3. Instrument cluster......3-38 4. Horn ..........3-32 5. Driver's front air bag* ......2-43 6. Wiper/Washer ........3-80 7. Trip mode switch* ......3-68 8. Engine Start/Stop button/ Key ignition switch......5-5, 5-9 9.
  • Page 17 Your vehicle at a glance ENGINE COMPARTMENT (I) ■ ■ Gasoline Engine (1.2L) 1. Engine coolant reservoir....7-29 2. Radiator cap ........7-30 3. Brake/clutch fluid reservoir ....7-33 4. Air cleaner ........7-39 5. Engine oil dipstick......7-27 6. Engine oil filler cap ......7-27 7.
  • Page 18 ENGINE COMPARTMENT (II) ■ Gasoline Engine (1.4L) 1. Engine coolant reservoir....7-29 2. Radiator cap ........7-30 3. Brake/clutch fluid reservoir ....7-33 4. Air cleaner ........7-39 5. Engine oil dipstick......7-27 6. Engine oil filler cap ......7-27 7. Windshield washer fluid reservoir..7-37 8. Engine room junction block ....7-64 9.
  • Page 19 Your vehicle at a glance ENGINE COMPARTMENT (III) ■ Diesel Engine 1. Engine coolant reservoir....7-29 2. Radiator cap ........7-30 3. Brake/clutch fluid reservoir ....7-33 4. Air cleaner ........7-39 5. Engine oil dipstick......7-27 6. Engine oil filler cap ......7-27 7. Windshield washer fluid reservoir..7-37 8.

  • Page 20: Safety System Of Your Vehicle

    Safety system of your vehicle Seats ...............2-2 Front seats ...............2-6 Rear seats ................2-10 Seat belts ..............2-16 Pre-tensioner seat belt ..........2-22 Seat belt precautions .............2-25 Care of seat belts ............2-28 Child restraint system .........2-29 Using a child restraint system ........2-31 Air bag - supplemental restraint system (SRS) ..2-33 How does the air bag system operate .....2-34 Passenger's front air bag ON/OFF switch....2-36 Do not install a child restraint on the...

  • Page 21: Seats

    Safety system of your vehicle SEATS Front seats 1. Seat adjustment, forward/rearward 2. Seatback angle 3. Seat adjustment, height* 4. Headrest adjustment Rear seats 5. Seat folding 6. Headrest adjustment* * : if equipped The actual feature in the vehicle may differ from the illustration. OIB034001...
  • Page 22 WARNING WARNING WARNING Driver responsibility for passen- Do not use a sitting cushion Loose objects gers that reduces friction between Loose objects in the driver’s the seat and passenger. The Riding in a vehicle with seatback foot area could interfere with passenger's hips may slide reclined could lead to serious or the operation of the foot pedals,...
  • Page 23 Safety system of your vehicle (Continued) WARNING WARNING • In order to avoid unnecessary Rear seatbacks and perhaps severe air bag Driver’s seat injuries, always sit as far back • The rear seatback must be • Never attempt to adjust seat as possible from the steering securely latched.
  • Page 24 (Continued) WARNING WARNING • When resetting the seatback to After adjusting the seat, always • the upright position, make sure Do not adjust the seat while check that it is securely locked wearing seat belts. Moving the it is securely latched by push- into place by attempting to seat cushion forward may ing it forward and backwards.
  • Page 25 Safety system of your vehicle Front seats 2. Slide the seat to the position you ■ Type A desire. ■ Type A 3. Release the lever and make sure the seat is locked in place. Adjust the seat before driving, and make sure the seat is locked secure- ly by trying to move forward and rear- ward without using the lever.
  • Page 26 Headrest 3. Release the lever and make sure the seatback is locked in place. (The lever MUST return to its orig- inal position for the seatback to lock.) OIB034004 Seat cushion height ODH033105L (for driver’s seat, if equipped) The driver's and front passenger's To change the height of the seat seats are equipped with a headrest cushion, move the lever upwards or...
  • Page 27 Safety system of your vehicle (Continued) WARNING • NEVER adjust the headrest To reduce the risk of serious position of the driver’s seat injury or death in an accident, when the vehicle is in motion. take the following precautions • Adjust the headrest as close when adjusting your headrests: to the passenger’s head as...
  • Page 28 OIB034005 OIB034006 OIB034007 To reinstall the headrest : Adjusting the height up and down Removal/Reinstall To raise the headrest, pull it up to the To remove the headrest: 1. Put the headrest poles (2) into the desired position (1). To lower the holes while pressing the release 1.
  • Page 29 Safety system of your vehicle Seatback pocket (if equipped) Rear seats WARNING Headrest To reduce the risk of serious injury or death in an accident, take the following precautions when adjusting your headrests: • Always properly adjust the headrests for all passengers BEFORE starting the vehicle.
  • Page 30 (Continued) • NEVER adjust the headrest position of the driver’s seat when the vehicle is in motion. • Adjust the headrest as close to the passenger’s head as possible. Do not use a seat cushion that holds the body away from the seatback. •...
  • Page 31 Safety system of your vehicle Folding the rear seat Type A The rear seatbacks (or cushions) 1. Set the front seatback to the may be folded to facilitate carrying upright position and if necessary, slide the front seat forward. long items or to increase the luggage capacity of the vehicle.
  • Page 32 To use the rear seat, lift and push up the seatback backward. Push the seatback firmly until it clicks into place. Make sure the seatback is locked in place. When returning the rear seatbacks to the upright position, remember to return the rear shoulder belts to their proper position.
  • Page 33 Safety system of your vehicle To use the rear seat, lift and push up WARNING the seatback backward. Push the seatback firmly until it clicks into When you return the rear seat- place. Make sure the seatback is back to its upright position after locked in place.
  • Page 34 NOTICE WARNING • When returning the rear seat- backs to the upright position, Cargo loading remember to return the rear shoulder belts to their proper Make sure the engine is off, the position. automatic transaxle is in P (Park) or the manual transaxle •...

  • Page 35: Seat Belts

    Safety system of your vehicle SEAT BELTS (Continued) WARNING WARNING • Never wear the shoulder belt • Seat belts are designed to bear For maximum restraint sys- under your arm or behind upon the bony structure of the tem protection, the seat belts your back.
  • Page 36 (Continued) (Continued) WARNING • When fastening the seat belt, It is essential to replace the • entire assembly after it has No modifications or additions make sure that the seat belt should be made by the user does not pass over objects that been worn in a severe impact which will either prevent the are hard or can break easily.
  • Page 37 Safety system of your vehicle Seat belt warning (if equipped) If the driver's seat belt is not fastened ■ Type B when the ignition switch is turned ON As a reminder to the driver, the dri- or if it is unfastened after the ignition ver’s seat belt warning lights will illu- switch is ON, the seat belt warning minate for approximately 6 seconds...
  • Page 38 Lap/shoulder belt ■ Front seat Information If you are not able to pull out the safe- ty belt from the retractor, firmly pull the belt out and release it. After release, you will be able to pull the belt out smoothly. OIB034015 Height adjustment (Front seat) ODH033055...
  • Page 39 Safety system of your vehicle To adjust the height of the seat belt anchor, lower or raise the height adjuster into an appropriate position. To raise the height adjuster, pull it up (1). To lower it, push it down (3) while pressing the height adjuster button (2).
  • Page 40 Lap belt (if equipped) Too high Correct Shorten OLMB033090 OIB034016 With a 2-point static type seat belt, the When using the rear center seat belt, OLMB033089 length must be adjusted manually so the buckle with the “CENTER” mark To fasten your seat belt: it fits snugly around your body.

  • Page 41: Pre-Tensioner Seat Belt

    Safety system of your vehicle Pre-tensioner seat belt WARNING (if equipped) The center lap belt latching mechanism is different from those for the rear seat shoulder belts. When fastening the rear seat shoulder belts or the cen- ter lap belt, make sure they are inserted into the correct buck- les to obtain maximum protec- tion from the seat belt system...
  • Page 42 WARNING WARNING For your safety, be sure that the To obtain maximum benefit belt webbing is not loose or from a pre-tensioner seat belt: twisted and always sit properly 1. The seat belt must be worn on your seat. correctly and adjusted to the proper position.
  • Page 43 Do not skin areas thoroughly after an acci- touch the pre-tensioner seat ed by an authorized HYUNDAI dent in which the pre-tensioner seat belt assemblies for several dealer. belts were activated.

  • Page 44: Seat Belt Precautions

    The violent forces we recommend that you con- Always follow the precautions created during a crash will tear tact an authorized HYUNDAI about seat belts, air bags and the child from your arms and dealer. occupant seating contained in throw the child against the inte- •...
  • Page 45 Safety system of your vehicle Larger children If the shoulder belt portion slightly Information touches the child’s neck or face, try Children who are too large for child Small children are best protected placing the child closer to the center of restraint systems should always from injury in an accident when prop- the vehicle.
  • Page 46 Pregnant women Injured person WARNING The use of a seat belt is recom- A seat belt should be used when an mended for pregnant women to injured person is being transported. Riding with a reclined seatback lessen the chance of injury in an When this is necessary, you should increases your risk of serious or accident.

  • Page 47: Care Of Seat Belts

    Keep belts clean and dry belt operation, we recommend that Seat belts should be kept clean and you consult an authorized HYUNDAI WARNING dry. If belts become dirty, they should dealer. be cleaned by using a mild soap When you return the rear seat- solution and warm water.
  • Page 48 CHILD RESTRAINT SYSTEM Children riding in the car should sit in Before buying a particular child (Continued) the rear seat and must always be restraint system, make sure it fits • When the child restraint sys- properly restrained to minimize the your car seat and seat belts, and fits tem is not in use, store it in risk of injury in an accident, sudden...
  • Page 49 Never let a child ride with checked by an authorized from your arms and throw the the shoulder belt under their HYUNDAI dealer. child against the car’s interior. arm or behind their back. • If there is not enough space to...

  • Page 50: Child Restraint System

    • If the seat belt does not oper- ate as described in this sec- tion, we recommend that the system be checked by an authorized HYUNDAI dealer. • Failure to observe this manu- al's instructions regarding OIB034017 child restraint system and the...
  • Page 51 Safety system of your vehicle Installing a child restraint sys- tem by lap/shoulder belt E2BLD310 MMSA3030 2. Fasten the lap/shoulder belt latch 3. Buckle the seat belt and allow the into the buckle. Listen for the dis- seat belt to take up any slack. After E2MS103005 tinct “click”...

  • Page 52: Air Bag - Supplemental Restraint System (Srs)

    AIR BAG - SUPPLEMENTAL RESTRAINT SYSTEM (SRS) 1. Driver’s front air bag* 2. Passenger’s front air bag* 3. Side impact air bag* 4. Curtain air bag* 5. Front passenger air bag ON/OFF switch* * : if equipped The actual air bags in the vehicle may differ from the illustration. OIB034032/OIB034034 2-33...

  • Page 53: How Does The Air Bag System Operate

    These pant and the vehicle structures tact an authorized HYUNDAI two factors determine whether the before the occupant impacts those dealer. sensors produce an electronic structures.
  • Page 54 Noise and smoke • There are even circumstances WARNING under which contact with the When the air bags inflate, they make steering wheel air bag can cause a loud noise and they leave smoke When the air bags deploy, the fatal injuries, especially if the and powder in the air inside of the air bag related parts in the...

  • Page 55: Passenger's Front Air Bag On/Off Switch

    Safety system of your vehicle Passenger’s front air bag ON/OFF switch (if equipped) OIB034037 OIB034036 To deactivate the passenger’s front To reactivate the passenger’s front air bag: air bag: OIB034034 Insert the master key or a similar Insert the master key or a similar The purpose of the switch is to dis- rigid device into the passenger’s rigid device into the passenger’s...
  • Page 56 ON/OFF switch is set to the OFF position. • recommend that authorized HYUNDAI dealer inspect the passenger’s front air bag ON/OFF switch and the SRS air bag system as soon as possible. 2-37...

  • Page 57: Do Not Install A Child Restraint On The Front Passenger's Seat

    Safety system of your vehicle Do not install a child restraint In addition, do not place front-facing (Continued) child restraints in the front passen- on the front passenger’s seat. • When children are seated in ger’s seat either. If the front passen- (if equipped) the rear outboard seats of ger air bag inflates, it would cause...

  • Page 58: Air Bag Warning And Indicator

    Air bag warning and indicator When the ignition switch is turned SRS components and functions ON, the warning light should illumi- (if equipped) nate for approximately 6 seconds, Air bag warning light then go off. Have the system checked if: •...
  • Page 59 The SRS air bag warning light on the HYUNDAI dealer. instrument panel will illuminate for • The light does not turn on about 6 seconds after the ignition...
  • Page 60 ■ Driver’s front air bag (2) ■ Driver’s front air bag (3) ■ Passenger’s front air bag B240B02L B240B03L B240B05L Upon deployment, tear seams mold- A fully inflated air bag, in combina- WARNING ed directly into the pad covers will tion with a properly worn seat belt, separate under pressure from the slows the driver's or the passenger's...
  • Page 61 Safety system of your vehicle (Continued) (Continued) WARNING • • When installing a container of The SRS can function only • liquid air freshener inside the If an air bag deploys, there may when the ignition switch is in be a loud noise followed by a vehicle, do not place it near the ON position.

  • Page 62: Driver's And Passenger's Front Air Bag

    Driver's and passenger's front The indications of the system's pres- WARNING ence are the letters "AIR BAG" air bag (if equipped) engraved on the air bag pad cover in ■ Driver’s front air bag Always use seat belts and child the steering wheel and the passen- restraints –...
  • Page 63 HYUNDAI dealer. passenger's panel above the • • Move your seat as far back as The SRS is designed to deploy...
  • Page 64 (Continued) (Continued) (Continued) • • • Children age 12 and under Sitting improperly or out of The SRS air bag system must must always properly position can result in serious deploy very rapidly to provide restrained in the rear seat. or fatal injury in a crash.

  • Page 65: Side Impact Air Bag

    Safety system of your vehicle Side impact air bag The purpose of the air bag is to pro- WARNING vide the vehicle's driver and/or the (if equipped) front passenger with additional pro- • The side impact air bag is sup- tection than that offered by the seat plemental to the driver's and belt alone.

  • Page 66: Curtain Air Bag

    • Use of seat covers could authorized HYUNDAI dealer. reduce or prevent the effec- tiveness of the system. Inform the dealer that your vehicle is equipped with side •...
  • Page 67 HYUNDAI dealer. child restraint system. Make sure to put the child restraint Failure to follow the above men- system as far away from the...
  • Page 68 Why didn’t my air bag go off in a Air bag collision sensors collision? (Inflation and non-infla- tion conditions of the air bag) There are many types of accidents in which the air bag would not be expected to provide additional protection.
  • Page 69 Therefore, do not try to per- impact of the front collision. and air bag deployment per- form maintenance formance. around the air bag sensors. We recommend that the sys- tem be serviced by an author- ized HYUNDAI dealer. (Continued) 2-50...
  • Page 70 Air bag non-inflation conditions Side air bags Side air bags (side impact and/or curtain air bags) are designed to inflate when an impact is detected by side collision sensors depending on the strength, speed or angles of impact resulting from a side impact collision.
  • Page 71 Safety system of your vehicle OSA038121 OBH038060 OPA037043 • Front air bags may not inflate in • In a slant or angled collision, the • Just before impact, drivers often side impact collisions, because force of impact may direct the brake heavily.

  • Page 72: Srs Care

    However, side and/or curtain air be performed by an authorized the collision energy is absorbed by bags may inflate when the vehicle HYUNDAI dealer. Improper handling the vehicle structure. is rolled over after side impact col- of the SRS system may result in seri- lision.
  • Page 73 An author- ized HYUNDAI dealer knows ment of the system. these precautions and can • No objects should be placed...
  • Page 74 Additional safety precautions • Passengers should not place • Do not place items under the hard or sharp objects between front seats. Placing items under • Never let passengers ride in the themselves and the air bags. the front seats could interfere with cargo area or on top of a folded- Carrying hard or sharp objects on the operation of the supplemental...

  • Page 75: Air Bag Warning Label

    Safety system of your vehicle Adding equipment to or modifying Air bag warning label your air bag-equipped vehicle If you modify your vehicle by chang- ing your vehicle's frame, bumper sys- tem, front end or side sheet metal or ride height, this may affect the opera- tion of your vehicle's air bag system.

  • Page 76: Convenient Features Of Your Vehicle

    Convenient features of your vehicle Accessing your vehicle .........3-3 Steering wheel............3-31 Remote key ...............3-3 Electric power steering (EPS)........3-31 Remote key precautions..........3-5 Tilt steering / Telescope steering ......3-32 Smart key ................3-7 Horn..................3-32 Smart key precautions...........3-10 Mirrors..............3-33 Immobilizer system ............3-12 Inside rearview mirror............3-33 Door locks ............3-13 Outside rearview mirror ..........3-35 Operating door locks from outside the vehicle ..3-13...
  • Page 77 Light ...............3-73 Interior features..........3-114 Exterior lights ..............3-73 Clock.................3-114 Interior lights..............3-77 Digital clock ..............3-114 Cigarette lighter ............3-115 Wipers and washers ...........3-80 Ashtray ................3-116 Windshield wipers ............3-81 Cup holder...............3-116 Windshield washers ............3-81 Sunvisor................3-117 Rear window wiper and washer switch ....3-82 Power outlet ..............3-118 Driver assist system ..........3-83 Clothes hanger .............3-119 Rear view camera ............3-83...

  • Page 78: Accessing Your Vehicle

    OIB034040 WARNING Your HYUNDAI uses a remote key, which you can use to lock or unlock Do not leave the keys in your a door (and tailgate) and even start vehicle with unsupervised chil- the engine.
  • Page 79 Convenient features of your vehicle Tailgate unlocking Start-up Mechanical key To unlock: For detailed information refer to “Key ■ Type A ■ Type B Ignition Switch” in chapter 5. 1. Press the Tailgate Unlock button (3) on the remote key for more than one second.

  • Page 80: Remote Key Precautions

    When the remote key does not work correctly, open and close the door with the mechanical key. If you have a problem with the remote key, it is recommended that you contact an authorized HYUNDAI dealer. (Continue)
  • Page 81 HYUNDAI authority to operate the equipment. If dealer. the keyless entry system is inoperative due to changes or modifications not...

  • Page 82: Smart Key

    0.7~1 m (28~40 in.) from the outside door handle. OIB044179 OIB044041 To lock : Your HYUNDAI uses a Smart Key, which you can use to lock or unlock 1. Close all doors, engine hood and a door (and tailgate) and even start tailgate.
  • Page 83 Convenient features of your vehicle Unlocking Even though you press the outside Information door handle button, the doors will not • The door handle button will only lock and the chime will sound for operate when the smart key is with- three seconds if any of the following in 0.7~1 m (28~40 in.) from the out- occur:...
  • Page 84 Tailgate unlocking Start-up Mechanical key To unlock: You can start the engine without If the Smart Key does not operate inserting the key. For detailed infor- normally, you can lock or unlock the 1. Carry the smart key. mation refer to the Engine Start/Stop door by using the mechanical key.

  • Page 85: Smart Key Precautions

    This is especially important when the or an airport which can interfere key to your authorized HYUNDAI phone is active such as making and with normal operation of the trans- receiving calls, text messaging, dealer or tow the vehicle, if necessary.
  • Page 86 HYUNDAI authority to operate the equipment. If dealer. the keyless entry system is inoperative...

  • Page 87: Immobilizer System

    Immobilizer sys- transmitting normally. tem malfunction could occur. If the system repeatedly does not recognize the coding of the key, it is recommended that you contact your HYUNDAI dealer. 3-12...

  • Page 88: Door Locks

    DOOR LOCKS Remote key Operating door locks from Information outside the vehicle • In cold and wet climates, door lock Mechanical key and door mechanisms may not work properly due to freezing conditions. • If the door is locked/unlocked multi- ple times in rapid succession with either the vehicle key or door lock switch, the system may stop operat-...
  • Page 89 Convenient features of your vehicle Smart key To lock the doors, press the button on Information the outside door handle while carry- • In cold and wet climates, door lock ing the smart key with you or press and door mechanisms may not work the door lock button on the smart key.

  • Page 90: Operating Door Locks From Inside The Vehicle

    Operating door locks from • If the inner door handle of the dri- Information ver’s (or front passenger’s) door is inside the vehicle If a power door lock ever fails to func- pulled when the door lock button is With the door lock button tion while you are in the vehicle try in the lock position, the button is one or more of the following tech-...

  • Page 91: Central Door Lock Switch

    Convenient features of your vehicle With the central door lock • When you press the door lock/unlock WARNING switch again, all vehicle doors will switch unlock and the indicator light on the Always secure your vehicle switch will not illuminate. Leaving your vehicle unlocked WARNING increases the potential risk to...

  • Page 92: Auto Door Lock/Unlock Features

    Auto door lock/unlock features Child-protector rear door locks To lock the child safety lock, insert a key (or screwdriver) into the hole (1) Impact sensing door unlock and turn it to the lock ( ) position. system (if equipped) To allow a rear door to be opened All doors will be automatically from inside the vehicle, unlock the unlocked when an impact causes the...

  • Page 93: Theft-Alarm System

    Convenient features of your vehicle THEFT-ALARM SYSTEM (IF EQUIPPED) This system helps to protect your Once the security system is set, open- vehicle and valuables. The horn will ing any door, the tailgate, or the hood sound and the hazard warning lights without using the remote key or smart will blink continuously if any of the key will cause the alarm to activate.

  • Page 94: Tailgate

    TAILGATE Opening the tailgate NOTICE Information Make certain that you close the In cold and wet climates, door lock tailgate before driving your vehi- and door mechanisms may not work cle. Possible damage may occur properly due to freezing conditions. to the tailgate lift cylinders and attaching hardware if the tailgate WARNING...

  • Page 95: Closing The Tailgate

    Convenient features of your vehicle Closing the tailgate WARNING To close the tailgate, lower and push down the tailgate firmly. Make sure Rear cargo area that the tailgate is securely latched. Occupants should never ride in the rear cargo area where no WARNING restraints are available.

  • Page 96: Windows

    WINDOWS Power windows (if equipped) (1) Driver’s door power window switch (2) Front passenger’s door power window switch (3) Rear door power window switch (Right)* (4) Rear door power window switch (Left)* (5) Window opening and closing (6) Automatic power window* (7) Power window lock switch * : if equipped OIB044048...
  • Page 97 Convenient features of your vehicle Window opening and closing The ignition switch must be in the ON Information position to be able to raise or lower • In cold and wet climates, power win- the windows. Each door has a Power dows may not work properly due to Window switch to control that door's freezing conditions.
  • Page 98 If the power windows do not operate properly after resetting, it is recom- mended that the system be checked by an authorized HYUNDAI dealer. OIB024001 If a window senses any obstacle while it is closing automatically, it will stop and lower approximately 30 cm (12 in.) to allow the object to be cleared.

  • Page 99: Power Window Lock Switch

    Convenient features of your vehicle Power window lock switch When the power window lock switch Information is pressed: (if equipped) The automatic reverse feature is only • The driver's master control can active when the “auto up” feature is operate the front passenger's power used by fully pulling up the switch to window but cannot operate the rear the second detent.
  • Page 100 (Continued) WARNING • Do not allow children to play Windows with the power windows. Keep the driver’s door power window • NEVER leave the keys in your lock switch in the LOCK posi- vehicle with unsupervised tion (pressed). Serious injury children, when the engine is can result from unintentional running.

  • Page 101: Hood

    Convenient features of your vehicle HOOD Opening the hood OIB044050 OIB044052 3. Go to the front of the vehicle, raise 4. Pull out the support rod. OIB044047 the hood slightly, push the second- 5. Hold the hood opened with the 1.

  • Page 102: Closing The Hood

    Closing the hood WARNING WARNING 1. Before closing the hood, check the following: Support rod • Before closing the hood, • All filler caps in engine compart- ensure that all obstructions • Grasp the support rod in the ment must be correctly installed. are removed from the hood area wrapped in rubber.

  • Page 103: Fuel Filler Door

    Convenient features of your vehicle FUEL FILLER DOOR Opening the fuel filler door Information If the fuel filler door does not open because ice has formed around it, tap lightly or push on the door to break the ice and release the door. Do not pry on the door.

  • Page 104: Closing The Fuel Filler Door

    Closing the fuel filler door (Continued) (Continued) 1. To install the fuel tank cap (2), turn • Before touching the fuel noz- If you must re-enter the vehi- it clockwise until it “clicks” once. zle, you should eliminate the cle, you should once again This indicates that the cap is potential build-up of static eliminate potentially danger-...
  • Page 105 HYUNDAI cap or the equivalent • Do not use matches or a Always remove the fuel cap specified for your vehicle. An lighter and do not smoke or carefully and slowly.

  • Page 106: Steering Wheel

    EPS system diagnostics. Also, the steering effort becomes HYUNDAI dealer and have the sys- When the diagnostics is completed, heavier as the vehicle’s speed tem checked as soon as possible. the steering wheel will return to its increases and becomes lighter as normal condition.

  • Page 107: Tilt Steering / Telescope Steering

    Convenient features of your vehicle Tilt steering / Telescope steering Horn (if equipped) WARNING Never adjust the steering wheel while driving. You may lose steering control and cause severe personal injury, death or accidents. OIB044055 Pull down the lock-release lever (1) on OIB044056 the steering wheel column and adjust To sound the horn, press the area...

  • Page 108: Mirrors

    MIRRORS Day/night rearview mirror Inside rearview mirror WARNING Before you start driving, adjust the rearview mirror to the center on the To prevent serious injury during view through the rear window. an accident or deployment of the air bag, do not modify the WARNING rearview mirror and do not Night...
  • Page 109 Convenient features of your vehicle Electrochromic mirror (ECM) NOTICE (if equipped) When cleaning the mirror, use a The electric rearview mirror automati- paper towel or similar material cally controls the glare from the head- Rearview display dampened with glass cleaner. Do lights of the car behind you in night- not spray glass cleaner directly on time or low light driving conditions.

  • Page 110: Outside Rearview Mirror

    Outside rearview mirror WARNING Your vehicle is equipped with both left-hand and right-hand outside Do not adjust or fold the outside rearview mirrors. rearview mirrors while the vehi- cle is moving.This could result in WARNING loss of control, and an accident which could cause death, seri- ous injury or property damage.

  • Page 111: Switch*

    Convenient features of your vehicle Folding the outside rearview NOTICE mirror • The mirrors stop moving when they reach the maximum adjust- ing angles, but the motor contin- ues to operate while the switch is pressed. Do not press the switch longer than necessary, the motor may be damaged.

  • Page 112: Switch*

    NOTICE The electric type outside rearview mirror operates even though the ignition switch is in the OFF posi- tion. However, to prevent unnec- essary battery discharge, do not adjust the mirrors longer than necessary while the engine is not running. NOTICE OIB044062 Do not fold the electric type out-...

  • Page 113: Instrument Cluster

    Convenient features of your vehicle INSTRUMENT CLUSTER ■ Type A 1. Tachometer 2. Speedometer 3. Fuel gauge 4. Engine coolant temperature gauge 5. Warning and indicator lights 6. Odometer/Trip computer ■ Type B 7. LCD display (including trip computer) ❈ The actual cluster in the vehicle may differ from the illustration.

  • Page 114: Instrument Cluster Control

    Adjusting Instrument Cluster ■ Type A Instrument Cluster Control ■ Type B Illumination (if equipped) WARNING Never adjust the instrument cluster while driving. This could result in loss of control and lead to an accident that may cause death, serious injury, or property damage.

  • Page 115: Lcd Display Control

    Convenient features of your vehicle Tachometer LCD display control Gauges (if equipped) Speedometer ■ Gasoline ■ Diesel ■ Type A OIB044104 OIB044102/OIB044103 ■ Type B OIB044157 tachometer indicates approximate number of engine revo- The LCD display modes can be lutions per minute (rpm). changed by using the control buttons.
  • Page 116 Engine Coolant Temperature Fuel Gauge NOTICE Gauge ■ Type A gauge pointer moves ■ Type A beyond the normal range area toward the “H” position, it indi- cates overheating that may dam- age the engine. Do not continue driving with an overheated engine.
  • Page 117 Convenient features of your vehicle Odometer Information WARNING ■ Type A • The fuel tank capacity is given in Fuel Gauge chapter 8. • The fuel gauge is supplemented by a Running out of fuel can expose low fuel warning light, which will vehicle occupants to danger.
  • Page 118 Outside Temperature Gauge - User Settings Mode in the Cluster : Information You can change the temperature (if equipped) It is forbidden to alter the odometer of unit in the “Other Features - ■ Type A ■ Type B all vehicles with the intent to change Temperature unit”...

  • Page 119: Transaxle Shift Indicator

    Convenient features of your vehicle Manual Transaxle Shift Indicator Transaxle Shift Indicator (if equipped) Automatic Transaxle Shift Indicator (if equipped) ■ Type A ■ Type B ■ Type A ■ Type B OIB044117 Shift Indicator Pop-up (if equipped) The pop-up that indicates the current OIB044152/OIB044151 gear position is displayed in the clus- OIB044118/OIB044117...

  • Page 120: Lcd Display

    LCD DISPLAY (IF EQUIPPED) LCD modes Modes Symbol Explanation This mode displays driving information like the tripmeter, fuel economy, and so on. Trip Computer For more details, refer to "Trip Computer" in this chapter. Information This mode informs of the service interval (mileage or days) and warning messages. User Settings On this mode, you can change settings of the doors, lamps, and so on.

  • Page 121: Trip Computer Mode

    Convenient features of your vehicle Cannot edit settings while driving Quick guide (Help, if equipped) Trip computer mode OIB044163 OIB044164 OIB044185 This warning message illuminates if If you press and hold the OK button This mode displays driving informa- you try to select the other User in the User Settings Mode, explana- tion like the tripmeter, fuel economy, Settings item when driving.

  • Page 122: Information Mode

    Information mode For the setting of the service inter- val, refer to "User Settings Mode" Service Interval of the LCD display. OIB044166 Service required If you do not have your vehicle serv- OIB044165 iced according to the already inputted Service in service interval, "Service required"...
  • Page 123 Convenient features of your vehicle Warning Message If one of followings occurs, warning messages will be displayed on the information mode for several seconds. - Low fuel etc. OIB044167 Service in OFF If the service interval is not set, "Service Interval Off" message is displayed on the LCD display.

  • Page 124: User Settings Mode

    User settings mode On this mode, you can change setting of the instrument cluster, doors, lamps, and so on. Door Items Explanation • Disable : The auto door lock operation will be deactivated. • Enable on Speed : All doors will be automatically locked when the vehicle speed exceeds 9.3 Automatically Lock mph (15km/h).
  • Page 125 Convenient features of your vehicle Steering Items Explanation • Off : The steering position function will be deactivated. Steering Position • On : The steering position function will be activated. Service interval Items Explanation On this mode, you can activate the service interval function with mileage (km or mi.) and period (months).

  • Page 126: Warning Messages (For Type B)

    Low Key Battery Press start button while turning Warning Messages (for Type B, if equipped) (for smart key system) wheel (for smart key system) Shift to "P" position (for smart key system and auto- matic transaxle) OIB044131 OIB044132 This warning message illuminates if This warning message illuminates if the battery of the smart key is dis- the steering wheel does not unlock...
  • Page 127 Convenient features of your vehicle Steering wheel unlocked Check steering wheel lock Press clutch pedal to start (for smart key system) system (for smart key system) engine (for smart key system and manual transaxle) OIB044133 OIB044134 OIB044136 This warning message illuminates if This warning message illuminates if the steering wheel does not lock the steering wheel does not lock nor-...
  • Page 128 Press brake pedal to start engine Key not in vehicle Key not detected (for smart key system and auto- (for smart key system) (for smart key system) matic transaxle) OIB044138 OIB044137 OIB044135 This warning message illuminates if This warning message illuminates if the smart key is not in the vehicle the smart key is not detected when •...
  • Page 129 Engine If the warning illuminates each time Start/Stop button for 10 seconds in you press the Engine Start/Stop but- the ACC position. ton, we recommend that you have the vehicle inspected by an author- ized HYUNDAI dealer. 3-54...
  • Page 130 Shift to "P" or "N" to start engine Door Open Tailgate Open (for smart key system and auto- matic transaxle) OIB044144 OIB044145 This indicator displays which door is This indicator displays when the tail- OIB044142 open. gate is open. • This warning message illuminates if you try to start the engine with the shift lever not in the P (Park) or N (Neutral) position.
  • Page 131 Convenient features of your vehicle Hood Open Align steering wheel (if equipped) Low Fuel OIB044146 OIB044150 OIB044148 This indicator displays when the This warning message illuminates if This warning message illuminates if hood is open. you start the engine when the steer- the fuel tank is nearly empty.
  • Page 132 Engine has overheated OIB044149 This warning message illuminates when the engine coolant tempera- ture is above 120°C (248°F). This means that the engine is overheated and may be damaged. 3-57...

  • Page 133: Warning And Indicator Lights

    - It illuminates for approximately 6 Belts” in chapter 2. seconds and then goes off. • When there is a malfunction with the SRS. In this case, we recommend that you have the vehicle inspected by an authorized HYUNDAI dealer. 3-58...
  • Page 134 - If the warning light illuminates with authorized HYUNDAI dealer and cle as soon as it is safe to do so. the parking brake released, it indi- inspected.
  • Page 135 HYUNDAI dealer. an authorized HYUNDAI dealer. In this case, we recommend that you have the vehicle inspected by an authorized HYUNDAI dealer. 3-60...
  • Page 136 - Diesel Engine - It remains on until the engine is you have the vehicle inspected by started. an authorized HYUNDAI dealer as If the Malfunction Indicator Lamp soon as possible. (MIL) blinks, some error related to • When there is a malfunction with the injection quantity adjustment the emission control system.
  • Page 137 If the warning light remains on after adding oil or if oil is not available, we recommend that you have the vehicle inspected by an authorized HYUNDAI dealer as soon as possi- ble. 3-62...
  • Page 138 3. Start the engine again. If the warning light stays on after the engine is started, turn the engine off immediately. In this case, we recommend that you have the vehicle inspected by an authorized HYUNDAI dealer. 3-63...
  • Page 139 In this case, remove the water from by an authorized HYUNDAI deal- the fuel filter. er as soon as possible. This indicator light blinks: For more details, refer to “Fuel When there is a malfunction with the Filter”...
  • Page 140 - At this time, you can start the engine. • When the battery of the smart key an authorized HYUNDAI dealer. is weak. - The indicator light goes off after - The indicator light does not blink starting the engine.
  • Page 141 Convenient features of your vehicle High Beam Indicator Light ON Indicator Master Warning Light Light Light (if equipped) This indicator light illuminates : This indicator light illuminates: This indicator light illuminates: • When the remaining mileage or • When the headlights are on and in When the parking lights or head- time is 0 on the “Service Interval”...
  • Page 142 - The indicator will go off while the system. vehicle is moving. In this case, we recommend that you have the vehicle inspected by an authorized HYUNDAI dealer. 3-67...

  • Page 143: Trip Computer

    Convenient features of your vehicle TRIP COMPUTER ■ Type A ■ Type B ■ Type A Press the TRIP button for less than 1 To change the trip mode, rotate the MOVE switch “▲, ▼” on the steering second to select any mode as follows: wheel.

  • Page 144: Fuel Economy

    Average Fuel Economy (2) Fuel economy Information (km or mile, L/100km, • The average fuel economy is calcu- • If the vehicle is not on level ground km/L or MPG) (if equipped) lated by the total driving distance or the battery power has been inter- and fuel consumption since the last ■...

  • Page 145: Trip A/B

    Convenient features of your vehicle Average Vehicle Speed (2) Trip A/B Information (km or mile, km/h or MPH) • The average vehicle speed is cal- The average fuel economy is not dis- culated by the total driving dis- ■ Type A ■...
  • Page 146 Elapsed Time (3) Digital Speedometer (km/h or MPH) • The elapsed time is the total driv- ing time since the last elapsed time ■ Type A ■ Type B reset. - Time range (hh:mm): 00:00 ~ 99:59 • To reset the elapsed time, press the [OK] button (or RESET button) on the steering wheel for more than 1 second when the elapsed...
  • Page 147 Convenient features of your vehicle One time driving information If the estimated distance is below 1km (1 mi.), the distance to empty mode (if equipped) (3) will display as "---" and a refuel ■ Type B message will appear (4). OIB044162 This display shows trip distance (1), average fuel economy (2) and the...

  • Page 148: Light

    LIGHT Exterior lights Lighting control OLF044087R OLF044086R Parking light position ( Headlight position ( When the light switch is in the park- When the light switch is in the head OLF044084R ing light position, the parking (posi- light position, the headlights, license To operate the lights, turn the knob at tion) light, license plate light and plate light and instrument panel lights...
  • Page 149 Convenient features of your vehicle High beam operation NOTICE • Do not cover or spill anything on the sensor (1) located on the instrument panel. • Do not clean the sensor using a window cleaner, the cleanser may leave a light film which could interfere with sensor operation.
  • Page 150 Turn signals and lane change One-touch lane change function signals (if equipped) To activate an One-Touch Lane Change function, move the turn sig- nal lever slightly and then release it. The lane change signals will blink 3, 5 or 7 times. You can activate/deactivate the One Touch Turn Signal function or choose the number of blinking (3, 5, or 7)
  • Page 151 Convenient features of your vehicle Front fog light (if equipped) Battery saver function Headlamp delay function (if equipped) The purpose of this feature is to pre- vent the battery from being dis- If the key is removed from the ignition charged.

  • Page 152: Interior Lights

    Interior lamp AUTO cut Interior lights NOTICE The interior lamps will automatically If the driver gets out of the vehicle WARNING go off approximately 20 minutes after through other doors (except dri- the engine is turned off and the ver's door), the battery saver func- Do not use the interior lights doors closed.
  • Page 153 Convenient features of your vehicle Front lamps Front Room Lamp: : With the Front Room Lamp in this position, the front and The Front Room Lamp Switch acti- rear room lamps remain on vates the front and rear room lamps at all times.
  • Page 154 Room lamp Luggage room lamp (if equipped) OIB044016 OIB044017 The luggage room lamp comes on Rear Door Lamp Switch: when the tailgate is opened. Press this switch to turn the room lamp on and off. NOTICE NOTICE The luggage room lamp comes on as long as the tailgate is open.

  • Page 155: Wipers And Washers

    Convenient features of your vehicle WIPERS AND WASHERS ■ ■ Front Rear • Type A • Type B D : Rear wiper/washer control A : Wiper speed control B : Intermittent wipe time (if equipped) adjustment · MIST – Single wipe ·...

  • Page 156: Windshield Wipers

    Windshield wipers Windshield washers If the washer does not work, check the washer fluid level. If the fluid level (if equipped) Operates as follows when the igni- is not sufficient, you will need to add tion switch is in the ON position. appropriate non-abrasive windshield MIST : For a single wiping cycle, washer fluid to the washer reservoir.

  • Page 157: Rear Window Wiper And Washer Switch

    Convenient features of your vehicle Rear window wiper and washer NOTICE switch (if equipped) • To prevent possible damage to the washer pump, do not oper- ate the washer when the fluid reservoir is empty. • To prevent possible damage to the wipers or windshield, do not operate the wipers when the windshield is dry.

  • Page 158: Driver Assist System

    DRIVER ASSIST SYSTEM Rear view camera (if equipped) Whenever the vehicle ignition is WARNING cycled off and on, the rear view cam- era will turn on when the shift lever is • Never rely solely on the Rear put into R (Reverse). View Camera when backing up.

  • Page 159: Rear Parking Assist System

    Convenient features of your vehicle Operation of the rear parking Rear parking assist system WARNING (if equipped) assist system Operation condition • ALWAYS look around your • This system will activate when vehicle to make sure there are backing up with the engine running. no objects or obstacles before moving the vehicle in any •...
  • Page 160 If this occurs, we recommend • Wireless transmitters or mobile that the system be checked by phones are present near the sensor. an authorized HYUNDAI dealer. • The sensor is covered with snow. • Any non-factory equipment or accessories have been installed, or if the vehicle bumper height or sen- sor installation has been modified.
  • Page 161 Convenient features of your vehicle Detecting range may decrease Information WARNING when: The system may not recognize objects • Outside temperature Your new vehicle warranty does less than 30 cm (12 in.) from the sen- extremely hot or cold. not cover any accidents or dam- sor, or it may sense an incorrect dis- •...

  • Page 162: Climate Control System

    CLIMATE CONTROL SYSTEM Rear window defroster Defroster activate rear window defroster, press the rear window (if equipped) defroster button located in the cli- NOTICE ■ Manual Climate Control System mate control system. The indicator To prevent damage to the conduc- on the rear window defroster button tors bonded to the inside surface illuminates when the defroster is ON.
  • Page 163 Convenient features of your vehicle Manual climate control system (if equipped) (1) Temperature control knob (2) Fan speed control knob (3) Mode selection knob (4) Air intake control button (5) A/C (Air conditioning) button (if equipped) (6) Rear window defroster button (if equipped) OIB044066 3-88...
  • Page 164 Heating and air conditioning 1. Start the engine. 2. Set the mode to the desired posi- tion. To improve the effectiveness of heating and cooling : - Heating: - Cooling: 3. Set the temperature control to the desired position. 4. Set the air intake control to the outside (fresh) air or recirculated air position.
  • Page 165 Convenient features of your vehicle Mode selection Face-Level (B, D, E) Floor/Defrost-Level (A, C, D) Air flow is directed toward the upper Most of the air flow is directed to the body and face. Additionally, each floor and the windshield with a small outlet can be controlled to direct the amount directed to the side window air discharged from the outlet.
  • Page 166 ■ Front Temperature control Air intake control OIB044094 ■ Rear OIB044068 OIB044070 The temperature will increase by This button is used to select the out- turning the knob to the right. side (fresh) air position or recirculat- ed air position. The temperature will decrease by turning the knob to the left.
  • Page 167 Convenient features of your vehicle Recirculated air position Information WARNING The indicator light on the Prolonged use of the air conditioning button illuminates when • Continued use of the climate with the recirculated air position the recirculated air posi- control system operation in selected will result in excessively dry tion is selected.
  • Page 168 Fan speed control Air conditioning (A/C) System operation (if equipped) Ventilation 1. Select the Face Level mode. 2. Set the air intake control to the outside (fresh) air position. 3. Set the temperature control to the desired position. 4. Set the fan speed control to the desired speed.
  • Page 169 Convenient features of your vehicle Operation Tips Air conditioning (if equipped) NOTICE • To keep dust or unpleasant fumes HYUNDAI Air Conditioning Systems When using the air conditioning from entering the car through the are filled with environmentally friendly system, monitor the temperature ventilation system, temporarily set refrigerant.
  • Page 170 We recommend the climate control air to ensure maximum system per- filter be replaced by an authorized formance. HYUNDAI dealer according to the maintenance schedule. If the car is being driven in severe conditions such as dusty or rough roads, more frequent air conditioner filter inspec- tions and changes are required.
  • Page 171 Checking the amount of air If the air flow rate suddenly decreas- WARNING es, we recommend the system be conditioner refrigerant and checked at an authorized HYUNDAI compressor lubricant Because the refriger- dealer. When the amount of refrigerant is ant is at very high...
  • Page 172 Automatic climate control system (if equipped) 1. Fan speed control knob 2. Temperature control knob 3. AUTO (automatic control) button 4. OFF button 5. Mode selection button 6. Air intake control button 7. Rear window defroster button 8. Front windshield defroster button 9.
  • Page 173 Convenient features of your vehicle Automatic heating and air con- To turn the automatic operation off, select any button of the following: ditioning - Mode selection button The Automatic Climate Control System is controlled by setting the - Front windshield defrost button desired temperature.
  • Page 174 Manual heating and air condi- 3. Set the temperature control to the desired position. tioning 4. Set the air intake control to the The heating and cooling system can outside (fresh) air position. be controlled manually by pressing buttons other than the AUTO button. 5.
  • Page 175 Convenient features of your vehicle Mode selection OIB044081 The mode selection button controls the direction of the air flow through the ventilation system. (if equipped) (if equipped) OIB044067 3-100...
  • Page 176 Face-Level (B, D, E) Defrost-Level (A, D) Air flow is directed toward the upper Most of the air flow is directed to the body and face. Additionally, each windshield. outlet can be controlled to direct the air discharged from the outlet. Also you may select 2~3 modes at the same time for desired air flow.
  • Page 177 Convenient features of your vehicle ■ Front Temperature control Air intake control OIB044094 ■ Rear OIB044086 OIB044084 The temperature will increase to the This button is used to select the out- maximum (HI) by turning the knob to side (fresh) air position or recirculat- the right.
  • Page 178 Recirculated air position Information WARNING The indicator light on the Prolonged use of the air conditioning button illuminates when • Continued use of the climate with the recirculated air position the recirculated air posi- control system operation in selected will result in excessively dry tion is selected.
  • Page 179 Convenient features of your vehicle Fan speed control Air conditioning OFF mode OIB044083 OIB044087 OIB044088 Turn the knob to the right increase Push the A/C button to manually turn Push the OFF button to turn off the the fan speed and air flow. Turn the the system on (indicator light will illu- climate control system.
  • Page 180 System operation Operation Tips Air conditioning (if equipped) • To keep dust or unpleasant fumes HYUNDAI Air Conditioning Systems Ventilation from entering the car through the are filled with a R-134a refrigerant. 1. Select the Face Level mode. ventilation system, temporarily set 1.
  • Page 181 Convenient features of your vehicle Air conditioning system operation • If you operate air conditioner NOTICE excessively, the difference between tips When using the air conditioning the temperature of the outside air • If the vehicle has been parked in system, monitor the temperature and that of the windshield could direct sunlight during hot weather,...
  • Page 182 We recommend the climate control air filter be replaced by an authorized HYUNDAI dealer according to the maintenance schedule. If the car is being driven in severe conditions such as dusty or rough roads, more frequent air conditioner filter inspections and changes are required.
  • Page 183 Convenient features of your vehicle Manual climate control system Windshield defrosting and • For maximum defrosting, set the temperature control to the extreme defogging right/hot position and the fan speed control to the highest speed. WARNING • If warm air to the floor is desired while defrosting or defogging, set Do not use the posi-...
  • Page 184 Automatic climate control system If the air-conditioning, outside (fresh) air position and higher fan speed are To defog inside windshield not selected automatically, adjust the corresponding button or knob manu- ally. If the position is selected, lower fan speed is adjusted to higher fan speed.

  • Page 185: Clean Air

    Convenient features of your vehicle To defrost outside windshield Clean air (if equipped) OIB044090 OIB044099 1. Set the fan speed to the highest When the ignition switch is in the ON position. position, the clean air function turns on automatically. 2.

  • Page 186: Storage Compartment

    STORAGE COMPARTMENT Center console storage WARNING WARNING Flammable materials ALWAYS keep the storage com- partment covers closed secure- Do not store cigarette lighters, ly while driving. Items inside propane cylinders, or other your vehicle are moving as fast flammable/explosive materials as the vehicle.

  • Page 187: Glove Box

    Convenient features of your vehicle Glove box Cool box (if equipped) WARNING Do not put perishable food in the cool box because it may not maintain the necessary consis- tent temperature to keep the food fresh. Information • If the vent is blocked by items in the coolbox, cooling will be reduced.

  • Page 188: Sunglass Holder

    Sunglass holder (if equipped) Luggage box (if equipped) WARNING • Do not keep objects except sunglasses inside the sun- glass holder. Such objects can be thrown from the holder in the event of a sudden stop or an accident, possibly injuring the passengers in the vehicle.

  • Page 189: Interior Features

    Convenient features of your vehicle INTERIOR FEATURES Clock (if equipped) Digital clock (if equipped) WARNING Do not adjust the clock while driving.You may lose your steer- ing control and cause severe personal injury or accidents. OIB044039 To set the time: OIB044038 The ignition switch must be in the ACC position or the ON position.

  • Page 190: Cigarette Lighter

    30 seconds, remove it to for replacement from an authorized For example, if the "H" and "M" but- prevent overheating. HYUNDAI dealer. ton is pressed when the time is 10:15 • Do not insert foreign objects p.m., the display will change to into the socket of the cigarette 22:15.

  • Page 191: Ashtray

    Convenient features of your vehicle Ashtray (if equipped) Cup holder (Continued) • Do not place uncovered or unsecured cups, bottles, cans, etc., in the cup holder containing hot liquid while the vehicle is in motion. Injuries may result in the event of sud- den stop or collision.

  • Page 192: Sunvisor

    Sunvisor NOTICE WARNING ■ Driver’s side • Keep your drinks sealed while For your safety, do not block driving to prevent spilling your your view when using the sunvi- drink. If liquid spills, it may get sor. into the vehicle's electrical/elec- tronic system and damage elec- trical/electronic parts.

  • Page 193: Power Outlet

    Convenient features of your vehicle Power outlet (if equipped) (Continued) NOTICE • Push the plug in as far as it will To prevent damage to the Power go. If good contact is not made, outlet: the plug may overheat or the •...

  • Page 194: Clothes Hanger

    Clothes hanger (if equipped) Shopping bag holder Floor mat anchor(s) (if equipped) (if equipped) OIB044031 OIB044032 OMD040195N These hangers are not designed to hold large or heavy items. ALWAYS use the Floor Mat Anchors NOTICE to attach the front floor mats to the vehicle.

  • Page 195: Luggage Net Holder

    If necessary, we recommend that floor mat in place. To avoid any you contact an authorized HYUNDAI interference with pedal operation, dealer to obtain a luggage net. HYUNDAI recommends that the HYUNDAI floor mat designed for use in your vehicle be installed.

  • Page 196: Cargo Area Cover

    Cargo area cover (if equipped) WARNING • Do not place objects on the cargo area cover. Such objects may be thrown about inside the vehicle and possi- bly injure vehicle occupants during an accident or braking. • Never allow anyone to ride in the luggage compartment.

  • Page 197: Multimedia System

    Multimedia System Multimedia system ..........4-2 AUX, USB and iPod ® port ..........4-2 Antenna ................4-3 Steering wheel audio control .........4-4 How vehicle audio works ..........4-5 System controllers and functions - 3.8 inch MONO TFT..........4-19 Setup .................4-25 RADIO : FM, AM...............4-33 Basic method of use : Audio CD / MP3 CD / USB / ®...

  • Page 198: Aux, Usb And Ipod Port

    Multimedia System MULTIMEDIA SYSTEM AUX, USB and iPod ® port NOTICE Information • If you install an aftermarket HID When using a portable audio device head lamp, your vehicle’s audio connected to the power outlet, noise and electronic device may mal- may occur during playback.

  • Page 199: Antenna

    We recommend to use • Be sure to remove the antenna the antenna available with an before washing the vehicle in an authorized HYUNDAI dealer. automatic car wash or it may be damaged. • When reinstalling your antenna, it is important that it is fully tight-...

  • Page 200: Steering Wheel Audio Control

    Multimedia System Steering wheel audio control RADIO mode NOTICE (if equipped) It will function as the PRESET STA- Do not operate audio remote con- TION select buttons. ■ Type A trol buttons simultaneously. CDP mode VOLUME (VOL +/-) (1) It will function as the TRACK •...

  • Page 201: How Vehicle Audio Works

    How vehicle audio works This can be due to factors, such as AM reception the distance from the radio station, FM reception closeness of other strong radio sta- tions or the presence of buildings, bridges or other large obstructions in the area.
  • Page 202 Multimedia System FM radio station JBM003 JBM004 JBM005 FM broadcasts are transmitted at • Fading - As your vehicle moves • Station Swapping - As an FM signal high frequencies and do not bend to away from the radio station, the weakens, another more powerful follow the earth's surface.

  • Page 203: Audio System*

    Caring for disc • Depending on the type of CD- MP3 File Information R/CD-RW CDs, certain CDs may • If the temperature inside the car is too not operate normally according to • Supported Audio Formats high, open the car windows to venti- the manufacturing companies.
  • Page 204 Multimedia System • Support for Compressed Files • For MP3/WMA compression files, • Language Support differences in sound quality will (Unicode Support) 1. Supported Bitrates (Kbps) occur depending on the bitrate. 1. English: 94 characters (Higher sound quality can be expe- MPEG1 MPEG2 MPEG2.5 2.
  • Page 205 • Compatibility by Disc Type • Precautions upon Writing CDs 5. Prolonged use of CD-R/CD-RW discs that do not satisfy related 1. Playing MIXED CDs: First plays 1. In all cases except when creating standards and/or specifications the audio CD, then plays the com- multisession discs, check the could result in product malfunc- pressed file(s).
  • Page 206 Multimedia System Using a cellular phone or a two- NOTE: way radio Order of playing files (folders) : When a cellular phone is used inside 1. Song playing order : the vehicle, noise may be produced sequentially. from the audio system. This does not 2.
  • Page 207 (Continued) NOTICE WARNING • Do not place beverages close to Operating the device while driving the audio system. Spilling bever- • Do not stare at the screen while could lead to accidents due to a ages may lead to system mal- driving.
  • Page 208 Multimedia System (Continued) (Continued) Information • Clean fingerprints and dust off the • Do not use abnormally shaped discs Using the discs disc surface (coated side) with a soft (8cm, heart-shaped, octagon- • This device has been manufactured cloth. shaped) as such discs could lead to to be compatible with software malfunctions.
  • Page 209 (Continued) (Continued) Information • Only products formatted with • The amount of time required to rec- Using the USB device byte/sectors under 64Kbyte will be ognize the USB device may differ • Connect the USB device after turn- recognized. depending on the type, size or file ing on the engine.
  • Page 210 Multimedia System (Continued) (Continued) (Continued) • When using mass storage USB • The device may not support normal • Avoid use of USB mem- devices with separate logical drives, operation when using formats such ory products that can only files saved to the root drive can as HDD Type, CF, or SD Memory.
  • Page 211 (Continued) (Continued) Information • When the EQ features of an exter- • If your iPhone ® is connected to both ® Using the iPod device the Bluetooth ® nal device, such as the iPod ® , and Wireless Technology • iPod ®...
  • Page 212 Multimedia System (Continued) Information Information • Some iPod ® may not sync with the ® Using the AUX device Before using the Bluetooth System depending on its version. If handsfree • If an external device connector is the Media is removed before the What is Bluetooth connected with the AUX terminal, ®...
  • Page 213 (Continued) Information Information • Park the vehicle when connecting Precautions for safe driving When connecting a the head unit with the mobile phone. ® Bluetooth phone • Bluetooth ® Handsfree is a feature • Bluetooth ® connection may become that enables drivers to practice safe •...
  • Page 214 Multimedia System ■ CD Player : AC102C7GG,AC111C7GN 4-18...

  • Page 215: System Controllers And Functions

    Name Description SYSTEM CONTROLLERS AND FUNCTIONS • Each time the key is pressed, the mode is ❈ Display and settings may differ depending on the changed in order of CD, USB, iPod ® , AUX, My Music modes. selected audio. ❈...

  • Page 216: Setup

    Multimedia System Name Description • CD, USB, My Music mode - Shortly press the key (under 0.8 seconds): Previews each song (file) for 10 seconds each. SCAN ❈ Press the SCAN key again to continue listen- ing to the current song (file). •...
  • Page 217 ■ CD Player : AC110C7GG, AC110C7GN, AC100C7GG, AC100C7GN, AC100C7GE ❋ No logo will be shown if the Bluetooth Wireless Technology feature is not supported. ® 4-21...
  • Page 218 Multimedia System Name Description Audio Head Unit • Each time the key is pressed, the mode is changed in order of USB, iPod ® , AUX, My Music modes. ❈ In Setup>Display, the media pop up screen will be displayed when [Mode Pop up] is turned MEDIA When the pop up screen is displayed, use the TUNE knob or keys...
  • Page 219 Name Description Go to previous depth(no previous screen) BACK • USB, My Music mode - Shortly press the key (under 0.8 seconds): Previews each song (file) for 10 seconds each. SCAN ❈ Press the SCAN key again to continue listen- ing to the current song (file).
  • Page 220 Multimedia System Name Description • Changes to FM mode. • Each time the key is pressed, the mode changed ➟ in order of FM1 FM2. • Changes to AM mode. • Each time the key is pressed, the mode is changed in order of USB, iPod ®...
  • Page 221 Media Display SETUP Mode Pop up [Mode Pop up] Changes When playing an MP3 file, select the selection mode desired display info from ‘Folder/File’ Display Settings or ‘Album/Artist/Song’. • During On state, press the RADIO key to display the mode MEDIA SETUP Press...
  • Page 222 Multimedia System Audio Settings Speed Dependent Volume Clock Settings This menu allows you to set the Control ‘Bass, Middle, Treble’ and the Sound SETUP Press the key Select [Clock] This feature is used to automatically CLOCK Fader and Balance. through TUNE knob or control the volume level according to Select [Audio Settings] Select menu...
  • Page 223 Clock Settings Calendar Settings Clock Display when Power is This menu is used to set the time. This menu is used to set the date Select [Clock Disp.(Pwr Off)] Set Select [Clock Settings] Set through (MM/DD/YYYY). through TUNE knob TUNE knob Press TUNE knob Select [Calendar...
  • Page 224 Multimedia System ➂ Pairing completion is displayed. Phone Setup Pair Phone (for Bluetooth ® Wireless ❈ In some mobile phones, pairing Technology equipped model) will automatically be followed by NOTICE connection. To pair a Bluetooth ® Wireless ❈ It is possible to pair up to five SETUP Press key Select...
  • Page 225 ➁ Connect the selected mobile Phone List • Changing connection sequence phone. (Priority) The names of up to 5 paired phones ➂ Connection completion is dis- This is used to change the order (pri- will be displayed. played. ority) of automatic connection for the A [ ] is displayed in front of the cur- ❈...
  • Page 226 Multimedia System - The connected phone will automat- Contacts Download Audio Streaming ically be changed to No. 1 priority. This feature is used to download Songs (files) saved your contacts and call histories into the Bluetooth Wireless Technology ® Delete audio system.
  • Page 227 ❈ If Bluetooth Using the Bluetooth ® ® Wireless Wireless Bluetooth ® Wireless Technology System Off Technology System Technology system is turned on, the system will automatically try to To use Bluetooth ® This feature is used when you do not Wireless Technology connect the most recently con- wish to use the Bluetooth...
  • Page 228 Multimedia System System Settings Memory Information Displays currently used memory and total system memory. SETUP Press key Select CLOCK Select [Memory Information] OK [System] through tune knob or The currently used memory is dis- played on the left side while the total system memory is displayed on the right side.

  • Page 229: Radio : Fm, Am

    Preset SEEK Selecting through manual RADIO : FM, AM search Press the Turn the TUNE knob left/right to • Shortly pressing the key : Plays the adjust the frequency. frequency saved in the correspon- • FM : Changes by 200KHz ding key.
  • Page 230 Multimedia System Repeat MENU : MP3 CD / USB BASIC METHOD OF USE In MP3 CD / USB mode, press Set [ RPT] through the TUNE key. knob or key to repeat the cur- MENU MENU : Audio CD rent song. In CD mode, press key.
  • Page 231 Folder Repeat Copy MENU : iPod ® In iPod mode, press key. Set [ F.RPT] through the TUNE Set [ Copy] through the TUNE MENU knob or key to repeat songs knob or key. within the current folder. ❈ This is used to copy the current ❈...
  • Page 232 Multimedia System Information MENU : My Music Mode Information Set [ Info] through the TUNE In My Music mode, press key. MENU Set [ Info] through the TUNE knob knob or key. key. Displays information of the current Displays information of the current song.
  • Page 233 Delete All Delete Selection AUX is used to play external MEDIA Set [ Del.All] through the TUNE Press the key Set [ Del.Sel] MENU currently connected with the AUX knob or key. through the TUNE knob or key. terminal. Deletes all songs of My Music. Songs within My Music are selected AUX mode will automatically start and deleted.

  • Page 234: Making A Call Using The Steering Wheel Remote Controller

    Multimedia System MAKING A CALL USING THE STEERING WHEEL REMOTE CONTROLLER ❈ The actual feature in the vehicle may differ from the illustration. Name Description ➀ VOLUME Raises or lowers speaker volume. button ➁ Mute the microphone during a call. MUTE button ➂...

  • Page 235: Phone Menu

    Contacts Phone Setup PHONE MENU Press key Set Press the key Set [ Setup] PHONE PHONE Contacts] through the TUNE knob or through the TUNE knob or Press the key to display three PHONE key. key. menus (Call History, Contacts, ®...
  • Page 236 Multimedia System (Continued) (Continued) Information ® • You will not be able to use the • Some cellular phones or other - Using the Bluetooth hands-free feature when your phone devices may cause interference noise Wireless Technology cellular (in the car) is outside of the cellular or malfunction to audio system.
  • Page 237 (Continued) (Continued) (Continued) • Pairing and connecting a Bluetooth ® • Bluetooth ® • The hands-free call volume and Wireless Technology quality may differ depending on the Wireless Technology enabled mobile enabled operation may be unstable mobile phone type. phone will work only when the depending on the communication Bluetooth ®...
  • Page 238 Multimedia System ■ CD Player : AC111C7GE 4-42...
  • Page 239 Name Description Audio Head Unit ❈ In Setup>Display, the radio pop up screen will be displayed when [Mode Pop up] is turned RADIO When the pop up screen is displayed, use the TUNE knob or keys to select the desired mode. •...
  • Page 240 Multimedia System Name Description Go to previous depth(no previous screen) • Radio Mode - Press and hold the key (over 0.8 seconds): Previews each broadcast for 5 seconds each • Media mode SCAN - Press and hold the key (over 0.8seconds): Previews each song (file) for 10seconds each.
  • Page 241 ■ AC103C7GG, AC110C7GE ❋ No logo will be shown if the Bluetooth Wireless Technology feature is not supported. ® 4-45...
  • Page 242 Multimedia System Name Description Audio Head Unit • Each time the key is pressed, the mode is changed in order of USB, iPod ® , AUX, My Music, BT Audio modes. ❈ In Setup>Display, the media pop up screen will be displayed when [Mode Pop up] is turned MEDIA When the pop up screen is displayed, use the...
  • Page 243 Name Description Go to previous depth(no previous screen) BACK • Radio Mode - Press and hold the key (over 0.8 seconds): Previews each broadcast for 5 seconds each • Media mode SCAN - Press and hold the key (over 0.8seconds): Previews each song (file) for 10seconds each.
  • Page 244 Multimedia System Name Description • Changes to FM mode. • Each time the key is pressed, the mode changed ➟ ➟ in order of FM1 ➟ • Changes to AM AMA mode. 4-48...

  • Page 245: Setup (For Rds Model)

    Mode Pop up Sound Settings SETUP (for RDS model) [Mode Pop up] Changes SETUP Press the key Select [Sound] selection mode CLOCK Display Settings through TUNE knob or • During On state, press the RADIO key to display the mode MEDIA Select menu through TUNE knob...
  • Page 246 Multimedia System Audio Settings Speed Dependent Volume Clock Settings Control This menu allows you to set the This feature is used to automatically SETUP ‘Bass, Middle, Treble’ and the Sound Press the key Select [Clock] CLOCK control the volume level according to Fader and Balance.
  • Page 247 Clock Settings Day Settings Clock Display when Power is This menu is used to set the time. This menu is used to set the date Select [Clock Disp.(Pwr Off)] Set Select [Clock Settings] Set through (MM/DD/YYYY). through TUNE knob TUNE knob Press TUNE knob Select [Calendar...

  • Page 248: Phone Setup

    Multimedia System ➂ Pairing completion is displayed. Pair Phone Phone Setup ❈ In some mobile phones, pairing NOTICE (for RDS , Bluetooth ® Wireless will automatically be followed by Technology equipped model) To pair a Bluetooth ® Wireless connection. Technology enabled mobile ❈...
  • Page 249 Phone List Connecting a phone Disconnecting a connected phone • • Select [Phone List] Select mobile Select [Phone List] Select mobile The names of up to 5 paired phones phone through TUNE knob phone through TUNE knob will be displayed. Select [Connect Phone] Select [Disconnect Phone] A [ ] is displayed in front of the cur-...
  • Page 250 Multimedia System • Changing connection sequence Delete Phone book Download • (Priority) Select [Phone List] Select mobile This feature is used to download phone through TUNE knob This is used to change the order (pri- phone book and call histories into ority) of automatic connection for the Select [Delete] the audio system.
  • Page 251 Using the Bluetooth ® Auto Download Outgoing Volume Wireless Technology System When connecting a mobile phone, it This is used to set the volume of your is possible to automatically download voice as heard by the other party To use Bluetooth Wireless Technology ®...
  • Page 252 Multimedia System • Turning On Bluetooth ® Wireless NOTICE SETUP Technology through the CLOCK • Bluetooth Wireless Technology ® connection may become inter- SETUP Press key Select CLOCK mittently disconnected in some [Phone] through TUNE knob mobile phones. Follow these ➀...

  • Page 253: System Settings

    Memory Information Language System Settings (if equipped) This menu is used to set the display Displays currently used memory and and voice recognition language. SETUP Press key Select total system memory. CLOCK Select [Language] Set through TUNE [System] through tune knob or Select [Memory Information] OK knob key Select menu through...

  • Page 254: Radio (For Rds Model) : Fm, Am

    Multimedia System Preset SEEK Selecting through manual RADIO (FOR RDS MODEL) : search FM, AM Press the Turn the TUNE knob left/right to • Shortly pressing the key (under 0.8 adjust the frequency. seconds): Plays the frequency Changing RADIO mode •...
  • Page 255 AST (Auto Store) AF (Alternative Frequency) Info Volume Press the key Set [ AST] Info Volume refers to the sound vol- Press the key Set [ MENU MENU ume upon receiving News or Traffic through TUNE knob or key. through TUNE knob or key.
  • Page 256 Multimedia System Repeat MENU : MP3 CD / USB BASIC METHOD OF USE In MP3 CD / USB mode, press Set [ RPT] through the TUNE key. knob or key to repeat the cur- MENU MENU : Audio CD rent song. In CD mode, press key.
  • Page 257 Folder Repeat Copy MENU : iPod ® In iPod mode, press key. Set [ F.RPT] through the TUNE Set [ Copy] through the TUNE MENU knob or key to repeat songs knob or key. within the current folder. ❈This is used to copy the current ❈...
  • Page 258 Multimedia System Information MENU : My Music Mode Information (If equipped) Set [ Info] through the TUNE Set [ Info] through the TUNE knob knob or key. In My Music mode, press key. MENU key. Displays information of the current Displays information of the current song.
  • Page 259 Delete All Delete Selection AUX is used to play external MEDIA Set [ Del.All] through the TUNE Press the key Set [ Del.Sel] MENU currently connected with the AUX knob or key. through the TUNE knob or key. terminal. Deletes all songs of My Music. Songs within My Music are selected AUX mode will automatically start and deleted.

  • Page 260: Making A Call Using The Steering Wheel Remote

    Multimedia System MAKING A CALL USING THE STEERING WHEEL REMOTE CONTROLLER (if equipped) ❈ The actual feature in the vehicle may differ from the illustration. Name Description ➀ VOLUME Raises or lowers speaker volume. button ➁ Mute the microphone during a call. MUTE button ➂...

  • Page 261: Phone Menu (For Rds Model)

    Phone Book Phone Setup PHONE MENU (FOR RDS MODEL) Press the key Set [ P. Press the key Set [ Setup] PHONE PHONE Book] through the TUNE knob or through the TUNE knob or key. key. Press the key to display three PHONE ®...
  • Page 262 Multimedia System APPENDIX Name Description Name Description Monday Monday Playlists "Playlists" is filtering keyword for Tuesday Tuesday searching mode of playlists for iPod Wednesday Wednesday Songs "Songs" is filtering keyword for Thursday Thursday searching mode of playlists for iPod Friday Friday Audiobooks "Audiobooks"...
  • Page 263 Name Description Name Description Ejecting CD Ejecting CD Setup Setup Audio CD Audio CD Display Setup display mode Track Audio CD song order Mode Pop up This function is used to select Reading Media Reading Media popup menu on or off Not supported Not supported file format Scroll text...
  • Page 264 Multimedia System Name Description Name Description Treble Treble is sound of high frequency. Expert Expert mode. This function is It can be adjusted sound by user used to set exercised value of Fader Fader is sound positon between voice recognition factor FRONT and REAR.
  • Page 265 Name Description Name Description Incoming Call Receivng phone Audio Streaming After pairing phone, audio system ® Call Ended Call Ended can support Bluetooth Wireless Call Rejected When there is unwanted call, Technology streaming mode You push the button on the Outgoing Volume Set outoging volume "0 ~ 5"...
  • Page 266 Multimedia System Name Description Phone does not support Phone does not support Phone Phone book download book download No connected There are phone in the connec- Bluetooth device tion list Phone does not support But it was actually not connected Bluetooth audio BT pairing Downloading stopped...

  • Page 267: Driving Your Vehicle

    Driving your vehicle Before driving............5-3 Special driving conditions........5-37 Before entering the vehicle ...........5-3 Hazardous driving conditions........5-37 Before starting..............5-3 Rocking the vehicle ............5-37 Smooth cornering ............5-38 Ignition switch ............5-5 Driving at night ..............5-38 Key ignition switch............5-5 Driving in the rain ............5-38 Engine Start/Stop button..........5-9 Driving in flooded areas..........5-39 Manual transaxle ..........5-19...
  • Page 268 HYUNDAI dealer.

  • Page 269: Before Entering The Vehicle

    BEFORE DRIVING Before entering the vehicle Before starting • Check the gauges and indicators in the instrument panel and the mes- • Be sure all windows, outside mir- • Make sure the hood, the tailgate, sages on the instrument display ror(s), and outside lights are clean and the doors are securely closed when the ignition switch is in the...
  • Page 270 Driving your vehicle (Continued) WARNING WARNING You are much more likely to have To reduce the risk of SERIOUS NEVER drink or take drugs and a serious accident if you drink or INJURY or DEATH, take the fol- drive. take drugs and drive. If you are lowing precautions: drinking or taking drugs, don’t Drinking or taking drugs and...

  • Page 271: Ignition Switch

    IGNITION SWITCH Key ignition switch (Continued) WARNING (if equipped) This may lead to loss of direc- To reduce the risk of SERIOUS tional control and braking INJURY or DEATH, take the fol- function, which could cause lowing precautions: an accident. •...
  • Page 272 Driving your vehicle Key ignition switch positions Switch Action Notice Position The ignition key can be removed in the LOCK position. The steering wheel locks to protect the vehi- LOCK cle from theft. (if equipped) Electrical accessories are usable. The steering wheel unlocks. If difficulty is experienced turning the ignition switch to the ACC position, turn the key while turning the steering wheel right and...
  • Page 273 Starting the engine Starting the gasoline engine Vehicle with automatic transaxle: Vehicle with manual transaxle: 1.Make sure the parking brake is WARNING applied. 1.Make sure the parking brake is applied. 2.Make sure the shift lever is in P • Always wear appropriate (Park).
  • Page 274 Driving your vehicle Starting the diesel engine Information Information To start the diesel engine when the • Do not wait for the engine to warm If the engine does not start within 10 engine is cold, it has to be pre-heat- up while the vehicle remains station- seconds after preheating is completed, ed before starting the engine and...

  • Page 275: Engine Start/Stop Button

    Starting and stopping the engine Engine Start/Stop button NOTICE for turbocharger intercooler (if equipped) To prevent damage to the vehicle: 1.Do not race or accelerate the • Do not hold the ignition key in engine immediately after starting the START position for more the engine.
  • Page 276 Driving your vehicle (Continued) WARNING WARNING • NEVER reach through the To reduce risk of serious injury • NEVER press the Engine steering wheel for the Engine or death, NEVER allow children Start/Stop button while the Start/Stop button or any other or any person who is unfamiliar vehicle is in motion except in control while the vehicle is in...
  • Page 277 Engine Stop/Start button positions - Vehicle with manual transaxle Button Position Action Notice • To turn off the engine, stop the vehicle and If the steering wheel is not locked properly then press the Engine Start/Stop button. when you open the driver's door, the warning chime will sound.
  • Page 278 Driving your vehicle - Vehicle with manual transaxle Button Position Action Notice • Press the Engine Start/Stop button while it Do not leave the Engine Start/Stop button in is in the ACC position without depressing the ON position when the engine is not run- the clutch pedal.
  • Page 279 Engine Stop/Start button positions - Vehicle with automatic transaxle Button Position Action Notice To turn off the engine, press the Engine If the steering wheel is not locked properly Start/Stop button with shift lever in P (Park). when you open the driver's door, the warning chime will sound.
  • Page 280 Driving your vehicle - Vehicle with automatic transaxle Button Position Action Notice Press the Engine Start/Stop button while it Do not leave the Engine Start/Stop button in is in the ACC position without depressing the ON position when the engine is not run- the brake pedal.

  • Page 281: Clutch Pedal*

    Starting the engine Starting the gasoline engine Information Vehicle with manual transaxle: • The engine will start by pressing the WARNING 1.Always carry the smart key with Engine Start/Stop button, only when you. the smart key is in the vehicle. •...
  • Page 282 Driving your vehicle Vehicle with automatic transaxle: Starting the diesel engine Information 1.Always carry the smart key with To start the diesel engine when the If the Engine Start/Stop button is you. engine is cold, it has to be pre-heat- pressed while the engine is pre-heat- ed before starting the engine and 2.Make sure the parking brake is...
  • Page 283 Starting and stopping the engine NOTICE NOTICE for turbocharger intercooler To prevent damage to the vehicle: To prevent damage to the vehicle: 1.Do not race or accelerate the • If the engine stalls while you are When the stop lamp fuse is blown, engine immediately after starting in motion, do not attempt to you can't start the engine normal-...
  • Page 284 Driving your vehicle OIB054007 Information If the smart key battery is weak or the smart key does not work correctly, you can start the engine by pressing the Engine Start/Stop button with the smart key in the direction of the pic- ture above.

  • Page 285: Manual Transaxle

    MANUAL TRANSAXLE (IF EQUIPPED) ■ Type A Manual transaxle operation To shift to R (Reverse), make sure the vehicle has completely stopped, The manual transaxle has 5 (or 6) and then move the shift lever to neu- forward gears. The transaxle is fully tral before moving into R (Reverse).
  • Page 286 Driving your vehicle Using the clutch (if equipped) Downshifting NOTICE clutch pedal should Downshift when you must slow down To prevent unnecessary wear or depressed all the way to the floor in heavy traffic or drive up a steep hill damage to the clutch: before: to prevent engine load.

  • Page 287: Good Driving Practices

    Good driving practices • Exercise extreme caution when NOTICE driving on a slippery surface. Be • Never take the vehicle out of gear To prevent damage to the engine, especially careful when braking, and coast down a hill. This is clutch and transaxle: accelerating or shifting gears.
  • Page 288 • ALWAYS wear your seatbelt. the travel lanes. In a collision, an unbelted occupant is significantly more • HYUNDAI recommends you likely to be seriously injured follow all posted speed limits. or killed than a properly belt- ed occupant. •...

  • Page 289: Automatic Transaxle

    AUTOMATIC TRANSAXLE (IF EQUIPPED) Automatic transaxle operation The automatic transaxle has four for- ward speeds and one reverse speed. The individual speeds are selected automatically in the D (Drive) posi- tion. Depress the brake pedal, press the shift button, and then move shift lever. Press the shift button, then move shift lever.
  • Page 290 Driving your vehicle The indicator in the instrument clus- WARNING WARNING ter displays the shift lever position when the ignition switch is in the ON To reduce the risk of serious • Shifting into P (Park) while the position. injury or death: vehicle is in motion may cause you to lose control of •...

  • Page 291: Brake Pedal

    R (Reverse) N (Neutral) D (Drive) Use this position to drive the vehicle The wheels and transaxle are not This is the normal driving position. backward. engaged. The transaxle will automatically shift through a 4-gear sequence, provid- Use N (Neutral) if you need to restart ing the best fuel economy and NOTICE a stalled engine, or if it is necessary...
  • Page 292 Driving your vehicle Sports mode In Sports Mode, moving the shift (Continued) lever backwards and forwards will • If the driver presses the lever to allow you to select the desired range + (Up) or - (Down) position, the of gears for the current driving condi- transaxle may not make the request- tions.
  • Page 293 3.Move the shift lever. 1. Press the shift-lock release but- ton. 2. Press and hold the lock release button on the shift lever. 3. Move the shift lever. 4. Have your vehicle inspected by an authorized HYUNDAI dealer immediately 5-27...

  • Page 294: Parking

    Driving your vehicle Parking Good driving practices • When driving in Sports Mode, slow down before shifting to a lower Always come to a complete stop and • Never move the shift lever from P gear. Otherwise, the lower gear continue to depress the brake pedal.
  • Page 295 • ALWAYS wear your seatbelt. the travel lanes. In a collision, an unbelted occupant is significantly more • HYUNDAI recommends you likely to be seriously injured follow all posted speed limits. or killed than a properly belt- ed occupant. •...

  • Page 296: Braking System

    Driving your vehicle BRAKING SYSTEM Power brakes (Continued) WARNING Your vehicle has power-assisted • Wet brakes may impair the brakes that adjust automatically Take the following precautions: vehicle’s ability to safely slow through normal usage. down; the vehicle may also •...

  • Page 297: Disc Brakes Wear Indicator

    Disc brakes wear indicator Rear drum brakes Parking brake (if equipped) When your brake pads are worn and new pads are required, you will hear Your rear drum brakes do not have a high pitched warning sound from wear indicators.Therefore, have the your front or rear brakes.
  • Page 298 If the recommend that the system be parking brake is released checked by an authorized HYUNDAI unintentionally, serious injury dealer. may occur. •...

  • Page 299: Parking Brake

    Check Parking If the Parking Brake Warning Light Anti-lock Brake System (ABS) Brake Warning Light by remains on after the parking brake is (if equipped ) placing ignition released while engine is running, switch to the ON posi- there may be a malfunction in the WARNING tion (do not start the brake system.
  • Page 300 ABS will not prevent a skid that mend that you contact an authorized ABS is an electronic braking system results from sudden changes in HYUNDAI dealer as soon as possi- that helps prevent a braking skid. direction, such as trying to take a ble.
  • Page 301 Have the battery recharged before injury or death, we recommend illuminate. Pull your car over to driving the vehicle. that you contact your HYUNDAI a safe place and turn the engine dealer as soon as possible. off. Restart the engine. If the ABS...

  • Page 302: Good Braking Practices

    LOCK/OFF do so and we recommend that you position. call an authorized HYUNDAI dealer for assistance. Vehicles with the parking brake not fully engaged are at risk for DO NOT drive with your foot resting on the brake pedal.

  • Page 303: Special Driving Conditions

    SPECIAL DRIVING CONDITIONS Hazardous driving conditions Rocking the vehicle NOTICE When hazardous driving conditions If it is necessary to rock the vehicle If the tires spin at high speed the are encountered such as water, to free it from snow, sand, or mud, tires can explode, and you or oth- snow, ice, mud or sand: first turn the steering wheel right and...

  • Page 304: Smooth Cornering

    Driving your vehicle Smooth cornering Driving at night Driving in the rain Avoid braking or gear changing in Night driving presents more hazards Rain and wet roads can make driving corners, especially when roads are than driving in the daylight. Here are dangerous.

  • Page 305: Driving In Flooded Areas

    • Driving too fast through large pud- Driving in flooded areas dles can affect your brakes. If you Avoid driving through flooded areas must go through puddles, try to unless you are sure the water is no drive through them slowly. higher than the bottom of the wheel •...

  • Page 306: Winter Driving

    Driving your vehicle WINTER DRIVING Snow tires Snow or icy conditions Information You need to keep sufficient distance Do not install studded tires without WARNING between your vehicle and the vehicle first checking local and municipal reg- in front of you. ulations for possible restrictions Snow tires should be equivalent Apply the brakes gently.
  • Page 307 HYUNDAI parts and install the prevent side skids. tire chain after reviewing the instruc- tions provided with the tire chains.

  • Page 308: Winter Precautions

    • Use SAE “S” class or wire should use, we recommend that you it helps prevent corrosion in the cool- chains. consult with an authorized HYUNDAI ing system, lubricates the water dealer. • If you hear noise caused by pump and prevents freezing. Be sure...
  • Page 309 The manufacturer is not authorized HYUNDAI dealer and Under some conditions, snow and responsible for the damage caused most auto parts outlets. Do not use ice can build up under the fenders by such placement.

  • Page 310: Vehicle Weight

    Driving your vehicle VEHICLE WEIGHT Two labels on your driver’s door sill GAW (Gross Axle Weight) Overloading show how much weight your vehicle This is the total weight placed on was designed to carry: the Tire and WARNING each axle (front and rear) - including Loading Information Label and the vehicle curb weight and all payload.

  • Page 311: What To Do In An Emergency

    What to do in an emergency Hazard warning flasher ........6-2 Emergency commodity ........6-21 Fire extinguisher .............6-21 In case of an emergency while driving ....6-3 First aid kit................6-21 If the engine stalls while driving ........6-3 Triangle reflector ............6-21 If the engine stalls at a crossroad or crossing ..6-3 Tire pressure gauge ............6-21 If you have a flat tire while driving......6-3 If the engine will not start ........6-4...

  • Page 312: Hazard Warning Flasher

    What to do in an emergency HAZARD WARNING FLASHER All turn signal lights will flash simul- taneously. • The hazard warning flasher oper- ates whether your vehicle is run- ning or not. • The turn signals do not work when the hazard flasher is on.

  • Page 313: In Case Of An Emergency While Driving

    HYUNDAI dealer. control resulting in an accident. When the vehicle has slowed to If the engine stalls at a cross-...

  • Page 314: If The Engine Will Not Start

    N (Neutral) or P (Park). ized HYUNDAI dealer for assistance. • Check the battery connections to be sure they are clean and tight. • Turn on the interior light. If the light dims or goes out when you operate the starter, the battery is drained.

  • Page 315: Jump Starting

    JUMP STARTING Jump starting can be dangerous if (Continued) WARNING done incorrectly. Follow the jump Batteries contain sulfu- starting procedure in this section to To prevent SERIOUS INJURY or ric acid which is highly avoid serious injury or damage to DEATH to you or bystanders, corrosive.
  • Page 316 What to do in an emergency Jump starting procedure NOTICE (Continued) 1.Position the vehicles close enough • NEVER attempt to recharge To prevent damage to your vehi- that the jumper cables will reach, the battery when the vehicle’s cle: but do not allow the vehicles to battery cables are connected •...
  • Page 317 (+) battery/jumper terminal of the your battery discharging is not assisting vehicle (2). apparent, we recommend that your vehicle be checked by an authorized 6.Connect the second jumper cable HYUNDAI dealer. black, negative battery/chassis ground of the assisting vehicle (3).

  • Page 318: If The Engine Overheats

    HYUNDAI dealer for running and check to be sure the cap, using a thick towel, and assistance.
  • Page 319 If overheating happens again, cause cracks in the engine. To we recommend that you call an prevent damage, add engine authorized HYUNDAI dealer for coolant slowly in small quanti- assistance. ties.

  • Page 320: If You Have A Flat Tire

    What to do in an emergency IF YOU HAVE A FLAT TIRE Jack and tools WARNING Changing a tire can be danger- ous. Follow the instructions in this section when changing a tire to reduce the risk of serious injury or death. OIB064003 Turn the winged hold down bolt OIB064016...

  • Page 321: Changing Tires

    Changing tires Follow these steps to change your (Continued) vehicle’s tire: • ALWAYS place the jack on the WARNING 1.Park on a level, firm surface. designated jacking positions 2.Move the shift lever into P (Park, on the vehicle and NEVER on A vehicle can slip or roll off of a for automatic transaxle vehicle) or the bumpers or any other part...
  • Page 322 What to do in an emergency OIB064005 OIB064006 OIB064007 6.Loosen the wheel lug nuts counter- 7.Place the jack at the designated 8.Insert the jack handle into the jack clockwise one turn each in the jacking position under the frame and turn it clockwise, raising the order shown above, but do not closest to the tire you are chang- vehicle until the tire clears the...
  • Page 323 Information that an authorized HYUNDAI dealer tighten the lug nuts to their Check the tire pressure as soon as pos- proper torque as soon as possi- sible after installing a spare tire.
  • Page 324 To prevent compact spare tire the hub. We recommend that you on any other vehicle because this failure and loss of control pos- consult an authorized HYUNDAI tire has been designed especially sibly resulting in an accident: dealer for assistance.
  • Page 325 NOTICE Information To prevent damaging the compact When the original tire and wheel are spare tire and your vehicle: repaired and reinstalled on the vehi- cle, the lug nut torque must be set cor- • Drive slowly enough for the road rectly to prevent wheel vibration.

  • Page 326: Jack Label

    What to do in an emergency Jack label 1. Model Name 2. Maximum allowable load ■ Example • Type A 3. When using the jack, set your parking brake. 4. When using the jack, stop the engine. 5. Do not get under a vehicle that is supported by a jack.

  • Page 327: Towing

    OIB064010 OIB064012 If emergency towing is necessary, we recommend having it done by an NOTICE authorized HYUNDAI dealer or a • Do not tow the vehicle with the commercial tow-truck service. front wheels on the ground as...

  • Page 328: Removable Towing Hook

    OIB064015 4.Remove the towing hook and If towing is necessary, we recom- install the cover after use. mend you have it done by an author- ized HYUNDAI dealer or a commer- cial tow truck service. 6-18...
  • Page 329 If towing service is not available in an Always follow these emergency tow- emergency, your vehicle may be ing precautions: temporarily towed using a cable or • Place the ignition switch in the chain secured to the emergency tow- position so the steering ing hook at the front (or rear) of the wheel is not locked.
  • Page 330 What to do in an emergency NOTICE To avoid damage to your vehicle and vehicle components when towing: • Always pull straight ahead when using the towing hooks. Do not pull from the side or at a vertical angle. • Do not use the towing hooks to pull a vehicle out of mud, sand or other conditions from which the vehicle cannot be driven out...

  • Page 331: Emergency Commodity

    EMERGENCY COMMODITY (IF EQUIPPED) Your vehicle is equipped with emer- First aid kit To check the tire pressure, take the gency commodities to help you following steps: Supplies for use in giving first aid respond to emergency situation. 1. Unscrew the inflation valve cap such as scissors, bandage and that is located on the rim of the adhesive tape, etc.

  • Page 332: Maintenance

    Maintenance Engine compartment ..........7-3 Fuel filter (For Diesel) ........7-38 Draining water from fuel filter........7-38 Maintenance services ...........7-5 Extracting air from the fuel filter ......7-38 Owner's responsibility............7-5 Air cleaner ............7-39 Owner maintenance precautions ........7-5 Engine compartment precautions (Diesel engine)..7-8 Filter replacement ............7-39 Owner maintenance..........7-9 Climate control air filter ........7-40 Owner maintenance schedule ........7-9...
  • Page 333 Tire maintenance ............7-55 Tire sidewall labeling............7-56 Low aspect ratio tire ............7-60 Fuses..............7-61 Instrument panel fuse replacement ......7-62 Engine compartment panel fuse replacement..7-64 Fuse/Relay panel description ........7-66 Light bulbs.............7-76 Headlight, position light, turn signal light, and front fog light bulb replacement ....7-77 Side repeater light bulb replacement......7-80 Rear combination light bulb replacement ....7-80 High mounted stop light ..........7-81...

  • Page 334: Engine Compartment

    ENGINE COMPARTMENT ■ ■ Gasoline Engine (1.2L) 1. Engine oil filler cap 2. Engine oil dipstick 3. Brake/clutch fluid reservoir 4. Positive battery terminal 5. Negative battery terminal 6. Engine room junction block 7. Air cleaner 8. Radiator cap 9. Engine coolant reservoir 10.
  • Page 335 Maintenance ■ ■ Gasoline Engine (1.4L) 1. Engine oil filler cap 2. Engine oil dipstick 3. Brake/clutch fluid reservoir 4. Positive battery terminal 5. Negative battery terminal 6. Engine room junction block 7. Air cleaner 8. Radiator cap 9. Engine coolant reservoir 10.
  • Page 336 ■ Diesel Engine 1. Engine oil filler cap 2. Brake/clutch fluid reservoir 3. Positive battery terminal 4. Negative battery terminal 5. Engine room junction block 6. Air cleaner 7. Radiator cap 8. Engine coolant reservoir 9. Engine oil dipstick 10. Windshield washer fluid reservoir 11.

  • Page 337: Maintenance Services

    Information cle damage, an accident, or person- authorized HYUNDAI dealer. al injury. Improper owner maintenance during You should retain documents that the warranty period may affect war- show proper maintenance has been ranty coverage.
  • Page 338 • Do not drive long time with work, we recommend that the the engine cover (if equipped) WARNING system be serviced by an removed. authorized HYUNDAI dealer. • When checking engine Do not leave gloves, rags or any • Working under the hood with room, do not go near fire.

  • Page 339: Engine Compartment Precautions (Diesel Engine)

    Maintenance (Continued) Engine compartment precau- WARNING tions (Diesel engine) • When you remove the interior trim cover with a flat head (-) • The injector operates at high volt- Diesel Engine driver, be careful not to damage age (maximum 200v). Therefore, Never work on injection system the cover.

  • Page 340: Owner Maintenance

    "hard-to-push" brake pedal. of their condition, we recommend • If any slipping or changes in the that you contact an authorized operation of your transaxle occurs, HYUNDAI dealer. check the transaxle fluid level. WARNING • Check automatic transaxle P (Park) function.
  • Page 341 Maintenance At least monthly: At least twice a year At least once a year: (i.e., every Spring and Fall): • Check the coolant level in the • Clean the body and door drain engine coolant reservoir. holes. • Check the radiator, heater and air conditioning hoses for leaks or •...

  • Page 342: Scheduled Maintenance Service

    SCHEDULED MAINTENANCE SERVICE If your vehicle is operated under the Follow the Normal Maintenance Schedule if the vehicle is usually above conditions, should operated where none of the following inspect, replace or refill more fre- conditions apply. If any of the follow- quently than the following Normal Maintenance Schedule.
  • Page 343 : If good quality gasolines that meet Europe Fuel standards (EN228) or equivalents including fuel additives is not available, one bottle of additive is recommended. Additives are available from your authorized HYUNDAI dealer along with information on how to use them. Do not mix other additives.
  • Page 344 If there are some important safety matters like fuel flow restriction, surging, loss of power, hard start- ing problem etc, replace the fuel filter immediately regardless of maintenance schedule and consult an authorized HYUNDAI dealer for details.
  • Page 345 Maintenance NORMAL MAINTENANCE SCHEDULE - GASOLINE ENGINE (CONT.) MAINTENANCE Number of months or driving distance, whichever comes first INTERVALS Months MAINTENANCE Miles×1,000 ITEM Km×1,000 At first, replace at 210,000 km (120,000 miles) or 120 months: Engine coolant * after that, replace every 30,000 km (20,000 miles) or 24 months * Battery condition All electrical systems Brake lines, hoses and connections...
  • Page 346 NORMAL MAINTENANCE SCHEDULE - GASOLINE ENGINE (CONT.) MAINTENANCE Number of months or driving distance, whichever comes first INTERVALS Months Miles×1,000 MAINTENANCE Km×1,000 ITEM Steering gear rack, linkage and boots Driveshaft and boots Tire (pressure & tread wear) Front suspension ball joints Bolt and nuts on chassis and body Air conditioner refrigerant (if equipped) Air conditioner compressor (if equipped)
  • Page 347 Maintenance MAINTENANCE UNDER SEVERE USAGE CONDITIONS - GASOLINE ENGINE The following items must be serviced more frequently on cars mainly used under severe driving conditions. Refer to the chart below for the appropriate maintenance intervals. I : Inspect and if necessary, adjust, correct, clean or replace R : Replace or change Maintenance Maintenance item...
  • Page 348 Maintenance Maintenance item Maintenance intervals Driving condition operation Inspect more frequently Front suspension ball joints C, D, E, F, G depending on the condition Inspect more frequently Disc brakes and pads, calipers and rotors C, D, E, G, H depending on the condition Inspect more frequently Drum brakes and linings C, D, E, G, H...
  • Page 349 HYUNDAI dealer for details. : If the diesel fuel specification don't meet the EN590, it must be replaced more frequently. HYUNDAI recommends "every 7,500km inspection, every 15,000km replacement".
  • Page 350 NORMAL MAINTENANCE SCHEDULE - DIESEL ENGINE (CONT.) MAINTENANCE Number of months or driving distance, whichever comes first INTERVALS Months Miles×1,000 12.5 37.5 62.5 87.5 MAINTENANCE Km×1,000 ITEM At first, replace every 210,000 km (120,000 miles) or 120 months: Engine coolant * after that, replace every 30,000 km (20,000 miles) or 24 months * Battery condition All electrical systems...
  • Page 351 Maintenance NORMAL MAINTENANCE SCHEDULE - DIESEL ENGINE (CONT.) Number of months or driving distance, whichever comes first MAINTENANCE Months INTERVALS Miles×1,000 12.5 37.5 62.5 87.5 MAINTENANCE Km×1,000 ITEM Steering gear rack, linkage and boots Drive shaft and boots Tire (pressure & tread wear) Front suspension ball joints Bolt and nuts on chassis and body Air conditioner refrigerant...
  • Page 352 MAINTENANCE UNDER SEVERE USAGE CONDITIONS - DIESEL ENGINE The following items must be serviced more frequently on cars mainly used under severe driving conditions. Refer to the chart below for the appropriate maintenance intervals. R : Replace I : Inspect and if necessary, adjust, correct, clean or replace Maintenance Maintenance item Maintenance intervals...
  • Page 353 Maintenance Maintenance Maintenance item Maintenance intervals Driving condition operation Inspect more frequently Disc brakes and pads, calipers and rotors C, D, E, G, H depending on the condition Inspect more frequently Parking brake C, D, G, H depending on the condition Inspect more frequently C, D, E, F, G, Driveshaft and boots...

  • Page 354: Explanation Of Scheduled Maintenance Items

    If an excessive amount of lines, fuel hoses and connections be are required. foreign matter accumulates in the replaced by an authoized HYUNDAI fuel tank, the filter may require dealer. replacement more frequently. Drive belts...
  • Page 355 Inspect the surface of hoses for evi- vals specified in the maintenance dence of heat and/or mechanical HYUNDAI dealer. schedule. Make sure that a new damage. Hard and brittle rubber, vapor hose or fuel filler cap is cor-...
  • Page 356 We recommend that the automatic transaxle fluid changed by an author- Brake fluid ized HYUNDAI dealer according to Coolant Check brake fluid level in the brake the maintenance schedule. The coolant should be changed at fluid reservoir. The level should be the intervals specified in the mainte- between "MIN"...
  • Page 357 Maintenance Brake discs, pads, calipers Drive shafts and boots and rotors Check the drive shafts, boots and clamps for cracks, deterioration, or Check the pads for excessive wear, discs for run out and wear, and damage. Replace any damaged parts and, if necessary, repack the calipers for fluid leakage.

  • Page 358: Engine Oil

    ENGINE OIL ■ Gasoline engine Checking the engine oil level 3.Turn the engine off and wait for a few minutes (about 5 minutes) for ■ Gasoline engine the oil to return to the oil pan. 4.Pull the dipstick out, wipe it clean, and reinsert it fully.

  • Page 359: Changing The Engine Oil And Filter

    Always protect your skin by washing your hands thoroughly with soap and warm water as soon as possible after handling used oil. We recommend that the engine oil and filter be replaced by an author- ized HYUNDAI dealer. 7-28...

  • Page 360: Engine Coolant

    ENGINE COOLANT The high-pressure cooling system Checking the coolant level (Continued) has a reservoir filled with year-round • Turn the engine off and wait antifreeze coolant. The reservoir is WARNING until it cools down. Use filled at the factory. extreme care when removing Check the antifreeze protection and Removing radiator the radiator cap.
  • Page 361 It may some- ized HYUNDAI dealer. times operate even when the engine is not running. Use OIB074008 extreme caution when working ■...

  • Page 362: Recommended Engine Coolant

    ■ Gasoline engine Recommended engine coolant WARNING • Use only soft (distilled) water in the coolant mixture. Radiator cap • The engine in your vehicle has alu- minum engine parts and must be protected by an ethylene-glycol- based coolant to prevent corrosion and freezing.

  • Page 363: Changing The Coolant

    Maintenance Changing the coolant WARNING We recommend that the coolant be replaced by an authorized HYUNDAI Coolant dealer. • Do not use radiator coolant or antifreeze in the washer fluid NOTICE reservoir. Put a thick cloth or fabric around •...

  • Page 364: Brake/Clutch Fluid

    Information If the fluid level is excessively low, we recommend that the system be Before removing the brake/clutch fil- OIB074012 checked by an authorized HYUNDAI ter cap, read the warning on the cap. ■ Diesel Engine dealer. WARNING Use only the specified brake/clutch fluid.
  • Page 365 Maintenance NOTICE WARNING Do not allow brake/clutch fluid to Brake/clutch fluid contact the vehicle's body paint, as paint damage will result. When changing and adding brake/clutch fluid, handle it Brake/clutch fluid, which has been carefully. Do not let it come in exposed to open air for an extend- contact with your eyes.

  • Page 366: Automatic Transaxle Fluid

    AUTOMATIC TRANSAXLE FLUID (IF EQUIPPED) Checking the automatic 2.After the transaxle is warmed up sufficiently (fluid temperature transaxle fluid level 70~80°C (158~176°F), for example by 10 minutes usual driving, move the shift lever through all the posi- tions then place the shift lever in "N (Neutral) or P (Park)"...

  • Page 367: Changing The Automatic Transaxle Fluid

    8.) "C" (COLD) range is for reference only and should NOT be used to deter- Changing the automatic mine the transaxle fluid level. transaxle fluid We recommend that the system be replaced by an authorized HYUNDAI dealer. 7-36...

  • Page 368: Washer Fluid

    HYUNDAI dealer. • Windshield washer fluid is poisonous to humans and Stroke : 6~8 “clicks’’ at a force of animals.

  • Page 369: Fuel Filter (For Diesel)

    • Clean the fuel around the fuel filter authorized HYUNDAI dealer. or the injection pump before start- OIB074016 ing the engine to prevent fire.

  • Page 370: Air Cleaner

    Clean the filter by using compressed damage may result. air. • We recommend that you use 1. Loosen the air cleaner cover parts for replacement from an attaching clips and open the cover. authorized HYUNDAI dealer. 7-39...

  • Page 371: Climate Control Air Filter

    Maintenance CLIMATE CONTROL AIR FILTER (IF EQUIPPED) Filter inspection Filter replacement If the vehicle is operated in the severely air-polluted cities or on dusty rough roads for a long period, it should be inspected more fre- quently and replaced earlier. When you, the owner, replace the climate control air filter, replace it performing the following procedure, and be care-...
  • Page 372 OIB074023 ODH073012 4. Replace the climate control air filter. 5. Reassemble in the reverse order of disassembly. Information When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the OIB074024 effectiveness of the filter may be 3.

  • Page 373: Wiper Blades

    Maintenance WIPER BLADES Blade inspection Contamination of either the wind- Blade replacement shield or the wiper blades with for- When the wipers no longer clean eign matter can reduce the effective- adequately, the blades may be worn ness of the windshield wipers. or cracked, and require replacement.
  • Page 374 Front windshield wiper blade Rear window wiper blade (if equipped) OLMB073021 OLMB073020 OLMB073023 1. Raise the wiper arm and turn the wiper blade assembly to expose 1.Raise the wiper arm and rotate the the plastic locking clip. wiper blade assembly (1). 2.Pull out the wiper blade assembly.
  • Page 375 4.Make sure the blade assembly is installed firmly by trying to pull it slightly. To prevent damage to the wiper arms or other components, we recom- mend that the wiper blade be replaced by an authorized HYUNDAI dealer. 7-44...

  • Page 376: Battery

    • Keep the terminals and connec- caps. We recommend that you contact explode if ignited. tions clean, tight, and coated with an authorized HYUNDAI dealer. Keep batteries out of gasolineeum jelly or terminal the reach of children grease.
  • Page 377 Please bodily injury or death. sensation, get medical return the battery to an attention immediately. authorized HYUNDAI NOTICE Wear eye protection dealer to be recycled. when charging •...

  • Page 378: Battery Capacity Label

    (boiling) violently or if the temperature 1. CMF60L-BCI : The HYUNDAI of the electrolyte of any cell model name of battery exceeds 49°C (120°F). 2. 12V : The nominal voltage •...

  • Page 379: Reset Items

    Maintenance Reset items (Continued) Items should be reset after the bat- • Disconnect the battery charg- tery has been discharged or the bat- er in the following order. tery has been disconnected. 1.Turn off the battery charger • Auto up/down window main switch.

  • Page 380: Tire Care

    TIRES AND WHEELS Tire care WARNING For proper maintenance, safety, and maximum fuel economy, you must Tire underinflation always maintain recommended tire Severe underinflation (70 kPa inflation pressures and stay within (10 psi) or more) can lead to the load limits and weight distribution severe heat build-up, causing recommended for your vehicle.
  • Page 381 Without the since startup.) checked authorized valve cap, dirt or moisture could HYUNDAI dealer. • Check the pressure of your get into the valve core and spare tire each time you check • Overinflation produces a harsh cause air leakage.

  • Page 382: Checking Tire Inflation Pressure

    Replace tires that are worn, show uneven wear, or are damaged. • Remember to check the pres- sure your spare tire. HYUNDAI recommends that you check the spare every time you check the pressure of the other tires on your vehicle. 7-51...

  • Page 383: Tire Rotation

    Refer to “Tire and wheels” in chapter are damaged. • Remember to check the pres- sure your spare tire. HYUNDAI recommends that you check the spare every time you check the pressure CBGQ0707A of the other tires on your vehi- cle. 7-52...

  • Page 384: Wheel Alignment And Tire Balance

    Disc brake pads should be inspected Wheel alignment and tire bal- Tire replacement for wear whenever tires are rotated. ance Tread wear indicator The wheels on your vehicle were Information aligned and balanced carefully at the factory to give you the longest tire life Rotate radial tires that have an asym- and best overall performance.
  • Page 385 Replace tires that are worn, solved, we recommend that you HYUNDAI's specifications show uneven wear, or are contact an authorized HYUNDAI may fit poorly and result in damaged. Worn tires can dealer. damage to the vehicle or cause loss of braking effec-...

  • Page 386: Wheel Replacement

    Compact spare tire replacement Wheel replacement Tire traction (if equipped) When replacing the metal wheels for Tire traction can be reduced if you A compact spare tire has a shorter any reason, make sure the new drive on worn tires, tires that are tread life than a regular size tire.

  • Page 387: Tire Sidewall Labeling

    Maintenance 2. Tire size designation Tire sidewall labeling 94 - Load Index, a numerical code associated with the maximum A tire’s sidewall is marked with a tire load the tire can carry. size designation. You will need this H - Speed Rating Symbol. See the information when selecting replace- speed rating chart in this chapter ment tires for your car.
  • Page 388 Tire speed ratings 3. Checking tire life (TIN : Tire WARNING Identification Number) The chart below lists many of the dif- ferent speed ratings currently being Any tires that are over 6 years old, Tire age used for passenger car tires. The based on the manufacturing date, Tires degrade over time, even speed rating is part of the tire size...
  • Page 389 Maintenance 4. Tire ply composition and 6. Maximum load rating Tread wear material This number indicates the maximum The tread wear grade is a compara- load in kilograms and pounds that tive rating based on the wear rate of The number of layers or plies of rub- the tire when tested under controlled can be carried by the tire.
  • Page 390 Traction - AA, A, B & C Temperature -A, B & C WARNING The traction grades, from highest to The temperature grades are A (the lowest, are AA, A, B and C. Those highest), B, and C, representing the Tire temperature grades represent the tire’s ability to tire’s resistance to the generation of The temperature grade for this...

  • Page 391: Low Aspect Ratio Tire

    - If the tire is impacted, we recom- mend that you inspect the tire condition or contact an author- ized HYUNDAI dealer. - To prevent damage to the tire, inspect the tire condition and pressure every 3,000km.

  • Page 392: Fuses

    HYUNDAI dealer. Information Three kinds of fuses are used: blade type for lower amperage rating, car- The actual fuse/relay panel label may tridge type and multi fuse for higher differ from equipped items.

  • Page 393: Instrument Panel Fuse Replacement

    2. Open the fuse panel cover. authorized HYUNDAI dealer. • Do not input any other objects except fuses or relays into fuse/relay terminals such as a driver or wiring.
  • Page 394 If it fits loosely, we recommend that 1. Turn off the engine. you consult an authorized HYUNDAI 2. Turn off the headlights and tail dealer. lights. If you do not have a spare, use a 3.

  • Page 395: Engine Compartment Panel Fuse Replacement

    4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, we rec- ommend that you consult an authorized HYUNDAI dealer. 7-64...
  • Page 396 CAUTION If the main fuse is not assem- bled properly, it may cause fire. If the main fuse is blown, we recommend that you consult an authorized HYUNDAI dealer. OIB074031 4. Reinstall in the reverse order of removal. OIB074032 If the main fuse is blown, it must be removed as follows: 1.

  • Page 397: Fuse/Relay Panel Description

    Maintenance Fuse/Relay panel description Inner fuse panel OIB074033 Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity. Information OIB074044 Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing.
  • Page 398 Driver’s side fuse panel Fuse Name Symbol Fuse rating Circuit Protected SAFETY P/WDW Driver Safety Power Window Module P/WDW LH Power Window Main Switch, Passenger Power Window Switch HTD MIRR ECM, A/C Control Module, Driver/Passenger Power Outside Mirror FOG LP FRT Front Fog Lamp Relay RR HTD RR HTD Relay...
  • Page 399 Maintenance Driver’s side fuse panel Fuse Name Symbol Fuse rating Circuit Protected A/C Control Module, E/R Junction Block (Multipurpose Check Connector), Center Facia MODULE3 Switch, ATM Shift lever ILL PDM1 Smart Key Control Module PDM2 Smart Key Control Module, Start/Stop Button Switch Rear Parking Assist Sensor Buzzer, Rear Parking Assist Sensor LH/RH, Rear Parking MODULE2 Assist Sensor LH/RH (Center)

  • Page 400: Hazard Switch

    Driver’s side fuse panel Fuse Name Symbol Fuse rating Circuit Protected A/CON E/R Junction Block (Blower Relay), A/C Control Module, Cluster Ionizer (Auto A/C) WASHER Washer Motor MODULE 5 Electro Chromic Mirror, BCM, E/R Junction Block (H/Lamp HI Relay) A/BAG IND Instrument Cluster AUDIO Audio...
  • Page 401 Maintenance Engine compartment fuse panel OIB074031 Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity. Information Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing.
  • Page 402 Engine compartment main fuse panel Fuse Name Symbol Fuse rating Circuit Protected MDPS MDPS Unit [125A] Alternator Fuse - F9 / F10 / F11, Alternator Fuse : Gasoline - 125A, Diesel - 150A (150A) ECU 4 ECM/PCM I/P Junction Block (Power Connector (Fuse - F45, F46), Fuse - F5, F9, F34) W/O Button Start : Ignition Switch With Button Start : PDM Relay Box (IG1 / ACC Relay) I/P Junction Block (Fuse - F11, F20, F23, F24)
  • Page 403 Maintenance PCB Block (Gasoline engine) Fuse Name Symbol Fuse rating Circuit Protected ECU 1 PCB Block (Engine Control Relay, Fuse - F25) HORN Horn Relay, B/Alarm Horn Relay F/PUMP F/Pump Relay WIPER FRT Wiper Lo Relay H/LAMP LO H/Lamp Lo Relay H/LAMP HI [20A] (10A) H/Lamp Hi Relay...
  • Page 404 PCB Block (Gasoline engine) Fuse Name Symbol Fuse rating Circuit Protected H/LAMP RH Head Lamp RH H/LAMP LH Head Lamp LH ECU 2 ECM, Injector #1/#2/#3 G4LA : Ignition Coil IGN COIL G4LC : Ignition Coil #1/#2/#3/#4, Condenser 7-73...
  • Page 405 Maintenance PCB Block (Diesel engine) Fuse Name Symbol Fuse rating Circuit Protected ECU 1 PCB Block (Engine Control Relay) HORN Horn Relay, B/Alarm Horn Relay WIPER FRT Wiper Lo Relay H/LAMP LO H/Lamp Lo Relay H/LAMP HI [20A] (10A) H/Lamp Hi Relay C/FAN C/Fan Lo Relay, C/Fan Hi Relay BLOWER...
  • Page 406 PCB Block (Diesel engine) Fuse Name Symbol Fuse rating Circuit Protected ECU 4 E/R Junction Block (RLY. 1), Electrical EGR Control Valve, Mass Air Flow Sensor, ECU 2 WGT Control Solenoid Valve, Cam Shaft Position Sensor, Immobilizer Module ECU 5 Fuel Pressure Regulator Valve 7-75...

  • Page 407: Light Bulbs

    HYUNDAI prevent possible electric shock. dealer. Be aware the bulbs may be hot and may burn your fingers.

  • Page 408: Headlight, Position Light, Turn Signal Light

    (3) Front turn signal light flying pieces of glass if bro- ken. (4) Front fog light (if equipped) Information (Continued) If the headlight aiming adjustment is necessary after the headlight assembly is reinstalled, consult an authorized HYUNDAI dealer. 7-77...
  • Page 409 Maintenance Headlight (Low/High) Turn signal light 7. Connect the headlight bulb socket connector. 1. Remove the turn signal light bulb 8. Install the headlight bulb cover by cover by turning it counterclock- Headlight turning it clockwise. wise. 2. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on...
  • Page 410 Parking (Position) light Front fog light bulb replacement 1. Remove the socket from the 1. Remove the under cover by rotat- assembly by pulling it straight out. ing the screws and bolts. 2. Remove the bulb from the socket 2. Reach your hand into the back of by pulling it out.

  • Page 411: Rear Combination Light Bulb Replacement

    OIB074036 If the light bulb does not operte, we (1) Stop and tail light recommend that the vehicle be (2) Back up light checked by an authorized HYUNDAI (3) Turn signal light dealer. OIB074038 1. Open the tailgate 2. Loosen the light assembly retain- ing screws with a cross-tip screw- driver.

  • Page 412: High Mounted Stop Light

    If the light does not operate, we rec- counterclockwise until the tabs on ommend that the vehicle be checked the socket align with the slots on by an authorized HYUNDAI dealer. the assembly. 5. Remove the bulb from the socket by pressing it in and rotating it...

  • Page 413: License Plate Light Bulb Replacement

    Maintenance License plate light bulb 4. Insert a new bulb in the socket. Interior light bulb replacement replacement 5. Reassemble the socket and the ■ Room lamp housing part. 6. Reinstall the light assembly to the body of the vehicle. ■...
  • Page 414 1. Using a flat-blade screwdriver, gently pry the lens from the interi- or light housing. 2. Remove the bulb by pulling it straight out. 3. Install a new bulb in the socket. 4. Align the lens tabs with the interior light housing notches and snap the lens into place.

  • Page 415: Appearance Care

    Maintenance APPEARANCE CARE Finish maintenance Exterior care NOTICE Washing Exterior general caution • Do not use strong soap, chemi- To help protect your vehicle’s finish It is very important to follow the label cal detergents or hot water, and from rust and deterioration, wash it directions when using any chemical do not wash the vehicle in direct thoroughly and frequently at least...
  • Page 416 Finish damage repair Waxing Wax the vehicle when water will no Deep scratches or stone chips in the longer bead on the paint. painted surface must be repaired promptly. Exposed metal will quickly Always wash and dry the vehicle rust and may develop into a major before waxing.
  • Page 417 Maintenance Bright-metal maintenance Underbody maintenance WARNING • To remove road tar and insects, Corrosive materials used for ice and use a tar remover, not a scraper or snow removal and dust control may After washing the vehicle, test other sharp object. collect on the underbody.
  • Page 418 Aluminum wheel maintenance Corrosion protection High-corrosion areas The aluminum wheels are coated If you live in an area where your vehi- Protecting your vehicle from corro- with a clear protective finish. cle is regularly exposed to corrosive sion materials, corrosion protection is •...
  • Page 419 Maintenance Moisture breeds corrosion To help prevent corrosion • When cleaning underneath the vehicle, give particular attention to Moisture creates the conditions in You can help prevent corrosion from the components under the fenders which corrosion is most likely to getting started by observing the fol- and other areas that are hidden occur.

  • Page 420: Interior Care

    Keep your garage dry Don't neglect the interior Interior care Don't park your vehicle in a damp, Moisture can collect under the floor Interior general precautions poorly ventilated garage. This cre- mats and carpeting and cause corro- Prevent chemicals such as perfume, ates a favorable environment for cor- sion.
  • Page 421 Maintenance Cleaning the upholstery and Cleaning the lap/shoulder belt interior trim webbing Vinyl Clean the belt webbing with any mild soap solution recommended for Remove dust and loose dirt from cleaning upholstery or carpet. Follow vinyl with a whisk broom or vacuum the instructions provided with the cleaner.

  • Page 422: Emission Control System

    Module (ECM); when the engine car inspected and maintained by an coolant temperature is low during authorized HYUNDAI dealer in idling, the PCSV closes so that evap- accordance with the maintenance orated fuel is not taken into the schedule in this manual.

  • Page 423: Exhaust Emission Control System

    Maintenance Engine exhaust gas precautions 3. Exhaust emission control • Do not operate the engine in con- fined or closed areas (such as system (carbon monoxide) garages) any more than what is Exhaust Emission Control • Carbon monoxide can be present necessary to move the vehicle in or System is a highly effective system with...
  • Page 424 All inspections and tem, do not seal the bottom of adjustments must be made by an the vehicle or do not coat the authorized HYUNDAI dealer. vehicle for corrosion control. It may present a fire risk under certain conditions.

  • Page 425: Specifications & Consumer Information

    Specifications & Consumer information Dimensions ..............8-2 Engine ..............8-2 Bulb wattage............8-2 Tires and wheels ............8-3 Recommended lubricants and capacities ...8-4 Recommended sae viscosity number ......8-5 Vehicle identification number (VIN)....8-6 Vehicle certification label ........8-6 Tire specification and pressure label ....8-7 Engine number ............8-7 Air conditioner compressor label ......8-7...

  • Page 426: Engine

    Specifications & Consumer information DIMENSIONS BULB WATTAGE Item mm (in) Light Bulb Wattage (W) Overall length 3,985 (156.9) Headlights (High/Low) 60/55 Overall width 1,734 (68.3) Front turn signal Overall height 1,485 (58.4) Position lights Front tread 1,523 (59.9)* /1,511 (59.5)* Side repeater light*(Outside mirror) Rear tread 1,525 (60.0)*...
  • Page 427 TIRES AND WHEELS Inflation pressure (psi) Wheel lug nut Item Tire size Wheel size torque Normal load * Maximum load kg•m (lb•ft, N•m) Front Rear Front Rear 185/70R14 5.5J x 14 230 (33) 215(31) 230(33) 230(33) Full size tire 9~11 195/55R16 6.0J x 16 230 (33)

  • Page 428: Recommended Lubricants And Capacities

    1.8 ~ 1.9 l API Service GL-4, SAE 70W Manual transaxle fluid 1.4L (1.9 ~ 2.0 US qt.) (HYUNDAI genuine transaxle fluid) 1.7 ~ 1.8 l Diesel engine (1.8 ~ 1.9 US qt.) Automatic transaxle fluid 6.8 l (7.2 US qt.) DIAMOND ATF SP-III, SK ATF SP-III 4.2 ~ 4.4 l...

  • Page 429: Recommended Sae Viscosity Number

    Recommended SAE viscosity Engine oil viscosity (thickness) has Using oils of any viscosity other than an effect on fuel economy and cold those recommended could result in number weather operating (engine start and engine damage. engine oil flowability). Lower viscosi- When choosing an oil, consider the CAUTION ty engine oils can provide better fuel...

  • Page 430: Vehicle Identification Number (Vin)

    Specifications & Consumer information VEHICLE IDENTIFICATION NUMBER (VIN) VEHICLE CERTIFICATION LABEL ■ Type A ■ Type B OIB084003 OIB074054 The vehicle identification number The VIN is also on a plate attached OIB074059 (VIN) is the number used in register- to the top of the dashboard. The vehicle certification label...

  • Page 431: Tire Specification And Pressure Label

    TIRE SPECIFICATION AND ENGINE NUMBER AIR CONDITIONER PRESSURE LABEL COMPRESSOR LABEL ■ Gasoline engine OIB084001 ■ Diesel Engine OIB074055 OHC081001 The tires supplied on your new vehi- A compressor label informs you the cle are chosen to provide the best type of compressor your vehicle is performance for normal driving.

Table of Contents

Save PDF
