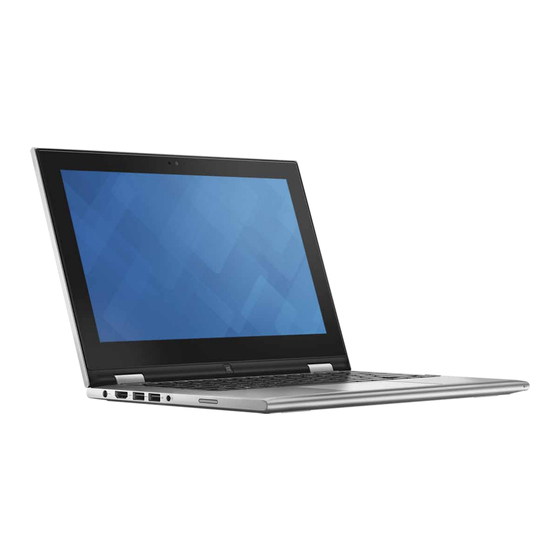

Inspiron 11
3000 Series
Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and
intellectual property laws. Dell and the Dell logo are trademarks of Dell Inc. in the United States and/or other
jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies
2015 ‑ 01
Rev. A01
Regulatory model: P20T | Type: P20T002
Computer model: Inspiron 3148
Views
Modes
Specifications
NOTE: The images in this document may differ from your computer
depending on the configuration you ordered.

Advertisement

Table of Contents
loading

Related Manuals for Dell Inspiron 11

Summary of Contents for Dell Inspiron 11

  • Page 1 Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies 2015 ‑...
  • Page 2 Views Specifications Front Front Left Right Power/Battery status light Base Indicates the power state and battery state of the computer. Solid white — Power adapter is connected to the computer and the battery is being charged. Solid yellow — Battery charge is low or critical. Display Off —...
  • Page 3 Views Specifications Left Front Left Right Power-adapter port NOTE: Certain USB devices may not charge when the computer is turned off or in the Sleep state. In Connect a power adapter to provide power to your such cases, turn on the computer to charge the computer and charge the battery.
  • Page 4 Security-cable slot behavior in Power Options. For more information, Display Connect a Noble security cable to prevent unauthorized see Me and My Dell at dell.com/support/manuals. movement of your computer. Volume-control buttons (2) Press to increase or decrease the volume. Right speaker...
  • Page 5 Views Specifications Base Front Left Right Left-click area Right-click area Base Press to left‑click. Press to right‑click. Touch pad Move your finger on the touch pad to move the mouse pointer. Tap to left‑click. Display...
  • Page 6 Views Specifications Display 3 4 5 Front Left Right Left microphone Camera-status light Base Provides high‑quality digital sound input for audio Turns on when the camera is in use. recording, voice calls, and so on. Right microphone Ambient-light sensor Provides high‑quality digital sound input for audio Detects the ambient light and automatically adjusts the recording, voice calls, and so on.
  • Page 7 Modes Tablet Notebook Tablet Stand Tent...

  • Page 8: Dimensions And Weight

    Specifications Views Dimensions and weight Height 19 mm (0.74 in) Width 300 mm (11.81 in) Depth 201 mm (7.91 in) Weight (minimum) 1.40 kg (3.08 lb) NOTE: The weight of your computer varies depending on the configuration ordered and the manufacturing variability. Dimensions and System Ports and...

  • Page 9: System Information

    Specifications Views System information Computer model Inspiron 3148 Processor Generation Intel Core i3 Chipset Integrated in the processor Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-card Computer Display Keyboard Camera Touch pad Battery Power adapter reader environment...

  • Page 10: Memory

    Specifications Views Memory Slot One SODIMM slot Type DDR3L Speed 1600 MHz Configurations supported 4 GB Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-card Computer Display Keyboard Camera Touch pad Battery Power adapter reader environment...

  • Page 11: Ports And Connectors

    Specifications Views Ports and connectors External: • Two USB 2.0 ports • One USB 3.0 port Audio/Video • One HDMI port • One headphone and microphone combo (headset) port Internal: One M.2 card slot for Wi‑Fi and Bluetooth combo card Dimensions and System Ports and...
  • Page 12 Specifications Views Communications Wireless • Wi‑Fi 802.11b/g/n • Wi‑Fi 802.11ac • Bluetooth 4.0 Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-card Computer Display Keyboard Camera Touch pad Battery Power adapter reader environment...
  • Page 13 Specifications Views Video Controller Intel HD Graphics Memory Shared system memory Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-card Computer Display Keyboard Camera Touch pad Battery Power adapter reader environment...
  • Page 14 Specifications Views Audio Controller Realtek ALC3234 with Waves MaxxAudio Speakers Speaker output: Average Peak 2.5 W Microphone Digital‑array microphones in camera assembly Volume controls Media‑control shortcut keys and volume‑control buttons. Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors...
  • Page 15 Specifications Views Storage Interface SATA 3 Gbps Hard drive One 2.5‑inch drive Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-card Computer Display Keyboard Camera Touch pad Battery Power adapter reader environment...

  • Page 16: Media Card Reader

    Specifications Views Media-card reader Type One 2‑in‑1 slot Cards supported • SD card • MultiMedia Card (MMC) Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-card Computer Display Keyboard Camera Touch pad Battery Power adapter reader environment...
  • Page 17 Specifications Views Display Type 11.6‑inch HD WLED touch Resolution (maximum) 1366 x 768 Dimensions: Height 143.81 mm (5.66 in) Width 256.12 mm (10.08 in) Diagonal 294.64 mm (11.60 in) Refresh rate 60 Hz Operating angle 0 degree (closed) to 360 degrees Viewing angle 160 degrees Pixel pitch...
  • Page 18 Specifications Views Keyboard Type Chiclet keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key.

  • Page 19: Shortcut Keys

    Keyboard Shortcut keys Mute audio Turn off/on wireless Decrease volume Pause/Break Increase volume Shortcut/Secondary menu (Fn + Right Ctrl) Play/Pause Sleep Open Search charm Scroll lock Open Share charm Open Devices charm Open Settings charm List recently‑used apps Display active app menu‑bar Decrease brightness Increase brightness...
  • Page 20 Specifications Views Camera Resolution: Still image 0.92 megapixel Video 1280 x 720 (HD) at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-card Computer Display Keyboard Camera Touch pad Battery Power adapter...

  • Page 21: Touch Pad

    Specifications Views Touch pad Resolution: Horizontal 1207 dpi Vertical 1702 dpi Dimensions: Width 102.40 mm (4.03 in) Height 77.40 mm (3.04 in) Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-card Computer Display Keyboard Camera Touch pad Battery Power adapter...
  • Page 22 Specifications Views Battery Type 3 cell Dimensions: Width 77.20 mm (3.04 in) Depth 254 mm (10 in) Height 6.80 mm (0.27 in) Weight (maximum) 0.25 kg (0.55 lb) Voltage 11.4 VDC Charging time when the computer is off Within 4 hours (approximate) Operating time Varies depending on operating conditions and can significantly reduce under...

  • Page 23: Power Adapter

    Specifications Views Power adapter Type 65 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current 1.60 A/1.70 A Output current 3.34 A Rated output voltage 19.50 VDC Temperature range: Operating 0°C to 40°C (32°F to 104°F) Storage –40°C to 70°C (–40°F to 158°F) Dimensions and...

  • Page 24: Computer Environment

    Specifications Views Computer environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 40°C (32°F to 104°F) –40°C to 65°C (–40°F to 149°F) Relative humidity (maximum) 10% to 90% (non‑condensing) 0% to 95% (non‑condensing) Vibration (maximum)  0.66 GRMS 1.30 GRMS Shock (maximum)
