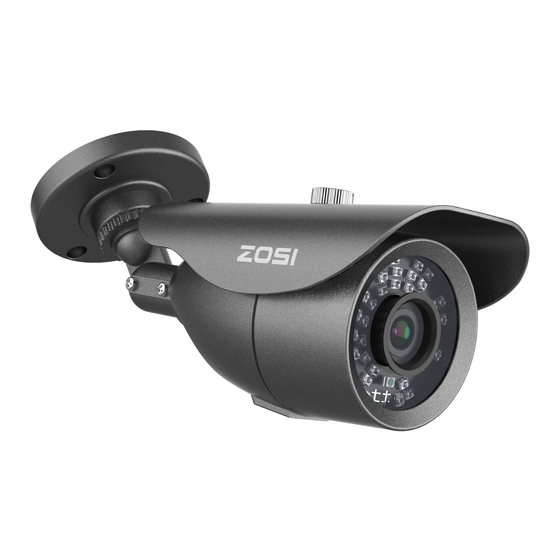

- Page 1 PROFESSIONAL SECURITY MADE EASY Security Camera Day/Night INSTRUCTION MANUAL V1.1...
- Page 2 Introduction Congratulations on your purchase of This CCTV laws and regulations relating to the use of came- camera from ZOSI.This camera can operate in ras. Before using any camera for any purpose,it almost all lighting conditions, from bright daylight is the buyer’s responsibility to be aware of all (provided it’s not pointed straight toward the...
- Page 3 Choosing a Location for this Camera To get optimal results from your camera, where you install is important. You should consider the distance between the camera and its subject to ensure you obtain a good view of the areas in focus. Also think about the appropriate mounting places (e.g., under the eaves of a roof is a good choice) where it won’t be either an easy target for vandals or affected by constant light reflections of moving vehicles (which can result in falsely triggered motion detection).
-
Page 4: Mounting The Camera
Mounting the Camera The camera can be mounted onto a flat, vertical surface using screws. The surface must have sufficient strength to hold the camera. Materials such as hardwood, brick or masonry are good options, You can mount the camera onto a metal surface, but you’ll need to supply your own mounting hardware. - Page 5 Mounting the Camera Model 1 Rotate the camera by loosening the screw (using screw driver). Adjust the elbow joint by loosening the screw. The neck of the stand attached to the wrench mounting base, rotate the stand by loosening the radial joint locking ring.Once in position , tighten the ring again.
- Page 6 Mounting the Camera Model 2 Rotate the camera by loosening the screw (using screw driver). wrench Adjust the elbow joint by loosening the screw. The neck of the stand attached to the mounting base, rotate the stand by loosening the radial joint locking ring.Once in position , tighten the ring again.
- Page 7 Mounting the Camera Model 3 Adjust to the position you want up or down. The neck of the stand attached to the wrench mounting base, rotate the stand by loosening the radial joint locking ring. Once in position , tighten the ring again.
- Page 8 Mounting the Camera Model 4 loosen the screw on each side to adjust this joint ,this enables the camera left or right. loosen the screw and adjust to the position you want (up or down). loosen the screw on each side, to rotate the...
- Page 9 Positioning the Cables Power Power Splitter Adapter Cable Video Connector Video & Power Cable Please note, model shown is for illustration purposes only. Power Connector For 2 & 4 camera packs: Connect the extension cable's DC socket to the multiple sockets on the power splitter.Then, plug the single end of the power splitter to the DC Power...
-
Page 10: Troubleshooting
Troubleshooting Q: Video Loss appears where the image from my camera should be displaying on my DVR? A: 1.Check the extension cable (power and video) is securely connected to the camera. 2.Check the video output from the camera is securely connected to a video input channel on the DVR. 3.Check the power from the camera is securely connected to a power supply Q: When I view an image from the camera at night I only see a bright spot and no image? A: A reflection can be caused in night vision mode if the camera is looking through a window. -
Page 11: Limited Warranty Terms & Conditions
Any unit which proves defective during the stated period will be repaired without charge for parts or labour or replaced at the sole discretion of ZOSI. The end user is responsible for all freight charges incurred to send the product to ZOSI’s repair centres. The end user is responsible for all shipping costs incurred when shipping from and to any country other than the country of origin. - Page 12 All rights reserved. No part of this publication may be reproduced by any means without written permission from ZOSI. The information in this publication is believed to be accurate in all respects. ZOSI cannot assume responsibility for any consequences resulting from the use thereof. The information contained herein is subject to change without notice.
