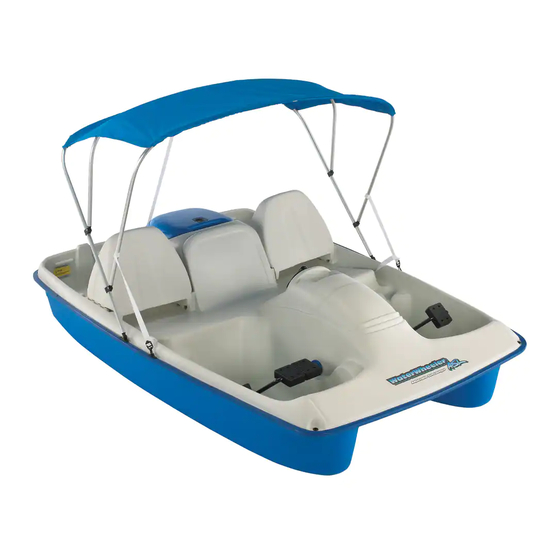

- Page 1 O W N E R ’ S M A N U A L Water Wheeler ASL Electric Pedal Boat 1790 Sun Dolphin Drive Muskegon, Michigan 49444 phone 231-733-2725 231-739-4502 email klsales@kloutdoor.com website www.sundolphin.com Rev.1 10/2016...
- Page 2 The “flag” portion of the rudder points away from the boat. Adjustable Seat Backs Two adjustable seats come with our Water Wheeler ASL Electric Pedal Boat. Adjust the seat to accommodate your height by placing it in the notched positions. For lounging, simply place seat in the back footwell notches.
- Page 3 Paperwork Warranty Registration To properly register your boat with KL Outdoor for warranty validation please fill out the warranty registration form online at www.sundolphin.com. Please review our full warranty statement. The serial number can be found on the outside of the hull in the back right corner just under the rubrail. See Photo #2.
- Page 4 Owner’s Manual Keep your owner’s manual for future reference. It is a good idea to write down the following information: Serial Number ________________________________ Date of Purchase ________________________________ Purchased from ________________________________ Applying Decals Before applying boat registration decals (if required), clean the area with alcohol or any solvent that does not leave a residue. Make sure solvent is put aside and is dry.
- Page 5 Once the prop is clear lower the motor and push in the circuit breaker to reset it. If it trips again, don’t use the motor. Refer to the trouble-shooting guide in this manual or call KL Outdoor.
-
Page 6: Care And Maintenance
If this happens you can contact KL Industries for replacement. Do not transport the Water Wheeler ASL Electric with the battery installed. Bouncing and jarring of the battery during transport could crack the battery compartment. -
Page 7: Frequently Asked Questions
• If possible, it is best to store your pedal boat inside for the winter. If stored outside custom mooring covers that prevent water and debris from accumulating are available from KL Outdoor. Order online at www.sundolphin.com. • When storing your boat, open the drain plug and stand it on its front bow to ensure proper drainage. Either store it on its bow or turn it upside down. - Page 8 SECURITY MEASURES WARNING Read the following information before using your pedal boat. Failure to follow the warning precautions below may lead to serious injury including the possibility of death. Never exceed the maximum weight capacity. Never exceed your ability: Assess your physical capability as to how far and how long you can pedal and swim. Make sure your drain plugs are secure.
-
Page 9: Troubleshooting
TROUBLE SHOOTING Water Wheeler ASL Electric PROBABLE CAUSE CORRECTIVE ACTION Problem: Motor won’t run Dead battery or missing battery Recharge or replace battery. Battery leads disconnected or badly corroded Remove battery leads, clean corrosion from battery terminals and connectors. Reconnect battery leads and tighten wing nuts. - Page 10 Reverse battery. Problem: Motor only operates on one or two speeds Defective control switch Call KL Outdoor for replacement. Loose connections at control switch Disconnect battery. Remove control panel. Disconnect, clean and/or recrimp connectors one at a time. Reconnect leads to switch terminals.
- Page 11 Water Wheeler ASL Electric Adjustable sun lounger electric powered pedal boat AVAILABLE ACCESSORIES: • Mooring Cover • Salt Water Drive System Includes canopy OPTIONAL ACCESSORIES: Order online at www.sundolphin.com Adjustable seats so Integrated Minn Kota® electric motor for effortless cruising...
-
Page 12: Limited Lifetime Warranty
KL Outdoor will evaluate the information and determine if it is a valid defect in workmanship prior to issuing a return authorization number. KL Outdoor reserves the right to discontinue and make changes in any of its products. In the event that products covered by this Limited Warranty are not available, KL Outdoor shall have the right to substitute products at KL Outdoor’s sole discretion of comparable grade, quality or price.
