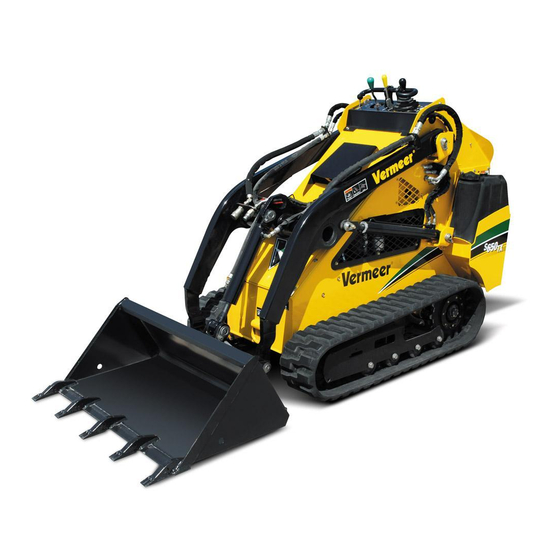

Vermeer S650TX Operator's Manual

Mini skid steer
Hide thumbs
Table of Contents

Advertisement

Quick Links

S650
TX
Mini Skid Steer
Operator's
Manual
S650TX_o1_02
Serial No. 101 -
Order No. 105400BV8
Cabled Assembly Order No. 296338951

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S650TX and is the answer not in the manual?

Questions and answers

Summary of Contents for Vermeer S650TX

  • Page 1 S650 Mini Skid Steer Operator’s Manual S650TX_o1_02 Serial No. 101 - Order No. 105400BV8 Cabled Assembly Order No. 296338951...
  • Page 2 This manual explains the proper operation of your machine. Study and understand these instructions thoroughly before operating or maintaining the machine. Failure to do so could result in personal injury or equipment damage. Consult your Vermeer dealer if you do not understand the instructions in this manual, or need additional information.
  • Page 3 Orientation: Right and left sides of the machine are determined by standing on the operator platform and facing forward. RADEMARKS VERMEER and VERMEER Logo are trademarks of Vermeer Manufacturing Company. KUBOTA is a trademark of Kubota, Ltd., Osaka, Japan. S650TX Mini Skid Steer...
  • Page 4 EXTENDED WARRANTY OPTIONS ARE AVAILABLE FOR PURCHASE. WARRANTY TERMS During the Limited Warranty period specified above, any defect in material or workmanship in any warranted item of Vermeer Industrial Equipment not excluded below shall be repaired or replaced at Vermeer's option without charge by any authorized independent Vermeer dealer.
  • Page 5 Transportation costs, if any, of transporting to the Vermeer dealer. Freight costs, if any, of transporting replacement parts to the Vermeer dealer. The travel time of the Vermeer dealer’s service personnel to make a repair on the retail purchaser’s site or other location. In no event shall Vermeer’s liability exceed the purchase price of the product,...
  • Page 6 Depreciation damage caused by normal wear, lack of reasonable and proper maintenance, failure to follow operating instructions, misuse, lack of proper protection during storage. (13) Accessory systems and electronics not of Vermeer’s manufacture are warranted only to the extent of such manufacturer’s respective Limited Warranty if any. (14) Downhole toolage is not covered under this warranty.
  • Page 7 NO DEALER WARRANTY. The selling dealer makes no warranty of its own and the dealer has no authority to make any representation or promise on behalf of Vermeer or to modify the terms or limitations of this warranty in any way.
  • Page 8 Equipment Limited Warranty (the “Standard Limited Warranty”) for the Covered Components of the Specified Models of New Vermeer Industrial Equipment for the Extended Term, provided that the Equipment is operated and maintained in accordance with the directions and instructions set forth in the Operator's and Maintenance Manual(s). All conditions, exclusions and limitations of the Standard Limited Warranty apply.
  • Page 9 ___ Check forward and reverse ground drive operation. ___ Check that park brake functions. ___ Check track tension. ___ Check condition of all safety signs and decals. ___ Check all phases of operation. S650TX Mini Skid Steer Receiving and Delivery Report i...

  • Page 10: Hydraulics

    Bucket attachment instructions are contained in this S650 Operator’s Manual. Contact your authorized Vermeer dealer, or visit www.vermeer.com for information on attachments authorized for use by Vermeer Corporation. ELIVERY Check and perform the following with the customer: ___ Review all sections of the Operator’s Manual.

  • Page 11: Dealer/Customer Information

    EALER USTOMER NFORMATION Dealer Owner Address Address City City State/Province State/Province Zip/Postal Code Zip/Postal Code Country Country S650TX Mini Skid Steer Receiving and Delivery Report iii...

  • Page 12: Identification Numbers - Record

    DENTIFICATION UMBERS ECORD Machine Model Number ________________ Machine Serial Number ________________ Engine Model Number ________________ Engine Serial Number ________________ iv Receiving and Delivery Report S650TX Mini Skid Steer...

  • Page 13: Identification Decals

    These decals provide easy identification of the model and 17-digit identification number for the machine and attachments. The barcode contains the VIN number and can be scanned with any barcode reading device. Mini Skid Steer Identification Decal S650TX Mini Skid Steer Receiving and Delivery Report v...
  • Page 14 This page intentionally left blank.

  • Page 15: Table Of Contents

    Sound Levels........40-3 S650TX Mini Skid Steer...
  • Page 16 Striking a Utility ....... . 40-6 Operating with Other Vermeer-Authorized Attachments . . .50-11 Electricity .

  • Page 17: Safety Messages

    Indicates a hazardous situation that, if not avoided, will result in death or serious injury. WARNING Indicates a hazardous situation that, if not avoided, could result in death or serious injury. CAUTION Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. S650TX Mini Skid Steer Safety Messages 10-1...

  • Page 18: Safety Symbol Explanation

    WARNING: Wear personal protective equipment. Wear close-fitting clothing and confine long hair. Avoid wearing jewelry such as rings, wristwatches, necklaces or bracelets. Always wear: • a hard hat • safety glasses • hearing protection • safety shoes Refer to “Personal Protection,” page 40-2. 10-2 Safety Messages S650TX Mini Skid Steer...
  • Page 19 WARNING: Keep spectators away. WARNING: Engine exhaust can asphyxiate. Operate only outdoors. WARNING: Use Shutdown Procedure before servicing, cleaning, repairing, or transporting machine. Follow Shutdown Procedure, page 23-1. S650TX Mini Skid Steer Safety Messages 10-3...
  • Page 20 Fluid injected under the skin must be removed immediately by a surgeon familiar with this type of injury. WARNING: Fuel and fumes can explode and burn. Shut off engine before refueling. No flame. No smoking. 10-4 Safety Messages S650TX Mini Skid Steer...
  • Page 21 WARNING: Moving parts can crush. Keep hands, feet, and clothing away from power-driven parts. Keep shields in place and properly secured. WARNING: Hot fluid under pressure can scald. Allow engine to cool before opening radiator cap. S650TX Mini Skid Steer Safety Messages 10-5...

  • Page 22: Crystalline Silica

    Do not eat, drink, use tobacco products, or apply cosmetics in areas where there is dust containing crystalline silica dust. Wash hands before eating, drinking, or using these products. • Store food, drink, and personal belongings away from the work area. 10-6 Safety Messages S650TX Mini Skid Steer...
  • Page 23 WARNING: Failure to follow any of the preceding safety instructions or those that follow within this manual, could result in serious injury or death. This machine is to be used only for those purposes for which it was intended as explained in this Operator’s Manual. S650TX Mini Skid Steer Safety Messages 10-7...
  • Page 24 This page intentionally left blank.

  • Page 25: Intended Use

    This machine is designed for short runs and operation in confined areas. The stand-up operating station provides excellent jobsite visibility and ease of platform access. Contact your Vermeer dealer, or visit www.vermeer.com, for information on the list of authorized attachments. The S650 must not be used with attachments which have not been evaluated by Vermeer Corporation and authorized for use.
  • Page 26 This page intentionally left blank.

  • Page 27: Controls

    Push forward ......increase engine speed Pull back......decrease engine speed S650TX Mini Skid Steer Controls 21-1...
  • Page 28 10–15 seconds. Continue to hold button while starting engine. Use Glow Plug Button when ambient temperature is below 50°F (10°C). (5) Hourmeter Indicates total number of hours key has been in RUN position. 21-2 Controls S650TX Mini Skid Steer...

  • Page 29: Indicator Lights

    Light indicates low engine oil pressure and comes on when the ignition switch is initially turned ON. If the light does not shut off within 30 seconds after starting the engine or comes on during normal operation, shut off the engine and correct the problem. S650TX Mini Skid Steer Controls 21-3...

  • Page 30: Control Station

    Back left ....front turns left when moving in reverse Back right ... . . front turns right when moving in reverse 21-4 Controls S650TX Mini Skid Steer...
  • Page 31 Center ........OFF Back ..oil flows to attachment through male coupler S650TX Mini Skid Steer Controls 21-5...
  • Page 32 Press left ......low auxiliary flow rate Press right ..... . . high auxiliary flow rate 21-6 Controls S650TX Mini Skid Steer...

  • Page 33: Operator Presence System

    OFF before ground drive, lift/tilt, and attachment drive can be re-engaged. The Operator Presence system is intended for your safety and must be maintained in good functional condition. Contact your Vermeer dealer if it does not function correctly.

  • Page 34: Fuses And Relays

    (5) 15A Auxiliary Override (6) Open Not Used (7) 30A Spare (8) 15A Spare (9) Open Not Used (10) Open Not Used Relay Location Function Operator Presence Operator Presence Latch Neutral Start Fuel Shutdown 21-8 Controls S650TX Mini Skid Steer...

  • Page 35: Starting Procedure

    Check to see that oil pressure warning light goes off. If not, shut off engine and correct problem. Step 8: Warm up engine at medium speed. Do not operate the engine under load until engine has warmed up. S650TX Mini Skid Steer Starting Procedure 22-1...

  • Page 36: Cold Weather Starting

    Refer to Steps 5 and 6 on previous page, for cold-weather starting. NOTICE: Do not use ether starting aid. Ether may cause engine damage and void engine warranty. An electric block heater is available from your Vermeer Dealer. Hydraulic Fluid Allow adequate time for hydraulic oil to warm up, especially in cold weather.

  • Page 37: Battery Explosion - Avoid

    External: Flush with plenty of water. If eyes have been exposed, flush with water for 15 minutes and get prompt medical attention. Internal: Drink large quantities of water or milk, follow with milk of magnesia, beaten egg, or vegetable oil. Call a physician immediately. S650TX Mini Skid Steer Starting Procedure 22-3...

  • Page 38: Jump-Starting Procedure

    To avoid sparks, disconnect black cable at point (5) before adjusting red cable at point (2). Step 4: Start engine. Step 5: Remove cables in REVERSE order and install covers over cable clamps. BLACK Close and latch battery access shield. Machine frame Boost battery 22-4 Starting Procedure S650TX Mini Skid Steer...

  • Page 39: Shutdown Procedure

    Park brake will engage when operator steps off platform or engine is shut off and spring-applied park brake pin is aligned between sprocket teeth. The brake will engage within 4" (10 cm) of travel. S650TX Mini Skid Steer Shutdown Procedure 23-1...
  • Page 40 This page intentionally left blank.

  • Page 41: Transporting The Machine

    Place trailer on a level surface and block wheels or engage park brake of the towing vehicle. • Do not load if trailer bed or ramps are slippery. • Excessive ramp angle may increase difficulty in loading/unloading. S650TX Mini Skid Steer Transporting the Machine 30-1...

  • Page 42: Loading/Unloading

    To help avoid sudden stops, keep both feet fully on the platform and stand as far to the rear as practical. Slow down when traveling over uneven ground. 30-2 Transporting the Machine S650TX Mini Skid Steer...

  • Page 43: Driving Onto Trailer

    Stop machine when tie-down position is reached. Tie-down position distributes machine weight on the trailer as recommended by the trailer manufacturer. Step 8: Lower lift arms and adjust tilt until attachment is firmly on trailer deck. Step 9: Shut off engine and remove key. S650TX Mini Skid Steer Transporting the Machine 30-3...
  • Page 44 WARNING: Attachments could slip off the trailer after being disconnected from the machine, resulting in a crushing injury. When disconnecting and backing the machine away from the side of a trailer, take precautions to assure the attachments are properly secured to the trailer. 30-4 Transporting the Machine S650TX Mini Skid Steer...

  • Page 45: Driving Off Trailer

    Slowly move machine down the ramp to the ground. Minimize steering while on the ramps. Steering while on the ramps may result in the machine driving off the ramps or cause the ramps to move and drop off the trailer deck. S650TX Mini Skid Steer Transporting the Machine 30-5...

  • Page 46: Loading With Crane

    Refer to “Lift Arm Support Bar - Install/Remove,” page 60-3. Step 3: Follow Shutdown Procedure, except leave loader arms raised. Refer to page 23-1. Step 4: Place chocks in front and back of right track. 30-6 Transporting the Machine S650TX Mini Skid Steer...
  • Page 47 Pin must align between sprocket teeth to engage park brake. If pin does not engage sprocket teeth by at least 1/2˝ (13 mm), refer to “Park Brake - Check” in the Maintenance Manual for instructions. S650TX Mini Skid Steer Transporting the Machine 30-7...

  • Page 48: Clean Machine

    Keep pressure washer stream away from machine controls and electrical/electronic devices. Compressed air can also push moisture through some connector and component seals. Do not point air nozzle directly at seal areas. 30-8 Transporting the Machine S650TX Mini Skid Steer...

  • Page 49: Preparation

    Become familiar with the controls, operation and use of the machine under the supervision of a trained and experienced operator. The operator must be familiar with the workplace’s safety rules and regulations, and must be mentally and physically capable of operating the machine safely. S650TX Mini Skid Steer Preparation 40-1...

  • Page 50: Personal Protection

    Eye protection must consist of wraparound safety glasses or goggles. Other workers in the immediate area must also wear hard hats, safety shoes, hearing protection, and eye protection. 40-2 Preparation S650TX Mini Skid Steer...

  • Page 51: Sound Levels

    Whole body vibration exposure has been measured according to ISO 2631. The level is less than 0.5 m/s Hand/arm vibration exposure has been measured according to ISO 5349. The level is less than 2.5 m/s S650TX Mini Skid Steer Preparation 40-3...

  • Page 52: Prepare The Area

    International, contact the appropriate utility companies or national regulating authority to locate and mark underground installations. If you do not call, you may have an accident or suffer injuries; cause interruption of services; damage the environment; or experience job delays. 40-4 Preparation S650TX Mini Skid Steer...

  • Page 53: Look For Evidence Of Underground Placement

    If utility cannot be precisely located, it must be shut off by the utility company. Look for Evidence of Underground Placement Visually check for: • notices of underground placements • manhole covers • drop boxes • recent trenching activity S650TX Mini Skid Steer Preparation 40-5...

  • Page 54: Striking A Utility

    WARNING: Laser light may damage eyes. Do not look into the end. Fiber optic cables carry laser light which may damage your eyes. If you are not sure what type of cable it is, do not look into the end. Contact appropriate utility company for assistance. 40-6 Preparation S650TX Mini Skid Steer...

  • Page 55: Jobsite Assessment

    The operator or job foreman should also inspect the jobsite for: • holes, rocks, or other hidden hazards • traffic/site access Remove any obstacles or materials that could result in injury or damage the machine. S650TX Mini Skid Steer Preparation 40-7...

  • Page 56: Prepare The Machine

    Ensure you understand and comply with all jobsite rules that might apply to your work situation. • If operating along a road, properly warn and divert motor and pedestrian traffic. Use all necessary signs, cones, flag persons, or lighting devices needed for the work situation. 40-8 Preparation S650TX Mini Skid Steer...

  • Page 57: Attachments

    TTACHMENTS WARNING: Using attachments authorized by Vermeer Corporation is important for your safety. Using unauthorized attachments may cause difficulties with steering, stopping, stability and other undesirable performance or handling characteristics, or they may not attach securely to your machine. Never use unauthorized attachments.

  • Page 58: Attachment - Install

    Tops of pins must face inward as shown (3). Ensure pin ends extend through and are visible beneath attachment mount. Step 9: If attachment requires hydraulic power, see “Hydraulics - Attach.” Refer to page 40-13. 40-10 Preparation S650TX Mini Skid Steer...

  • Page 59: Attachment - Remove

    WARNING: Attachments could slip off the trailer after being disconnected from the machine, resulting in a crushing injury. When disconnecting and backing the machine away from the side of a trailer, take precautions to assure the attachments are properly secured to the trailer. S650TX Mini Skid Steer Preparation 40-11...

  • Page 60: Hydraulics - Attach/Detach

    WARNING: Hydraulic couplers, hoses, and fluid may be hot. Contact with hot parts may result in burns. Wear gloves when connecting and disconnecting hydraulic hoses, and wait until unit has cooled before touching hydraulic components. Ensure all foreign matter is cleaned from hydraulic connectors before making connections. 40-12 Preparation S650TX Mini Skid Steer...

  • Page 61: Hydraulics - Attach

    Move Auxiliary Attachment Drive Lever forward, backward, and back to NEUTRAL position to relieve hydraulic pressure. Step 3: Align pin (2) with notch (3) on female coupler before disconnecting couplers. Step 4: Unhook hoses from auxiliary hydraulic couplers. Remove attachment from machine. S650TX Mini Skid Steer Preparation 40-13...
  • Page 62 This page intentionally left blank.

  • Page 63: Operating The Machine

    This provides a secure grip and good lever control. This machine is not intended to be driven on public roads. S650TX Mini Skid Steer Operating the Machine 50-1...

  • Page 64: While Driving

    Move Ground Drive Joystick slowly to start moving the machine smoothly. Avoid sudden stopping, starting, or turning unless necessary. WARNING: Rider may fall out and be injured or killed. Do not carry riders. 50-2 Operating the Machine S650TX Mini Skid Steer...
  • Page 65 Sudden stops from higher travel speeds could throw you from machine, or the machine could tip over. To help avoid sudden stops, keep both feet fully on the platform and stand as far to the rear as practical. Slow down when traveling over uneven ground. S650TX Mini Skid Steer Operating the Machine 50-3...

  • Page 66: Safe Operating On Slopes

    Always travel with load lowered when traveling up or down slopes. You may also need to keep heavy end uphill for added stability. Do not exceed rated load capacity. Load on firm and level ground. Do not step off platform with load raised. 50-4 Operating the Machine S650TX Mini Skid Steer...
  • Page 67 Service brake retarding force - equal to traction of both tracks • Secondary brake - equal to traction of one track • Park brake holding force - equal to traction of one track S650TX Mini Skid Steer Operating the Machine 50-5...

  • Page 68: Operating The Mini Skid Steer

    The Operator Presence system in the operator platform detects the presence of an operator. The operator must be standing on the platform for the ground drive, lift/tilt functions, or auxiliary attachment drive to be engaged. Keep both feet on the platform. 50-6 Operating the Machine S650TX Mini Skid Steer...

  • Page 69: Bucket Operation

    40-9. Safety Precautions WARNING: Never work under an attachment unless it is adequately supported to prevent it from falling unexpectedly. WARNING: Falling load can crush. Keep load level when raising lift arms. S650TX Mini Skid Steer Operating the Machine 50-7...

  • Page 70: Moving Machine With Load

    Additional safety information is provided in this section. Refer to “Driving Safety,” page 50-1. • Do not step off operator’s platform when loader arms or attachment are raised. Machine stability is reduced and may cause machine to tip forward when you step off. 50-8 Operating the Machine S650TX Mini Skid Steer...

  • Page 71: Filling The Bucket

    Continue driving machine forward until bucket is full. Step 5: If ground is hard, tilt bucket forward and backward while driving slowly forward. Step 6: When bucket is full, tilt bucket fully backward. S650TX Mini Skid Steer Operating the Machine 50-9...

  • Page 72: Emptying The Bucket

    Step 3: Move machine in reverse to level loose material. Before moving forward, raise loader arms or tilt bucket back to lift the bucket cutting edge off the Step 4: ground. 50-10 Operating the Machine S650TX Mini Skid Steer...

  • Page 73: Backfilling With The Bucket

    THER ERMEER UTHORIZED TTACHMENTS Refer to the attachment manual supplied by the attachment manufacturer for operating and maintenance instructions for the attachment and additional instructions that may be required for the S650 S650TX Mini Skid Steer Operating the Machine 50-11...
  • Page 74 This page intentionally left blank.

  • Page 75: Maintenance Intervals

    Shutdown Procedure, unless instructed differently in the maintenance sections. Refer to page 23-1. Visually inspect machine daily before starting the machine. Make no modifications to your equipment unless specifically recommended by Vermeer Corporation. AFETY IGNS AINTENANCE Safety signs located on your machine contain important and useful information that will help you operate your equipment safely.

  • Page 76: Maintenance Manual

    Refer to the “Specifications” section in the Maintenance Manual for fluid and lubricant requirements. NGINE AINTENANCE NTERVALS Refer to the Engine Operation Manual, supplied with each machine, for maintenance instructions that are not included in this manual. 60-2 Maintenance Intervals S650TX Mini Skid Steer...

  • Page 77: Lift Arm Support Bar - Install/Remove

    Install support bar over lift arm cylinder as shown in bottom photo. Secure with pins in two outer holes (3). Step 3: When work is finished, return support bar to stow location. Install pins in two inner holes. S650TX Mini Skid Steer Maintenance Intervals 60-3...

  • Page 78: Shields - Install/Remove

    Step 2: Remove six bolts (circled). Remove lower access shield (3). Step 3: Remove three bolts (4). Remove side shield (one shield on each side of machine). Step 4: Reverse procedure to install shields. 60-4 Maintenance Intervals S650TX Mini Skid Steer...

  • Page 79: Maintenance Interval Schedule

    NTERVAL CHEDULE = Initial maintenance on new machine. Regular maintenance interval may be different. Initial = Regular maintenance interval. For Vermeer maintenance replacement part numbers, refer to the Parts Manual or call your Vermeer dealer 10 Hrs 50 Hrs 100 Hrs...
  • Page 80 Hydraulic Fluid - Change  Hydraulic Strainer - Service  Engine System - Check  Lift Arm Cylinders - Adjust Air Cleaner Element -  Replace  Battery - Replace  Handgrip Bar - Adjust 60-6 Maintenance Intervals S650TX Mini Skid Steer...

  • Page 81: Attachment Maintenance

    Track Tension - Adjust  Storage TTACHMENT AINTENANCE Refer to the attachment manuals provided by the attachment manufacturer. The attachment manuals must be attached to the machine together with the S650 Operator’s Manual. S650TX Mini Skid Steer Maintenance Intervals 60-7...
  • Page 82 This page intentionally left blank.
  • Page 83 Controls, 21-1 Hourmeter - Check for Maintenance Interval, 60-2 Crystalline Silica, 10-6 Hydraulic Fluid, 22-2 Hydraulics - Attach, 40-13 Hydraulics - Attach/Detach, 40-12 Dealer Prep, i Hydraulics - Detach, 40-13 Dealer/Customer Information, iii Delivery, ii S650TX Mini Skid Steer Index...
  • Page 84 Identification Decals, v Operating the Machine, 50-1 Identification Numbers - Record, iv Operating the Mini Skid Steer, 50-6 Indicator Lights, 21-3 Operating with Other Vermeer-Authorized Attachments, 50-11 Install/Remove, 40-9 Operator Presence System, 21-7 Intended Use, 20-1 Operator Qualifications, 40-1 Jobsite Assessment, 40-7...
  • Page 85 Towing the Machine, 30-6 Trailer Preparations, 30-1 Trailer Selection, 30-1 Transporting the Machine, 30-1 Vibration Levels, 40-3 While Driving, 50-2 S650TX Mini Skid Steer Index...
  • Page 86 This page intentionally left blank.
  • Page 87 First edition Operator’s Manual released. o1_01 02/12 Introduction Added warranty rider, sound levels. Identification decals, auxiliary lever design, Auxiliary Flow Speed Selector Switch (Option), Shields - Install/Remove, o1_02 01/13 Sections: R&D, 20, 40, 60 maintenance intervals, miscellaneous updates S650TX Mini Skid Steer Revision History...

  • Page 88: Proposition 65 Warning

    For more information, please visit the California Air Resources Board website at http://www.arb.ca.gov/msprog/ordiesel/ordiesel.htm. Copyright 2011–2013. All rights reserved. Vermeer Corporation 1210 Vermeer Road East, P.O. Box 200 Pella, Iowa 50219-0200...
