Rotating and Flipping the Image

Rotating the Image
1. Check whether the menu corresponding to the current mode is open. If not, press <Menu>
to open it.
2. Move cursor to [Rotation (Angle)]. Then press <Set> to rotate the image clockwise 90
degrees, or press <Back> to rotate the image anticlockwise 90 degrees.
Flipping the Image: Images of B mode can be flipped horizontally and vertically.
Press <V.Rev.> to flip the image vertically;
Press <H.Rev.> to flip the image horizontally.
Conforming the Direction of the Image
The mark in the image window is corresponding with the bulge on the transducer head (for
some transducers, it may be a groove) and it is intended for helping to identify the direction of
the image. When the image is rotated or flipped, the location of this mark changes as well.
3.5.4

Image Merge

In dual B mode, if "Image Merge" is already enabled in "Preset System Preset Image Preset",
the current transducer is linear transducer, and the depth of two image windows are the same, the
system will put the two images together to extend your field of vision.
3.6

Cine Review

During the exam, press <Freeze> to freeze the image and you can review the images prior to the
image frozen.

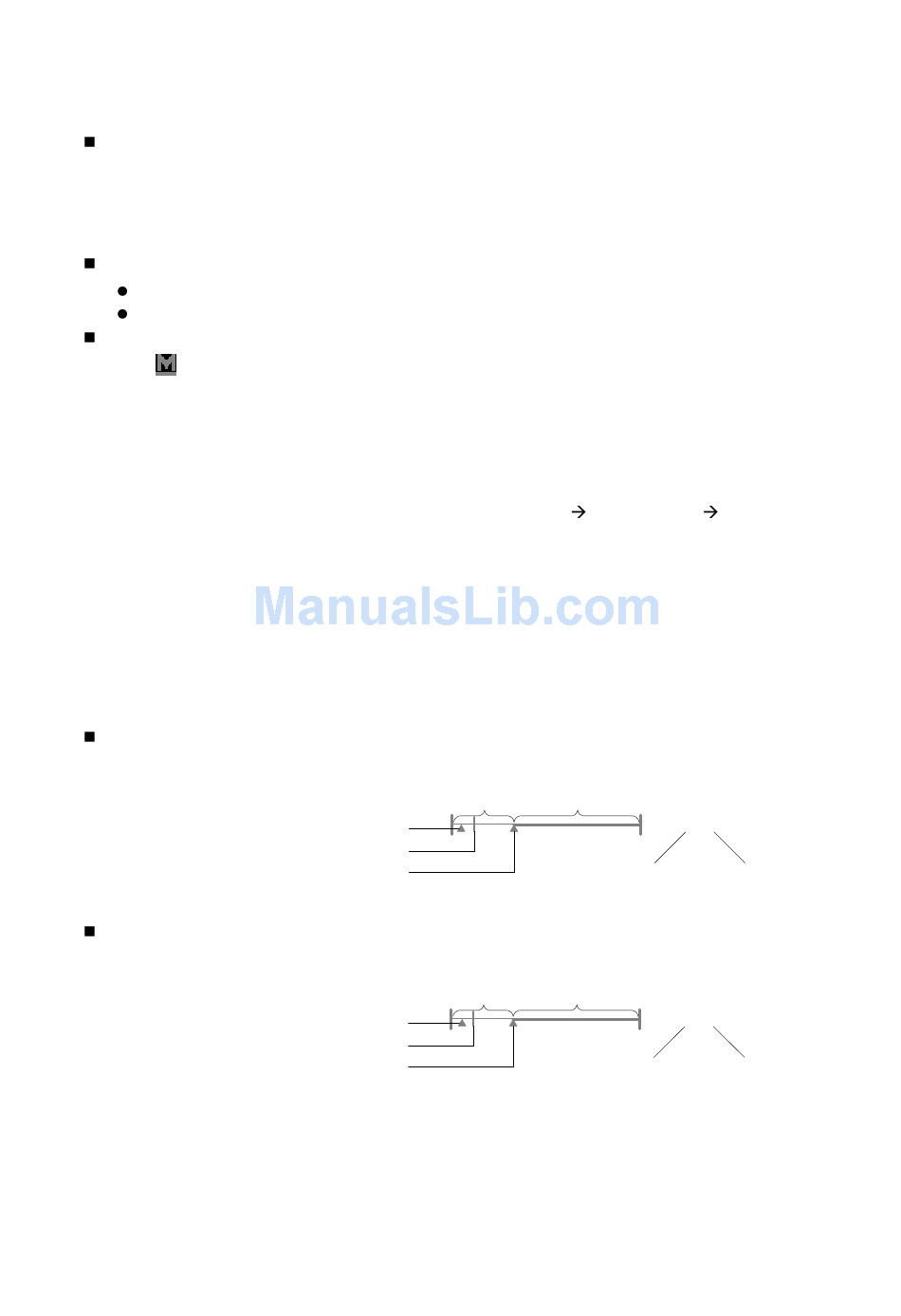

The process bars of cine review are as follows:
B mode
Start Point of Automatic Playback
Mark of Process of Playback
End Point of Automatic Playback
M mode
Start Point of Automatic Playback
Mark of Process of Playback
End Point of Automatic Playback
Memory Memory
Used Available
Frames
Played
Memory Memory
Used Available
65/165
Frames
in All
1.3/3.0
Time Time in
Played All
Beginning an Exam 3-5
