Sharp cd-pc4900 Service Manual

The main body section of this model differs from CD-PC672 in prints and color tone.
Since the exterior and shape of the front speakers and subwoofer have been changed, the expoloded views and parts list are
added.
For the circuit section and disassembling method, refer to the "CD-PC672 (No.S4915CDPC672/)" Service Manual already issued.
Front speaker section
Type: 3-way type [5-1/4" (13 cm) woofer,
2" (5 cm) tweeter and super tweeter]
Maximum input power: 80 W
Rated input power: 40 W
Impedance: 6 ohms
Dimensions: Width; 7-7/8" (200 mm)
Height; 11-13/16" (300 mm)
Depth; 10" (254 mm)
Weight: 6.3 lbs. (2.9 kg)/each
Center speaker section
Type: 4" (10 cm) full-range speaker
Maximum input power: 40 W
Rated input power: 20 W
Impedance: 4 ohms
Dimensions: Width; 10-1/4" (260 mm)
Height; 5-1/2" (140 mm)
Depth; 6-1/8" (155 mm)
Weight: 2.0 lbs. (0.9 kg)
SERVICE MANUAL

SPECIFICATIONS

SHARP CORPORATION

– 1 –
CD-PC4900

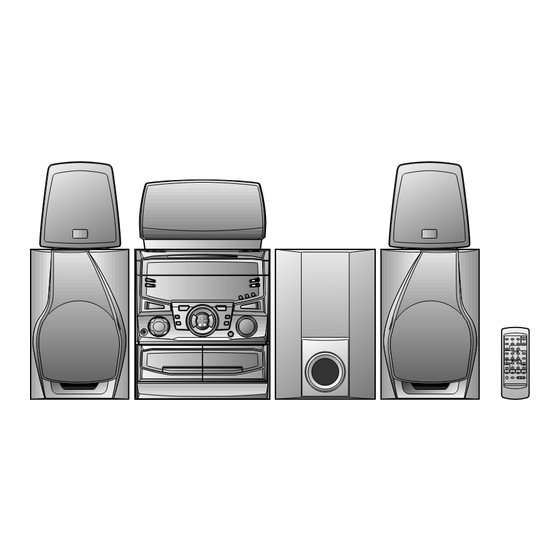

CD-PC4900 mini component system consisting of CD-PC4900 (main
unit), CP-C4900 (front speakers), CP-SW4900 (sub woofer),
GBOXS0022AWM1 (center speaker) and GBOXS0023AWM1 (rear
speaker).
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
Rear speaker section
Type: 4" (10 cm) full-range speaker
Maximum input power: 20 W
Rated input power: 10 W
Impedance: 8 ohms
Dimensions: Width; 6-3/4" (170 mm)
Height; 3-1/2" (88 mm)
Depth; 6-3/4" (170 mm)
Weight: 1.0 lbs. (0.5 kg)/each
Sub woofer section
Type: 5-1/4" (13 cm) full-range speaker
Maximum input power: 80 W
Rated input power: 40 W
Impedance: 6 ohms
Dimensions: Width; 7-7/8" (200 mm)
Height; 11-13/16" (300 mm)
Depth; 12-3/8" (310 mm)
Weight: 7.5 lbs. (3.4 kg)
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
