Connector Ground Test (N/A) - Sony Ericsson Xperia arc S LT18i Test Instructions

Tests: Service Tests

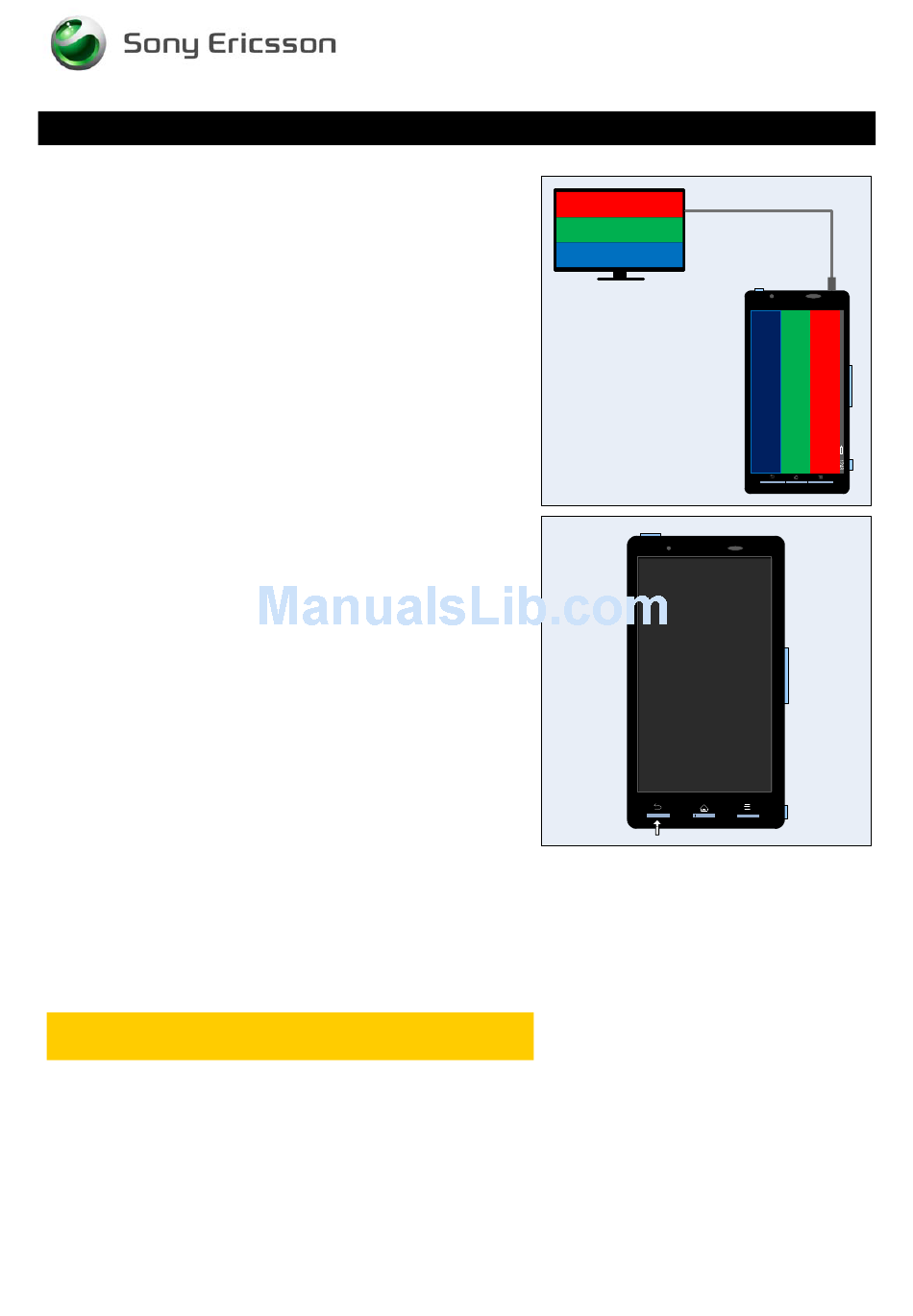

You will now get a test tone and red-green-blue test picture
in the HDMI TV out Monitor and phone.
Note: If the HDMI TV out Monitor doesn't automatically
indentify the picture, your Monitor may require that you set
the HDMI port you have chosen as source manually in the
Monitors menus.
Press Get HDMI Status:
You should now get:
Power Status: Active
HPD Status: H
RSEN Status: H
TDMS Status: On
HDCP Status: On
CEC Status: Idle
2.2.34 Connector Ground Test
(N/A)
The device does not support the function!
Not Applicable!
