SS-F4000P/F5000/F5000P/
F6000/F6000P/F7000/F7000P
NOTE:
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked " * "are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.

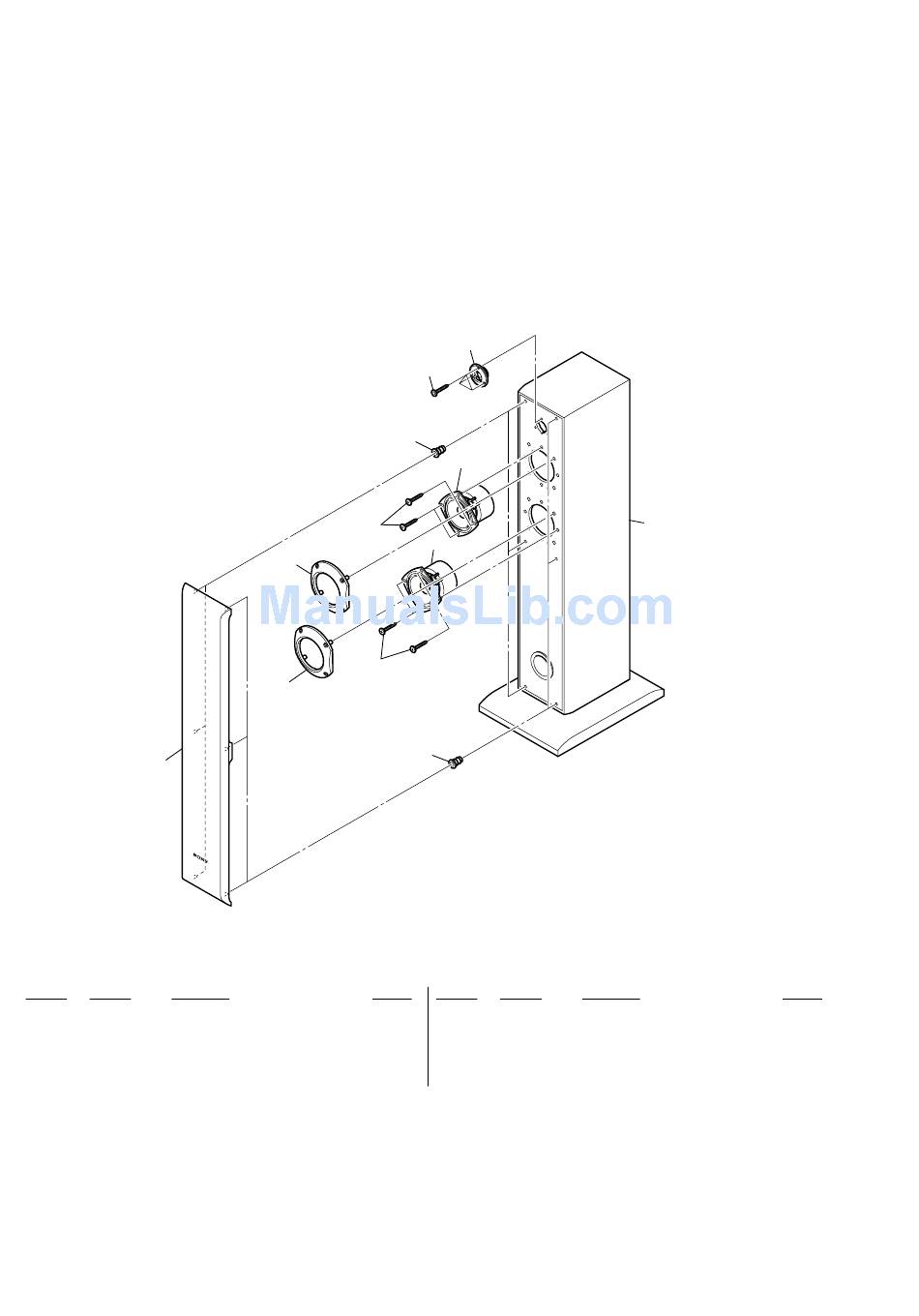

1-1. SS-F4000P

(AEP, E)
1
Ref. No. Part No. Description
1 A-1226-023-A GRILLE FRAME ASSY
2 3-097-050-01 WOOFER RING
3 4-874-614-12 SCREW (1) (3.5X14), TAPPING
4 1-826-575-11 LOUDSPEAKER (10cm)
5 1-826-576-11 LOUDSPEAKER (10cm)
2
SECTION 1

EXPLODED VIEWS

• The mechanical parts with no reference number in
the exploded views are not supplied.
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts color Cabinet's color
7
6
3
4
2
3
2
6
Remark Ref. No.
6
7
8
9
9
↑ ↑
8
5
Part No. Description
4-254-182-01 CATCHER
4-235-903-02 SCREW (3.5X20)
X-2176-239-1 TWEETER ASSY
A-1226-022-A SPEAKER CABINET ASSY (BLACK) (E)
A-1226-034-A SPEAKER CABINET ASSY (WOOD) (AEP, E)
• Abbreviation
CND: Canadian model
9
Remark
