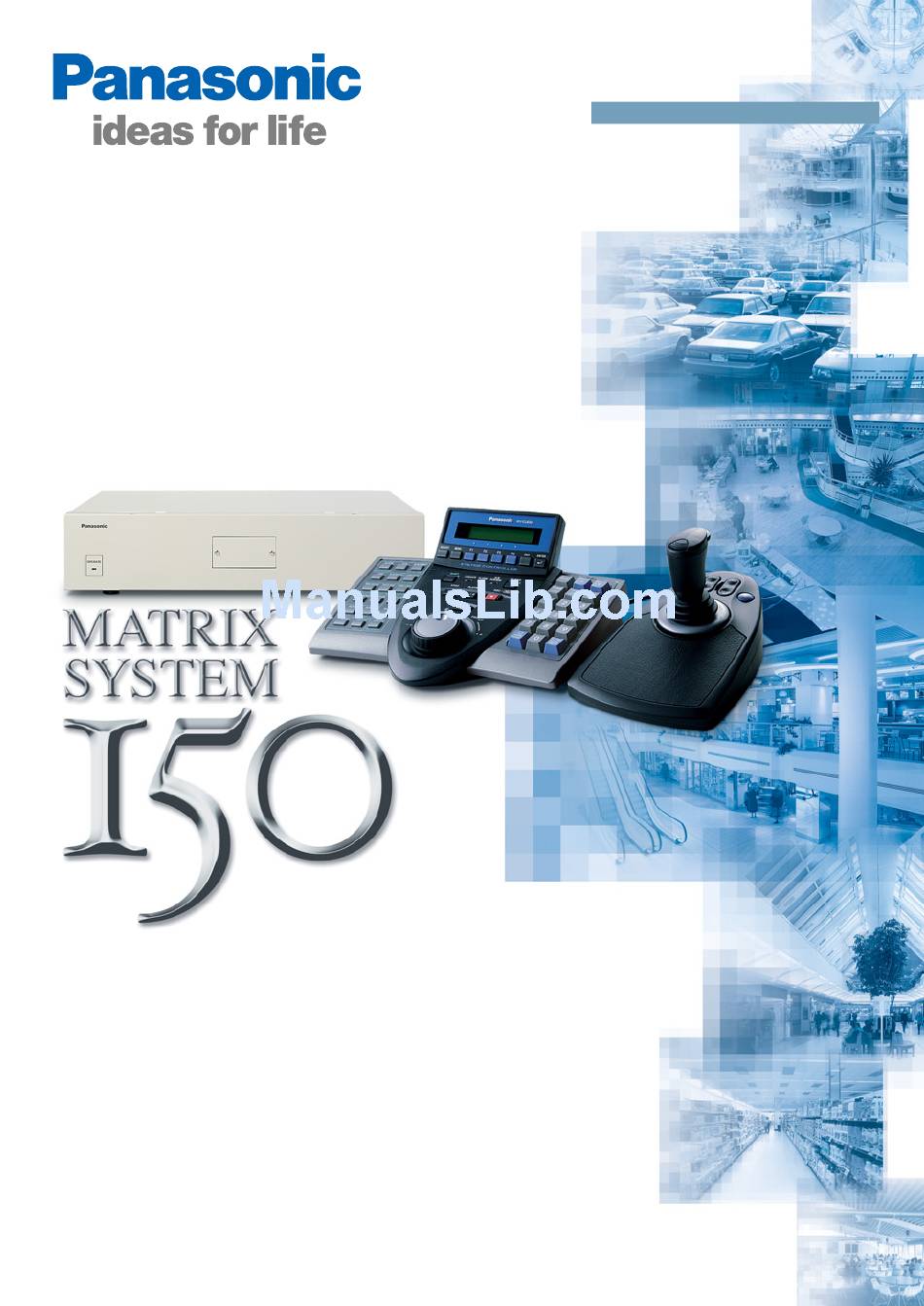

16 Inputs Matrix Switcher WJ-SX150A 16 Inputs Multiplexer Integrated Matrix Switcher WJ-SX155 6 4 I n p u t s M a t r i x S w i t c h e r S y s t e m Matrix System150 Version 2.03 RS-485 System Controller...
Page 2
4 monitors. The Matrix System150 is compact, high in quality and cost effective. The new Panasonic Matrix System150 is ideal for small-scale surveillance applications. The Matrix Switcher can link up to 64 cameras, 4 monitors and 4 controllers. It can be combined with our dome cameras providing excellent image quality.
Page 3
B/W Camera Colour Camera Integrated Dome Camera Since 1988, most of Panasonic cameras have been designed and manufactured to accept VD2 signal for system integration. User Management Protects Against Misuse Other Convenient Features User Management Protects Against Misuse Other Convenient Features RS-485 Port Up to 64 cameras can be controlled through the built-in RS-485 ports.
• Quad, 9 split screen, 16 split screen for Live or Playback. • Real time refresh in live Quad screen. • Minimum 2 fields switching for multiplex recoding. • Camera switch input for external switching. • VMD: 4 Areas, 3 Levels x 16CH. MAJOR OPERATING CONTROLS 16 Inputs Matrix Switcher;...
SYSTEM EXAMPLES with optional Panasonic Digital Disk Recorder; WJ-HD300A Series Camera Camera Camera Max. 16 Camera Inputs RS-232C Port Matrix Switcher WJ-SX150A WV-CU650 System Controllers Max. 4 Monitor Outputs Max. 4 support up to 64 Camera Systems Slave 1 Camera...
