Panasonic ES-SA40 Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Electric Shaver
  5. ES-SA40
  6. Service manual
Panasonic ES-SA40 Service Manual

Panasonic ES-SA40 Service Manual

Hide thumbs Also See for ES-SA40:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

TABLE OF CONTENTS

1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide ----------------------------------------- 3
5 Wiring Connection Diagram ---------------------------------- 6
6 Schematic Diagram ---------------------------------------------- 6
Model No.
Europe
Russia
PAGE
© Panasonic Electric Works Co., Ltd. 2008.
All rights reserved. Unauthorized copying and distri-
bution is a violation of law.

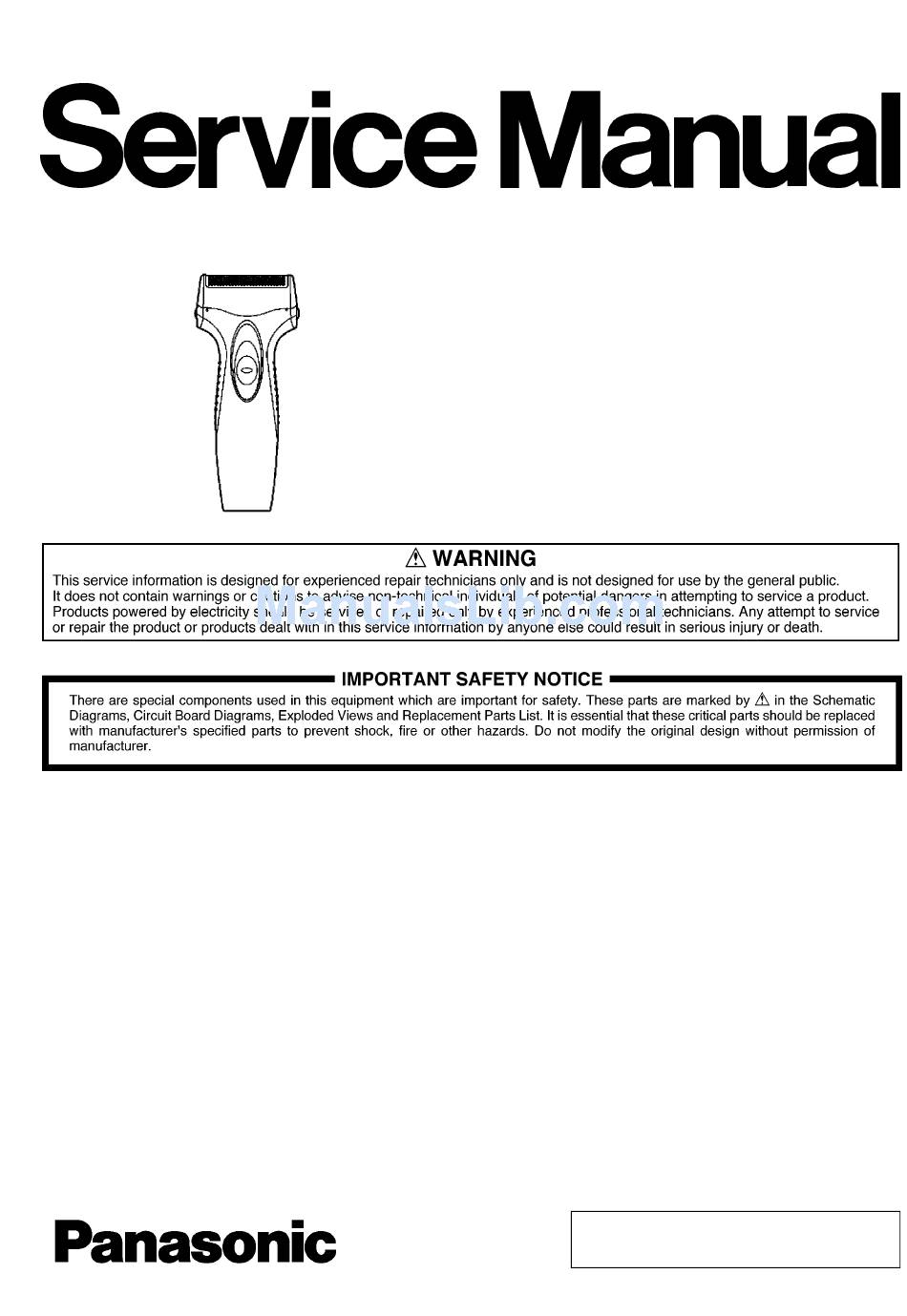

Order Number SD0811E60CE2
Rechargeable Shaver
ES-SA40
PAGE

Advertisement

loading

Related Manuals for Panasonic ES-SA40

Summary of Contents for Panasonic ES-SA40

  • Page 1: Table Of Contents

    5 Wiring Connection Diagram ---------------------------------- 6 6 Schematic Diagram ---------------------------------------------- 6 7 Exploded View and Replacement Parts List ------------ 7 © Panasonic Electric Works Co., Ltd. 2008. All rights reserved. Unauthorized copying and distri- bution is a violation of law.

  • Page 2: Warning

    1 Warning Caution: • Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder- ing iron, please be careful not to heat too long.

  • Page 3: Troubleshooting Guide

    3 Troubleshooting Guide...

  • Page 4: Disassembly And Assembly Instructions

    4 Disassembly and Assembly Instructions 4.1. Disassembly Instructions Follow the procedure below to disassemble the main unit. 4. Loosen two screws, and remove the retaining plate and 1. Remove the protective cap, the outer foil frame and the the waterproof rubber. inner blade.
  • Page 5 6. Set the switch to "OFF", and remove the chassis assembly from the housing. 4.2. Caution in Assembly Note : When reassembling, replace the new waterproof rubber. Make sure that there is NO foreign substance around a part covered with waterproof rubber. 1.

  • Page 6: Wiring Connection Diagram

    3. Trimmer 4. Buttery/Plug lever Set the trimmer at the upward position of 8mm as the fol- Make sure of the position for O-ring and washer. lowing Fig, and hook it. 5 Wiring Connection Diagram 6 Schematic Diagram...

  • Page 7: Exploded View And Replacement Parts List

    7 Exploded View and Replacement Parts List Model No. : ES-SA40 Exploded View...
