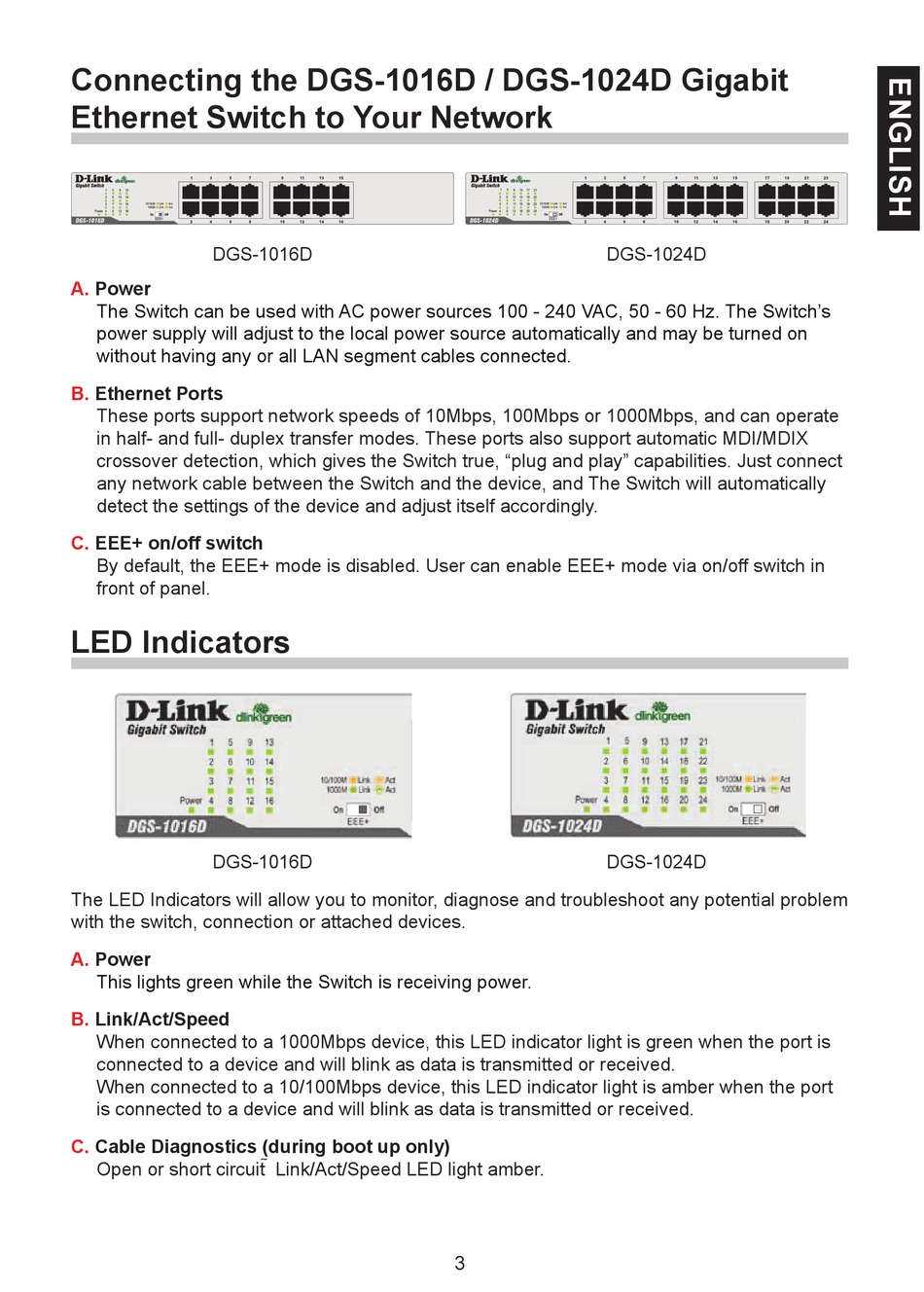

Connecting the DGS-1016D / DGS-1024D Gigabit
Ethernet Switch to Your Network
DGS-1016D
A. Power
The Switch can be used with AC power sources 100 - 240 VAC, 50 - 60 Hz. The Switch's
power supply will adjust to the local power source automatically and may be turned on
without having any or all LAN segment cables connected.
B. Ethernet Ports
These ports support network speeds of 10Mbps, 100Mbps or 1000Mbps, and can operate
in half- and full- duplex transfer modes. These ports also support automatic MDI/MDIX
crossover detection, which gives the Switch true, "plug and play" capabilities. Just connect
any network cable between the Switch and the device, and The Switch will automatically
detect the settings of the device and adjust itself accordingly.
C. EEE+ on/off switch
By default, the EEE+ mode is disabled. User can enable EEE+ mode via on/off switch in
front of panel.

LED Indicators

DGS-1016D
The LED Indicators will allow you to monitor, diagnose and troubleshoot any potential problem
with the switch, connection or attached devices.
A. Power
This lights green while the Switch is receiving power.
B. Link/Act/Speed
When connected to a 1000Mbps device, this LED indicator light is green when the port is
connected to a device and will blink as data is transmitted or received.
When connected to a 10/100Mbps device, this LED indicator light is amber when the port
is connected to a device and will blink as data is transmitted or received.
C. Cable Diagnostics (during boot up only)
Open or short circuit  Link/Act/Speed LED light amber.
DGS-1024D
DGS-1024D
3
