Congratulations! You now own the best 1/12th scale car on the market today, the Carpet Knifeä Version 3. This completely new car

sets higher standards in pan car design, performance and convenience features. Calandra Racing is proud to have you as an owner

of the new Carpet Knifeä ! Build this car carefully and precisely. It will bring years of enjoyment and performance.

1) Build the shock per the instructions included in Bag "S". Use FSR or Asc 30 weight silicone

Shock

oil. After the shock is built, set it aside for mounting later.

DISASSEMBLY

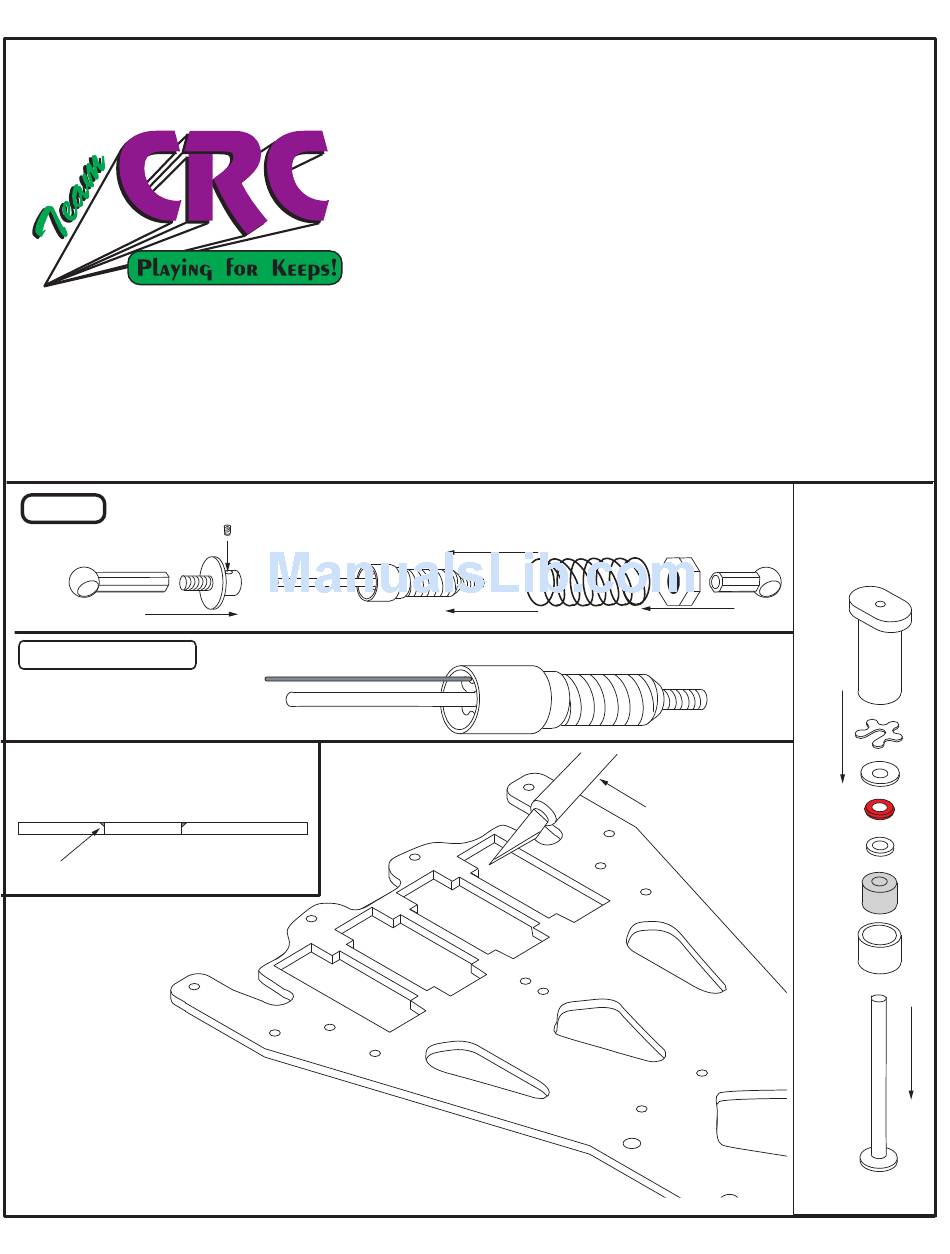

BEVEL BATTERY SLOTS

Remove sharp edge- DO NOT FILE!

DO NOT

file the battery slots! The

slots are pre-machined to allow the batteries to sit

flush with the bottom of the chassis.

**Optional** - You may wish to slightly chamfer the sharp edges. Do this by

lightly dragging a sharp X-acto blade across the sharp edge of the graphite.

Carpet Knifeä

Version 3

Center Shock

Assembly
