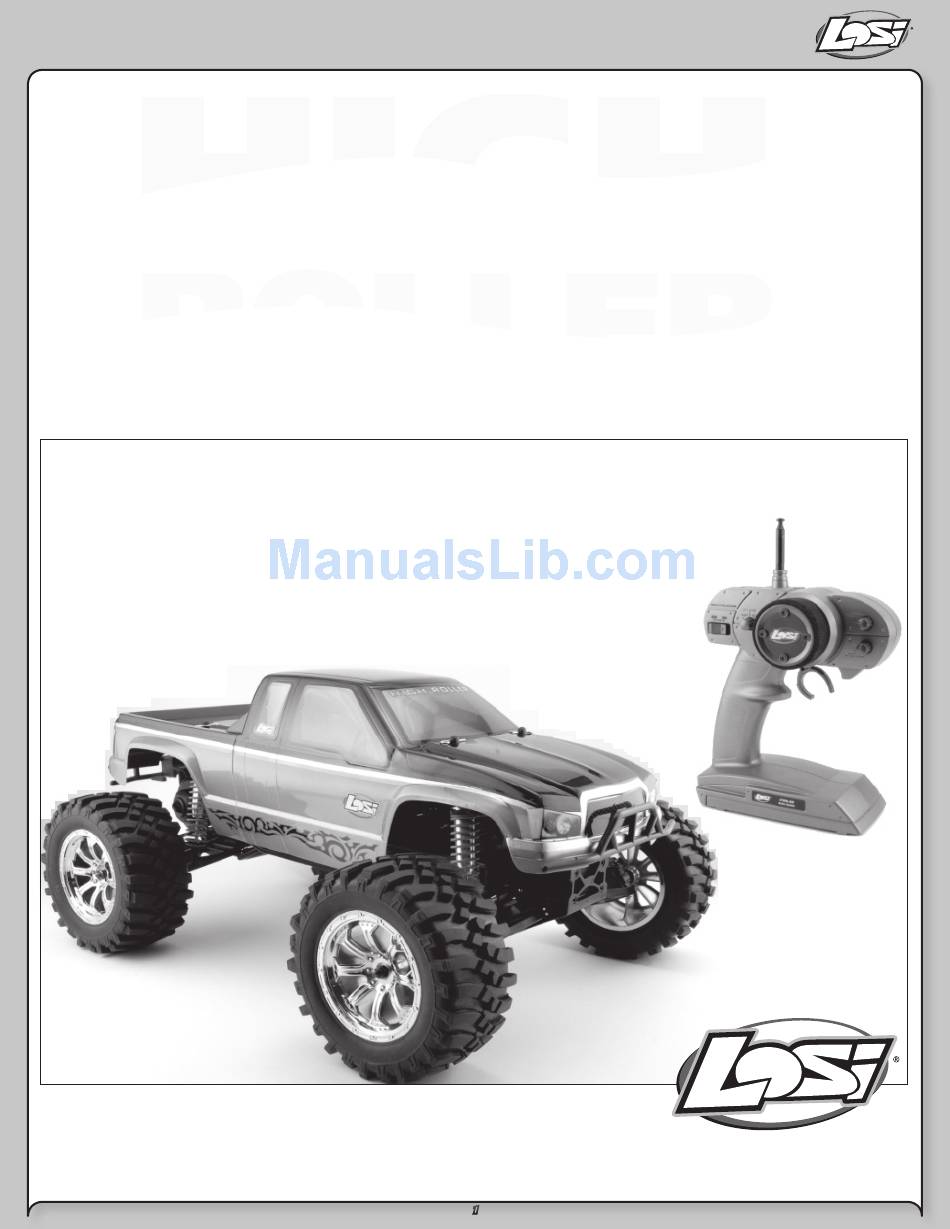

- Page 1 HIGH ROLLER 1/10-SCALE ELECTRIC RTR LIFTED TRUCK LOSB0103 1/10 HIGHroller RTR Not responsible for errors. All prices subject to change without notice. Losi, a Division of Horizon Hobby, Inc.
-
Page 2: Table Of Contents
Transmitter Battery Installation .............9 In the following pages you will find all the information you will Vehicle Battery Installation ..............10 need to set up as well as operate your new 1/10 HIGHroller to Quick Start ....................11 its full potential. Losi 27MHz AM Radio System ............12-13 Driving the 1/10 HIGHroller ..............14... -
Page 3: Safety Precautions
Safety Precautions Batteries and Charging: The 1/10 HIGHroller uses rechargeable batteries such as NiMH We hope you operate this RC model in a safe, reasonable or NiCd. These batteries require special handling to preserve and cautious fashion in order to enjoy your vehicle. Should performance and last a long time. -
Page 4: Supplied And Required Equipment
Supplied and Required Equipment Eight (8) AA batteries Supplied tools: NiMH battery charger with automatic “peak detection” recommended. 2-Way wrench DYN4044 Vision Peak™ 2 AC/DC Charger Two (2) Hex Wrenches (L shaped) 1/16 and 3/32 Flat Turnbuckle Wrench Recommended Accessories: Hobby grade knife CA glue (LOSA7880 or LOSA7881) -
Page 5: Technical Overview
The Losi 1/10 HIGHroller Overview... - Page 6 The Losi 27MHz AM Radio System Overview...
- Page 7 1/10 HIGHroller Electronics System Overview...
-
Page 8: Esc Overview/Troubleshooting
MSC 12RB 12T Fwd/Rev ESC Adjusting the Transmitter Features • High power FET control with proportional forward and reverse. 1. Set the “throttle reversing” switch to the NORMAL position. 2. Set the “throttle trim” to the CENTER position. • High frequency design delivers smooth speed transition. •... -
Page 9: Transmitter Battery Installation
Installing Batteries: Transmitter Remove the battery cover from the bottom of the transmitter by sliding it away from the base of the handle. Install the eight (8) AA size batteries into the base, noting polarity when inserting each battery. Transmitter with batteries Reinstall the battery cover by sliding it back on the handle base. -
Page 10: Vehicle Battery Installation
Battery Pack(s) To install the battery pack remove the battery hold-down strap by removing the clip from the front mounting boss, and then, while lifting the strap, pulling forward in one motion. After you have inserted the fully-charged battery pack reinstall the battery hold-down strap. Notice that the battery hold-down has a flat side while the other side has strengthening ribs;... -
Page 11: Quick Start
Quick Start Note: Please read the entire manual to gain a full understanding of the 1/10 HIGHroller vehicle, fine-tuning the setup and performing maintenance. 1. Read the safety precautions found on page 3. This is important for your safety and prevention of personal injury. -
Page 12: Losi 27Mhz Am Radio System
Losi 27MHz AM Radio System The Radio System The following is an overview of the various functions and adjustments found on your Losi/HIGHroller radio system. Since the HIGHroller operates on a radio signal, it is important for you to read and understand about all of these functions before driving the model. - Page 13 Receiver There is no adjustment required of the receiver. Please note the different slots for connection. Changing Frequencies/Channels The HIGHroller radio operates on 27MHz AM and has 6 different frequencies/channels available. Simply put, a frequency is like a TV channel. The transmitter you hold in your hand is like the TV station and the model with the matching crystal is like your TV tuned exclusively to the channel of that station.
-
Page 14: Driving The 1/10 Highroller
Driving the 1/10 HIGHroller How you drive your 1/10 HIGHroller will also affect your run times. If you are performing runs, going from a standstill to full Please note the following precautions before running speed repeatedly, you are asking a lot from your batteries and your 1/10 HIGHroller. -
Page 15: Tuning, Adjusting And Maintaining The 1/10 Highroller
1/10 HIGHroller and dust. smoother in bumps. Running the inside shock location on the • Look for cracks in the suspension arms and other arm will give the 1/10 HIGHroller more steering into the turn molded parts. and less steering on corner exit. Running the shock location • Check that the tires are still glued to the wheels. - Page 16 Too corner better but with a decrease in steering from the middle short of a front link may make the 1/10 HIGHroller feel “twitchy” of the turn, out. Toe-in will help the 1/10 HIGHroller to track or “wandery”...
- Page 17 1/10 HIGHroller more steering entering the turn as it will let the 1/10 HIGHroller set over the rear tire and give you more forward traction exiting the turn. As you move the camber link...
- Page 18 Changing the gearing provides you a quick and easy way to wheel spinning speeds can pull the rubber tire away from the tune the 1/10 HIGHroller. Use the temperatures of both the rim. When a tire or tires come loose from the rim, you will notice motor and your battery pack as a guide to gearing to your the vehicle is hard to control.
-
Page 19: Troubleshooting Your 1/10 Highroller
Troubleshooting your 1/10 HIGHroller Vehicle runs slowly/slow acceleration: Check the battery connectors. Many questions are the result of simple user errors or minor Confirm that the battery is charged. adjustments which are easily addressed. If after reading below you cannot resolve your problem, then please call Horizon Vehicle will not reverse: Customer Service at 1-877-504-0233. -
Page 20: Warranty Information
Warranty Information If you as the Purchaser or user are not prepared to accept the liability associated with the use of this Product, you are Warranty Period advised to return this Product immediately in new and unused condition to the place of purchase. Exclusive Warranty- Horizon Hobby, Inc., (Horizon) warranties that the Products purchased (the “Product”) will be free from Law: These Terms are governed by Illinois law (without regard... - Page 21 Non-Warranty Repairs Instructions for Disposal of WEEE by Users in the European Union Should your repair not be covered by warranty the repair will be completed and payment will be required without This product must not be disposed of with other waste. notification or estimate of the expense unless the expense Instead, it is the user’s responsibility to dispose of their waste exceeds 50% of the retail purchase cost.
-
Page 22: Rc Terminology
RC Terminology Profiles – The MSC 12RB has two (2) preset profiles. Forward Only and Forward and Reverse profile. The Forward only profile BEC (Battery Elimination Circuit) – The BEC is used to eliminate can be selected for racing purposes. The Forward/Reverse the need for a receiver pack to power the radio system. -
Page 23: Parts Listing
Replacement Parts List Part Number Description Price LOS4112 48 Pitch Pinion Gear, 12T ..........................$4.99 LOSA4006 Antenna Tube and Set Screw ........................$1.50 LOSA4015 Battery Foam ..............................$2.50 LOSA5224 Silicone Shock Oil, 30 wt, 2 oz ........................$3.99 LOSA6903 Sealed BB, 3/16 x 3/8 (2) ..........................$7.00 LOSA8200 Body Clips ................................$1.25 LOSB0802... -
Page 24: Optional Parts Listing
LOSB8007 HIGHRoller Painted Body, Burnt Metallic Orange ................$39.99 LOSB9520 MSC12RB 12T Fwd/Rev ESC ........................$54.99 LOSB9999 1/10 LM-32K Motor ............................ $19.99 Optional Parts for the 1/10 HIGHroller Part Number Description Price LOS4112 48 Pitch Pinion Gear, 12T ..........................$4.99 LOS4113 48 Pitch Pinion Gear, 13T ..........................$4.99... - Page 25 LOSA5232 Silicone Shock Oil, 100Wt, 2 oz .........................$3.99 LOSA5240 Shock Oil 6pk 20, 25, 30, 35, 40, 45Wt....................$19.99 LOSA5241 Shock Oil 6pk 50, 60, 70, 80, 90, 100 Wt..................... $19.99 LOSB2017 Steering Block Set, Aluminum ....................... $27.99 LOSB2018 Caster Block Set, Aluminum ........................
-
Page 26: Exploded Views
* ALL SCREWS = LOSB2032 * ALL NUTS = LOSB2736 LOSB2452 LOSA8200 LOSB2169 LOSB2029 LOSB2008 LOSB2117 LOSB2240 LOSB2240 LOSB2108 LOSB2030 LOSB4107 LOSB2028 LOSA6903 LOSB3550 LOSB2284 LOSB2026 LOSB2107 LOSB2030 LOSB2107 LOSB7212 TIRE LOSB7451 LOSB7212 LOSB7051 TIRE WHEEL LOSB7441 Front and Rear Shock LOSB7041 WHEEL LOSB2902... - Page 27 LOSB2452 LOSA8200 LOSB2162 LOSB2284 LOSB2736 LOSB2008 LOSB2356 LOSB2241 LOSB2238 LOSB2357 LOSA4015 LOSB2357 LOSB2357 LOSB2283 LOSB3008 LOSB2030 LOSB2284 LOSB2025 LOSB2026 LOSB2240 LOSB2027 LOSB4107 LOSB2117 LOSB2284 LOSB2030 LOSB2024 LOSB2027 LOSB2006 LOSB2011 LOSB2005 LOSB2284 LOSB4107 LOSB4107 LOSB2030 7212 LOSB2031 LOSA6903 LOSB2026 LOSB2030...
- Page 28 Printed 03-09 800-0361.1 ©2008 Losi, A division of Horizon Hobby, Inc. Not responsible for typographical errors. All pricing subject to change without notice.
