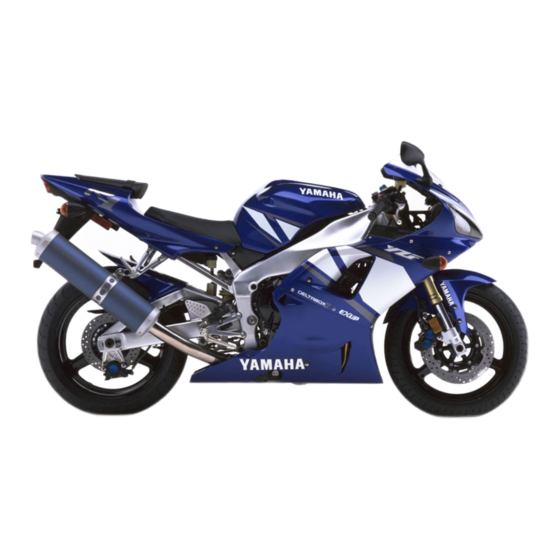

Yamaha 2001 YZF-R1M Owner's Manual
  1. Manuals
  2. Brands
  3. Yamaha Manuals
  4. Motorcycle
  5. 2001 YZF-R1M
  6. Owner's manual
Yamaha 2001 YZF-R1M Owner's Manual

Yamaha 2001 YZF-R1M Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER'S MANUAL
YZF-R1M
5JJ-28199-20

Advertisement

Table of Contents
loading

Related Manuals for Yamaha 2001 YZF-R1M

Summary of Contents for Yamaha 2001 YZF-R1M

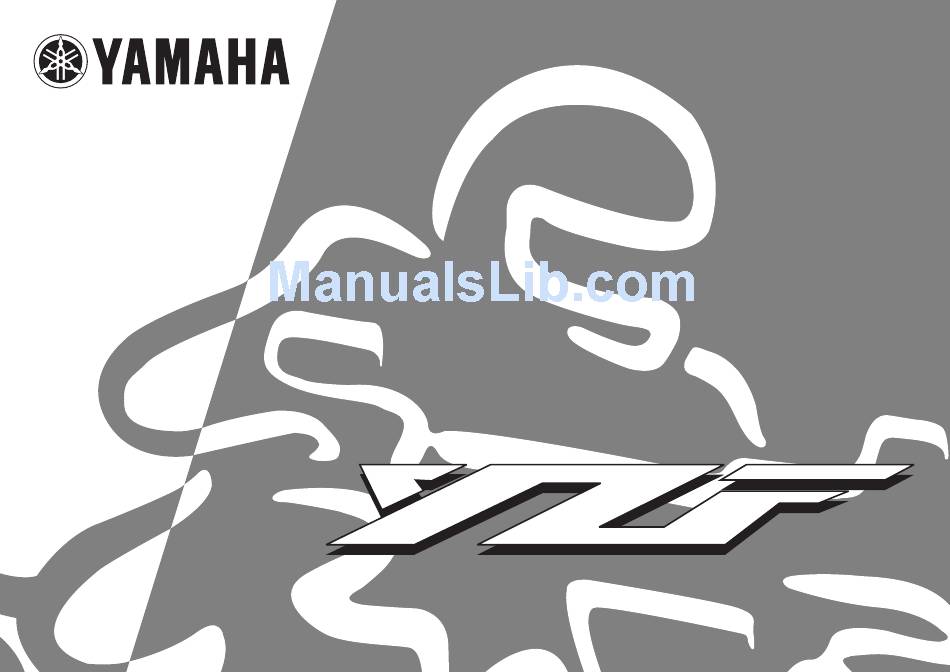

  • Page 1 OWNER’S MANUAL YZF-R1M 5JJ-28199-20...
  • Page 3 INTRODUCTION EAU00000 Congratulations on your purchase of the Yamaha YZF-R1. This model is the result of Yamaha’s vast experience in the production of fine sporting, touring, and pacesetting racing machines. It represents the high degree of craftsmanship and reliability that have made Yamaha a leader in these fields.
  • Page 4 This manual should be considered a permanent part of this motorcycle and should remain with it even if the motorcycle is subsequently sold. Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most current product information available at the time of printing, there may be minor discrepancies between your motorcycle and this manual.

  • Page 5: Important Manual Information

    IMPORTANT MANUAL INFORMATION EW000002 WARNING PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING THIS MOTORCYCLE.
  • Page 6 IMPORTANT MANUAL INFORMATION EAU00008 YZF-R1M OWNER’S MANUAL ©2000 by Yamaha Motor Co., Ltd. 1st Edition, January 2000 All rights reserved. Any reprinting or unauthorized use without the written permission of Yamaha Motor Co., Ltd. is expressly prohibited. Printed in Japan.

  • Page 7: Table Of Contents

    EAU00009 TABLE OF CONTENTS 1 SAFETY INFORMATION 2 DESCRIPTION 3 INSTRUMENT AND CONTROL FUNCTIONS 4 PRE-OPERATION CHECKS 5 OPERATION AND IMPORTANT RIDING POINTS 6 PERIODIC MAINTENANCE AND MINOR REPAIR 7 MOTORCYCLE CARE AND STORAGE 8 SPECIFICATIONS 9 CONSUMER INFORMATION INDEX...

  • Page 9: Safety Information

    SAFETY INFORMATION Safe riding ..................1-1 Protective apparel ................1-3 Modifications ..................1-3 Loading and accessories ..............1-3 Gasoline and exhaust gas..............1-5 Location of important labels .............. 1-7...

  • Page 10: Safe Riding

    S AFETY INFORMATION EAU00014 MOTORCYCLES ARE SINGLE TRACK VEHICLES. THEIR SAFE USE AND OPERATION ARE DEPENDENT UPON THE USE OF PROPER RIDING TECHNIQUES AS WELL AS THE EXPERTISE OF THE OPERATOR. EVERY OPERATOR SHOULD KNOW THE FOLLOWING REQUIREMENTS BEFORE RIDING THIS MOTORCYCLE. HE OR SHE SHOULD: 1.

  • Page 11: Safety Information

    SAFETY INFORMATION 4. Many accidents involve inexperienced operators. In fact, many operators who have been involved in accidents do not even have a current motorcycle license. a. Make sure that you are qualified and that you only lend your motorcycle to other qualified opera- tors.

  • Page 12: Protective Apparel

    6. A passenger should also observe the above precautions. Modifications Modifications made to this motorcycle not approved by Yamaha, or the removal of original equipment, may render the motorcycle unsafe for use and may cause severe personal injury. Modifications may also make your motorcycle illegal to use.
  • Page 13 Genuine Yamaha accessories have been specifically designed for use on this motorcycle. Since Yamaha cannot test all other accessories that may be available, you must personally be responsible for the proper selection, installation and use of non-Yamaha accessories. Use extreme caution when selecting and installing any accessories.

  • Page 14: Gasoline And Exhaust Gas

    SAFETY INFORMATION b. Bulky or large accessories may seriously affect the stability of the motorcycle due to aerodynamic effects. Wind may attempt to lift the motorcycle, or the motorcycle may become unstable in cross winds. These accessories may also cause instability when passing or being passed by large ve- hicles.
  • Page 15 SAFETY INFORMATION 4. When transporting the motorcycle in another vehicle, make sure that it is kept upright. If the motorcy- cle should lean over, gasoline may leak out of the carburetor or fuel tank. 5. If you should swallow any gasoline, inhale a lot of gasoline vapor, or allow gasoline to get into your eyes, see your doctor immediately.

  • Page 16: Location Of Important Labels

    SAFETY INFORMATION EAU02977 Location of important labels Please read the following important labels carefully before operating this motorcycle. WARNING Before you operate this vehicle, read the owner’s manual. English 3HP-21568-00 4AA-22259-40...

  • Page 17: Description

    DESCRIPTION Left view ..................... 2-1 Right view................... 2-2 Controls and instruments ..............2-3...
  • Page 18 D ESCRIPTION EAU00026 Left view 1. Front fork compression damping force adjusting screw (page 3-15) 2. Front fork rebound damping force adjusting screw (page 3-15) 3. Front fork spring preload adjusting bolt (page 3-14) 4. Air filter element (page 6-15) 5.
  • Page 19 DESCRIPTION Right view 11. Owner’s tool kit (page 6-1) 16. Radiator and coolant reservoir (page 6-11) 12. Fuses (page 6-34) 17. Front brake fluid reservoir (page 6-25) 13. Rear brake fluid reservoir (page 6-26) 18. Oil filter cartridge (page 6-9) 14.
  • Page 20 DESCRIPTION Controls and instruments 1. Clutch lever (page 3-8) 6. Tachometer (page 3-6) 2. Left handlebar switches (page 3-7) 7. Right handlebar switches (page 3-8) 3. Starter (choke) lever (page 3-11) 8. Throttle grip (page 6-18) 4. Speedometer unit (page 3-5) 9.

  • Page 21: Instrument And Control Functions

    INSTRUMENT AND CONTROL FUNCTIONS Main switch/steering lock ........3-1 Starter (choke) lever........... 3-11 Indicator and warning lights ........3-2 Seats..............3-11 Speedometer unit ..........3-5 Helmet holders ..........3-13 Tachometer ............3-6 Storage compartment ........3-13 Self-diagnosis devices .........3-6 Adjusting the front fork ........3-14 Handlebar switches ..........3-7 Adjusting the shock absorber assembly ....

  • Page 22: Main Switch/Steering Lock

    I NSTRUMENT AND CONTROL FUNCTIONS EAU00027 1. Push 2. Turn EAU00029 EAU00040 Main switch/steering lock LOCK EW000016 The steering is locked, and all electrical WARNING The main switch/steering lock controls systems are off. The key can be re- the ignition and lighting systems, and is Never turn the key to “OFF”...

  • Page 23: Indicator And Warning Lights

    This warning light comes on when the 2. If the warning light does not come fuel level drops below approximately on, have a Yamaha dealer check 1. Neutral indicator light “ ” 3.8 L. When this occurs, refuel as soon 2.
  • Page 24 The electrical circuit of the warning light can be checked according to the fol- lowing procedure. 1. Turn the key to “ON”. 2. If the warning light does not come on, have a Yamaha dealer check the electrical circuit.
  • Page 25 INSTRUMENT AND CONTROL FUNCTIONS CB-25E Coolant Display Conditions What to do temperature Message “LO” is 0–39 °C OK. Go ahead with riding. displayed. Temperature is 40–116 °C OK. Go ahead with riding. displayed. Stop the motorcycle and allow it to idle until the coolant temperature goes down.

  • Page 26: Speedometer Unit

    INSTRUMENT AND CONTROL FUNCTIONS a fuel reserve tripmeter (which To reset a tripmeter, select it by push- shows the distance traveled on the ing the “SELECT” button, and then fuel reserve) push the “RESET” button for at least a clock one second.

  • Page 27: Tachometer

    INSTRUMENT AND CONTROL FUNCTIONS To set the clock: EAU03271 Self-diagnosis devices 1. Push the “SELECT” button and This model is equipped with a self-di- “RESET” button together for at agnosis device for the following electri- least two seconds. cal circuits: 2.

  • Page 28: Handlebar Switches

    If the tachometer displays such an er- dealer check the motorcycle. ror code, note the circuit-specific num- 1. Pass switch “PASS” ber of r/min, and then have a Yamaha 2. Dimmer switch dealer check the motorcycle. 3. Turn signal switch 4.

  • Page 29: Clutch Lever

    INSTRUMENT AND CONTROL FUNCTIONS EAU00127 Turn signal switch To signal a right-hand turn, push this switch to “ ”. To signal a left-hand turn, push this switch to “ ”. When released, the switch returns to the cen- ter position. To cancel the turn signal lights, push the switch in after it has re- turned to the center position.

  • Page 30: Shift Pedal

    INSTRUMENT AND CONTROL FUNCTIONS 1. Shift pedal 1. Brake lever position adjusting dial 1. Brake pedal 2. Arrow mark EAU00157 EAU00162 a. Distance between brake lever and handlebar Shift pedal Brake pedal grip The shift pedal is located on the left The brake pedal is on the right side of EAU00161 side of the engine and is used in com-...

  • Page 31: Fuel Tank Cap

    INSTRUMENT AND CONTROL FUNCTIONS NOTE: The fuel tank cap cannot be closed un- less the key is in the lock. In addition, the key cannot be removed if the cap is not properly closed and locked. EWA00025 WARNING Make sure that the fuel tank cap is properly closed before riding.

  • Page 32: Starter (Choke) Lever

    INSTRUMENT AND CONTROL FUNCTIONS EAU00185 CAUTION: Immediately wipe off spilled fuel with a clean, dry, soft cloth, since fuel may deteriorate painted surfac- es or plastic parts. EAU00192 Recommended fuel: 1. Starter (choke) lever 1. Bolt (× 2) Regular gasoline EAU02976 EAU01890 For Australia:...
  • Page 33 INSTRUMENT AND CONTROL FUNCTIONS 1. Projection 1. Passenger seat lock 1. Projection 2. Seat holder 2. Unlock 2. Seat holder To install the rider seat Passenger seat To install the passenger seat Insert the projection on the front of the To remove the passenger seat 1.

  • Page 34: Helmet Holders

    INSTRUMENT AND CONTROL FUNCTIONS EWA00015 WARNING Never ride with a helmet attached to a helmet holder, since the helmet may hit objects, causing loss of control and possibly an accident. To release the helmet from a helmet holder 1. Helmet holder (× 2) 1.

  • Page 35: Adjusting The Front Fork

    INSTRUMENT AND CONTROL FUNCTIONS EAU01862 Adjusting the front fork This front fork is equipped with spring preload adjusting bolts, rebound damp- ing force adjusting screws and com- pression damping force adjusting screws. EW000035 WARNING Always adjust both fork legs equal- 1.
  • Page 36 INSTRUMENT AND CONTROL FUNCTIONS EC000015 CAUTION: Never attempt to turn an adjusting mechanism beyond the maximum or minimum settings. NOTE: Although the total number of clicks of a damping force adjusting mechanism 1. Rebound damping force adjusting screw 1. Compression damping force adjusting screw may not exactly match the above spec- ifications due to small differences in Rebound damping force...

  • Page 37: Adjusting The Shock Absorber Assembly

    INSTRUMENT AND CONTROL FUNCTIONS EAU01570 Adjusting the shock absorber assembly This shock absorber assembly is equipped with a spring preload adjust- ing ring and rebound and compression damping force adjusting screws. EC000015 CAUTION: 1. Spring preload adjusting ring 1. Rebound damping force adjusting screw Never attempt to turn an adjusting 2.
  • Page 38 9 clicks in direction b* Standard will result in poor damping per- 1 click in direction b* Maximum (hard) formance. * With the adjusting screw fully turned in direction a Always have a Yamaha dealer service the shock absorber. 3-17...

  • Page 39: Matching The Front And Rear Suspension Settings

    INSTRUMENT AND CONTROL FUNCTIONS EAU01580 Matching the front and rear suspension settings Use this table as a guide to match the suspension and damping adjustments of the front fork and shock absorber assembly according to various load conditions. CI-31E Load condition Front fork adjustment Shock absorber assembly adjustment Compression...

  • Page 40: Luggage Strap Holders

    (See page 3-12 for passenger age to the engine. seat removal and installation proce- If the EXUP system does not op- dures.) erate, have a Yamaha dealer check it. 3-19...

  • Page 41: Sidestand

    It cuts the running engine when check this system regularly as de- the sidestand is moved down. scribed below and have a Yamaha Periodically check the operation of the dealer repair it if it does not function ignition circuit cut-off system according properly.
  • Page 42 5. Push the start switch. Does the engine start? The neutral switch may be defective. The motorcycle should not be ridden until checked by a Yamaha dealer. With the engine still running: 6. Move the sidestand up. 7. Keep the clutch lever pulled.

  • Page 43: Pre-Operation Checks

    PRE-OPERATION CHECKS Pre-operation check list..............4-1...
  • Page 44 P RE-OPERATION CHECKS EAU01114 The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly, even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss of tire air pressure could have serious consequences.
  • Page 45 PRE-OPERATION CHECKS ITEM CHECKS PAGE • Check smooth operation. Sidestand pivot 6-30 • Lubricate if necessary. • Make sure that all nuts, bolts and screws are properly tightened. Chassis fasteners — • Tighten if necessary. • Check fuel level. Fuel 3-10 •...

  • Page 47: Operation And Important Riding Points

    OPERATION AND IMPORTANT RIDING POINTS Starting and warming up a cold engine ..........5-1 Starting a warm engine ..............5-3 Shifting ....................5-3 Tips for reducing fuel consumption ........... 5-4 Engine break-in .................. 5-4 Parking ....................5-5...

  • Page 48: Starting And Warming Up A Cold Engine

    EW000054 length of time. Exhaust fumes should be on, otherwise have a WARNING are poisonous, and inhaling Yamaha dealer check the electrical cir- Before starting engine, them can cause loss of con- cuit. check the function of the igni- sciousness and death within a 3.
  • Page 49 Yamaha dealer check the off when the start switch is re- electrical circuit. leased. If the oil level warning light flick- 5.

  • Page 50: Starting A Warm Engine

    OPERATION AND IMPORTANT RIDING POINTS EAU01258 EC000048 Starting a warm engine CAUTION: Follow the same procedure as for start- Even with the transmission in ing a cold engine with the exception the neutral position, do not that the starter (choke) is not required coast for long periods of time when the engine is warm.

  • Page 51: Tips For Reducing Fuel Consumption

    EC000053 CAUTION: Keep the engine speed out of the tachometer red zone. If any engine trouble should oc- cur during the engine break-in period, immediately have a Yamaha dealer check the vehi- cle.

  • Page 52: Parking

    OPERATION AND IMPORTANT RIDING POINTS EAU00460 NOTE: Parking During and after the engine break-in When parking, stop the engine, and period, the exhaust heat may cause then remove the key from the main discoloration of the exhaust pipe, but switch. this is normal.

  • Page 53: Periodic Maintenance And Minor Repair

    PERIODIC MAINTENANCE AND MINOR REPAIR Owner’s tool kit .............6-1 Checking and lubricating the cables ....6-29 Periodic maintenance and lubrication chart..6-2 Checking and lubricating the throttle grip and cable ............6-29 Removing and installing cowlings and panels ..6-5 Checking and lubricating the brake Checking the spark plugs ........6-7 and clutch levers ..........

  • Page 54: Owner's Tool Kit

    Periodic inspection, adjustment and lu- ence required for a particular job, have brication will keep your vehicle in the a Yamaha dealer perform it for you. safest and most efficient condition pos- EW000063 sible. The most important points of in-...

  • Page 55: Periodic Maintenance And Lubrication Chart

    PERIODIC MAINTENANCE AND MINOR REPAIR EAU00473 Periodic maintenance and lubrication chart CP-02E Every Every Initial Annual ITEM CHECKS AND MAINTENANCE JOBS 1,000 km check 10,000 km 20,000 km • Check fuel hoses for cracks or damage. √ √ Fuel line •...
  • Page 56 PERIODIC MAINTENANCE AND MINOR REPAIR Every Every Initial Annual ITEM CHECKS AND MAINTENANCE JOBS 1,000 km check 10,000 km 20,000 km • Check bearings for looseness or damage. √ Wheel bearings • Replace if necessary. • Check swingarm pivoting point for play. √...
  • Page 57 • Correct if necessary. switches • Adjust headlight beam if necessary. * Since these items require special tools, data and technical skills, have a Yamaha dealer perform the service. EAU03206 NOTE: The annual checks must be performed every year except if a 10,000 km or 20,000 km maintenance is performed in- stead.

  • Page 58: Removing And Installing Cowlings And Panels

    PERIODIC MAINTENANCE AND MINOR REPAIR 1. Cowling A 1. Quick fastener screw (× 4) 1. Quick fastener screw (× 4) 2. Cowling B 2. Screw 2. Screw 3. Panel A To install the cowling EAU01254 Cowling A EAU01139 Place the cowling in the original posi- Removing and installing To remove the cowling tion, and then tighten the quick fastener...
  • Page 59 PERIODIC MAINTENANCE AND MINOR REPAIR Right side 1. Screw 1. Lead connector (× 2) 1. Quick fastener 2. Quick fastener screw 2. Quick fastener screw (× 2) NOTE: 3. Screw EAU01255 The quick fastener is removed by push- Panel A EAU01259 Cowling B ing the center pin in with a screwdriver,...

  • Page 60: Checking The Spark Plugs

    Do not attempt to diagnose such problems yourself. Instead, have a Yamaha dealer check the motorcycle. If a spark plug shows signs of electrode erosion and excessive carbon or other deposits, it should be replaced.

  • Page 61: Engine Oil And Oil Filter Cartridge

    PERIODIC MAINTENANCE AND MINOR REPAIR Clean the surface of the spark plug NOTE: Make sure that the motorcycle is posi- gasket and its mating surface, and then tioned straight up when checking the oil wipe off any grime from the spark plug level.
  • Page 62 An oil filter wrench is available at a tion procedures.) 4. Remove the engine oil filler cap Yamaha dealer. and drain bolt to drain the oil from the crankcase. NOTE: Skip steps 5–7 if the oil filter cartridge is...
  • Page 63 PERIODIC MAINTENANCE AND MINOR REPAIR 9. Add the specified amount of the recommended engine oil, and then install and tighten the oil filler cap. Recommended engine oil: See page 8-1. Oil quantity: Without oil filter cartridge replace- 1. O-ring 1. Torque wrench ment: 6.

  • Page 64: Coolant

    (since the engine oil or remains on, immediately turn the also lubricates the clutch), do engine off and have a Yamaha deal- not mix any chemical additives er check the vehicle. with the oil or use oils of a 11.
  • Page 65 0.45 L against frost and corrosion. If water has been added to the coolant, have a Yamaha dealer check the antifreeze content of the coolant as soon as possible, otherwise the effectiveness of the coolant will be reduced.
  • Page 66 PERIODIC MAINTENANCE AND MINOR REPAIR 1. Coolant reservoir cap 1. Bolt (× 2) 1. Coolant drain bolt 2. Radiator cap 2. Clutch cable holder bolt 7. Remove the coolant drain bolt to EAU01577 EW000067 drain the cooling system. To change the coolant WARNING 1.
  • Page 67 9. After the coolant is completely If water has been added to the antifreeze containing corrosion drained, thoroughly flush the cool- coolant, have a Yamaha dealer inhibitors for aluminum engines ing system with clean tap water. check the antifreeze content of Coolant quantity: 10.

  • Page 68: Cleaning The Air Filter Element

    Cleaning the air filter element the vehicle for coolant leakage. If The air filter element should be cleaned coolant is leaking, have a Yamaha at the intervals specified in the periodic dealer check the cooling system. maintenance and lubrication chart.
  • Page 69 PERIODIC MAINTENANCE AND MINOR REPAIR EC000082 CAUTION: Make sure that the air filter ele- ment is properly seated in the air filter case. The engine should never be op- erated without the air filter ele- ment installed, otherwise the piston(s) and/or cylinder(s) may 1.

  • Page 70: Adjusting The Carburetors

    Yamaha dealer, who has the neces- periodic maintenance and lubrication the engine but have a Yamaha sary professional knowledge and expe- chart.

  • Page 71: Adjusting The Throttle Cable Free Play

    The valve clearance changes with use, resulting in improper air-fuel mixture and/or engine noise. To prevent this from occurring, the valve clearance must be adjusted by a Yamaha dealer at the intervals specified in the periodic maintenance and lubrication chart. 1. Throttle stop screw a.

  • Page 72: Tires

    PERIODIC MAINTENANCE AND MINOR REPAIR EAU03296 CE-??E condition and pressure of your tires. Tire air pressure Tires (measured on cold tires) NEVER OVERLOAD YOUR MOTOR- To maximize the performance, durability, Load* Front Rear CYCLE. Make sure the total weight and safe operation of your motorcycle, 250 kPa 250 kPa of the cargo, rider, passenger, and...
  • Page 73 Minimum tire tread depth 1.0 mm in it, or if the side wall is cracked, con- (front and rear) tact a Yamaha dealer immediately and NOTE: have the tire replaced. The tire tread depth limits may differ from country to country. Always comply with the local regulations.
  • Page 74 Tire air valve TR412 Yamaha Motor Co., Ltd. Brand-new tires can have a rela- Valve core #9000A (original) Always make sure that the valve tively poor grip on certain road caps are securely installed to surfaces until they have been prevent air pressure leakage.

  • Page 75: Wheels

    2. Remove cowling A. (See page 6-5 fore each ride. If any damage is for cowling removal and installa- 1. Adjusting bolt found, have a Yamaha dealer re- tion procedures.) c. Clutch lever free play place the wheel. Do not attempt...

  • Page 76: Adjusting The Brake Pedal Position

    If there is air in the hydraulic system, have a Yamaha dealer bleed the system be- fore operating the motorcycle. Air in the hydraulic system will diminish 1. Locknut a.

  • Page 77: Adjusting The Rear Brake Light Switch

    Yamaha dealer replace Turn the adjusting nut while holding the the brake pads as a set. rear brake light switch in place. To make the brake light come on earlier, turn the adjusting nut in direction a.

  • Page 78: Checking The Brake Fluid Level

    0.5 mm, have a Yamaha Before riding, check that the brake fluid dealer replace the brake pads as a is above the minimum level mark and set.

  • Page 79: Changing The Brake Fluid

    EAU00742 Rear Changing the brake fluid ter the brake fluid reservoir when Have a Yamaha dealer change the refilling. Water will significantly brake fluid at the intervals specified in lower the boiling point of the fluid the periodic maintenance and lubrica- and may result in vapor lock.

  • Page 80: Drive Chain Slack

    PERIODIC MAINTENANCE AND MINOR REPAIR 2. Shift the transmission into the neu- tral position. 3. Move the rear wheel by pushing the motorcycle to locate the tight- est portion of the drive chain, and then measure the drive chain slack as shown. Drive chain slack: a.

  • Page 81: Lubricating The Drive Chain

    PERIODIC MAINTENANCE AND MINOR REPAIR EAU03006 ECA00052 NOTE: Lubricating the drive chain CAUTION: Using the alignment marks on each The drive chain must be cleaned and side of the swingarm, make sure that Do not use engine oil or any other lubricated at the intervals specified in both chain pullers are in the same posi- lubricants for the drive chain, as...

  • Page 82: Checking And Lubricating The Cables

    If a cable is damaged replaced if necessary. or does not move smoothly, have a NOTE: Yamaha dealer check or replace it. Since the throttle grip must be removed to access the throttle cable end, the Recommended lubricant:...

  • Page 83: Checking And Lubricating The Brake And Clutch Levers

    Recommended lubricant: EW000113 Lithium-soap-based grease Recommended lubricant: WARNING (all-purpose grease) Lithium-soap-based grease If the sidestand does not move up (all-purpose grease) and down smoothly, have a Yamaha dealer check or repair it. Recommended lubricant: Lithium-soap-based grease (all-purpose grease) 6-30...

  • Page 84: Lubricating The Rear Suspension

    EC000098 CAUTION: If any damage is found or the front fork does not operate smoothly, have a Yamaha dealer check or re- pair it. 6-31...

  • Page 85: Checking The Steering

    The front and rear wheel bearings must ward and backward. If any free be checked at the intervals specified in play can be felt, have a Yamaha the periodic maintenance and lubrica- dealer check or repair the steer- tion chart. If there is play in the wheel ing.

  • Page 86: Battery

    To charge the battery working near batteries. In case then place it in a cool, dry place. Have a Yamaha dealer charge the bat- of contact, administer the fol- 2. If the battery will be stored for tery as soon as possible if it seems to lowing FIRST AID.

  • Page 87: Replacing The Fuses

    Specified fuses: 5. Odometer fuse cess to a sealed-type (MF) bat- Main fuse: 30 A 6. Spare fuse (× 3) tery charger, have a Yamaha Headlight fuse: 20 A EAU01754 dealer charge your battery. Replacing the fuses Signaling system fuse:...

  • Page 88: Replacing A Headlight Bulbs

    2. Unhook the headlight bulb holder, 4. If the fuse immediately blows EAU03295 and then remove the defective Replacing a headlight bulb again, have a Yamaha dealer bulb. This motorcycle is equipped with two check the electrical system. quartz bulb headlights. If a headlight bulb burns out, replace it as follows.
  • Page 89 4. Install the bulb cover, and then CAUTION: connect the coupler. Take care not to damage the follow- 5. Have a Yamaha dealer adjust the ing parts: headlight beam if necessary. Headlight bulb Do not touch the glass part of...

  • Page 90: Replacing The Tail/Brake Light Bulb

    PERIODIC MAINTENANCE AND MINOR REPAIR 1. Tail/brake light bulb cover 1. Socket 1. Screw 3. Remove the socket (together with EAU01358 EAU01095 Replacing the tail/brake light Replacing a turn signal light the bulb) by turning it counter- bulb bulb clockwise. 1.

  • Page 91: Supporting The Motorcycle

    PERIODIC MAINTENANCE AND MINOR REPAIR EAU01579 To service the rear wheel Supporting the motorcycle Raise the rear wheel off the ground by Since this model is not equipped with a using a motorcycle stand or, if a motor- centerstand, follow these precautions cycle stand is not available, by placing when removing the front and rear wheel a jack either under each side of the...

  • Page 92: Front Wheel

    PERIODIC MAINTENANCE AND MINOR REPAIR EAU03167 Front wheel To remove the front wheel EW000122 WARNING It is advisable to have a Yamaha dealer service the wheel. Securely support the motor- cycle so that there is no danger of it falling over. 1. Wheel axle 1.
  • Page 93 PERIODIC MAINTENANCE AND MINOR REPAIR EAU01249 To install the front wheel Tightening torques: 1. Lift the wheel up between the fork Wheel axle: legs. 72 Nm (7.2 m·kg) 2. Insert the wheel axle. Front wheel axle pinch bolt: 3. Lower the front wheel so that it is 23 Nm (2.3 m·kg) on the ground.

  • Page 94: Rear Wheel

    5. Turn the drive chain adjusting WARNING disassembled in order to remove and bolts fully in direction a. It is advisable to have a Yamaha install the rear wheel. dealer service the wheel. 7. Pull the wheel axle out, and then Securely support the motor- remove the wheel.

  • Page 95: Troubleshooting

    4. Install the brake caliper by install- self. However, should your motorcycle ing the bolts. require any repair, take it to a Yamaha dealer, whose skilled technicians have NOTE: the necessary tools, experience, and...

  • Page 96: Troubleshooting Charts

    Remove the spark plugs and check the electrodes. The engine does not start. Have a Yamaha dealer check the vehicle. Check the battery. 4. Battery The engine turns over The battery is good.
  • Page 97 Start the engine. If the engine overheats again, have a The coolant level Yamaha dealer check and repair the cooling system. is OK. NOTE: If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant as soon as possible.

  • Page 99: Motorcycle Care And Storage

    MOTORCYCLE CARE AND STORAGE Care ....................7-1 Storage ....................7-4...
  • Page 100 M OTORCYCLE CARE AND STORAGE EAU03168 Care Before cleaning Cleaning 1. Cover the muffler outlet with a ECA00056 While the open design of a motorcycle CAUTION: plastic bag after the engine has reveals the attractiveness of the tech- Avoid using strong acidic wheel cooled down.
  • Page 101 MOTORCYCLE CARE AND STORAGE Do not use any harsh chemical For motorcycles equipped with After riding in the rain, near the sea or products on plastic parts or the a windshield: Do not use strong on salt-sprayed roads muffler. Be sure to avoid using cleaners or hard sponges as Since sea salt or salt sprayed on roads cloths or sponges which have...
  • Page 102 MOTORCYCLE CARE AND STORAGE Cleaning the titanium muffler After cleaning EWA00031 WARNING This model is equipped with a titanium 1. Dry the motorcycle with a chamois Make sure that there is no oil or muffler, which requires the following or an absorbing cloth. wax on the brakes or tires.
  • Page 103 To prevent corrosion, avoid NOTE: “OFF”. damp cellars, stables (because Consult a Yamaha dealer for advice on 4. Fill up the fuel tank and add fuel of the presence of ammonia) what products to use. stabilizer (if available) to prevent...
  • Page 104 MOTORCYCLE CARE AND STORAGE a. Remove the spark plug caps and 6. Lubricate all control cables and 9. Remove the battery and fully spark plugs. the pivoting points of all levers and charge it. Store it in a cool, dry b.

  • Page 105: Specifications

    SPECIFICATIONS Specifications ..................8-1 Conversion table ................8-5...
  • Page 106 S PECIFICATIONS EAU01038 Specifications CS-01E Model YZF-R1 Engine oil Dimensions Type -20 -10 10 20 30 40 50 ˚C Overall length 2,095 mm SAE 10W-30 Overall width 695 mm SAE 10W-40 Overall height 1,105 mm Seat height 815 mm SAE 15W-40 Wheelbase 1,395 mm SAE 20W-40...
  • Page 107 SPECIFICATIONS Cooling system capacity Gear ratio (total amount) 2.55 L 2.500 Air filter Dry type element 1.842 Fuel 1.500 Type Regular gasoline 1.333 Unleaded fuel only (for Australia) 1.200 Fuel tank capacity 18 L 1.115 Fuel reserve amount 3.8 L Chassis Carburetor Frame type...
  • Page 108 SPECIFICATIONS Maximum load* 201 kg Rear Tire air pressure Type Single disc brake (measured on cold tires) Operation Right foot Up to 90 kg* Fluid DOT 4 Front 250 kPa (2.50 kgf/cm , 2.50 bar) Suspension Rear 250 kPa (2.50 kgf/cm , 2.50 bar) Front Telescopic fork...
  • Page 109 SPECIFICATIONS Bulb voltage, wattage × quantity 12 V, 60/55 W × 2 Headlight 12 V, 5/21 W × 2 Tail/brake light 12 V, 21 W × 4 Turn signal light LED × 2 Meter light Neutral indicator light High beam indicator light Turn signal indicator light Fuel level warning light Oil level warning light...

  • Page 110: Conversion Table

    SPECIFICATIONS EAU01064 Conversion table CS-02E Conversion table All specification data in this manual are listed in SI and METRIC TO IMPERIAL METRIC UNITS. Metric unit Multiplier Imperial unit Use this table to convert METRIC unit data to IMPERIAL m·kg 7.233 ft·lb m·kg 86.794...

  • Page 111: Consumer Information

    CONSUMER INFORMATION Identification numbers ................ 9-1 Key identification number ..............9-1 Vehicle identification number.............. 9-1 Model label ..................9-2 MOTORCYCLE NOISE REGULATION (for Australia)......9-2...
  • Page 112 Yamaha dealer or for reference in case the vehi- cle is stolen. 1. Key identification number 1. Vehicle identification number 1.
  • Page 113 This in- (b) The use of the vehicle after such formation will be needed when ordering device or element of design has spare parts from a Yamaha dealer. been removed or rendered inoper- ative by any person.

  • Page 114: Left View

    I NDEX 1 0 - Air filter element, cleaning ......6-15 Engine break-in ........5-4 Identification numbers ......9-1 Engine idling speed ....... 6-17 Ignition circuit cut-off system ....3-20 Engine oil and oil filter cartridge ....6-8 Indicator and warning lights......3-2 Battery ...........6-33 Engine, starting a warm ......

  • Page 115: Right View

    INDEX Troubleshooting charts......6-43 Turn signal light bulb, replacing ..... 6-37 Rear brake light switch, adjusting ..6-24 Rear suspension, lubricating....6-31 Rear wheel ..........6-41 Valve clearance, adjusting ....6-18 Installing........... 6-42 Vehicle identification number....9-1 Removing......... 6-41 Right view..........2-2 Wheel bearings, checking .....
  • Page 118 YAMAHA MOTOR CO., LTD. PRINTED ON RECYCLED PAPER PRINTED IN JAPAN 2000 · 1 - 0.3 × 1 CR...
