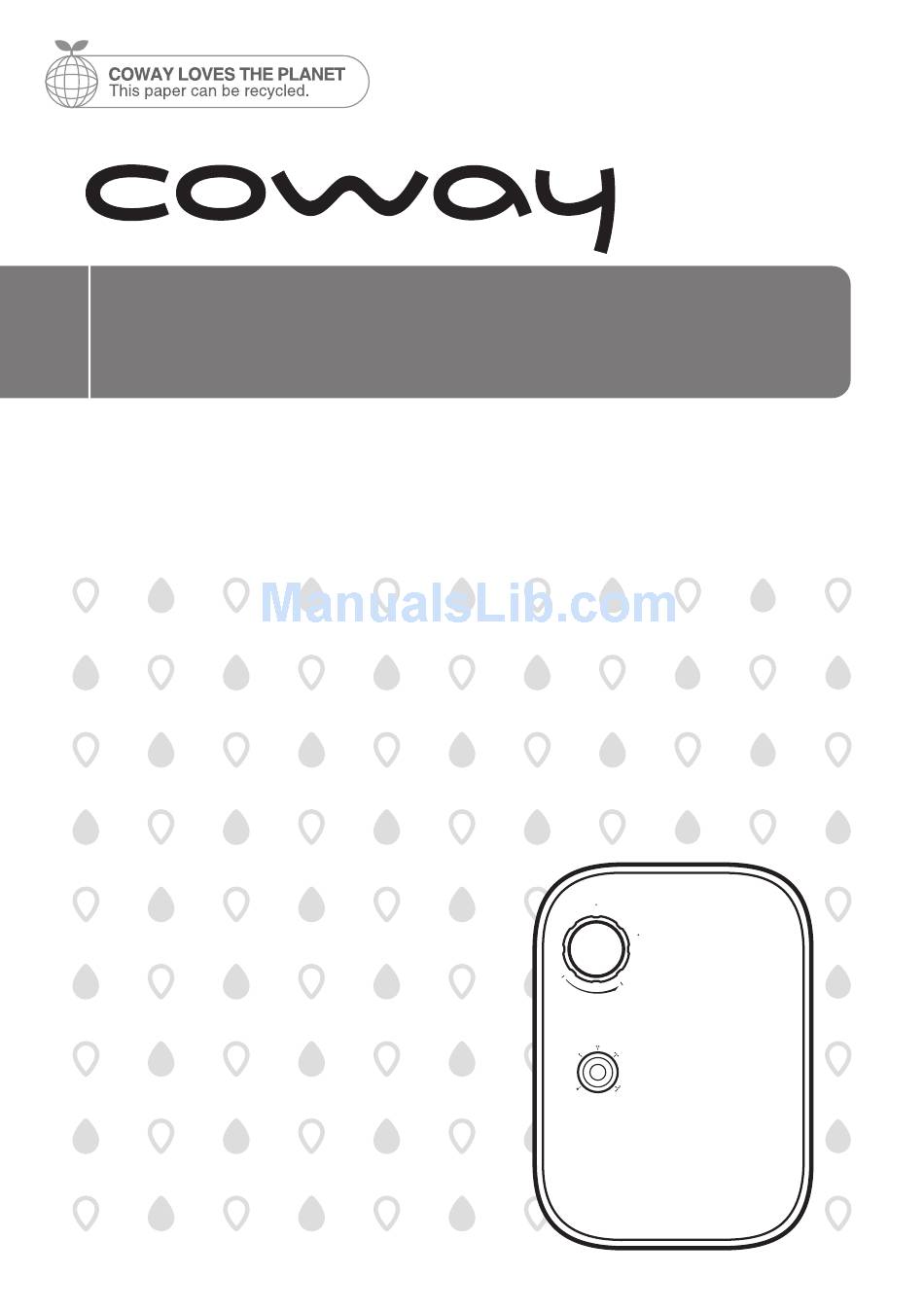

BB09-A
Water Softener
• This product is designed for domestic use only. Not available for other countries that use a
different water pressure system.
• For your safety and proper use of the product, please read this User's Manual before use.
• Warranty card is included in this User's Manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BB09-A and is the answer not in the manual?

Questions and answers

Related Manuals for Coway BB09-A

Summary of Contents for Coway BB09-A

  • Page 1 BB09-A Water Softener • This product is designed for domestic use only. Not available for other countries that use a different water pressure system. • For your safety and proper use of the product, please read this User’s Manual before use.

  • Page 2: Table Of Contents

    FEATURES SAFETY CAUTION ● Please wait for the warm water, it will take sometime for the water to reach the desired temperature. ● To avoid accidental burning, do not adjust the temperature to maximum. ver.001 CODE NO : 1214399 SAFETY CAUTION Please wait for the warm water, SAFETY CAUTION ●...

  • Page 3: Safety Information

    SAFETY INFORMATION DANGER : If not observed, serious injury or even death may occur as a result. • Do not install the product in a location exposed to direct sunlight or near a heating source. - This may result in fire, discoloration or deformation. •...

  • Page 4: Parts Name

    PARTS NAME Front View / Rear View Product Coway(small-amount) water softener for home use Model BB09 Operating Water Pressure 0.07 – 0.98 MPa Operating Temperature 2 - 80 °C Resin Type Na+Type strongly acid cation exchange resin Resin Capacity 1.5 L...

  • Page 5: General-Purpose Accessories

    General-Purpose Accessories Composite Shower Shower Rubber Regeneration Regeneration Cap opener filter hose A washers hose B Material 350g schedule sticker * The accessories above may differ depending on the sales country. * Add extra Rubber washers when you connect shower hose and shower head if there is a leak. Installation parts of the wall mount-type (Optional Accessories) Bracket...

  • Page 6: Soft Water Flow

    SOFT WATER FLOW Water flow diagram (BB09-A) Supplying Water C onverting the original water pressure to a standard pressure S electing ‘Tap water’/‘Soft water’/‘Regeneration’ R emoving residual chlorine and suspended solids R emoving components that cause hardness (Removing metal ions such as calcium, magnesium, etc.)

  • Page 7: Installing The Product

    INSTALLING THE PRODUCT Please keep the filter cap opener as shown on the picture. Tips Installing the product (Stand-type) - The installation instructions and diagrams below may vary depending on the country. Rubber washer must be used in all the connecting parts. 1.
  • Page 8 INSTALLING THE PRODUCT Installing the product (Stand-type) 4. Connect the shower hose A to the water supply port (IN) of the product. (Make sure to insert the Rubber washer.) 5. Connect the shower hose B to the water extraction port (OUT) of the product. Connect the other end of the hose (cone-shaped) to the shower head.
  • Page 9 8. Insert a new composite filter into the filter tank and close the filter tank cap as shown in the pictures below. * Water may leak if the filter tank cap is not fastened securely. FILTER 9. Turn the switching valve to the ‘Soft Water’ position and open the water faucet to drain the yellow softened water for approximately 1 minutes.

  • Page 10: Installing The Product (Wall-Mount Type)

    INSTALLING THE PRODUCT Installing the product (Wall-mount type) 1. Close the shower head faucet. If your hose is not long enough to connect product from the faucet, exchange the your hose for new shower hose A (2 m) included in the product package.
  • Page 11 5. Connect the shower hose B to the water extraction port (OUT) of the product. Connect the other end of the hose (cone-shaped) to the shower head. (If water leaks after connecting the shower head, add rubber washers assemble it again.) IN IN 6.
  • Page 12 INSTALLING THE PRODUCT Installing the product (Wall-mount type) 9. Check if no water leaks and that the product has been installed properly and close the top cover. 10. Attach the Regeneration Schedule sticker ( ) to the flux gauge. (See the ‘tips’ on p.13).

  • Page 13: Using The Product

    USING THE PRODUCT □ Using softened water 1. Turn and set the switching valve to the ‘Soft Water’ position. 2. Check the position of the switching valve handle and open the water faucet to use softened water. □ Using tap water 1. Turn and set the switching valve to the ‘Tap water’ position.

  • Page 14: Regeneration

    REGENERATION 1. Check the flux gauge at the front of the product to identify whether the time to regenerate has been reached. (This is determined by the hardness of the feed water). - The average water hardness in US is 400 ppm and regeneration is recommended when the flux gauge points one dot.
  • Page 15 6. Place the shower head on the floor, set the faucet to the center position and open the faucet. Make sure to place the shower head on the floor to let the regenerating water drained away through the shower head. 7.

  • Page 16: Replacing The Composite Filter

    REPLACING THE COMPOSITE FILTER 1. Check if the faucet is closed. 2. Use the cap opener to open the regeneration tank cap as shown on the pictures below. FILTER 3. Take out the contaminated filter and insert the new composite filter. 4.

  • Page 17: Cleaning

    900 L/regeneration (Standard: 100 ppm of water hardness) Water Softening Capacity Amount of Recycler for 350 g (recommended) Regeneration Stand-type / Wall-mount-type (optional) Installation Type 324 mm (Width) X 133 mm (Depth) X 450 mm (Height) Dimensions(Main body) 7 kg Weight COWAY CO., LTD. Manufacturer...

  • Page 18: Before Requesting Service

    BEFORE REQUESTING SERVICE Symptom Check Solution • Is the switching valve in the Turn the switching valve to the ‘Soft ‘Tap Water’ position? Water’ position. Excessive use of softened water can • Have you been using drastically lower the water softening The softened water softened water excessively? efficiency.
  • Page 19 Symptom Check Solution Softened water maximizes the effects of the soap/shampoo without leaving any It feels as if not all the • Have you thoroughly rinsed residue. Because of that, your skin may soap/shampoo has off the soap/shampoo? feel slippery. If this sensation does not been washed off.
  • Page 20 MEMO...
  • Page 21 MEMO...

  • Page 22: Warranty Card

    INCLUDING ITS REPRESENTATIVES, TO MAKE ANY only to Product used for an application specified REPRESENTATION OR TO OFFER ANY WARRANTY, by COWAY for the Product and applied in strict CONDITION OR GUARANTY IN RESPECT OF THE accordance with COWAY published specifications PRODUCT OTHER THAN THIS WARRANTY.
  • Page 23 If the Product fails to operate for its accident, alteration, improper installation or intended purpose, then notify Coway or its other acts that are not the fault of Coway or Representative Agency within 48 hours or the manufacturer of the product or that are within the next business day after discovery not covered by the manufacturer’s warranty;...
  • Page 24 MADE IN KOREA 1214326 www.coway.com...
