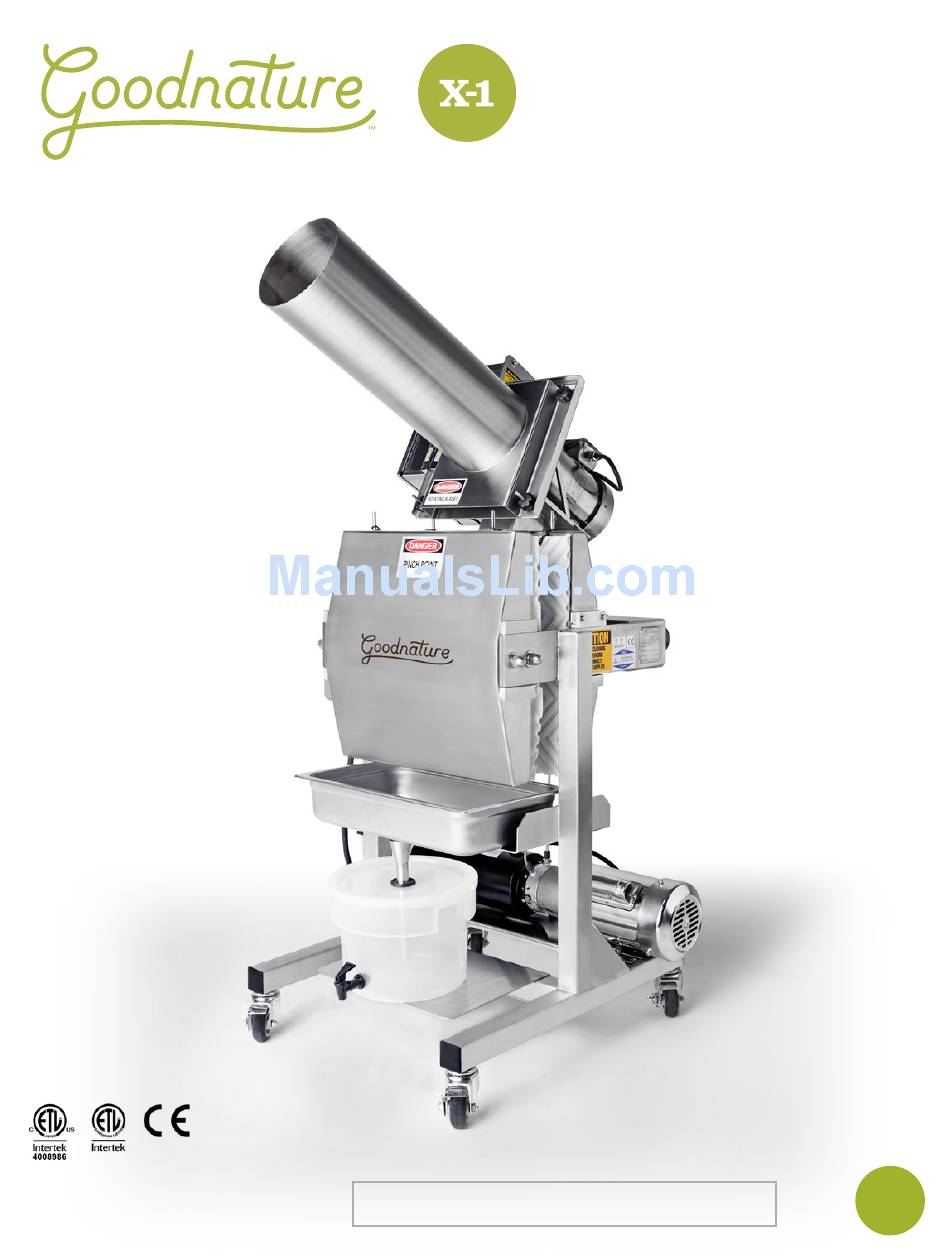

- Page 1 COMMERCIAL COLD PRESS JUICER R3.5 OWNER’S MANUAL MANUAL VERSION SERIAL # CONFORMS TO UL STD 763, NSF/ANSI STD 8 CERTIFIED TO CSA STD C22.2 #195 CONFORMS TO CE, IEC TESTED...
- Page 2 WARNING: To limit risk of personal injury and material damage, all users must read these instructions in their entirety and follow them strictly. MACHINE SPECIFICATIONS X-1 Press | 1HP | 220VAC | 8.12 Amp | Single Phase EG-260 Grinder | 2HP | 220Vac | 5.6 Amp | Single Phase Capacity per Hour: Total Weight: 600 lb.
-
Page 3: Table Of Contents
PAGE 19 SECTION 6 SECTION 7 Troubleshooting PAGE 22 SECTION 8 Useful Information PAGE 23 SECTION 8.1 Replacement Parts List PAGE 23 SECTION 8.2 Warranty PAGE 24 SECTION 8.3 Contact Information PAGE 24 GOODNATURE X-1 COMMERCIAL COLD PRESS JUICER OWNER’S MANUAL... -
Page 4: Safety Precautions
WARNING: Power must be supplied to the X-1 and EG-260 by a licensed electrician. Failure to do so may result in serious personal injury due to electric shock or damage to the machine. - Page 5 CAUTION: Blades on the grinder disc are very sharp. Use caution when changing the disc to avoid personal injury including lacerations. NOTICE: The X-1 Press is only to be used in conjunction with the EG-260 Grinder. Do not mount any other equipment to the X-1 Press.
-
Page 6: Unpacking
There is an enclosed parts list below. Inspect all enclosed parts carefully and make sure no parts are missing. If Drop any parts are missing or damaged please contact Goodnature customer service. After unpacking and before running, it is important to check that none of the fasteners became loose during Drop shipping. -
Page 7: Machine Diagrams
On/Off Switch Directional Valve Stationary Platen Juice Tray Motor for Hydraulic Power Unit Press Racks Juice Collection Package Hydraulic Pump Platen Stems Pressure Gauge Hydraulic Reservoir Shims Flow Control Valve Reservoir Breather Cap GOODNATURE X-1 COMMERCIAL COLD PRESS JUICER OWNER’S MANUAL... -
Page 8: Eg-260 Grinder Diagrams
Fig 2.4 Electrical Box Power Disconnect Switch Retaining Screw Hopper Keypad Grinder Disc Backing Plate Hopper Knobs Emergency Stop Grinder Disc Grinder Stems Hopper Gasket Shredder Plate Knob Safety Interlock Switch Drive Hub GOODNATURE X-1 COMMERCIAL COLD PRESS JUICER OWNER’S MANUAL... -
Page 9: Operation
Operation 4.1 SETUP WARNING: Power must be supplied to the X-1 and EG-260 by a licensed electrician. Failure to do so may result in serious personal injury due to electric shock or damage to the machine. Inspect for physical damage, electrical damage, or any loose or bare wires. Make sure there are no loose nuts, bolts, Drop or any other fasteners. -
Page 10: Grinder Operation
The grinder should be freely turning in a counterclockwise direction with no interference or rubbing. If it is not, shut the grinder off and contact Goodnature customer service. To change speed of grinder, use the up and down arrows on the keypad. - Page 11 NOTE: When grinding is complete, there may be some produce collected behind and around the grinder disc, as well as in the base of the hopper chute. This is normal and does not mean your machine is operating outside of specifications. Fig 4.1 GOODNATURE X-1 COMMERCIAL COLD PRESS JUICER OWNER’S MANUAL...
-
Page 12: Changing Grinder Disc
Rotate the grinder disc slightly clockwise so that the retaining screws move into the slots on the disc. Tighten all screws. Do not over tighten. This may strip the threads on the grinder disc backing plate. Replace and tighten the shredder plate knob. Replace the hopper. GOODNATURE X-1 COMMERCIAL COLD PRESS JUICER OWNER’S MANUAL... -
Page 13: Press Operation
To retract the platens after pressing, move the directional lever toward the rear of the machine one click into neutral then one more click into reverse. Once the platen is fully retracted, return the directional valve to the neutral position. GOODNATURE X-1 COMMERCIAL COLD PRESS JUICER OWNER’S MANUAL... -
Page 14: Adjusting Press Speed
45 seconds. This is too fast for most applications with the exception of some greens or materials that drain very easily. An average speed that works well with most material is one where the platen takes about two minutes to close. GOODNATURE X-1 COMMERCIAL COLD PRESS JUICER OWNER’S MANUAL... -
Page 15: Adjusting Hydraulic Pressure
Loosen the lock-nut on the adjusting screw located on the rear of the hydraulic pump. (Fig 5.1) Using an Allen wrench, turn the screw counterclockwise to lower the pressure, or clockwise to raise the pressure. When the desired pressure is achieved, re-tighten the locknut. Pressure Valve Fig 5.1 GOODNATURE X-1 COMMERCIAL COLD PRESS JUICER OWNER’S MANUAL... -
Page 16: Cleaning
NOTICE: Machine is not to be cleaned with a high pressure water jet to avoid damage to the machine. NOTICE: Machines shipped outside the USA may not have wash-down rated plugs and special attention must be paid to avoid getting them wet. GOODNATURE X-1 COMMERCIAL COLD PRESS JUICER OWNER’S MANUAL... - Page 17 • Follow manufacturer’s instructions for use. • Ensure that food contact surfaces reach a surface temperature of 160° F or above if using hot water to sanitize. GOODNATURE X-1 COMMERCIAL COLD PRESS JUICER OWNER’S MANUAL...
-
Page 18: Bag Cleaning
When cycle is complete, hang bags to dry in a sanitary environment. Never let bags sit wet in a bucket or sink for an extended period of time. If bags do not come out white, repeat process from Step 3. Bags should be replaced after 6 months of daily operation. GOODNATURE X-1 COMMERCIAL COLD PRESS JUICER OWNER’S MANUAL... -
Page 19: Maintenance
Check the black rubber shaft Apply food grade grease to the top seal pictured at left. If the seal rail of the X-1 allowing the shims is making contact with the to glide along the press with backing plate, use a flat object minimal resistance. - Page 20 Tighten the bolts and nuts that are at the end of the hydraulic attach the hydraulic arms to arms. This requires a 1 1/2” box the rear of the X-1 press. This wrench which is available from requires a 9/16” wrench and a Goodnature.
- Page 21 Inspect all O-rings and gaskets for cracks and replace as needed. This includes the shaft seal on the grinder, the O-rings on the press racks, and the gasket in the juice spout of the juice container. GOODNATURE X-1 COMMERCIAL COLD PRESS JUICER OWNER’S MANUAL...
-
Page 22: Troubleshooting
Never overload the grinder. Grinder disc is scraping—Check to make sure the hopper gasket is not missing. Press will not close—Check to make sure the flow control valve is not all the way shut. GOODNATURE X-1 COMMERCIAL COLD PRESS JUICER OWNER’S MANUAL... -
Page 23: Useful Information
Juice Collection Package Hopper Knob 18496-V3.5 13778 Juice Collection Bucket with Spigot Hopper Gasket 18504 19664 EG-260 Product Feeder 15438 2 HP Motor for EG-260 18485 Variable Frequency Drive 15480 17762 Keypad 19700 Fuse GOODNATURE X-1 COMMERCIAL COLD PRESS JUICER OWNER’S MANUAL... -
Page 24: Warranty
8.2 WARRANTY Warranty information was provided during the purchase of the equipment, and was attached with the Terms and Conditions. If you need a replacement copy please contact Goodnature customer service or your sales representative regarding warranty information. Altering the machinery in any way not described in this manual will void the warranty. - Page 25 COMMERCIAL COLD PRESS JUICER...
