Thank you for purchasing this Panasonic product.
■ This product is attached to track systems. Ensure that track system is installed per
manufacturer's instructions and in accordance with the National Electrical Code and local
building codes.
■ Before installing and operating this product, please read the instructions carefully and save
this manual for future use.
■ Before using this product, be sure to read "Read this first!" ( x pages 4 to 11).
■ Refer to "Operating Instructions – Content Manager Manual" for signage playback.

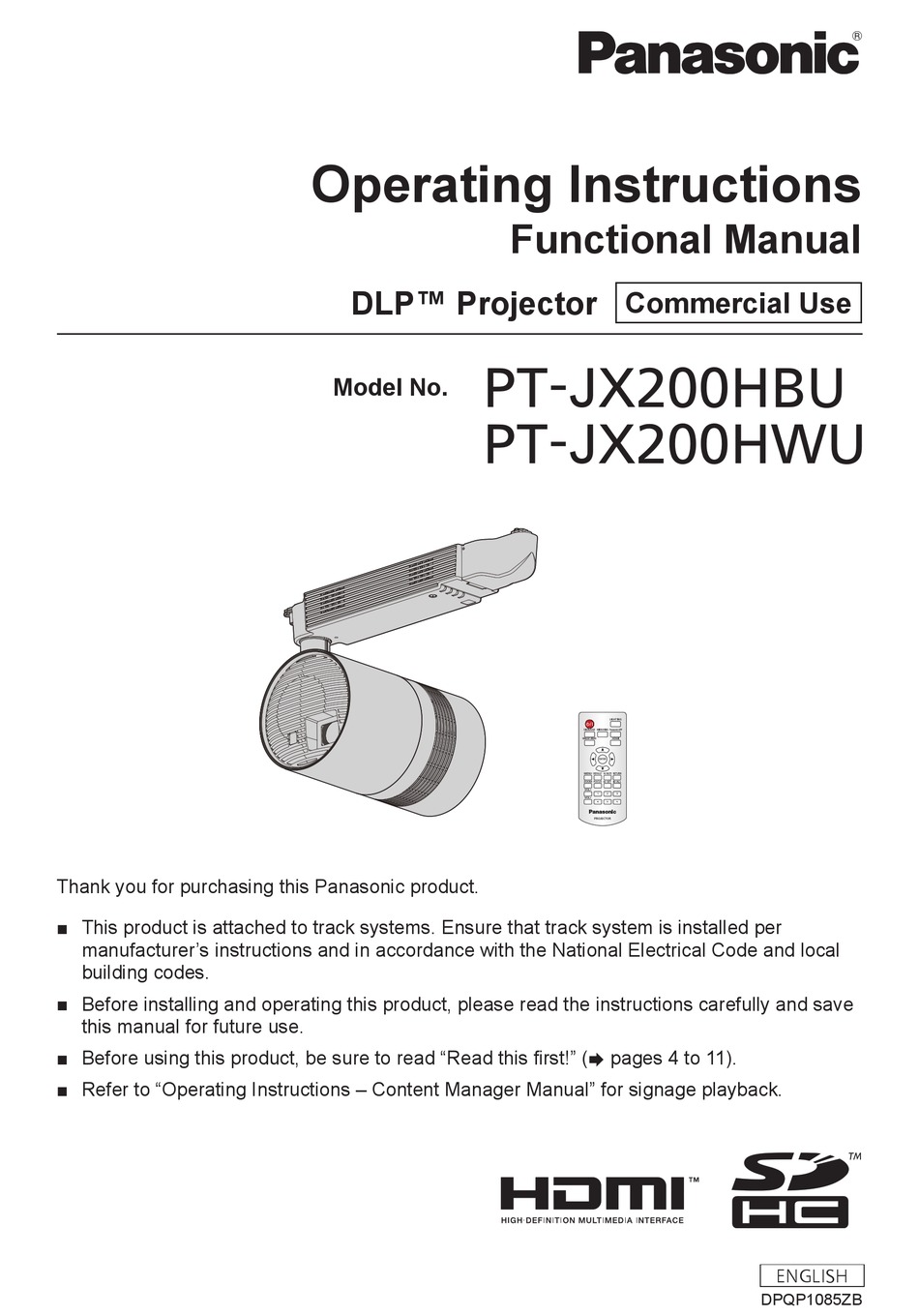

Operating Instructions
DLP™ Projector
PT-JX200HBU
Model No.
PT-JX200HWU
Functional Manual
Commercial Use
ENGLISH
DPQP1085ZB
Advertisement
Table of Contents
Related Manuals for Panasonic PT-JX200HBU
Summary of Contents for Panasonic PT-JX200HBU
-
Page 1: Operating Instructions
PT-JX200HBU Model No. PT-JX200HWU Thank you for purchasing this Panasonic product. ■ This product is attached to track systems. Ensure that track system is installed per manufacturer’s instructions and in accordance with the National Electrical Code and local building codes. -
Page 2: Table Of Contents
Contents Contents Read this first! Projecting Selecting the input Adjusting the projection Chapter 1 Preparation Using SD cards Notes on use Precautions for use Data protection Cautions when installing Cards that can be used with the projector Security Inserting an SD card Notes regarding the wireless LAN Ejecting the SD card Art-Net... - Page 3 [NETWORK] menu When an indicator lights up [PROJECTOR NAME] Inspection and maintenance [WIRED LAN] Before maintaining the projector [WIRELESS LAN] Maintenance [NETWORK CONTROL] Inspection [Panasonic APPLICATION] Troubleshooting [NETWORK STATUS] [Art-Net] Chapter 7 Appendix [Art-Net STATUS] [MIRRORING] Technical information [DISPLAY OPTION] menu...
-
Page 4: Read This First
Read this first! Read this first! IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS f FOR USE WITH HALO Power-Trac TRACK SYSTEM ONLY. f Do not install any luminaire assembly closer than 6 inches from any curtain or similar combustible material. f Read all instructions. WARNING: 1. - Page 5 Read this first! Notice on laser This projector is the Class 3R laser product that complies with IEC 60825-1:2007. 直接放射又は分散放射に眼又は皮膚を暴露させないこと DANGER-CLASS 4 LASER RADIATION WHEN OPEN AVOID EYE OR SKIN EXPOSURE TO DIRECT OR SCATTERED RADIATION DANGER-RAYONNEMENT LASER DE CLASSE 4 - EN CAS D'OUVERTURE EXPOSITION DANGEREUSE AU RAYONNEMENT DIRECT OU DIFFUS DES YEUX OU DE LA PEAU DPQT1025ZA...
- Page 6 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. f Consult the dealer or an experienced radio/BD technician for help. Any changes or modifications not expressly approved by Panasonic Corp. of North America could void the user’s authority to operate this device.
- Page 7 Read this first! FCC NOTICE (USA and Canada) This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of this device.
- Page 8 Read this first! WARNING: r POWER The circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire, electric shock, or will cause visual impairment.
- Page 9 Read this first! WARNING: When removing the projector from the track system, first release the lever of the track mount part on the indicators. Releasing the lever on the main unit first will result in the damage to the components and will cause falling accident.
- Page 10 Read this first! WARNING: If the battery fluid leaks, do not touch it with bare hands, and take the following measures if necessary. f Battery fluid on your skin or clothing could result in skin inflammation or injury. Rinse with clean water and seek medical advice immediately. f Battery fluid coming in contact with your eyes could result in loss of sight.
- Page 11 Read this first! Panasonic disclaims all liability for any accidents or any damage caused by setting up the projector in an inappropriate environment, mounting the projector to unspecified track systems or mounting it using methods that are not described in the Operating Instructions.
- Page 12 PURPOSE. For details, refer to the license conditions included in the supplied CD-ROM. For customers who contacted the following contact center, Panasonic provides complete and machine-readable source code based on GPL V2.0, LGPL V2.1 or software licensed under other terms imposing source code disclosure obligations in actual expenses, together with information about each copyright owner, for a period of at least 3 years from the purchase of this product.
- Page 13 rTerms f In this manual, the “Wireless remote control unit” accessory is referred to as “Remote control”. f In this manual, the “Track Lighting System” is referred to as “Track System”. f In this manual, the SD memory card and the SDHC memory card are referred to as “SD card”. ENGLISH - 13...
-
Page 14: Features Of The Projector
Features of the Projector Quick Steps For details, refer to the corresponding pages. 1. Mount the projector to the track Variety of projection function system. (x page 33) ▶ Various playback method can be selected, such as projecting the still image/movie f Be sure to ask a specialized technician or in the SD card just with the projector, your dealer when installing. -
Page 15: Chapter 1 Preparation
Preparation Chapter 1 This chapter describes things you need to know or check before using the projector. ENGLISH - 15... -
Page 16: Precautions For Use
Chapter 1 Preparation — Precautions for use Precautions for use Cautions when installing rDo not set up the projector outdoors. The projector is designed for indoor use only. rDo not set up the projector in the following locations. f Places where vibration and impacts occur such as in a car or vehicle: Doing so may cause damage to internal components or malfunction. -
Page 17: Security
Change your password periodically. Set the password from the [SECURITY] menu → [SECURITY PASSWORD CHANGE]. f Panasonic Corporation or its affiliate companies will never ask for your password directly. Do not divulge your password in case you receive such inquiries. -
Page 18: Notes Regarding The Wireless Lan
Depending on the specifications of the wireless LAN, a malicious third party may be able to break security settings by special means. Panasonic asks customers to thoroughly understand the risk of using this product without making security settings, and recommends that the customers make security settings at their own discretion and responsibility. -
Page 19: Art-Net
5.180 GHz - 5.240 GHz IEEE802.11a/n 149 / 153 / 157 / 161 5.745 GHz - 5.805 GHz For M-DIRECT mode (x page 85) (When the connecting method is [M-DIRECT] of [Panasonic APPLICATION]) Standard Channels used Frequency band (Center frequency) IEEE802.11b/g/n 1 - 11 2.412 GHz - 2.462 GHz... -
Page 20: Cautions On Use
Chapter 1 Preparation — Precautions for use Cautions on use rTo get a good picture quality f In order to view a beautiful image in higher contrast, prepare an appropriate environment. Draw curtains or blinds over windows and turn off any lights near the projection surface to prevent outside light or light from indoor lamps from shining onto the projection surface. -
Page 21: Accessories
Wireless remote control unit <1> Allen wrench <1> (N2QAYA000134) (DPPB1006ZA) (Opposite side size 3/16") Adapter <1> (PT-JX200HBU: TXFKF02WDLZ) (PT-JX200HWU: TXFKF02WDKZ) Card slot cap <1> (DPHG1011ZA) (Attached to the projector at the time of purchase) (The same color as the outer case will be supplied.) HDMI terminal cap <1>... - Page 22 This software allows you to send the computer screen via (Windows/Mac) wireless/wired LAN. Note f The “List of Compatible Device Models” for the flat panel display compatible with the “Multi Monitoring & Control Software” can be downloaded from the Panasonic website (http://panasonic.net/prodisplays/). 22 - ENGLISH...
-
Page 23: About Your Projector
Switches the input to signage. (x page 52) 13 <Panasonic APP> button <MEMORY VIEWER> button Switches the input to Panasonic APPLICATION. (x page 52) Switches the input to Memory Viewer. (x page 52) 14 <HDMI> button asqw buttons/<ENTER> button/<RETURN> button Switches the input to HDMI. -
Page 24: Projector Body
Chapter 1 Preparation — About your projector Note f When operating the remote control by directly pointing to the remote control signal receiver at the power supply unit of the projector, operate the remote control within a distance approximately 7 m (22'11") or shorter from the remote control signal receiver. The remote control can control at angles of up to ±30°... - Page 25 Chapter 1 Preparation — About your projector 20 Ball joint stopper 22 Pole To free the ball joint movable part, remove the stopper. 23 Shaft holder (x page 39) 24 Ball joint movable part 21 Connecting terminals cover (x page 25) 25 Shaft The connecting terminals are inside.
-
Page 26: Adapter
Chapter 1 Preparation — About your projector Note f The product number, serial number, and rating of the projector is indicated in the product plate in the position as shown in the following illustration. Product plate Adapter Ground contact Locking fingers Power contacts Power connector Hook... -
Page 27: Preparing The Remote Control
Chapter 1 Preparation — Preparing the remote control Preparing the remote control Inserting and removing the batteries (ii) Fig. 1 Fig. 2 Open the cover. (Fig. 1) Insert the batteries and close the cover (insert the m side first). (Fig. 2) f When removing the batteries, perform the steps in reverse order. -
Page 28: Chapter 2 Getting Started
Getting Started Chapter 2 This chapter describes things you need to do before using the projector such as the setup and connections. 28 - ENGLISH... -
Page 29: Before The Installation
Chapter 2 Getting Started — Before the installation Before the installation This section describes the display method using the projector before mounting to the track system. Installation form There are a total of four installation forms: two for the projection method and two for the display direction. Set the [SETUP] menu →... -
Page 30: Projection Dimensions
Chapter 2 Getting Started — Before the installation A B C Attention f When setting up the projector, please pay attention to the cable between the main body and the pole. Projection dimensions Determine the position to install the track system and the projector referencing following illustrations and projection distance dimensions. -
Page 31: Projection Distance
Chapter 2 Getting Started — Before the installation Projection distance The dimension in the following table contains a slight error. Also, it is corrected to become smaller than the specified image size when [KEYSTONE] is used. r When the image aspect ratio is 4:3 (Unit: m) Distance from the Projected image size... -
Page 32: Installing/Removing The Projector
Chapter 2 Getting Started — Installing/removing the projector Installing/removing the projector This section describes the mounting method of the projector to the track system and the setting method of the orientation of the main unit. Before mounting The track systems compatible for mounting the projector are as follows. Manufacturer Cooper Lighting Div of Cooper Industries Name... -
Page 33: Mounting The Projector To The Track System
Chapter 2 Getting Started — Installing/removing the projector Mounting the projector to the track system Turn off the power of the track system. WARNING When mounting the projector to the track system, be sure to turn off the power of the track system. Electric shocks can result. - Page 34 Chapter 2 Getting Started — Installing/removing the projector Completely insert the power connector of the supplied adapter into the <AC IN> terminal on the power supply unit. f Check the shapes of the <AC IN> terminal on the power supply unit and the power connector of the adapter, and insert the power connector into the <AC IN>...
- Page 35 Chapter 2 Getting Started — Installing/removing the projector f The string is used to prevent the adapter cover from falling off. Be sure to use the projector with the string put on the connector secure lock. String Align the orientation of the power supply unit to the track system. f Align the side with the levers A/B to the side with the groove of the track system.
- Page 36 Chapter 2 Getting Started — Installing/removing the projector f Confirm that both hook clasps A/B are securely housed inside the track system. (ii) Lever B Lever A WARNING When mounting to the track system, turn both levers A/B all the way until they hit the end. Inadequate mounting to the track system may result in the projector falling off.
- Page 37 Chapter 2 Getting Started — Installing/removing the projector ii) Secure the bracket of the safety wire with commercially available tapping screw (head diameter: Φ3.8 mm (5/32")) to the sturdy ceiling with reinforcing material as shown in the figure below. Within 600 mm Ceiling (ii) Tapping screw...
- Page 38 Chapter 2 Getting Started — Installing/removing the projector f Allowing for attaching the adapter cover to be performed in Step 17), mount the adapter to the track system using the rough dimension shown in the figure. 53 mm (2-3/32") - 57 mm (2-1/4") 16) Secure the adapter to the track system.
-
Page 39: Adjusting The Projection Position
Chapter 2 Getting Started — Installing/removing the projector Adjusting the projection position After mounting the projector to the track system, adjust the orientation of the main unit to determine the projection position. Loosen the ball joint fixing screw. f Loosen the ball joint fixing screw using the supplied 3/16" Allen wrench. Ball joint fixing screw Ball joint stopper ENGLISH - 39... -
Page 40: Removing The Projector From The Track System
Chapter 2 Getting Started — Installing/removing the projector Adjust the orientation of the main unit. f Rotate the shaft holder and adjust the ball joint movable part to the direction to tilt the main unit, and adjust the orientation of the main unit. Pole Shaft holder Ball joint fixing screw... - Page 41 Chapter 2 Getting Started — Installing/removing the projector Remove the adapter cover. f While pushing both tabs at the upper side of the adapter cover inward (i), pull the cover in the direction of the allow (ii) shown in the figure to remove. (ii) Remove the adapter from the track system.
- Page 42 Chapter 2 Getting Started — Installing/removing the projector Loosen the lever locking screw. f Turn each lever locking screw (M3) for the levers A/B counterclockwise until they turn freely, using a Phillips screwdriver (ISO No. 2, diameter: 6 mm (1/4")), and release the levers A/B. Lever plate A Cross section Lever A locking screw...
-
Page 43: Connecting
Chapter 2 Getting Started — Connecting Connecting Before connecting f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power of all devices before connecting cables. f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions. g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work. - Page 44 Chapter 2 Getting Started — Connecting Before attaching the caps, check the shapes of the caps and the places to attach. LAN terminal cap HDMI terminal cap Card slot cap Note f Attach the card slot cap with the opening of the "]" shaped rib facing the projector body. However, the card slot cap can also be attached from the opposite side of the rib opening, but it may be difficult to take it out with the finger.
-
Page 45: Chapter 3 Basic Operations
Basic Operations Chapter 3 This chapter describes basic operations to start with. ENGLISH - 45... -
Page 46: Turning On/Off The Projector
The power indicator <ON (G)/STANDBY (R)> blinks in green in frequency of lighting 0.8 seconds → off 0.8 seconds while AV mute is in use. f When the computer (including iPad/iPhone/iPod touch, Android devices) performs a connection check on the projector using the Panasonic image transfer application software, the power indicator <ON (G)/STANDBY (R)>... -
Page 47: Turning On The Projector
Chapter 3 Basic Operations — Turning on/off the projector Turning on the projector Turn on the power of the track system. f The power indicator <ON (G)/STANDBY (R)> lights in red, and the projector enters the standby mode. Press the power <v/b> button. f The power indicator <ON (G)/STANDBY (R)>... - Page 48 Chapter 3 Basic Operations — Turning on/off the projector Initial setting (display language) Select the language to show on the screen. After completed the initial setting, you can change the display language from the [DISPLAY LANGUAGE] menu. Press as on the remote control to select the display language. INITIAL SETTING ENGLISH DEUTSCH...
- Page 49 Chapter 3 Basic Operations — Turning on/off the projector Note f The above initial setting screen is the one displayed when the projector is turned on for the first time after purchase. When [ALL USER DATA] is executed from the [SETUP] menu → [INITIALIZE], the [STANDBY MODE] setting before the execution is displayed. Initial setting (time zone) Set [TIME ZONE] according to the country or region where the projector is used.
-
Page 50: Making Adjustments And Selections
Refer to “Navigating through the menu” (x page 59) for the operation of the menu screen. Press the <HDMI>, <MEMORY VIEWER>, <MIRRORING>, <Panasonic APP>, or <SIGNAGE> button on the remote control to select the input to project. (x page 52) Adjust the orientation of the main unit to adjust the projection position. -
Page 51: Turning Off The Projector
Chapter 3 Basic Operations — Turning on/off the projector Turning off the projector Press the power <v/b> button. f The [POWER OFF(STANDBY)] confirmation screen is displayed. Press qw on the remote control to select [OK], and press the <ENTER> button. (Or press the power <v/b> button again.) f The projection is finished. -
Page 52: Projecting
To switch the input to anything other than the HDMI input, it may take seconds to complete the switching. [Please wait...] is displayed on the projection screen when the switching takes time. f When the <HDMI>, <MEMORY VIEWER>, <MIRRORING>, or <Panasonic APP> button is pressed during signage playback, the signage playback is stopped and switches to respective input. -
Page 53: Adjusting The Projection
Chapter 3 Basic Operations — Projecting Adjusting the projection Adjust focus and zoom. Press the <FOCUS> or <ZOOM> button on the remote control. f <FOCUS> button: Adjusts focus. f <ZOOM> button: Adjusts zoom. Select each item and press asqw to adjust it. Note f When a projection position is required to be adjusted, adjust according to the steps described in “Adjusting the projection position”... -
Page 54: Using Sd Cards
Manage the contents in the SD card under your responsibility. It is recommended to take a backup of important data on other disc, etc. f Panasonic assumes no responsibility for loss of data recorded by yourself, or any other direct or indirect damage. -
Page 55: Inserting An Sd Card
Chapter 3 Basic Operations — Using SD cards Inserting an SD card Insert the card securely into the SD card slot with the front of the card facing outward, from the side with cut corner. SD card Attention f When using the miniSD memory card or the microSD memory card, always use the dedicated miniSD memory card adapter or the microSD memory card adapter, and insert/eject together with the adapter. -
Page 56: Operating With The Remote Control
Chapter 3 Basic Operations — Operating with the remote control Operating with the remote control Switch on/off spotlight display Enable/disable the setting items in [PATTERN] menu. button Press the <LIGHTING> button. f The spotlight based on the items set for the user ([USER1] - [USER5]) selected in the [PATTERN] individual adjustment screen is displayed. -
Page 57: Using The Av Mute Function
Chapter 3 Basic Operations — Operating with the remote control Using the AV mute function The projection and the audio output can be paused temporarily when the projector is not used for specific time such as during break or preparation. button Press the <AV MUTE>... -
Page 58: Chapter 4 Settings
Settings Chapter 4 This chapter describes the settings and adjustments you can make using the on-screen menu. 58 - ENGLISH... -
Page 59: Menu Navigation
Chapter 4 Settings — Menu navigation Menu navigation The on-screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button Press the <MENU> button on the remote control. f The [MAIN MENU] screen is displayed. MAIN MENU PICTURE LIGHTING... -
Page 60: Main Menu
Chapter 4 Settings — Menu navigation f For some items, press qw to display an individual adjustment screen with a bar scale as shown below. CONTRAST ADJUST Note f Pressing the <RETURN> or <MENU> button on the remote control while the menu screen is displayed returns the screen to the upper-level menu. -
Page 61: Sub-Menu
Chapter 4 Settings — Menu navigation Main menu item Page [DISPLAY LANGUAGE] [SECURITY] [TEST PATTERN] Sub-menu The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu. [PICTURE] Sub-menu item Factory default Page [PICTURE MODE] [DYNAMIC]... -
Page 62: Display Language
[NETWORK] Sub-menu item Factory default Page [PROJECTOR NAME] [NAME1234] [WIRED LAN] ― [WIRELESS LAN] [M-DIRECT] [NETWORK CONTROL] ― [Panasonic APPLICATION] ― [NETWORK STATUS] ― [Art-Net] [OFF] [Art-Net STATUS] ― [MIRRORING] [MODERATOR] *1 Differs depending on the product. [DISPLAY OPTION] Sub-menu item... -
Page 63: [Picture] Menu
Chapter 4 Settings — [PICTURE] menu [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 59) for the operation of the menu screen. f After selecting the item, press asqw to adjust. -
Page 64: [Tint]
Chapter 4 Settings — [PICTURE] menu Press qw or the <ENTER> button. f The [COLOR] individual adjustment screen is displayed. Press qw to adjust the level. Operation Adjustment Range of adjustment Press w. Deepens colors. -31 - +31 Weakens colors. Press q. [TINT] Adjust the skin tone in the projected image. -
Page 65: [Dimmer]
Chapter 4 Settings — [PICTURE] menu Item Operation Adjustment Range of adjustment Press w. Deepens red. [RED] Press q. Weakens red. Press w. Deepens green. 0 - +255 [GREEN] (Factory default is +255) Weakens green. Press q. Deepens blue. Press w. [BLUE] Weakens blue. - Page 66 Chapter 4 Settings — [PICTURE] menu Press as to select [RED], [GREEN], or [BLUE]. f Only [GAIN] can be adjusted when [WHITE] is selected for [3COLORS]. Press qw to adjust. f The adjustment value will change between 0 and 2 048 *1 The limit varies depending on the color to be adjusted.
-
Page 67: [Lighting] Menu
Chapter 4 Settings — [LIGHTING] menu [LIGHTING] menu On the menu screen, select [LIGHTING] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 59) for the operation of the menu screen. f After selecting the item, press asqw to set. - Page 68 Chapter 4 Settings — [LIGHTING] menu Setting the position and size of spotlight Press as to select [PATTERN]. Press qw. f The [PATTERN] individual adjustment screen is displayed. Press qw to select from [USER1] to [USER5]. Press the <ENTER> button. f The [PATTERN] detailed adjustment screen is displayed. Press as to select from [SPOT LIGHT1] to [SPOT LIGHT3].
-
Page 69: [Memory Viewer] Menu
Chapter 4 Settings — [MEMORY VIEWER] menu [MEMORY VIEWER] menu On the menu screen, select [MEMORY VIEWER] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 59) for the operation of the menu screen. f After selecting the item, press asqw to set. -
Page 70: [Effect]
Chapter 4 Settings — [MEMORY VIEWER] menu [EFFECT] Set special effects used when changing the playback screen of still image content. Press as to select [EFFECT]. Press qw to switch the item. f The items will switch each time you press the button. [OFF] Does not apply special effects. -
Page 71: [Setup] Menu
Chapter 4 Settings — [SETUP] menu [SETUP] menu On the menu screen, select [SETUP] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 59) for the operation of the menu screen. f After selecting the item, press asqw to set. -
Page 72: [Aspect]
Chapter 4 Settings — [SETUP] menu Press as to select [SHIFT]. Press the <ENTER> button. f The [SHIFT] screen is displayed. Press asqw to adjust the position. Orientation Operation Adjustment Press the a button. The image moves up. Vertical (up and down) adjustment Press the s button. -
Page 73: [Keystone]
Chapter 4 Settings — [SETUP] menu [KEYSTONE] Correct keystone distortion that occurs when the projector main unit (projection lens surface) does not directly face the projection surface. Setting [HV CORRECTION] Press as to select [KEYSTONE]. Press the <ENTER> button. Press as to select [HV CORRECTION]. Press the <ENTER>... -
Page 74: [Signage]
In addition, pressing each of the <HDMI>, <MEMORY VIEWER>, <MIRRORING>, or <Panasonic APP> button while in signage playback stops signage playback and switches the input to a corresponding one. -
Page 75: [Eco Management]
This function automatically switches the power of the projector to standby if the input is HDMI, MIRRORING, or Panasonic APPLICATION and there is no input signal for a certain period of time. The time before switching to standby can be set. - Page 76 This is a function to automatically turn off the light source of the projector when the input is HDMI, MIRRORING, or Panasonic APPLICATION and there is no input signal for a specific period. The time until the light source is turned off can be set.
-
Page 77: [Initial Startup]
Keeps the input that has been selected the last time. [HDMI] Sets the input to HDMI. [MIRRORING] Sets the input to MIRRORING. [Panasonic APPLICATION] Sets the input to Panasonic APPLICATION. [MEMORY VIEWER] Sets the input to Memory Viewer. [SIGNAGE] Sets the input to signage. Note f If [POWER] of the restart option is enabled in “Setting the restart option”... -
Page 78: [Dc Out]
Chapter 4 Settings — [SETUP] menu Press the <ENTER> button. f The [AUDIO SETTING] screen is displayed. Press as to select [BALANCE]. Press qw to adjust the level. Operation Adjustment Range of adjustment Increases the volume on the right. Press w. L16 - R16 Increases the volume on the left. -
Page 79: [Schedule]
Chapter 4 Settings — [SETUP] menu [SCHEDULE] Set the command execution schedule for each day of the week. Enabling/disabling the schedule function Press as to select [SCHEDULE]. Press qw to switch the item. f The items will switch each time you press the button. [OFF] Disables the schedule function. -
Page 80: [Date And Time]
Chapter 4 Settings — [SETUP] menu 11) Press the <ENTER> button. f After the command is confirmed, n is displayed at the left of the selected command. 12) Press the <MENU> button to return to the [PROGRAM EDIT] screen. 13) Press as to select [STORE], and press the <ENTER> button. Note f To delete a command that has been already set, press the <DEFAULT>... -
Page 81: [Save All User Data]
Chapter 4 Settings — [SETUP] menu Press as to select [APPLY], and press the <ENTER> button. f The setting of the date and time will be completed. Note f To set the date and time automatically, the projector must be connected to the network. f If you set the date and time automatically, set the [SETUP] menu →... -
Page 82: [Service Password]
Chapter 4 Settings — [SETUP] menu Returns all setting items including [SIGNAGE], [NETWORK], and [E-mail set up] to the factory default [ALL USER DATA] settings. The projector enters the standby mode to reflect the setting values. [NETWORK/E-MAIL] Returns [SIGNAGE], [NETWORK], and [E-mail set up] to the factory default settings. Press the <ENTER>... -
Page 83: [Network] Menu
Chapter 4 Settings — [NETWORK] menu [NETWORK] menu On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 59) for the operation of the menu screen. f After selecting the item, press asqw to set. -
Page 84: [Wireless Lan]
Manager ME6.3", iPad / iPhone / iPod touch and Android devices. Switch the input to [Panasonic APPLICATION], the idle screen will appear. You can confirm the SSID and KEY. The factory default value of the KEY can be changed. For details, refer to the following "Setting [SIMPLE]". - Page 85 Chapter 4 Settings — [NETWORK] menu Setting [M-DIRECT] Press as to select [WIRELESS LAN]. Press qw to select [M-DIRECT]. Press the <ENTER> button. f The [WIRELESS LAN] ([M-DIRECT]) screen is displayed. Press as to select each item, and change the settings according to the operation instructions of the menu.
- Page 86 Chapter 4 Settings — [NETWORK] menu Press as to select [OTHER], and press the <ENTER> button. f The [WIRELESS LAN] ([USER]) screen (1/2) is displayed. f When there are many search results and [OTHER] is not displayed on the [WIRELESS LAN] (SSID Search) screen, press w until it is found.
-
Page 87: [Network Control]
[IP ADDRESS] 192.168.11.100 [SUBNET MASK] 255.255.255.0 [DEFAULT GATEWAY] 192.168.11.1 [DNS1]/[DNS2] (Blank) [SSID] Panasonic Projector [AUTHENTICATION] Open [ENCRYPTION] None [NETWORK CONTROL] Set up the control method of the network. Press as to select [NETWORK CONTROL]. Press the <ENTER> button. f The [NETWORK CONTROL] screen is displayed. - Page 88 Refer to "Operating Instructions - Wireless Manager ME6.3" for details. Multi-live mode can be used with Panasonic’s image transfer application software that supports iPad/iPhone/iPod touch, and Android devices. Refer to the following URL for image transfer application software that supports iPad/iPhone/iPod touch, and Android devices.
-
Page 89: [Network Status]
Set or change the password to connect to the projector. Press as to select [Panasonic APPLICATION]. Press the <ENTER> button. f The [Panasonic APPLICATION] screen is displayed. Press as to select [PASSWORD CHANGE]. Press the <ENTER> button. f The [PASSWORD CHANGE] screen is displayed. -
Page 90: [Art-Net]
Chapter 4 Settings — [NETWORK] menu Displays the network information of the wireless LAN set on the projector. [ANTENNA LEVEL] Displays the signal status of wireless LAN. [NETWORK] Displays the connection method of wireless LAN. [CHANNEL] Displays the channel used for wireless LAN. [SSID] Displays the string of SSID. - Page 91 Chapter 4 Settings — [NETWORK] menu Press qw to switch the item. f The items will switch each time you press the button. [2.x.x.x] Sets the IP address to 2.x.x.x automatically. [10.x.x.x] Sets the IP address to 10.x.x.x automatically. [MANUAL] Sets the IP address manually. f When [2.x.x.x] or [10.x.x.x] is selected in Step 7), proceed to Step 9).
- Page 92 Chapter 4 Settings — [NETWORK] menu [SSID] Enter the same string as the SSID registered to the access point. Select the user authentication method used in the network to which the projector is connected. Select this item when the authentication method of the access point [OPEN] is Open System.
-
Page 93: [Art-Net Status]
Chapter 4 Settings — [NETWORK] menu Press qw to switch the item. f The items will switch each time you press the button. [2.x.x.x] Sets the IP address to 2.x.x.x automatically. [10.x.x.x] Sets the IP address to 10.x.x.x automatically. [MANUAL] Sets the IP address manually. f When [2.x.x.x] or [10.x.x.x] is selected in Step 9), proceed to Step 11). - Page 94 Chapter 4 Settings — [NETWORK] menu Press as to select each item, and press qw to change the settings. Selects the connection type for the MIRRORING function. A PIN (8-digit number) will be displayed in the idle screen of the [PIN] MIRRORING function, and then makes connection by entering the [CONNECTION TYPE] PIN on the device.
-
Page 95: [Display Option] Menu
Chapter 4 Settings — [DISPLAY OPTION] menu [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 59) for the operation of the menu screen. f After selecting the item, press asqw to set. -
Page 96: [Av Mute]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. f The items will switch each time you press the button. [ON] Displays the warning message. [OFF] Hides the warning message. [AV MUTE] Turn off projection and audio output temporarily when the projector is not used for a certain period of time. Press as to select [AV MUTE]. -
Page 97: [Display Language] Menu
Chapter 4 Settings — [DISPLAY LANGUAGE] menu [DISPLAY LANGUAGE] menu On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-menu. Refer to “Navigating through the menu” (x page 59) for the operation of the menu screen. Changing the display language You can select the language of the on-screen display. -
Page 98: [Security] Menu
Chapter 4 Settings — [SECURITY] menu [SECURITY] menu On the menu screen, select [SECURITY] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 59) for the operation of the menu screen. f When the projector is used for the first time Initial password: Press awsqawsq in order, and press the <ENTER>... -
Page 99: [Test Pattern] Menu
Chapter 4 Settings — [TEST PATTERN] menu [TEST PATTERN] menu On the menu screen, select [TEST PATTERN] from the main menu. Refer to “Navigating through the menu” (x page 59) for the operation of the menu screen. f Press qw to switch. [TEST PATTERN] Display the test pattern built-in to the projector. -
Page 100: Chapter 5 Operations
Operations Chapter 5 This chapter describes how to use each function. 100 - ENGLISH... -
Page 101: Memory Viewer Function
Chapter 5 Operations — Memory Viewer function Memory Viewer function Memory Viewer is a function that allows projection of still images or movies stored in an SD card. Files that can be played back with the Memory Viewer function The following still image/movie files can be played back on the projector. Extension Format Restriction... -
Page 102: Displaying The Memory Viewer Screen
Chapter 5 Operations — Memory Viewer function Displaying the Memory Viewer screen Insert an SD card in which still image or movie files are stored to the SD card slot. f Refer to “Using SD cards” (x page 54) for handling of SD cards. Press the <MEMORY VIEWER>... - Page 103 Chapter 5 Operations — Memory Viewer function Press the <ENTER> button. f Playback starts in the full-screen display. f Refer to “Playing back still images” (x page 104) or “Playing back movies” (x page 105) for detailed playback procedure. Press the <RETURN> button to end playback. f Full-screen display ends and the Memory Viewer screen (thumbnail view) is displayed.
-
Page 104: Playing Back Still Images
Chapter 5 Operations — Memory Viewer function Playing back still images This section describes the procedure using an operation example on the Memory Viewer screen in thumbnail view. Playback on the Memory Viewer screen in list view can be performed with the same procedure except for the file selection. -
Page 105: Playing Back Movies
Chapter 5 Operations — Memory Viewer function f The playback order follows the display order set in the [MEMORY VIEWER] menu → [SORT] (x page 69). Also in the cases where still image and movie files both exist in the same folder, they are played back according to the [SORT] setting. f The operation guide on the lower part of the playback screen can be hidden by setting the [MEMORY VIEWER] menu →... - Page 106 Chapter 5 Operations — Memory Viewer function f After playback ends, playback goes into pause state at the beginning of the file. f Pressing w during playback performs fast-forward playback. Every press of w increases the speed. (3 levels) f Pressing q during playback performs rewind playback. Every press of q increases the speed. (3 levels) f Pressing a plays back the file being played back from the beginning.
-
Page 107: Direct Playback
Chapter 5 Operations — Memory Viewer function Direct playback Still image/movie files in the specified folders of the SD card can be played back by pressing the number (<1> - <6>) buttons on the remote control. This operation is referred to as direct playback. Also, when operating by a browser remote control of Wireless Manager ME6.3, files can be played back directly by pressing the number (<0>... -
Page 108: Memory Viewer Screen Descriptions
Chapter 5 Operations — Memory Viewer function Memory Viewer screen descriptions The icons on the Memory Viewer screen indicate the following. An icon to indicate moving to upper level. Select it to move to the upper level. An icon to display folders in lower level. Select it to move to the lower level. An icon to indicate that the file is still image. -
Page 109: Network Connection
By using image transfer application software “Wireless Manager ME6.3” that supports Windows computers and Mac, and Panasonic’s image transfer application software that supports iPad/iPhone/iPod touch and Android devices, you can transfer images to the projector. The “Multi Monitoring & Control Software”, which monitors and controls multiple projectors connected to the LAN is also supported. -
Page 110: When Connecting Via Wireless Lan
Chapter 5 Operations — Network connection Note f A LAN cable is required to use the network function via wired LAN. f Use a straight or crossover LAN cable that is compatible with category 5 or higher. Whether either of straight/crossover cable or both cables can be used differ depending on the system configuration. - Page 111 Input MIRRORING Panasonic APPLICATION Communication IEEE802.11a/n IEEE802.11b/g/n method Connection method WPS + Wi-Fi Direct Panasonic exclusive method + connection by user Image transmission Intel WiDi / Intel Pro WiDi / Miracast Panasonic exclusive method ® ® method Setting for projector Turn on the projector.
- Page 112 Chapter 5 Operations — Network connection [SSID] Panasonic Projector [DHCP] [IP ADDRESS] 192.168.11.100 [SUBNET MASK] 255.255.255.0 [USER] [DEFAULT GATEWAY] 192.168.11.1 [AUTHENTICATION] Open [ENCRYPTION] None [DNS1]/[DNS2] None Setting for computer Turn on the computer. Configure network settings following the instructions of your network administrator.
-
Page 113: Web Control Function
Enter the IP address set on the projector into the URL entry field of the web browser. Enter the user name and the password. f The factory default setting of the user name is user1 (user rights)/admin1 (administrator rights) and the password is panasonic (lower case). ENGLISH - 113... - Page 114 Chapter 5 Operations — Web control function Click the [OK] button. f The [Projector status] page is displayed. Note f If you use a web browser to control the projector, set [WEB CONTROL] to [ON] in [NETWORK CONTROL] (x page 87). f Do not start up multiple web browsers at the same time to make setting or control.
- Page 115 Chapter 5 Operations — Web control function Descriptions of items Page tab [Detailed set up] Switches pages by clicking this item. The [Detailed set up] page is displayed by clicking this item. [Status] [Change password] The status of the projector is displayed by clicking this item. The [Change password] page is displayed by clicking this item.
-
Page 116: Error Information Page
Chapter 5 Operations — Web control function Error information page When [Error (Detail)] or [WARNING (Detail)] appears in the self-diagnosis display of the [Projector status] screen, click it to display the error/warning details. f The projector may go into the standby status to protect the projector depending on the contents of the error. Error( Detail ) Self-diagnosis result display Displays the item check results. - Page 117 Chapter 5 Operations — Web control function r [WARNING] items Item Description The intake air temperature is high. The projector may be used in an environment where [INTAKE AIR TEMPERATURE] the temperature is high, such as near a heating appliance. The temperature around the optics module inside the projector is high. The projector [OPTICS MODULE TEMPERATURE] may be used in an environment where the temperature is high, such as near a heating appliance.
- Page 118 Chapter 5 Operations — Web control function E-mail error information is displayed if periodic E-mail sending fails. Note f [Access error log]/[E-mail error log] displays the recent several hundreds of accesses/requests. All information may not be displayed when many accesses/requests are made at a time. f When information in [Access error log]/[E-mail error log] exceeds a certain amount, they are erased from the oldest.
- Page 119 Chapter 5 Operations — Web control function [Advanced control] page Click [Projector control] → [Advanced control]. [KEYSTONE] [DIMMER] Corrects horizontal/vertical keystone distortion. Adjusts the brightness. [PICTURE] [LENS] Adjusts the items of the picture. Adjusts the projection lens (focus/zoom). [Lighting control] page Click [Projector control] →...
- Page 120 Chapter 5 Operations — Web control function [FRAME GRADATION] [Back] button Sets the gradation of the outer periphery of the projected image. Returns to the previous screen. [SPOT LIGHT1] to [SPOT LIGHT3] Switches on/off each spotlight. Note f For details of settings, refer to the [LIGHTING] menu → [PATTERN] of the projector. (x page 67) [Network config] page Click [Detailed set up] →...
- Page 121 Chapter 5 Operations — Web control function Connecting with wireless LAN (SIMPLE) [KEY] [Back] button, [Next] button Set the key to be used with SIMPLE. Click the [Back] button to return to the previous screen. Click Enter 8 to 15 alphanumeric characters. the [Next] button to display a screen to confirm the settings.
- Page 122 Chapter 5 Operations — Web control function [DHCP ON], [DHCP OFF] [SSID] To enable the DHCP client function, set [DHCP ON]. Enter the same string as the SSID registered to the access point. [IP ADDRESS] Enter the IP address when you do not use a DHCP server. [Back] button, [Next] button Click the [Back] button to return to the previous screen.
- Page 123 Chapter 5 Operations — Web control function Click [Detailed set up] → [Ping test]. [Input IP address] Example of display when the connection has succeeded Enter the IP address of the server to be tested. Example of display when the connection has failed [Submit] button Executes the connection test.
- Page 124 Chapter 5 Operations — Web control function Click [Detailed set up] → [E-mail set up]. [ENABLE] [MINIMUM TIME] Select [Enable] to use the E-mail function. Change the minimum interval for the temperature warning E-mail. The default value is 60 minutes. In this case, another [SMTP SERVER NAME] E-mail will not be sent for 60 minutes after sending the Enter the IP address or the server name of the E-mail server...
- Page 125 Chapter 5 Operations — Web control function [Authentication set up] page Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail. Click [Detailed set up] → [Authentication set up]. [Auth] [Password] Select the authentication method specified by your Internet Enter the password for the POP server or the SMTP server.
- Page 126 Chapter 5 Operations — Web control function Contents of E-mail sent Example of the E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been established. === Panasonic projector report(CONFIGURE) === Projector Type : JX200HBU Serial No...
- Page 127 Chapter 5 Operations — Web control function Example of the E-mail sent for an error The following E-mail is sent when an error has occurred. === Panasonic projector report(ERROR) === Projector Type : JX200HBU Serial No : 000000000000 ----- check system -----...
- Page 128 Chapter 5 Operations — Web control function [Administrator] account [Account] [New] [Password] Displays the account to change. Enter the desired new password. (Up to 16 characters in single byte) [Current] [User name] [New] [Password(Retype)] Enter the user name before the change. Enter the desired new password again.
- Page 129 Chapter 5 Operations — Web control function [Change password] (For user rights) Only the change of password is enabled under the user rights. [Old Password] [Retype] Enter the current password. Enter the desired new password again. [New Password] [OK] button Enter the desired new password. (Up to 16 characters in single Determines the change of password.
- Page 130 Chapter 5 Operations — Web control function Attention f When you turn on the projector, be careful so that the eyes of people around the projector are not exposed to the sudden light from the light source. Or operate the projector only if the eyes of people around the projector are not exposed to the light from the light source even when projection starts suddenly.
- Page 131 Chapter 5 Operations — Web control function [Help] page Click the [Help] tab on the operation page. The [Help Desk] window is displayed. [Help Desk] Sends/receives messages to/from an administrator who uses Crestron Connected ENGLISH - 131...
-
Page 132: Mirroring Function
Chapter 5 Operations — MIRRORING function MIRRORING function MIRRORING is a function which enables the projector to project the same image as that displayed on a device. This function connects a device compatible with Intel WiDi / Intel Pro WiDi / Miracast to the projector via ®... - Page 133 Chapter 5 Operations — MIRRORING function Note f The name and startup method of the Intel WiDi / Intel Pro WiDi / Miracast application varies depending on the model. ® ® f For the operation of Intel WiDi / Intel Pro WiDi / Miracast application, refer to the operating instructions of your device. ®...
-
Page 134: Chapter 6 Maintenance
Maintenance Chapter 6 This chapter describes troubleshooting and maintenance methods. 134 - ENGLISH... -
Page 135: Light Source/Temperature Indicators
Chapter 6 Maintenance — Light source/temperature indicators Light source/temperature indicators When an indicator lights up If a problem should occur inside the projector, the light source indicator <LIGHT>/temperature indicator <TEMP> will inform you by lighting or blinking. Check the status of the indicators and remedy the indicated problems as follows. -
Page 136: Inspection And Maintenance
Chapter 6 Maintenance — Inspection and maintenance Inspection and maintenance Before maintaining the projector Attention f Make sure to turn off the power before maintaining the projector. (x page 51) f When switching off the projector, make sure to follow the procedures in “Turning off the projector” (x page 51). WARNING Be sure to turn off the power of the track system before maintaining the projector. -
Page 137: Troubleshooting
Chapter 6 Maintenance — Troubleshooting Troubleshooting Review the following points. For details, see the corresponding pages. Problems Points to be checked Page f Is the track system properly installed? f Is the power supply of the track system turned on? ― f After executing [ALL USER DATA] in the [SETUP] menu →... -
Page 138: Faq
Chapter 6 Maintenance — FAQ Refer to the following when you have problems with the wireless LAN connection. The connection with the wireless LAN is lost. f Under certain reception conditions, the image may be disrupted. In such a case, try the following. g Move the device connected over the wireless LAN closer to the projector. -
Page 139: Chapter 7 Appendix
Appendix Chapter 7 This chapter describes specifications and after-sales service for the projector. ENGLISH - 139... -
Page 140: Technical Information
Standby condition POWR? Power supply status query Power on condition HDMI INPT Input selection MEMORY VIEWER SIGNAGE Panasonic APPLICATION INPT? Input selection query MIRRORING AVMT AV mute control AV mute function off AVMT? AV mute function query AV mute function on 1st byte Indicates fan errors, and returns 0 or 2. - Page 141 Chapter 7 Appendix — Technical information Channel definition The following table lists the channel definitions used for controlling the projector with the Art-Net function. Channel Control details Performance Parameter Default value Remark 100 % Can be set in 256 steps between Light output adjustment …...
-
Page 142: Control Commands Via Lan
“xxxxxx:yyyyy:zzzzzzzz” xxxxxx Administrator rights user name for the web control (default user name is “admin1”) yyyyy Password of above administrator rights user (default password is “panasonic”) zzzzzzzz 8-byte random number obtained in Step 2) Command transmission method Transmit using the following command formats. -
Page 143: Error Response
Chapter 7 Appendix — Technical information r Transmitted data Termination Header Data section symbol Hash value Command ‘0’ ‘0’ Control command (CR) (Refer to “Connecting method” example 0x30 0x30 (ASCII string) 0x0d above) Data length 32 bytes 1 byte 1 byte Undefined length 1 byte r Received data... -
Page 144: Control Command
Power standby ― Power supply status STANDBY status query Power on status HDMI MEMORY VIEWER Input/mode selection MIRRORING Panasonic APPLICATION SIGNAGE Light source power NORMAL setting Light source power setting query Runtime query 00000 - 99999 In hours AV mute... -
Page 145: Glossary Of Network Terms
Chapter 7 Appendix — Glossary of network terms Glossary of network terms Term Description Access point This is a signal station for relaying signals between the wireless LAN and the computer. A computer connected to the access point can communicate via the network connected to the access point. Abbreviation for Advanced Encryption Standard. - Page 146 Chapter 7 Appendix — Glossary of network terms Term Description WPA-EAP A standard of encryption method for wireless LAN. This is an encryption method for corporation, and WPA2-EAP encryption is performed using an external server. WPA-PSK A standard of encryption method for wireless LAN. This is advanced security than the WEP, and it has WPA2-PSK functions such as user authentication function and TKIP (encryption protocol) that will automatically change the encryption key every specified time.
-
Page 147: Specifications
*3 Measurement, measuring conditions and method of notation all comply with ISO/IEC 21118:2012 international standards. *4 Operations of the Panasonic SD memory card up to capacity of 2 GB and Panasonic SDHC memory card up to capacity of 32 GB are confirmed. - Page 148 Chapter 7 Appendix — Specifications IEEE802.11b/g/n: 2.412 GHz - 2.462 GHz MIRRORING IEEE802.11a/n: 5.180 GHz - 5.240 GHz mode 5.745 GHz - 5.805 GHz IEEE802.11b/g/n: 2.412 GHz - 2.462 GHz M-DIRECT mode IEEE802.11a/n: 5.180 GHz - 5.240 GHz Compliance 5.745 GHz - 5.825 GHz standards IEEE802.11b/g/n: 2.412 GHz - 2.462 GHz IEEE802.11a/n: 5.180 GHz - 5.240 GHz...
-
Page 149: Dimensions
Chapter 7 Appendix — Specifications Dimensions Unit: mm r Excluding the adapter 372.4 (14-21/32") 84.0 (3-5/16") 56.0 (2-7/32") 290.0 (11-13/32") 18.7 (3/4") 142.5 (5-5/8") 149.2 (5-7/8") 268.9 (10-19/32") 198.5 (7-13/16") 278.8 (10-31/32") r Including the adapter 464.5 (18-9/32") 84.0 56.0 (3-5/16") (2-7/32") 290.0 (11-13/32") 18.5 (23/32") -
Page 150: List Of Compatible Signals
Chapter 7 Appendix — Specifications List of compatible signals The following table specifies the HDMI input video signal that the projector can project. Scanning freq. Resolution Dot clock freq. Mode Plug and play Horizontal Vertical (Dots) (MHz) (kHz) (Hz) 525 (480) /60i 1 440(720) x 480 15.7 59.9... -
Page 151: Index
Connecting via wireless LAN [CONTRAST] [ON-SCREEN DISPLAY] Control commands via LAN On-screen menu [CORNER CORRECTION] [Crestron Connected(TM)] Operating with the remote control <Panasonic APP> button 23, 52 [DATE AND TIME] [Panasonic APPLICATION] [DC OUT] <DC OUT> terminal [PASSWORD] <DEFAULT> button... - Page 152 Panasonic Corporation Web Site: http://panasonic.net/avc/projector/ © Panasonic Corporation 2016 Panasonic Systems Communications Company of North America 5th Floor, Two Riverfront Plaza, Newark, NJ 07102-5490 TEL: (877) 803 - 8492 Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3...
