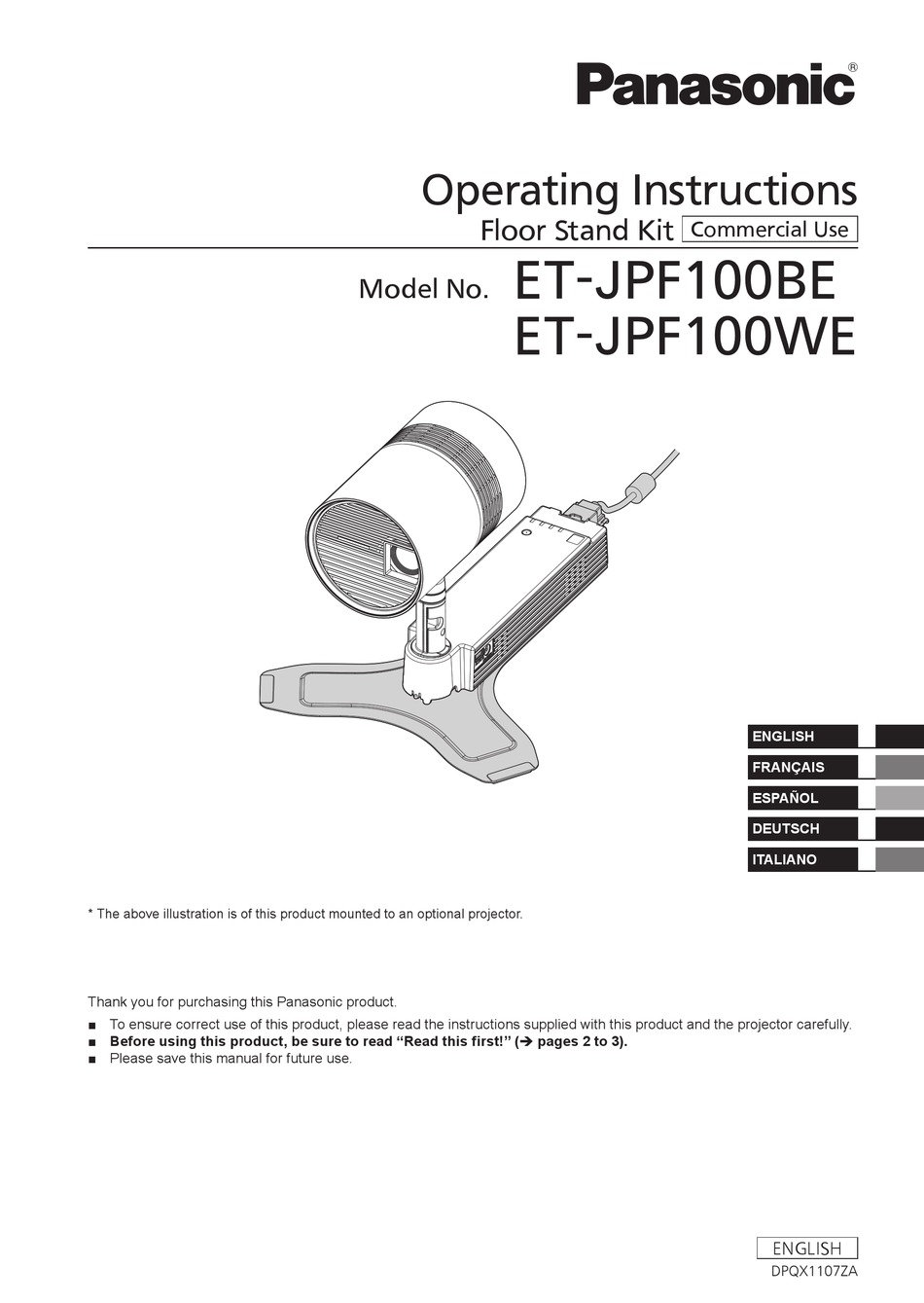

* The above illustration is of this product mounted to an optional projector.
Thank you for purchasing this Panasonic product.
■ To ensure correct use of this product, please read the instructions supplied with this product and the projector carefully.
■ Before using this product, be sure to read "Read this first!" ( pages 2 to 3).
■ Please save this manual for future use.

Operating Instructions

Floor Stand Kit
ET-JPF100BE
Model No.
ET-JPF100WE
Commercial Use
ENGLISH
FRANÇAIS
ESPAÑOL
DEUTSCH
ITALIANO
ENGLISH
DPQX1107ZA

Advertisement

Table of Contents
loading

Related Manuals for Panasonic et-jpf100be

Summary of Contents for Panasonic et-jpf100be

  • Page 1: Operating Instructions

    * The above illustration is of this product mounted to an optional projector. Thank you for purchasing this Panasonic product. ■ To ensure correct use of this product, please read the instructions supplied with this product and the projector carefully.

  • Page 2: Read This Fi Rst

    Read this fi rst! WARNING Do not do anything that might damage the power cord or the power plug. If the power cord is used while damaged, electric shocks, short-circuits or fi re will result.  Do not damage the power cord, make any modifi cations to it, place it near any hot objects, bend it excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.
  • Page 3 L or coloured RED. How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.  Panasonic assumes no responsibility for any accident or damage caused by improper  installation or incorrect handling.

  • Page 4: Table Of Contents

    Contents Read this fi rst! ....................2 Product composition ..................5 Before mounting ....................6 Mounting procedure ..................7 Main procedures ......................... 7 Changing the orientation of the main unit of the projector ..........7 Mounting the fl oor stand to the projector ................8 Connecting the power cord to the projector ..............

  • Page 5: Product Composition

    This stand is mounted to the projector to enable fl oor standing installation. There are rubber feet at four places on the bottom of the stand. The stand comes in two colors. ET-JPF100BE: Black ET-JPF100WE: White Power cord This is connected to the <AC IN> socket of the (K2CM3YY00038) <1>...

  • Page 6: Before Mounting

    Before mounting ■ Use this product to install a compatible projector (not supplied) on the floor in a standing position. Compatible projectors: PT-JW130FBE / PT-JW130FWE ■ A work bench and a soft cloth to prevent scratches are required when mounting this product to a projector.

  • Page 7: Mounting Procedure

    Mounting procedure Main procedures The main procedures up until installation of the projector are as follows. For details on 1) to 3), refer to the corresponding reference pages. 1) Changing the orientation of the main unit of the projector ( 7 page) 2) Mounting the fl...

  • Page 8: Mounting The Fl Oor Stand To The Projector

    Mounting procedure (continued) Mounting the fl oor stand to the projector This section describes mounting the fl oor stand to the projector. Power supply unit 1) Place the projector on the work bench.  Place the power supply unit of the projector on a work bench that has a soft cloth or the like laid on it.
  • Page 9 Mounting procedure (continued) 3) Mount the fl oor stand to the projector. Opening  Align the opening in the fl oor stand with the position of the protrusion on the projector. Protrusion 4) Slide the fl oor stand.  Slide the fl oor stand so that the tab fi ts into place into the <AC IN>...

  • Page 10: Connecting The Power Cord To The Projector

    Mounting procedure (continued) Connecting the power cord to the projector This section describes connecting the supplied power cord to the projector. To prevent disconnection of the power cord, use the supplied power cord and fi rmly insert the connector all the way into the <AC IN> socket of the projector and then secure it in place. For details on the handling of the power cord, refer to “Read this fi...
  • Page 11 Mounting procedure (continued) 3) Close the connector secure lock.  Push until the tab of the connector secure lock clicks into place. ■ Power cord disconnection procedure 1) Make sure that the projector is in the standby state and then remove the power plug from the power outlet.

  • Page 12: Attaching A Security Wire

    Mounting procedure (continued) Attaching a security wire If necessary, take a measure to protect the equipment against theft such as passing a commercially available security wire between the pole and cable of the projector. Cable Pole Security wire (commercially available product) 12 - ENGLISH...

  • Page 13: Specifi Cations

    Width: 350 mm (13-25/32") Dimensions Height: 18.6 mm (23/32") Depth: 430 mm (16-15/16") Weight 0.8 kg (1.76 lbs.) ET-JPF100BE: Black (for use in combination with PT-JW130FBE) Outer color ET-JPF100WE: White (for use in combination with PT-JW130FWE) Power cord length 2.0 m (78-3/4")

  • Page 14: Assembly Dimension Diagram

    Specifi cations (continued) Assembly dimension diagram These dimensions are when this product is mounted to a separately sold projector (product number: PT-JW130FBE / PT-JW130FWE). Unit: mm (4-23/32") 310 (12-7/32") 452 (17-25/32") Main unit horizontal rotation 360° 220.2 (8-21/32") 42.6 (1-11/16") 142 (5-19/32") Ball joint movable range:...
  • Page 15 MEMO ENGLISH - 15...
  • Page 16 Web Site : http://panasonic.net/avc/projector/ TI0716AM0 -PS © Panasonic Corporation 2016 Printed in China...
