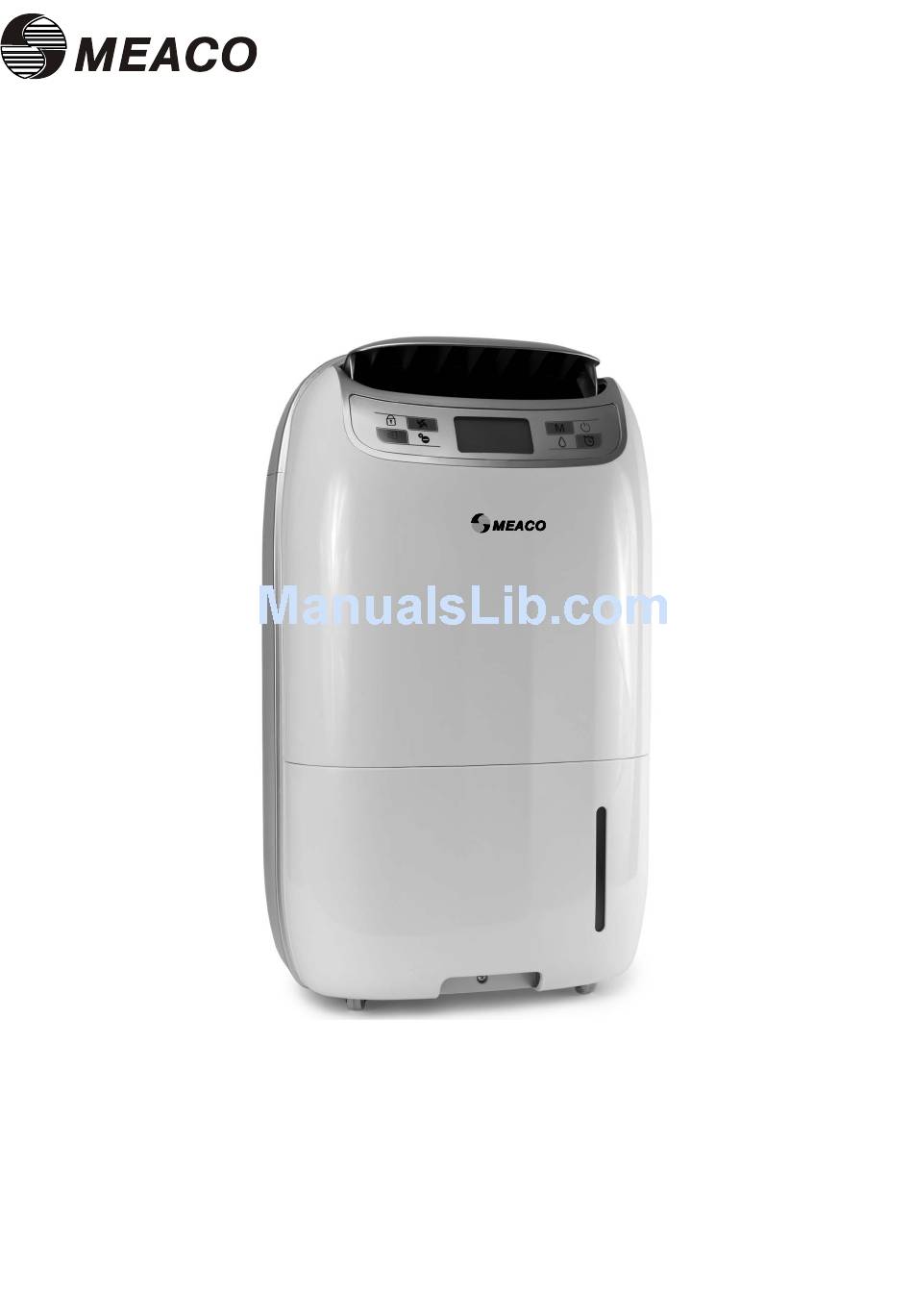

- Page 1 Meaco 25L Low Energy Dehumidryer INSTRUCTION MANUAL [EN]...
-
Page 2: Safety Information
If in doubt do not use the dehumidifier and consult a qualified electrician or a Meaco approved engineer. The operator must make the operating instruction available for the user and make sure that the user does understand the manual. - Page 3 Wiring Instructions: Should it be necessary to change the plug please note the wires in the mains lead are coloured in accordance with the following code: BLUE - NEUTRAL BROWN - LIVE GREEN AND YELLOW – EARTH As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: 1.
-
Page 4: General Advice
1. GENERAL ADVICE Before putting your dehumidifier into operation for the first time, the instruction manual should be studied carefully. After receiving the unit, you should check your dehumidifier for any transport damage. In case of damage, you should inform the sender immediately. Keep the packaging for the dehumidifier in a safe place in order to be able to despatch the dehumidifier safely if it requires a service. -
Page 5: Continuous Drainage
4. PRODUCT INDENTIFICATION 5. CONTINUOUS DRAINAGE This dehumidifier contains an internal tank that will collect the water, when this is full the dehumidifier will switch itself off. If you wish to drain the water away continuously then you can attached a 12mm diameter hose to the outlet on the rear of the dehumidifier as per the above photo. -
Page 6: Control Panel
6. CONTROL PANEL Turning the dehumidifier On or Off When you plug the dehumidifier in it will bleep but the display will remain blank. Press the On/Off button to turn the dehumidifier on or off. Mode Pressing the Mode buttons toggles through the different available drying modes in this order; Humidistat mode Laundry mode Quiet mode... - Page 7 The Modes Humidistat – use to set a target relative humidity When in Humidistat mode indicated by this symbol you can press this button to select a target relative humidity of between 30 and 80%rh in 5%rh steps. Our recommended figure for the home would be 55%rh. There is also the option of CO which stands for continuous and means that the machine will not stop at a particular relative humidity but will continue to dry regardless of the room relative humidity.
- Page 8 Child lock Press for three seconds to activate the child lock. This stops the functions of the dehumidifier from being changed. You cannot turn the dehumidifier off whilst child lock is activated. Press again for another three seconds to deactivate. Louvre Swing ...
-
Page 9: Drying Laundry
This dehumidifier can be operated within an ambient temperature range from +5°C to +35°C and with a relative humidity from 30% to 90%rh. It is suitable for applications in domestic situations and in museums and archives. 11. SPECIFICATIONS Model Meaco 50Lm Temperature Range +5 °C / +35°C Relative Humidity Range... -
Page 10: Troubleshooting
This is normal and is not a fault. The fan is not running Fan not running Contact a Meaco approved workshop. Assure that the device is only set up in The room temperature is lower than +5ºC rooms with temperatures above +5°C. -
Page 11: Maintenance
13. MAINTENANCE Always turn off the power and disconnect the main cable before performing maintenance procedures. All service procedures below are to be executed with the unit unplugged. Perform before each use or as needed. INSPECT ELECTRICAL SYSTEM: Inspect the electrical cord for damage at regular intervals. The working performance of the dehumidifier will be greatly reduced if the filter is blocked with dust. -
Page 12: Warranty And Customer Service
…………………………………………………….. Meaco are specialists in dehumidifiers and would welcome your comments and questions on this dehumidifier. If you do develop a fault within the first year then please do call us and if we cannot fix the problem over the phone we will be happy to collect the dehumidifier from you at our expense and repair or replace as appropriate.
