Summary of Contents for QMotion QR1051433

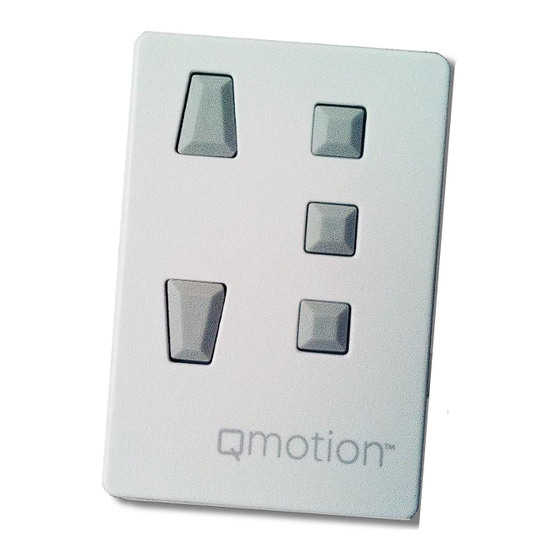

- Page 1 Qmotion Programmable Timer Remote User’s Manual...
- Page 2 Thank you for purchasing a Qmotion Programmable Timer Remote. With the Timer Remote you can program events to move your shades at predetermined times of the day and days of the week. You can also manually use your Qmotion Programmable Timer Remote like a standard wall station remote as referenced in the user manual that came with your shade.
- Page 3 Installing “Qmotion Programmable Timer Remote Programmer” and left click on the “Download 1. Go to http://qmotionshades.com/usb.php Here” link in the center of the page. 2. Open the zip file 3. Unzip the files and open the created folder 4. Double click on “setup.exe”...
- Page 4 6. After installing successfully the program should automatically run and the Event Scheduler window should appear on your screen. Figure 1: Event Scheduler Window Installing the USB Wall Station Timer 1. Plug the USB Wall Station Timer into the provided micro USB cable. 2.
- Page 5 Setting A User Defined Time Option on the USB Wall Station Timer 1. If the program is not already open find the icon on your desktop, or find the link in your Start Menu, entitled Qmotion Programmable Timer Remote Programmer and double-click it to get it started.
- Page 6 Setting a Sunrise/Sunset 1. If the program is not already open find the icon on your desktop, or find the link in your Start Menu, entitled Qmotion USB Programmer and double-click it to get it started. 2. Plug your USB remote into the USB cable and then plug the USB...
- Page 7 3. Select Sunrise or Sunset from the Time Options drop down menu 5. Select where you would like the shade to move to 6. Choose an Adjustment anywhere from +90 minutes to -90 minutes from the time of sunrise/sunset or leave it at Zero if you do not want an adjustment.
- Page 8 Reloading a Schedule from a Remote 1. If the program is not already open find the icon on your desktop, or find the link in your Start Menu, entitled Qmotion USB Programmer and double-click it to get it started.
- Page 9 Setting the Remote time to a time other than what’s on your computer 1. If the program is not already open find the icon on your desktop, or find the link in your Start Menu, entitled Qmotion USB Programmer and double-click it to get it started.
- Page 10 When it starts moving up release the up button. 5. The new remote is now learned to your Qmotion shade. B. If you do not have a remote learned to the shade, or cannot find the remote 1.
- Page 11 When the shade begins to move you can release the up button. 6. Your remote is now learned to your Qmotion shade.
