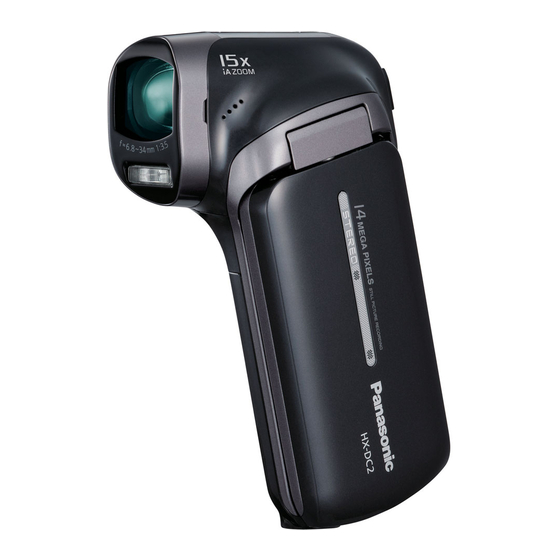

Panasonic HX-DC2 Operating Instructions Manual

Hide thumbs Also See for HX-DC2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Operating Instructions Manual
Before use, please read these instructions completely.
Model number suffix "EB" denotes UK model.

Operating Instructions

Model No.
Dual Camera
HX-DC2
1AG6P1P6469--(S)
Preparation
Basic
Advanced
(Recording)
Advanced
(Playback)
Copy/
Dubbing
With a PC
Others
VQT4D23

Advertisement

Table of Contents
loading

Related Manuals for Panasonic HX-DC2

Summary of Contents for Panasonic HX-DC2

  • Page 1: Operating Instructions

    Operating Instructions Dual Camera Preparation HX-DC2 Model No. Basic Advanced (Recording) Advanced (Playback) Copy/ Dubbing With a PC Before use, please read these instructions completely. Others Model number suffix “EB” denotes UK model. VQT4D23 1AG6P1P6469--(S)

  • Page 2: Information For Your Safety

    Dear Customer, We would like to take this opportunity to thank you for purchasing this Panasonic Dual Camera. Please read these Operating Instructions carefully and keep them handy for future reference. Please note that the actual controls and components, menu items, etc. of your Dual Camera may look somewhat different from those shown in the illustrations in these Operating Instructions.

  • Page 3: Before Use

    CAUTION! IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.
  • Page 4 WARNING: To reduce the risk of fire, electric shock or product damage, ≥ Do not expose this unit to rain, moisture, dripping or splashing. ≥ Do not place objects filled with liquids, such as vases, on this unit. ≥ Use only the recommended accessories. ≥...

  • Page 5: Emc Electric And Magnetic Compatibility

    ∫ Concerning the battery Warning Risk of fire, explosion and burns. Do not disassemble, heat above 60 oC or incinerate. CAUTION ≥ Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer. ≥ When disposing the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.
  • Page 6 For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
  • Page 7 ∫ Indemnity about recorded content Panasonic does not accept any responsibility for damages directly or indirectly due to any type of problems that result in loss of recording or edited content, and does not guarantee any content if recording or editing does not work properly.
  • Page 8 ∫ Cards that you can use with this unit SD Memory Card, SDHC Memory Card and SDXC Memory Card ≥ 4 GB or more Memory Cards that do not have the SDHC logo or 48 GB or more Memory Cards that do not have the SDXC logo are not based on SD Memory Card Specifications.

  • Page 9: Table Of Contents

    Contents Information for Your Safety............... 2 Accessories..................13 Preparation Names and Functions of Main Parts ..........14 Power supply..................17 Inserting/removing the battery............. 17 Charging the battery ..............19 Charging and recording time............21 Recording to a card ................. 23 Cards that you can use with this unit ..........
  • Page 10 Advanced (Recording) Using the zoom ................59 Double range zoom..............60 Zoom mode ................. 61 Image stabiliser................62 Burst recording ................63 Recording panorama still pictures ..........65 Recording functions of menus ............68 RECORDING MENU 1..............68 RECORDING MENU 2..............73 RECORDING MENU 3..............
  • Page 11 Copy/Dubbing Copying from Built-in Memory to SD card ........116 Dubbing images onto other video devices........117 With a PC What you can do with a PC ............120 End User License Agreement ........... 123 Operating environment ..............125 Installation ..................129 Connecting to a PC................
  • Page 12 ≥ For customers within lreland: 01 289 8333 ≥ For further support on your product, please visit our website: www.panasonic.co.uk Direct Sales at Panasonic UK ≥ Order accessory and consumable items for your product with ease and confidence by phoning our Customer Communications Centre Monday–Thursday 9:00 a.m.–5:30 p.m., Friday 9:30 a.m.–...

  • Page 13: Accessories

    Accessories Check the accessories before using this unit. Keep the accessories out of reach of children to prevent swallowing. Product numbers correct as of Dec. 2011. These may be subject to change. Battery pack VW-VBX070 AC adaptor VSK0752 AV cable VFA0543 USB cable VFA0554...

  • Page 14: Preparation

    Preparation Names and Functions of Main Parts LCD monitor (l 34) Due to limitations in LCD production technology, there may be some tiny bright or dark spots on the LCD monitor screen. However, this is not a malfunction and does not affect the recorded picture.
  • Page 15 Hand strap fixture    Zoom range button [ ] (l 60) Photoshot button [ ] (l 38) SET button [SET] (l 47, 51, 79, 88) ≥ Use the SET button to select the recording functions and playback operations, and to operate the menu screen. ≥...
  • Page 16 16 Lens ≥ When not using the unit, be sure to fit the lens cap to protect the lens. ≥ Keep the lens cap out of reach of children to prevent swallowing.     17 Speaker 18 Status indicator (l 7, 19, 25) 19 Internal stereo microphones 20 Built-in flash (l 73) ≥...

  • Page 17: Power Supply

    To ensure that safe products are used we would recommend that a genuine Panasonic battery pack is used. Inserting/removing the battery ≥...

  • Page 18: Removing The Battery

    Insert the battery, taking care to match up the terminal markings.  A terminal markings ≥ It is possible to mistakenly insert the battery upside down, so be sure to check the orientation carefully. Close the battery/card cover. ≥ Securely close it until it clicks. Removing the battery Press and hold down the power button to turn off the unit, then pull up and remove the battery.

  • Page 19: Charging The Battery

    Charging the battery When this unit is purchased, the battery is not charged. Charge the battery fully before using this unit for the first time. The unit is in the standby condition when the AC adaptor is connected. The primary circuit is always “live” as long as the AC adaptor is connected to an electrical outlet.
  • Page 20 ≥ Do not use any other AC adaptors except the supplied one. ≥ Do not use any other USB cables except the supplied one. ≥ We recommend using Panasonic batteries (l 13, 21, 171). ≥ If you use other batteries, we cannot guarantee the quality of this product.

  • Page 21: Charging And Recording Time

    Charging and recording time ∫ Charging/Recording time ≥ Temperature: 25 oC/humidity: 60%RH (When using AC adaptor) Battery model Maximum Actual number Charging Recording continuously recordable [Voltage/Capacity time mode recordable time (minimum)] time 50 min 30 min 55 min 35 min Supplied battery/ 50 min 30 min...
  • Page 22 Recording time Approx. 105 min Playback time Approx. 210 min Recording conditions by CIPA standard ≥ CIPA is an abbreviation of Camera & Imaging Products Association. ≥ Use of supplied battery ≥ Using a Panasonic SD Memory Card (2 GB) VQT4D23...

  • Page 23: Recording To A Card

    ≥ Please confirm the latest information about SD Memory Cards/SDHC Memory Cards/SDXC Memory Cards that can be used for motion picture recording on the following website. http://panasonic.jp/support/global/cs/e_cam (This website is in English only.) ≥ To use the Eye-Fi transfer feature (l 141), an Eye-Fi X2 series SD card is required.
  • Page 24 ≥ 4 GB or more Memory Cards that do not have the SDHC logo or 48 GB or more Memory Cards that do not have the SDXC logo are not based on SD Memory Card Specifications. ≥ The operation of Memory cards exceeding 64 GB cannot be guaranteed.

  • Page 25: Inserting/Removing An Sd Card

    Inserting/removing an SD card When using a non Panasonic SD card for the first time, or one which was previously used on another equipment, it is necessary to format the SD card. (l 55) When the SD card is formatted, all of the recorded data is deleted.
  • Page 26 Close the battery/card cover. ≥ Securely close it until it clicks. ≥ Do not touch the terminals on the back of the SD card. ≥ Do not shock, bend, or drop the SD card. ≥ Electrical noise, static electricity or the failure of this unit or the SD card may damage or erase the data stored on the SD card.

  • Page 27: Turning The Unit On/Off

    Preparation Turning the unit on/off Open the LCD monitor and press the power button to turn on the unit. The LCD monitor turns on. To turn off the unit Hold down the power button until the LCD monitor goes off. ≥...

  • Page 28: About Economy Function

    ≥ If you open the LCD monitor when in standby mode, the unit enters recording mode. ≥ In the following cases, opening the LCD monitor does not turn on the unit. Press the power button to turn on the unit. j When the unit is originally purchased j When you have turned off the unit using the power button About economy function...

  • Page 29: About The High Temperature Warning Icon

    About the high temperature warning icon If the battery temperature or unit internal temperature (excluding battery) rises, the high temperature warning icon will provide warning as indicated below. Battery/unit Screen internal Unit operation display temperature Although it is possible to record/play back, please stop (ON) using the unit as soon as...

  • Page 30: Selecting A Mode

    Preparation Selecting a mode Change the mode to recording or playback. Press the REC/ button. ≥ Each press of the REC/ button changes the mode. For recording motion pictures, Recording Mode (l 35, 38, 42) still pictures and audio For playing back motion Playback Mode (l 47, 88) pictures, still pictures and audio VQT4D23...

  • Page 31: Setting Date And Time

    Preparation Setting date and time If the screen to set the date and time appears when you turn on the unit, skip to step 2 and follow the steps to set the date and time. Select the menu. (l 51) # [CLOCK SET] [MENU]: Select an item (DATE/TIME/DISP) using the SET...
  • Page 32 If you leave the battery for approximately 2 days, the time settings will be stored for approximately 7 days. (The charging continues even when the unit is turned off) WARNING THE LITHIUM BATTERY IN THIS EQUIPMENT MUST ONLY BE REPLACED BY QUALIFIED PERSONNEL. WHEN NECESSARY, CONTACT YOUR LOCAL PANASONIC SUPPLIER. VQT4D23...

  • Page 33: Basic

    Basic Before recording ∫ Basic camera positioning Example 1: Example 2: Grip the unit with the forefinger of Grip the unit with the forefinger to your right hand above the lens and little finger of your right hand the middle finger to little finger surrounding the body.

  • Page 34: Recording Yourself

    ∫ Recording yourself Rotate the LCD monitor towards the lens side. ≥ The image is horizontally flipped as if you see a mirror image. (However the image recorded is the same as a normal recording.) ∫ If the surface of the unit gets hot Due to the characteristics of the unit, the outer surface may become warm during use, but this does not indicate a malfunction.

  • Page 35: Recording Motion Pictures

    Basic Recording motion pictures ≥ Before turning on the unit, remove the lens cap. ≥ Motion pictures are recorded to the SD card if one is inserted. If no SD card is inserted, the motion pictures are recorded to the built-in memory. Open the LCD monitor.
  • Page 36 ∫ About the screen indications in the motion picture recording 000:00:15 000:00:15 000:00:15 Recording mode Motion picture operation indicator (l 146) During motion picture recording μ (Red) When the remaining recordable time drops to approx. 30 seconds or less, μ flashes. During recording: Recording time elapsed Each time the unit is put into recording pause, the...
  • Page 37 ≥ The images recorded between pressing the recording start/stop button to start recording and pressing it again to pause recording become one scene. ≥ If the file size exceeds 4 GB during recording, the unit saves the file and saves the continuation in a new file. (A new file is created automatically every 4 GB (l 168)) ≥...

  • Page 38: Recording Still Pictures

    Basic Recording still pictures ≥ Before turning on the unit, remove the lens cap. ≥ Still pictures are recorded to SD card if one is inserted. If no SD card is inserted, the still pictures are recorded to the built-in memory. Open the LCD monitor.
  • Page 39 ∫ About the recording standby screen display The field of view of the image displayed on the LCD monitor differs for motion picture recording and still picture recording. At time of purchase, the recording standby screen displays video view. Press the button halfway to change to photo view.
  • Page 40 ∫ About the focusing area ≥ When [FOCUS MODE] (l 75) is set to  [9-PT AUTOFOCUS], (focusing area A) 14 14 is displayed at the position where focus is achieved. The unit automatically determines the position where focus is achieved from nine focus points within the recording area.

  • Page 41: About Recording Still Pictures During Motion Picture Recording And Audio Recording

    About recording still pictures during motion picture recording and audio recording You can record still pictures while recording a motion picture or while recording audio. (simultaneous recording) Press the button fully (press to the bottom) to take the picture. ≥ When the recordable time drops to approximately 30 seconds or less, the unit can no longer record still pictures while recording a motion picture or while recording audio.

  • Page 42: Recording Audio

    Basic Recording audio ≥ Audio is recorded to the SD card if one is inserted. If no SD card is inserted, the audio is recorded to the built-in memory. Open the LCD monitor. Select the menu. (l 51) # [REC MODE] # [ [MENU]: (VOICE RECORD)] Start recording by pressing the recording start/stop...
  • Page 43 ∫ About the screen display for audio recording 000:00:15 000:00:15 000:00:15 Audio operation indicator (l 145) During audio recording (Red) When the remaining recordable time drops to approx. 30 seconds or less, μ flashes. During audio recording: Recording time elapsed Every time recording is stopped, the indicator 000:00:15 returns to 000:00:00.

  • Page 44: Intelligent Auto Mode

    Basic Intelligent Auto Mode The following modes (appropriate for the condition) are set just by pointing the unit to what you want to record. Select the menu. (l 51) # [INTELLIGENT AUTO] # [ [MENU]: (ON)] MENU ≥ Please refer to page 85 for details about Manual Mode. Mode Effect Portrait...
  • Page 45 *1 Mode for motion picture recording only *2 Mode for still picture recording only ≥ Depending on the recording conditions, the unit may not enter the desired mode. ≥ We recommend using a tripod in Night portrait/Night scenery/Low light. ≥ Faces cannot be detected depending on the recording conditions, such as when faces are of certain sizes or at certain tilts or when digital zoom is used.

  • Page 46: Automatic White Balance

    ∫ Intelligent Auto Mode When switching to Intelligent Auto Mode, the Auto White Balance and Auto Focus operate and automatically adjust the colour balance and focusing. Depending on the brightness of the subject etc., the aperture and shutter speed are automatically adjusted for an optimum brightness. ≥...

  • Page 47: Motion Picture/Still Picture/Audio Playback

    Basic Motion picture/Still picture/Audio playback Press the REC/ button to change to playback mode. Select the file to play back using the SET button and press the SET button. Thumbnail display  A The information for the file in the yellow frame is displayed. ≥...
  • Page 48 Play back using the SET button. Motion picture/audio playback Playback/Pause Rewind playback Fast forward playback  Stops the playback and shows the thumbnails. B Operation icon* * If the operation icon disappears, perform a SET button operation to display it. Still picture playback Deletes still picture (l 103) Displays previous file...
  • Page 49 ∫ Change the thumbnail display While the thumbnail is displayed, the thumbnail display changes in the following order if the zoom lever is operated to side or side. 21 files () 8 files () 1 file ≥ If you move the zoom lever to the side from the 21 files display mode, the unit goes to the playback folder selection screen.

  • Page 50: Motion Picture Compatibility

    Motion picture compatibility ≥ The unit conforms to the MP4 format (MPEG-4 AVC file standard). ≥ Motion pictures recorded on other MP4-compatible equipment may not play back normally or may not play back at all on this unit. Similarly, motion pictures recorded on this unit may not play back normally or may not play back at all on other MP4-compatible equipment.

  • Page 51: Using The Menu Screen

    Basic Using the menu screen Press the MENU button. Tilt the SET button to the left. Select tab A or option tab B using the SET button, and press down the right side of the SET button or press the SET button. ...
  • Page 52 Select the setting content using the SET button and press the SET button to set. ∫ About applicable mode indicator In the recording menu, the recording mode that reflects the currently displayed setting is displayed.  D Applicable mode indicator : Setting is applied to still picture and motion picture recording.

  • Page 53: Using Option Menu

    Basic Using Option Menu ≥ The displayed items change depending on the mode setting (recording mode, playback mode). Select the menu. # desired setting [MENU]: OPTION MENU 1 [CLOCK SET] Please refer to page 31. [ALERT SOUND] Set the type and volume of operation sounds for the unit. [TURN ON/OFF]: Sets the sound emitted when the unit is turned on/off.

  • Page 54: Option Menu 2

    [DISPLAY] Turns screen display [ON] (display) or [OFF] (not-display). [ECONOMY] Sets the time until the unit goes into sleep mode to save on battery consumption. (l 28) [BATTERY:REC]: Sets the time for which the unit is in the recording mode using the battery, before it goes into sleep mode.
  • Page 55 [TV OUTPUT] [TV SYSTEM]: Please refer to page 112. [TV ASPECT]: Please refer to page 111. [HDMI]: Please refer to page 112. [VIERA Link]: Please refer to page 113. [INITIAL SET] Returns the menu to the settings at the time of purchase. ≥...

  • Page 56: Option Menu 3

    ≥ Do not turn this unit off or remove the SD card, while formatting. Do not expose the unit to vibrations or shock. Use this unit to format media. Formatting built-in memory is only available with this unit. Do not format an SD card using any other equipment such as a PC.
  • Page 57 [PLAYBACK FOLDER] When the SD card or built-in memory contains multiple folders, you can select a folder for playback. ≥ Set to Playback mode. (l 30) Select [PLAYBACK FOLDER] using the SET button and press the SET button. Select the folder to play back using the SET button and press the SET button.
  • Page 58 When [FILE NO. CONT’D] is set to [ON] and there are files remaining on the newly inserted card, the files subsequently recorded on the card will be numbered as described below. When the newly inserted card contains file numbers which are smaller than the file numbers recorded before changing the cards The numbering continues from the file currently being recorded.

  • Page 59: Advanced (Recording)

    Advanced (Recording) Using the zoom ≥ Set to Recording mode. (l 30) Zoom lever T side: Close-up recording (zoom in) W side: Wide-angle recording (zoom out)  A Zoom bar ≥ i.Zoom and digital zoom can be set in [ZOOM MODE]. (l 61) ∫...

  • Page 60: Double Range Zoom

    When the zoom magnification is 1k, this unit can focus on a subject approx. 10 cm away from the lens. (When [INTELLIGENT AUTO] is set to [ON], or [FOCUS] is set to (MACRO), you can record from as close as 1 cm with the zoom magnification at 1 times and from 80 cm with the zoom magnification at its maximum.) Double range zoom The enlarged size will be approximately double size (double range...

  • Page 61: Zoom Mode

    Zoom mode Set the digital zoom and i.Zoom. ≥ Select the menu. # [ZOOM MODE] # desired setting [MENU]: (DIGITAL ZOOM): Digital zoom (i.ZOOM): This zoom function allows you to maintain high-definition picture quality. (OFF): Optical zoom only ≥ The larger the digital zoom magnification, the more the image quality is degraded.

  • Page 62: Image Stabiliser

    Advanced (Recording) Image stabiliser Use the Image stabiliser to reduce the effects of shake during recording. ≥ Set to Recording mode. (l 30) ∫ Image stabiliser for motion pictures Select the menu. # [E.I.S.(VIDEO)] # desired setting [MENU]: (ACTIVE MODE): This setting gives more stabilisation and is suitable for recording when moving.

  • Page 63: Burst Recording

    Advanced (Recording) Burst recording Records a sequence of still pictures at a rate of 10 per second or 1 per second. Use this function to record fast-moving subject. ≥ Set to Recording mode. (l 30) Select the menu. # [BURST] # desired setting [MENU]: (14M BURST): Records approximately 1 still picture every 1 second.
  • Page 64 Press the button fully. ≥ During recording, lights up in red. ≥ The auto focus works to fix the focus when the button is pressed halfway. ∫ Maximum number of pictures in the burst Maximum number of pictures [BURST] setting in the burst ≥...

  • Page 65: Recording Panorama Still Pictures

    Advanced (Recording) Recording panorama still pictures By recording while panning the unit vertically or horizontally you can record a 180e or 360e panorama still picture. ≥ Set to Recording mode. (l 30) Select the menu. # [PANORAMA] # [MENU]: (360e PANORAMA)] or [ (180e PANORAMA)] ≥...
  • Page 66 ∫ Recording technique Move the camera toward the direction of recording taking care not to shake. (Correct recording is not possible when the shake is too big.) ∫ About size of still pictures The sizes of panorama still pictures are as follows. Picture size Horizontal Vertical...
  • Page 67 ≥ Focus and white balance will be fixed to the optimal values for the still picture for first frame. Therefore, it may not record with focus or brightness optimal for the whole panorama still picture when focus or brightness changes drastically during the recording. ≥...

  • Page 68: Recording Functions Of Menus

    Advanced (Recording) Recording functions of menus ≥ Set to Recording mode. (l 30) ≥ Select the menu. (l 51) # desired setting [MENU]: RECORDING MENU 1 [REC MODE] You can switch between motion picture recording and audio recording, and switch the image quality of the motion picture to record. # [REC MODE] # desired setting [MENU]: Records with 1920k1080 pixels.

  • Page 69: Intelligent Auto

    [PICTURE SIZE] The higher the number of pixels, the higher the clarity of the picture when printing. # [PICTURE SIZE] # desired setting [MENU]: Picture size Aspect ratio 4352k3264 3744k2808 2560k1920 2048k1536 640k480 4352k2448 16:9 3744 k 2106 16:9 2560k1440 16:9 1920k1080 16:9...
  • Page 70 (PORTRAIT): To make people stand out against the background (SPOT LIGHT): Improved quality when subject is brightly illuminated (SNOW): Improved image quality when shooting in snowy locations (BEACH): To make blue in the sea or sky vibrant (SUNSET): To make red in the sunrise or sunset vibrant (FIREWORKS): To capture the fireworks in the night sky beautifully (LANDSCAPE):...
  • Page 71 ≥ (LOW LIGHT) j The shutter speed is 1/15 or more. (Motion picture recording) ≥ (HDR (Backlight Comp.)) j When recording a moving subject, a ghost image may appear. j The field of view of the recorded still picture is smaller than the range displayed on the recording screen.
  • Page 72 Setting Limitations (NIGHT PORTRAIT) PANORAMA: Fixed to (OFF). COLOUR MODE: Fixed to FOCUS: Fixed to (HDR (Backlight BURST: Fixed to (OFF). Comp.)) PANORAMA: Fixed to (OFF). COLOUR MODE: Fixed to FOCUS: Fixed to FLASH: Fixed to E.I.S.(PICTURE): Fixed to METERING MODE: Fixed to ISO: Fixed to AUTO.

  • Page 73: Recording Menu 2

    RECORDING MENU 2 [FLASH] When the button is pressed, the flash is activated and the picture will be recorded. Use the built-in flash in order to record still pictures in dark places. # [FLASH] # desired setting [MENU]: ßA (AUTO): The unit determines the brightness of the subject and emits a flash if necessary.
  • Page 74 When Ø2 (2sec) is selected When you press the button or the recording start/stop button, the status indicator flashes red for approximately 2 seconds, then recording begins. On the LCD monitor, an indication of ( ) appears to notify you of the recording timing. When Ø10 (10sec) is selected When you press the button or the recording start/stop button, the...

  • Page 75: Focus Mode

    [FOCUS MODE] You can select the focusing method according to the position of the subject. # [FOCUS MODE] # desired setting [MENU]: (9-PT AUTOFOCUS): The unit determines the focus automatically from 9 focus points ( in the recording range. (SPOT FOCUS): The unit focuses on the subject over the focus mark ( ) displayed at the...
  • Page 76 [COLOUR MODE] You record in different colours and add effects such as skin smoothing. COLOUR MODE ] # desired setting [MENU]: (OFF): Cancel the setting. (HDR (Paint)) Records still pictures with picture effects. (SOFT SKIN): Records with skin softening effects. (MONOCHROME): Records in monochrome.

  • Page 77: Recording Menu 3

    RECORDING MENU 3 [ISO] Although, with the default settings, the ISO sensitivity is set automatically in accordance with the brightness of the subject, the ISO sensitivity can be fixed. # [ISO] # desired setting [MENU]: AUTO: ISO sensitivity is set automatically. Sets the sensitivity to ISO 50.

  • Page 78: Face Chaser

    [FACE CHASER] The detected face is displayed in the frame. # [FACE CHASER] # [ [MENU]: (ON)] ∫ About prioritised face framing The prioritised face frame is displayed in yellow. When the unit is set to Portrait mode in Intelligent Auto Mode, the unit will focus on the prioritised face frame and adjust the brightness accordingly.
  • Page 79 [E.I.S.(VIDEO)] Please refer to page 62. [E.I.S.(PICTURE)] Please refer to page 62. [SHORTCUTS] This setting registers the functions (shortcut functions) performed when the SET button is tipped up, down, left and right with the recording screen displayed. # [SHORTCUTS] [MENU]: Select the destination (up, down, left or right on the SET button) for the function using the SET button and press the SET button.
  • Page 80 Select the function to register using the SET button, and press the SET button. (AF LOCK): Locks the focus. (l 81) (AE LOCK): Locks the exposure. (l 81) (FOCUS): Sets the focus. (l 87) (Can be registered to only) (FLASH): Sets the flash operation.
  • Page 81 ∫ AF lock If you register AF lock as a shortcut function (l 79), you can record with the focus locked. ≥ Register the shortcut function. (l 79) Tilt the SET button in the direction to which you registered AF lock. will appear on the LCD monitor.

  • Page 82: Exposure Compensation

    ∫ Exposure compensation If you register exposure compensation as a shortcut function (l 79), you can record with altered brightness. ≥ Register the shortcut function (l 79) Tilt the SET button in the direction to which you registered the exposure compensation. ≥...

  • Page 83: Recording Menu 4

    RECORDING MENU 4 [PHOTO VIEW] Selects the desired field of view (photo view or video view) for the recording standby screen display. When photo view is selected, a frame to show the field of view during video recording appears. # [PHOTO VIEW] # desired setting [MENU]: (ON): Photo view (OFF): Video view...

  • Page 84: Auto Review

    [AUTO REVIEW] Sets the period for which the recorded image appears on the LCD monitor after the button is pressed. # [AUTO REVIEW] # desired setting [MENU]: (1sec): Still pictures are displayed for approximately 1 second after being recorded. (2sec): Still pictures are displayed for approximately 2 seconds after being recorded.

  • Page 85: Manual Recording

    Advanced (Recording) Manual recording White Balance Automatic White Balance function may not reproduce natural colours depending on the scenes or lighting conditions. If so, you can adjust the White Balance manually. Select the menu. # [WHITE BALANCE] [MENU]: Select the white balance using the SET button, and press the SET button.
  • Page 86 ∫ To set the White Balance manually Point the unit at a white subject that fills the screen. Select the (WHITE SET) and press the SET button. ≥ The LCD monitor display will go dark for a moment and then return to the recording menu.

  • Page 87: Setting The Focus And Recording

    Setting the focus and recording Set the focus in accordance with the distance to the subject. Select the menu. # [FOCUS] # desired setting [MENU]: Select the item to set using the SET button and press the SET button. (AUTO): The focus is set automatically.

  • Page 88: Advanced (Playback)

    Advanced (Playback) Playback Operations Playback using operation icon For details on the basic playback operations, refer to page 47. SET button/ Playback Playback Operating steps operation display Tilt the SET button to the right during playback for fast-forward During playback (tilt to the left for rewind Playback playback).
  • Page 89 SET button/ Playback Playback Operating steps operation display With the playback paused, tilt and hold the SET button to the right for slow motion playback until release Slow- (tilt and hold to the left for reverse motion slow motion playback). playback During Pause ≥...

  • Page 90: Creating Still Picture From Motion Picture

    Creating still picture from motion picture A single frame from the recorded motion picture can be saved as a still picture. The picture size of the still picture to be created will differ depending on the recording mode of the recorded motion picture. Pause at the location to be saved as a still picture during the playback.

  • Page 91: Cutting Out A Section Of A Panorama Still Picture

    Cutting out a section of a panorama still picture You can cut out and save a section of a panorama still picture you have recorded. Display the panorama still picture. Press the SET button to start scroll playback of the panorama still picture.

  • Page 92: Zooming In On A Still Picture During Playback (Playback Zoom)

    Zooming in on a still picture during playback (Playback zoom) You can zoom in on still pictures during playback. Move the zoom lever to side. ≥ You can zoom in to a maximum of 68k (6800%). (The maximum zoom magnification differs according to the size of the still picture.) ≥...

  • Page 93: Various Playback Functions

    Advanced (Playback) Various playback functions Changing the playback settings and playing back the slide show ≥ Set to Playback mode. (l 30) # [SLIDESHOW] # desired setting [MENU]: Select the item to set using the SET button and press the SET button. [MODE]: Select the type ([ALL]/[VIDEO]/[PICTURE]) of the file to play back.
  • Page 94 [SHORT]: approx. 1 second [NORMAL]: approx. 5 seconds [LONG]: approx. 15 seconds (On selecting [EFFECT SETUP]) Select the desired effect using the SET button and press the SET button. ≥ [EFFECT SETUP] is disabled for the playback of panorama still pictures.

  • Page 95: Displaying File Information

    Displaying file information You can display the information of files recorded with the unit. ≥ Set to Playback mode. (l 30) Using the SET button, select file for which to display information. Press and hold down the MENU button for 1 second or more.
  • Page 96 1 Recording mode  Recording format    2 Recording start time and date  3 File number  4 Protection setting  5 File size 6 Recording time 7 Recording media VQT4D23...

  • Page 97: Using The Playback Menu

    Advanced (Playback) Using the playback menu ≥ Set to Playback mode. (l 30) ≥ Select the menu. (l 51) # desired setting [MENU]: PLAYBACK MENU 1 [SLIDESHOW] Please refer to page 93. [PLAY VOLUME] Sets the playback volume for scene and audio files. Tilt the SET button right or left and press the SET button.
  • Page 98 Select the menu. # [ROTATE] # [RIGHT] or [LEFT] [MENU]: ≥ To rotate another still picture, tilt the SET button left and right to select a still picture, select [RIGHT] or [LEFT], and press the SET button. Press the MENU button to complete the settings. ≥...

  • Page 99: Playback Menu 2

    PLAYBACK MENU 2 [RED-EYE CORRECT.] Colour-corrects eyes which appear red in still pictures (red-eye phenomenon). When [SAVE AS NEW] is set, the still picture is saved with a new image number. Select the still picture to undergo red-eye correction using the thumbnail screen.
  • Page 100 Select the menu. # [EDIT VIDEO] # [ [MENU]: (SPLIT)] Specify the starting position for the scene. ≥ Play back to near the position where you wish the scene to start, then pause playback and specify the starting position precisely using frame-by-frame playback. The pause position will be the starting position of the scene.
  • Page 101 Select a saving method using the SET button and press the SET button. [SAVE AS NEW]: The split scene is saved as a new scene. [OVERWRITE]: The original scene is deleted and only the split scene is saved. [REVIEW CLIP]: The scene is played back in the split state.

  • Page 102: Upload Set

    [SAVE AS NEW]: The spliced scenes are saved as a new scene. [OVERWRITE]: The spliced scene is saved by writing over the file you initially selected. [REVIEW CLIP]: The scene resulting from the splicing is played back. ≥ Do not turn off the unit during motion picture editing process. If the unit is turned off, there is a risk that the edited files and original files will be lost.

  • Page 103: Deleting Scenes/Still Pictures/Audio Files

    Advanced (Playback) Deleting scenes/still pictures/ audio files When an SD card is inserted, the files and folder on the SD card are deleted. When not inserted, the files and folders in the built-in memory are deleted. Deleted scenes/still pictures/audio files cannot be restored, so perform appropriate confirmation of the contents before proceeding with deletion.

  • Page 104: Deleting Selected Files

    Using the SET button, select [DELETE SELECTED], [DELETE ALL] or [DELETE FOLDER] and press the SET button. ∫ Deleting selected files (When [DELETE SELECTED] is selected in Step 2) Select the file to delete using the SET button and press the SET button. will appear on the selected file.

  • Page 105: Deleting A Folder

    ∫ Deleting a folder (When [DELETE FOLDER] is selected in Step 2) Select the folder to delete using the SET button and press the SET button. ≥ A delete confirmation screen appears. Select [YES] using the SET button and press the SET button.

  • Page 106: Protecting A File

    Protecting a file Files can be protected so that they are not deleted by mistake. (Even if you protect some files, formatting the media will delete them.) ≥ Set to Playback mode. (l 30) Select the menu. # [PROTECT] [MENU]: * When you are using an Eye-Fi card which has already been set to selective forwarding with a PC, [TRANSFER/PROTECT] is displayed.

  • Page 107: Watching Video/Pictures On Your Tv

    Advanced (Playback) Watching Video/Pictures on your Confirm the terminals on your TV and use a cable compatible with the terminals. Image quality may vary with the connected terminals. A High quality 1 HDMI terminal 2 Video terminal ≥ Always use the supplied AV cable. ≥...
  • Page 108 Connect this unit to a TV. A HDMI mini cable (optional) ≥ Be sure to connect to the HDMI terminal. B AV cable (supplied) ≥ If your TV is not equipped with AV Input Sockets, the 21-pin Adaptor C (optional) is necessary. Consult your dealer. Picture quality 1 High definition images when connecting to HDMI terminal 2 Standard images when connecting to video terminal...
  • Page 109 ≥ Check that the plugs are inserted as far as they go. ≥ Always use a genuine Panasonic HDMI mini cable (RP-CDHM15, RP-CDHM30: optional). ≥ Do not use any other AV cables except the supplied one. Select the video input on the TV.
  • Page 110 Recording mode Connection Video output Playback SYSTEM Standing cable destination mode Recording (l 112) NTSC — LCD monitor — ≤ of the unit ≤ AV cable (supplied) NTSC ≤ — ≤ — NTSC LCD monitor — — ≤ of the unit HDMI mini cable NTSC...
  • Page 111 ≥ If a wide-screen TV is connected, adjust the aspect setting on the TV. (Refer to the operating instructions of the TV for details.) Refer to the following support site for information about Panasonic TVs with an SD card slot for playing back your pictures. http://panasonic.net/ ≥...

  • Page 112: Connecting With A Hdmi Mini Cable

    Connecting with a HDMI mini cable Select the desired method of HDMI output. # [TV OUTPUT] # [HDMI] # [MENU]: [AUTO]/[720p]/[1080i]/[480p] ≥ [AUTO] determines the output resolution automatically based on information from the connected TV. If the images are not output on the TV when the setting is [AUTO], switch to the method [720p], [1080i] or [480p] which enables the images to be displayed on your TV.

  • Page 113: Playback Using Viera Link

    (optional) for automatic linked operations. (Not all operations are possible.) ≥ VIERA Link is a unique Panasonic function built on a HDMI control function using the standard HDMI CEC (Consumer Electronics Control) specification. Linked operations with HDMI CEC compatible devices made by other companies are not guaranteed.
  • Page 114 ≥ VIERA Link must be activated on the connected TV. (Read the operating instructions of the TV for how to set etc.) ≥ Always use a genuine Panasonic HDMI mini cable (RP-CDHM15, RP-CDHM30: optional). Operate with the remote control for the TV.
  • Page 115 VIERA Link, read the operating instructions for the devices. ≥ Available linked operations between this unit and a Panasonic TV is different depending on the types of Panasonic TVs even if they are compatible with VIERA Link. Refer to the operating instructions of the TV for the operations that support on the TV.

  • Page 116: Copy/Dubbing

    Copy/Dubbing Copying from Built-in Memory to SD card Files recorded using the unit can be copied from the built-in memory to an SD card inserted into the unit. Copying Set to Playback mode. (l 30) ≥ Be sure to use a sufficiently charged battery or the AC adaptor. Select the menu.

  • Page 117: Dubbing Images Onto Other Video Devices

    If you intend to delete the original file when the copying has finished, always play back the copied file before deletion to confirm that the original has been copied normally. ≥ You cannot change the order of the files that are to be copied. Copy/Dubbing Dubbing images onto other video devices...
  • Page 118 Change the video input on the video device and TV that this unit is connected to.  ≥ The channel set will differ depending on the terminal to which the unit is connected. ≥ See the operating instructions of the video ...
  • Page 119 ≥ If the date and time display and function indication are not wanted, cancel them before dubbing. (l 54) If the dubbed images are played back on a wide-screen TV, the images may be stretched vertically. In this case, refer to the operating instruction of the device you are connecting to or read the operating instructions of the wide-screen TV and set the aspect ratio to 16:9.

  • Page 120: With A Pc

    With a PC What you can do with a PC HD Writer VE 2.0 You can copy the motion/still picture data to the HDD of PCs or write to media like Blu-ray discs, DVD discs or SD cards using HD Writer VE 2.0, the software installed in the supplied CD-ROM.

  • Page 121: Important Notice

    Important Notice ≥ When using an SDXC Memory Card, check the following support site. http://panasonic.net/avc/sdcard/information/SDXC.html ≥ When inserting a disc containing recorded motion pictures into other devices, a message prompting you to format the disc may be displayed. Do not format the disc, since deleted data cannot be restored later.
  • Page 122 ≥ Data cannot be written to the unit from a PC. ≥ Motion pictures that have been recorded on another device cannot be written to the software supplied with this unit. ≥ Audio files cannot be handled. ≥ When motion picture data is written to and read from the SD card, correct operation cannot be guaranteed with software other than that supplied with the unit.

  • Page 123: End User License Agreement

    Licensee may not reverse engineer, decompile, or disassemble the Software, except to the extent either of them is permitted under law or regulation of the country where Licensee resides. Panasonic, or its distributors will not be responsible for any defects in the Software or damage to Licensee caused by Licensee’s reverse engineering,...
  • Page 124 Further, Panasonic does not warrant that the operation of the Software will be uninterrupted or error free. Panasonic or any of its distributors will not be liable for any damage suffered by Licensee arising from or in connection with Licensee’s use of the Software.

  • Page 125: Operating Environment

    With a PC Operating environment ≥ Even if the system requirements mentioned in these operating instructions are fulfilled, some PCs cannot be used. ≥ A CD-ROM drive is necessary to install the supplied software applications. (A compatible Blu-ray disc/DVD writer drive and media are necessary for writing to a Blu-ray disc/DVD.) ≥...
  • Page 126 Windows 7: 1 GB or more (32 bit)/2 GB or more (64 bit) Windows Vista: 1 GB or more Windows XP: 512 MB or more (1 GB or more recommended) Display High Colour (16 bit) or more (32 bit or more recommended) Desktop resolution of 1024k768 pixels or more (1920k1080 pixels or more recommended)
  • Page 127 ≥ If using Windows XP, only an administrative account user can use this software. If using Windows Vista/Windows 7, only administrative and standard account users can use this software. (An administrative account user should install and uninstall this software.) ∫ To use the HD Writer VE 2.0 You will need a high performance PC depending on the functions to be used.

  • Page 128: Mass Storage

    ∫ Operating environment for the card reader function (mass storage) IBM PC/AT compatible PC Windows 7 (32 bit/64 bit) or SP1 Windows Vista (32 bit) (SP2) Windows XP (32 bit) (SP3) Windows 7/Windows Vista: 1 GHz or higher 32-bit (k86) or 64-bit (k64) processor (including compatible CPU) Windows XP: Intel Pentium 450 MHz or higher or...

  • Page 129: Installation

    ≥ If Windows 7 is in use, or the [AutoPlay] screen is not displayed automatically, select [Start] # [Computer] (or double-click on [Computer] on the desktop), and then double-click [Panasonic]. Click [Yes]. ≥ Operate following the instruction on the screen.

  • Page 130: Connecting To A Pc

    The unit works as a web camera. (Web camera mode) (l 134) ∫ To disconnect USB cable safely Select the icon in task tray displayed on the PC, and then click [Eject Panasonic Camcorder]. ≥ Depending on your PC’s settings, this icon may not be displayed. VQT4D23...

  • Page 131: Use As A Card Reader

    SDHC Memory Card or SDXC Memory Card. ≥ When using an SDXC Memory Card, check the following support site. http://panasonic.net/avc/sdcard/information/SDXC.html Use as a card reader Connect the unit to a PC and set the unit to card reader mode.

  • Page 132: About The Pc Display

    ∫ About the PC display When the unit is connected to a PC, it is recognised as an external drive. ≥ Removable disk (Example: ) is displayed in [Computer]. We recommend using HD Writer VE 2.0 to copy motion picture data. Using Windows Explorer or other programmes on the PC to copy, move or rename files and folders recorded with this unit will result in them being unusable with HD Writer VE 2.0.
  • Page 133 ≥ Always use this unit to format SD cards. ∫ Charging the battery by connecting it to different devices If you turn off the unit and connect it to a PC, Panasonic Blu-ray disc recorder or Panasonic DVD recorder using a USB cable, the battery will charge.

  • Page 134: Using The Unit As A Web Camera

    Using the unit as a web camera When the unit is connected to a PC that is connected to the Internet, the unit can be used as a web camera. IBM PC/AT compatible PC Necessary Windows Live Messenger iChat software Windows 7 (32 bit/64 bit) or SP1 Mac OS X Windows Vista (32 bit) (SP2)
  • Page 135 Connect the unit to a PC and set the unit to web camera mode. (l 130) ≥ The LCD monitor will turn off. ≥ If you touch anything other than [WEB CAMERA], remove and then reconnect the USB cable. (On the PC) Start Windows Live Messenger or iChat.

  • Page 136: Starting Hd Writer Ve 2.0

    The software cannot be used with the user name for a guest account. (On the PC) Select [Start] # [All Programs] # [Panasonic] # [HD Writer VE 2.0] # [HD Writer VE]. ≥ For details on how to use the software applications, read the PDF operating instructions of the software.

  • Page 137: If Using Mac

    With a PC If using Mac ≥ HD Writer VE 2.0 is not available for Mac. ≥ iMovie’11 supported. For details about iMovie’11, please contact Apple Inc. ∫ Operating environment Mac OS X 10.7.2 Intel Core 2 Duo or better 2 GB or more Interface USB port...

  • Page 138: To Disconnect Usb Cable Safely

    Using a drag-and-drop operation, move the pictures you want to acquire or the folder storing those pictures to any different folder on the PC. ∫ To disconnect USB cable safely Drag [CAM_SD] or [CAM_MEM] disk icon to the [Trash], and then disconnect the USB cable.

  • Page 139: Uploading Files To A Web Service

    With a PC Uploading files to a web service When you connect the unit to a PC that is connected to the Internet, you can easily upload files recorded on the SD card to YouTube or Facebook. ≥ Insert the SD card. ≥...
  • Page 140 Connect the unit to the PC using the USB cable.  A USB cable (supplied) ≥ Insert the plugs as far as they will go. ≥ Do not use any other USB cables except the supplied one. (Operation is not guaranteed with any other USB cables.) ≥...

  • Page 141: Using The Eye-Fi ™ Transfer Feature

    With a PC ™ Using the Eye-Fi transfer feature By using the Eye-Fi card, you can save files recorded on a card to a PC or file-sharing site via a wireless network. ≥ The functions of the Eye-Fi card (including wireless transmission) are not guaranteed to work on this product.
  • Page 142 ∫ Using direct mode The files can be transferred directly from the Eye-Fi card to a smartphone or tablet without going through the access point when necessary setting is performed in a PC in advance. ≥ Install the software supplied with the Eye-Fi card on your PC, and configure the direct mode settings.
  • Page 143 ≥ When the write protect switch on the Eye-Fi card is on the LOCK side, [PROTECT] is displayed and selected transfer setting is disabled. Please unlock the write protect switch. ≥ The protect setting is also applied to the files for which [TRANSFER/ PROTECT] is set.

  • Page 144: Indications

    Others Indications ∫ Recording indications    3000 3000 3000 000:00:15 000:00:15 000:00:15 ISO400 ISO400 ISO400 F3.5 F3.5 F3.5 1/30 1/30 1/30 (White) Still picture recording icon (Red) Recording still picture During burst recording (l 63) Number of recording pixels for still pictures (l 69, 90) In Playback Mode, the picture size is not displayed for still pictures recorded with other products that have different picture sizes from the sizes shown above.
  • Page 145 Scene Mode (l 69) Colour mode (l 76) ISO50/ISO100/ISO200/ISO400/ISO800/ISO1600 ISO sensitivity (l 77) Intelligent Auto Mode (l 44) F3.5 Iris value (l 39) 1/30 Shutter Speed (l 39) Zoom/Double range zoom (l 60) Eye-Fi settings (l 143) (Grey) Audio recording icon (Red) Recording audio Focus mark (l 75)
  • Page 146 Recording Mode (l 68) (White) Motion picture recording icon (Red) Recording motion picture μ (Red) Recording motion picture (l 36) Recording audio (l 43) 000:00:15 Recording time elapsed (l 36, 43) Approximate remaining recordable time (l 36, 43) AF Lock (l 81) AE Lock (l 81) Ø10/Ø2 Self-timer Recording (l 73)
  • Page 147 Files for which selected transfer/protect is set (l 106, 142) Face detection (l 78) Panorama still picture (l 65) Eye-Fi transfer status (l 141) Files exceeding 4 GB in size (l 49) Remaining battery power (l 22) Files which cannot be played back ∫...

  • Page 148: Messages

    Others Messages Major confirmation/error messages to be indicated on the screen in text. CHECK CARD. This card is not compatible or it cannot be recognised by the unit. If this indication appears despite motion pictures, still pictures and audio being recorded on the SD card, the SD card may be in an unstable state.
  • Page 149 White round spots ≥ If you take a like soap bubbles picture with the appear on the flash in a dark recorded picture. place or indoors, white round spots may appear on the picture caused by the flash reflecting of particles of dust in the air.
  • Page 150 Power Problem Check points This unit is turned ≥ To prevent battery consumption due to off automatically. forgetting to turn the unit off etc., the economy mode function works to send the unit into sleep mode if the unit has been on for approximately 5 minutes (default setting) without an operation being performed.
  • Page 151 Power Problem Check points “ERROR ≥ Check each of the following items. OCCURRED. j Remove the SD card from the device and PLEASE TURN reinsert. UNIT OFF, THEN j Remove the battery and then put it in TURN ON AGAIN.” again.
  • Page 152 Recording Problem Check points The high ≥ The battery temperature or unit internal temperature temperature (excluding battery) rises. Wait warning icon for the temperature to drop before using the is displayed and unit again. recording is not possible. ≥ The field of view of the image displayed on When recording still pictures, the the LCD monitor differs for motion picture...
  • Page 153 Recording Problem Check points Colour balance of ≥ In a place with multiple light sources, such images is strange as a gymnasium or a hall, set the White when recording in Balance setting to (INDOOR 2). If you a place such as a cannot record clearly with the gymnasium.
  • Page 154 Playback Problem Check points Editing such as ≥ Release the protect setting. (When using rotation of the files the Eye-Fi card, the protect setting is is not possible. simultaneously set for files for which selected transfer is set.) (l 106, 142) During playback, ≥...
  • Page 155 With other products Problem Check points VIERA Link does (Setting on this unit) not work. ≥ Connect with a HDMI mini cable (optional). (l 113) ≥ Set [VIERA Link] to [ON]. (l 113) ≥ Turn the unit off and then back on again. (Setting on other devices) ≥...
  • Page 156 With a PC Problem Check points When the USB ≥ To disconnect the USB cable safely, double- cable is click the icon in the task tray and follow disconnected, an the instructions on the screen. error message will appear on the PC. Cannot see the PDF ≥...

  • Page 157: Cautions For Use

    Others Cautions for use About this unit The unit and the SD card become warm during use. This is not a malfunction. Keep this unit as far away as possible from electromagnetic equipment (such as microwave ovens, TVs, video games etc.). ≥...
  • Page 158 When you use the unit in a sandy or dusty place such as a beach, do not let sand or fine dust get into the body and terminals of the unit. Also, keep the unit away from sea water. ≥ Sand or dust may damage the unit. (Care should be taken when inserting and removing a card.) ≥...
  • Page 159 [FORMAT] # [DELETE DATA] from the option menu 2 and follow the on- screen instructions. ≥ Please look after the data in your built-in memory carefully. Panasonic will not be held responsible in the unlikely case that private data is divulged.

  • Page 160: About The Battery

    About the battery The battery used in this unit is a rechargeable lithium-ion battery. It is susceptible to humidity and temperature and the effect increases the more the temperature rises or falls. In cold areas, the full charge indication may not appear or the low battery indication may appear about 5 minutes after starting use.

  • Page 161: About The Ac Adaptor

    If you drop the battery accidentally, check to see if the terminals are damaged. ≥ Inserting a battery with damaged terminals can damage the unit. Do not throw old battery into fire. ≥ Heating a battery or throwing it into a fire may result in an explosion. If the operating time is very short even after the battery has been recharged, the battery has worn out.
  • Page 162 About status indicator during charging When the status indicator is flashing at a particularly fast or slow rate, the following should be considered. Flashing with approx. 4 second period (off for approx. 2 seconds, on for approx. 2 seconds): ≥ When the battery is over discharged or the temperature of the battery is too high or low.

  • Page 163: Lcd Monitor

    About the SD card When disposing of or giving away the SD card, note that: ≥ Formatting and deletion of this unit or computer only changes the file management information and does not completely delete the data in the SD card. ≥...

  • Page 164: About Condensation

    About condensation When condensation forms on the unit, the lens will cloud up and the unit may not work properly. Make every effort to ensure that condensation does not form. If it does form, take the actions described below. Causes of condensation Condensation takes place when the ambient temperature or humidity is changed as follows.

  • Page 165: About Copyright

    ≥ HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. ™ ≥ HDAVI Control is a trademark of Panasonic Corporation. ® ® ® ≥ Microsoft...
  • Page 166 This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non- commercial activity and/or was obtained from a video provider licensed to provide AVC Video.

  • Page 167: Recording Modes/Approximate Recordable Time

    Others Recording modes/approximate recordable time ≥ SD cards are only mentioned with their main memory size. The stated times are the approximate recordable times for continuous recording.   Recording mode Picture size 1920k1080 1920k1080 1280k720 1280k720 640k480 4 GB 20 min 30 min 30 min...
  • Page 168 Recording mode Picture size 960k540 VOICE RECORD 4 GB 20 min 31 h SD card 16 GB 1 h 20 min 128 h 64 GB 5 h 20 min 512 h Built-in Approx. 10 s 30 min memory 64 MB *3 Please use when playing back/editing on a Mac.

  • Page 169: Approximate Number Of Recordable Pictures

    Others Approximate number of recordable pictures ≥ SD cards are only mentioned with their main memory size. The stated number is the approximate number of recordable pictures. Picture size 4352k3264 3744k2808 2560k1920 Aspect ratio 4 GB 1400 SD card 16 GB 2100 2900 6000...
  • Page 170 Picture size 4352k2448 3744k2106 2560k1440 1920k1080 Aspect ratio 16:9 16:9 16:9 16:9 4 GB 1900 3400 16 GB 2800 3800 7500 13500 card 64 GB 11000 15000 31000 52000 Built-in Approx. memory 64 MB (360e PANORAMA) (180e PANORAMA) Picture size 14400k720 1280k14400 7200k720 1280k7200 Aspect ratio 4 GB...

  • Page 171: Optional Accessories

    Others Optional accessories Product numbers correct as of Dec. 2011. These may be subject to change. Some optional accessories may not be available in some countries. Battery pack (lithium/VW-VBX070) HDMI mini cable (RP-CDHM15, RP-CDHM30) SD/SDHC/SDXC Memory Card (Refer to page 23) VQT4D23...

  • Page 172: Specifications

    Others Specifications Dual Camera Information for your safety Power source: DC 5.0 V (When using AC adaptor) DC 3.7 V (When using battery) Power consumption: 4.0 W Signal system: 1080/60i, 1080/30p, 720/60p, 720/30p, 540/30p, 480/30p Recording format: MPEG-4 AVC file format standard (.MP4) Motion picture compression: MPEG-4 AVC/H.264, iFrame Audio compression:...
  • Page 173 Recording media: SD Memory Card (FAT12 and FAT16 system compliant) SDHC Memory Card (FAT32 system compliant) SDXC Memory Card (exFAT system compliant) Refer to page 23 for details on SD cards usable in this unit. Built-in memory; Approx. 64 MB Image sensor: 1/2.33 type (1/2.33z) 1MOS image sensor Total;...
  • Page 174 Speaker: 1 round speaker, dynamic type White balance adjustment: Auto tracking white balance system Standard illumination: 1,400 lx Minimum required illumination: Approx. 4 lx (1/15 with Low Light mode in the Scene Mode) Approx. 12 lx (Scene mode off 1/30) USB/AV connector video output level: 1.0 Vp-p, 75 h HDMI mini connector video output level:...
  • Page 175 Operating temperature: 0 oC to 35 oC Operating humidity: 10%RH to 80%RH Battery operation time: See page 21 AC adaptor Information for your safety Power source: AC 100 V to 240 V, 50/60 Hz Power consumption: DC output: DC 5.0 V, 1.0 A Dimensions: 49.7 mm (W)k49.0 mm (H)k80.9 mm (D) Mass:...

  • Page 176: Index

    Index ∫ A AC adaptor ........19, 161 Alert sound .
  • Page 177 ∫ F File No. continued ........57 Flash .
  • Page 178 ∫ R Recordable time ........21, 167 Recording folder .
  • Page 179 ∫ W Web camera ........134 Web upload .
  • Page 180 Pursuant to at the directive 2004/108/EC, article 9(2) Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany Panasonic Corporation VQT4D23 Web site: http://panasonic.net 1AG6P1P6469--(S) © Panasonic Corporation 2011 F0112RN0...

Table of Contents
