Operating Instructions ...... Microwave Ovens ...............For Commercial Use
(Original instructions)
Bedienungsanleitung ........Mikrowellengeräte ..... Für Gewerbliche Nutzung
(Übersetzung der ursprünglichen Anweisungen)
Mode d'emploi ................. Fours à Micro-ondes ... Pour Usage Professionnel
(Traduction des instructions d'origine)
Gebruiksaanwijzing ............Magnetronovens ....Voor Professioneel Gebruik
(Vertaling van de oorspronkelijke instructies)
Manual de Instrucciones...Hornos Microondas ...........Para Uso Commercial
(Traducción de las instrucciones originales)
Istruzioni .............................Forni a Microonde ...........Per Uso Professionale
(Traduzione delle istruzioni originali)
Bruksanvisning ................... Mikrovågsugnar ...För yrkesmässig användning
(Översättning av originalinstruktionerna)
Brugsanvisning .................. Mikrobølgeovne .............. Til professionelt brug
(Oversættelse af originale instruktioner)
Bruksanvisning ................... Mikrobølgeovner ...For profesjonell bruk/storkjøkken
(Oversettelse av de originale instruksjonene)
Käyttöohjeet .........................Mikroaaltouunit ..................... Ammattikäyttöön
(Alkuperäisten ohjeiden käännös)

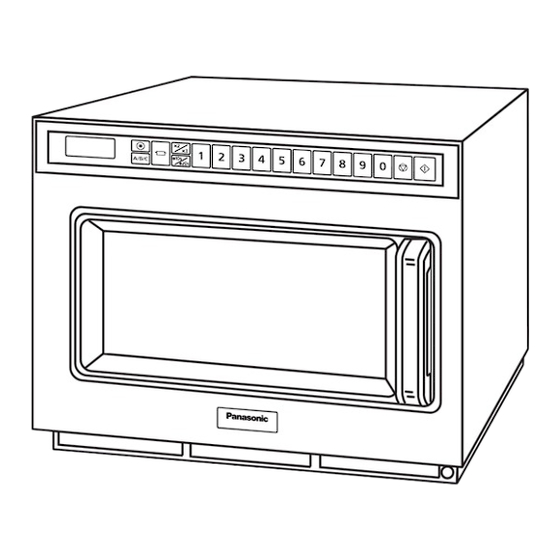

NE-2153-2/NE-1653
Please read these instructions completely before operating this oven and keep for future reference.
Bitte lesen Sie diese Anweisungen sorgfältig durch, bevor Sie diesen Herd bedienen und bewahren Sie sie zum Nachschlagen auf.
Veuillez lire ces instructions dans leur intégralité avant d'utiliser le four et conservez-les pour future référence.
Lees deze handleiding eerst volledig door voordat u de oven in gebruik neemt en bewaar deze goed.
Lea las instrucciones detenidamente antes de empezar a usar el horno y conserve este manual para futuras consultas.
Leggere a fondo queste istruzioni prima di utilizzare il forno e conservarle per riferimento futuro.
Läs noggrant igenom denna bruksanvisning i sin helhet innan du använder denna ugn och behåll den som en framtida referens.
Læs disse instruktioner omhyggeligt, før du betjener denne ovn, og gem instruktionerne til fremtidig brug.
Les nøye igjennom disse bruksanvisningen før du tar i bruk ovnen, og ta vare på den for fremtidig referanse.
Lue nämä ohjeet kokonaan ennen uunin käyttöä ja säilytä ne myöhempää tarvetta varten.
NE-2153-2/NE-1653
NE-2143-2/NE-1843/NE-1643
NE-2143-2/NE-1843/NE-1643
Advertisement
Table of Contents
Related Manuals for Panasonic NE-1643
Summary of Contents for Panasonic NE-1643
- Page 1 (Oversettelse av de originale instruksjonene) Käyttöohjeet ......Mikroaaltouunit ..... Ammattikäyttöön (Alkuperäisten ohjeiden käännös) NE-2153-2/NE-1653 NE-2143-2/NE-1843/NE-1643 NE-2153-2/NE-1653 NE-2143-2/NE-1843/NE-1643 Please read these instructions completely before operating this oven and keep for future reference. Bitte lesen Sie diese Anweisungen sorgfältig durch, bevor Sie diesen Herd bedienen und bewahren Sie sie zum Nachschlagen auf.
-
Page 2: Table Of Contents
How to Operate NE-2143-2/NE-1843/NE-1643 ........13... -
Page 3: Important Safety Instructions
Important Safety Instructions INSTAllATION REMOVAl OF PROTECTIVE FIlM A protective film is used to prevent scratching of the outer case during transportation. Peel this film off before installation or use. ATTACH CAUTION lABEl. If a caution label is enclosed with your oven, please attach it to the top of the appliance before using. - Page 4 Important Safety Instructions wARNING 1. To reduce the risk of burns, electric shock, fire, injury to persons or excessive microwave energy: Read all instructions before using microwave oven. 2. If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
- Page 5 Important Safety Instructions CAUTION 1. In order to maintain the high quality of the magnetron tubes and other components, you are requested not to turn the oven on with no food inside. 2. High voltages are present inside the cabinet. Repairs and adjustments should be done only by qualified service personnel.
- Page 6 Important Safety Instructions 12. Do not store flammable materials next to, on top of, or in the oven. It could be a fire hazard. 13. Do NOT use this oven to heat chemicals or other non-food products. Do NOT clean this oven with any product that is labelled as containing corrosive chemicals.
- Page 7 Important Safety Instructions 19. When reheating babies bottles always remove top and teat. Liquid at the top of the bottle will be much hotter than at the bottom and must be shaken thoroughly before checking the temperature. The lid must also be removed from babies food jars, the contents must also be stirred or shaken before the temperature is checked.
- Page 8 Important Safety Instructions 27. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 9: Care Of Your Microwave Oven
Care of Your Microwave Oven Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. 1. Remove the plug from the electrical socket before cleaning. 2. - Page 10 Care of Your Microwave Oven ClEANING AIR FIlTER Clean the Air Filter regularly according to the following instructions. The oven may have problems when the Air Filter becomes clogged with dust(*). 1. Remove the Air Filter from the front bottom skirt by turning the right screw to the left.
-
Page 11: Before Use
Before Use COOKwARE OTHER HElPFUl INSTRUCTIONS 1. Before using the oven always check that containers are suitable. DO NOT MICROWAVE sealed FOR BEST RESUlTS containers as they may explode. 1. When determining time for particular foods, always N.B. Always check manufacturer’s instructions as some food manufacturers are producing food in figure minimum time and check occasionally during containers that do not require piercing. -
Page 12: Outline Diagram Of Ne-2143-2/Ne-1843/Ne-1643
Outline Diagram of NE-2143-2/NE-1843/NE-1643 ❸ ❹ ❺ ❶ ❷ ❽ ❾ ❻ ❼ 1 Digital Display window (see below) Air Filter 2 Power level Indicator Display Splatter Shield (top of inner cavity) 3 Power level Selector Buttons Middle Shelf (NE-2143-2 only) 4 Timer Dial ... -
Page 13: How To Operate Ne-2143-2/Ne-1843/Ne-1643
How to Operate NE-2143-2/NE-1843/NE-1643 Example: To cook food at MEDIUM power for 4 minutes 1. Make sure the oven is plugged into a properly earthed electrical outlet. 2. Open the door. The oven lamp will turn on. “0” will appear in the Digital Display Window and Power Level Indicator will appear. -
Page 14: Outline Diagram Of Ne-2153-2/Ne-1653
Outline Diagram of NE-2153-2/NE-1653 ❶ ❷ ❸ ❹ ❺❻ ❼ ❽ ❾ 1 Digital Display window (see below) Start Pad 2 Prog (Program) Pad Door Handle 3 Shift (A/B/C) Pad Air Filter 4 Power level Selector Pad ... -
Page 15: How To Operate Ne-2153-2/Ne-1653
How to Operate NE-2153-2/NE-1653 POwER lEVEl SElECTOR PAD Each time the pad is pressed, the Power Level switches as the illustration below. again. P10: 1600 W* (NE-1653) HIGH 2100 W* (NE-2153) DEFROST 340 W MEDIUM HIGH HEAT FROM PU1: TOP DOwN PU2: HEAT FROM PL1:... -
Page 16: Manual 2 To 5 Stage Heating
How to Operate NE-2153-2/NE-1653 8. Open the door and take the food out. The oven lamp will turn on. The digital display will show the originally selected time and heating stage number. 9. Close the door. The oven lamp will turn off and 1 minute later the Digital Display Window will go blank. -
Page 17: Programming Memory Pads For Single Stage Heating
How to Operate NE-2153-2/NE-1653 7. Open the door and take the food out. The oven lamp will turn on. The digital display will show the originally selected time and heating stage number. 8. Close the door. The oven lamp will turn off and 1 minute later the Digital Display Window will go blank. -
Page 18: Programming Memory Pads For 2 To 5 Stage Heating
How to Operate NE-2153-2/NE-1653 D. Programming Memory Pads for 2 to 5 Stage Heating 1. Complete Steps 1–6 above. 2. Select Power Level for the second stage by touching Power Level Selector Pad. The selected Power Level will be displayed in the window and the second stage heating indicator “2”... -
Page 19: Programming Double/Triple Quantity Pad
How to Operate NE-2153-2/NE-1653 6. When all the time expires, the end of the cycle beep tone will sound. All heating will stop. The oven lamp will turn off. The time display will blink “0000” until the door is opened. 1 minute later, cooling fan will stop. 7. -
Page 20: Memory Pad Heating For Double/Triple Quantity Heating
How to Operate NE-2153-2/NE-1653 G. Memory Pad Heating for Double/Triple Quantity Heating [Make sure the unit is properly programmed. (See page 19.)] 1. Follow Steps 1–3 in “E. Memory Pad Heating”. 2. Touch Double/Triple Quantity Pad once. Note: When you want triple quantity heating, touch Double/Triple Quantity Pad twice. 3. -
Page 21: To Read The Cycle Counter
How to Operate NE-2153-2/NE-1653 6. Open the door and take the food out. The oven lamp will turn on. 7. Close the door. The oven lamp will turn off and 1 minute later the Digital Display Window will go blank. Note: While heating, one touch on Stop/Reset Pad or opening the door will cancel the heating program. -
Page 22: To Read Program List
How to Operate NE-2153-2/NE-1653 2. Open the door and leave it open. The oven lamp will turn on. “0” will appear in the display. While touching Start Pad, touch Prog Pad until the Digital Display Window show “PROG” and “P” (for more than 2 seconds). -
Page 23: To Select Beep Tone Options
How to Operate NE-2153-2/NE-1653 M. To Select Beep Tone Options (The oven can not be programmed until the program lock feature is deactivated.) The beep tone can be set for loudness—(4 Levels), length of tone—(3 Options), pitch of tone—(3 Options) and pitch of filter cleaning alarm—(3 Options). -
Page 24: Procedure To Program The Air Filter
How to Operate NE-2153-2/NE-1653 To Select Pitch of Tone There are 3 options for the pitch of tone at the end of the heating cycle. : Low, : Normal (Factory Setting), : High 8. Within 3 seconds after touching Prog Pad at Step 7, touch Start Pad. A. -
Page 25: Oven Lamp
How to Operate NE-2153-2/NE-1653 5. Touch Prog Pad. This completes the procedure to program time between cleaning of the Air Filter. 6. After 3 seconds, “0” will appear in the Digital Display Window. The oven is now ready for use. Note: When “FILt”... - Page 26 How to Operate NE-2153-2/NE-1653 Oven lamp blinks at the end of heating cycle To turn the blinking Oven lamp ON at the end of heating cycle 5. Within 3 seconds after touching Prog Pad at Step 4, touch Start Pad. “PROG”...
-
Page 27: Before Cooking
Before Cooking MICROwAVE BASICS GENERAl GUIDElINES FOR HEATING IN A MICROwAVE OVEN Fundamental principles determine the success of microwave food preparation. For specific time, see each food category for appropriate heating techniques, plus necessary pre- They include: preparation of foods. 1. -
Page 28: Cooking Instructions - Heating And Defrosting Time Charts
Always check for the correct core temperature with a temperature probe to comply with current Government Food Hygiene Regulations. Approx. Time Power Function Food weight NE-2153-2 NE-1653 level NE-1843 NE-2143-2 NE-1643 Defrosting 500 g Fish Fillets 8 min 8 min 8 min DEFROST 500 g Minced Beef 5 min 5 min... -
Page 29: Self Diagnostics Failure Code Explanation
Installation 2. For stacking installation, you must use the 1. Stack the units and remove five screws a as shown Panasonic Joint Plate A1134-3280 (Available via in Fig. 1. service route). 2. Loosen the screw b. 3. Combination of the unit for stacking is limited within 3. -
Page 30: Technical Specifications
Technical Specifications NE-1643 NE-1843 NE-2143-2 NE-1653 NE-2153-2 Power Source 50 Hz, single phase 230 V 50 Hz, single phase 230 V Required Power 11.7 A 2590 W 12.7 A 2830 W 14.3 A 3160 W 11.7 A 2590 W 14.3 A 3160 W... - Page 31 Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.
- Page 32 Panasonic Corporation Web Site: http://panasonic.net A00033F90EU F0314-0 © Panasonic Corporation 2014 Printed in Japan...
