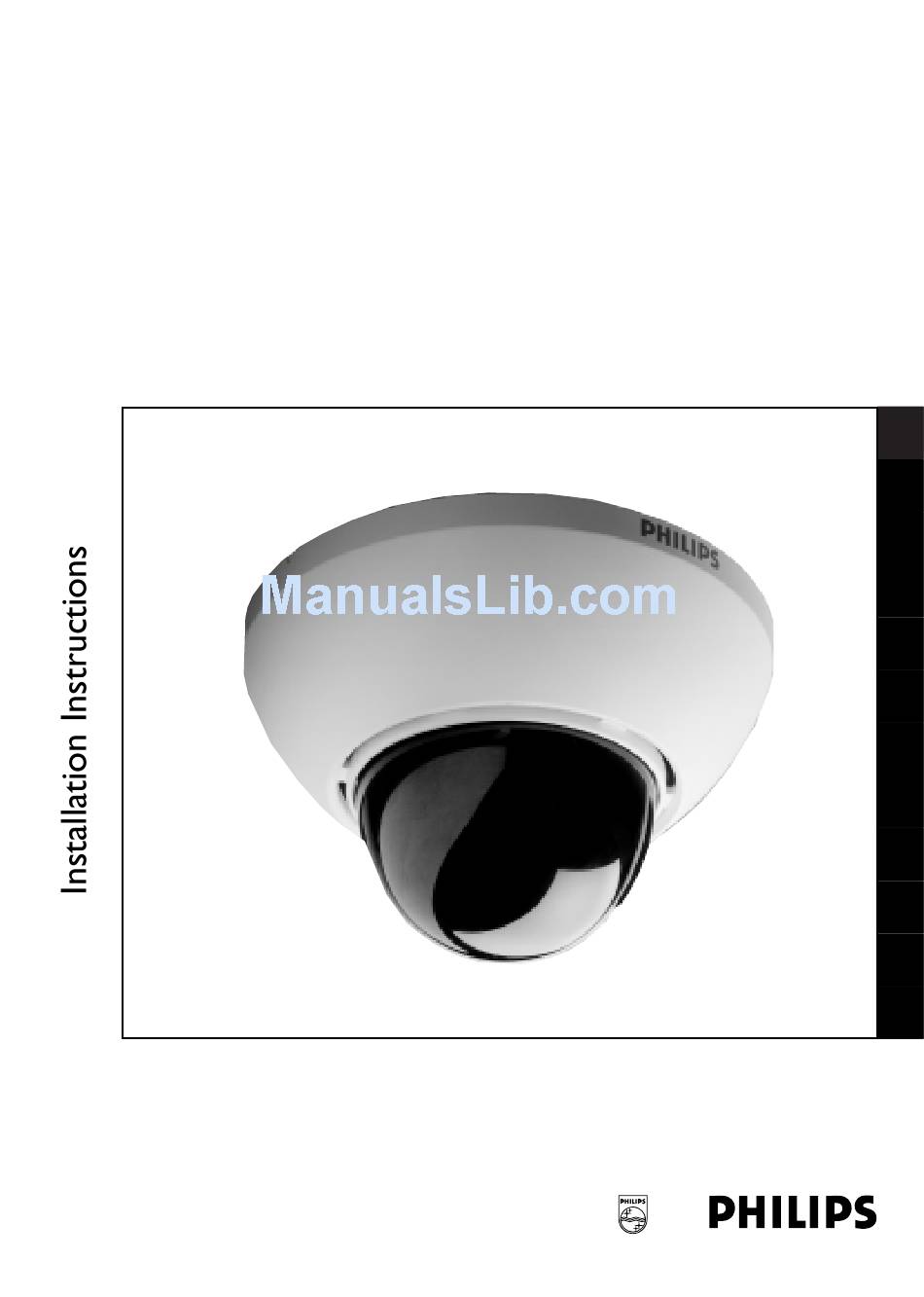

- Page 1 VCM7D130/00T & VC7D1305T REO Series Color Dome Cameras Philips Communication Security & Imaging...
- Page 2 Page English ........................3 French ........................9 German........................14 Spanish ........................19 Dutch ........................24 Italian ........................29 Portuguese......................34 Danish ........................39 Finnish ........................44 Norwegian ......................49 Swedish........................54 Greek ........................59...
-
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 4 Servicing: Do not attempt to service this product yourself as removing covers expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. Damage requiring service: Unplug this product from the wall outlet and refer servicing to qualified service personnel. Replacement Parts: When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part.
- Page 5 Push in Mounting Cable entry Slots 120º Horz; 120º Vertical; 360º Rotation Fig. 1 Case a: Cables’ route is above the ceiling Case a: Remove the mounting plate by pushing the side tabs. Drill two holes (≥ 3mm [0.19-inch]) for camera mount; and one (1) go-through hole (≥...
- Page 6 Case a (ceiling mount): Make sure the lens is pointing away from the Philips logo, before rotating it into the preferred direction. Case b (wall mount): Make sure the lens is pointing at the Philips logo before rotating it into the preferred direction.
-
Page 7: Tips For Maintenance
NOT use cleaning fluids based on alcohol, methylated spirit, ammonia, etc.. Never touch the glass of the Dome camera lens to prevent its delicate coating from damaging. Avoid direct contact with water. 5. SPECIFICATIONS VCM7D130/00T Integrated lens VC7D1305T NTSC Integrated lens... - Page 8 Electro Magnetic Compatibility (EMC) This equipment complies with the European EMC directive used standards: EN50130-4, EN55022 USA standard: FCC part 15, class B Australia AS/NZS 3548 Safety according to European standard EN60065 ; USA UL6500 Environmental conditions: Operating temperature -10°C +45°C Non operating temperature -25°C +70°C Relative humidity Non-condense 0% to 95% RH...
- Page 9 3122 165 22073 01-43 © 2001 Philips Electronics N.V. Data subject to change without prior notice.
